SUN@HOME Panan Floor

Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
View all details
Product data sheet
Register for purchase here

PRODUCT DETAILS

Electrical data

Nominal wattage 41.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 168.000 mA
Inrush current 6.32 A
Max. number of luminaires per miniature circuit breaker B16 39
Max. number of luminaires per miniature circuit breaker C10 49
Max. number of luminaires per miniature circuit breaker C16 78
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode Mains voltage

Photometrical data

Luminous flux 2000 lm
Total luminous flux of contained light sources 3900 lm
Luminous efficacy 60 lm/W
Color temperature 2200…5000 K
Light color (designation) Tunable White
Color rendering index Ra > 95
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
UGR < 25

Dimensions & Weight

Length 400.00 mm
Height 1800.00 mm
Width 400.00 mm
Product weight 8100.00 g
Cable length 1860 mm

Materials & Colors

Product color White
Housing color White
Body material Metal
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Standing
Mounting location Floor
Application environment Indoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

Emergency lighting

Luminous flux in maintained operation mode -

Certificates & Standards

Standards CE
Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Automated biorhythm feature
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075575899 Folding box
1		 450 mm x 440 mm x 740 mm 11521.00 g 146.52 dm³
4058075575905 Shipping box
1		 763 mm x 473 mm x 467 mm 11600.00 g 168.54 dm³

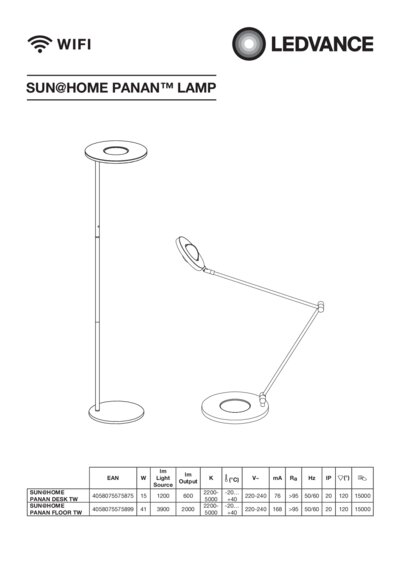

User instruction
SUN@HOME PANAN LAMP PDF (815.3 KB)
Packaging insert
SUN@HOME PDF (193.56 KB)

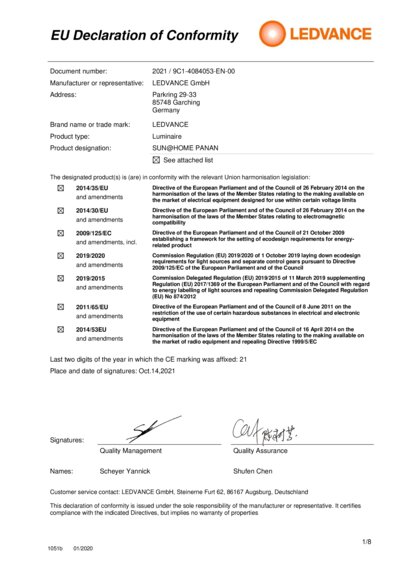

Declarations Of Conformity CE
SUN@HOME SMART+ PANAN wifi PDF (285.85 KB)

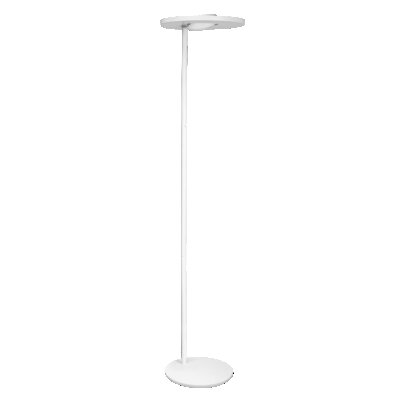

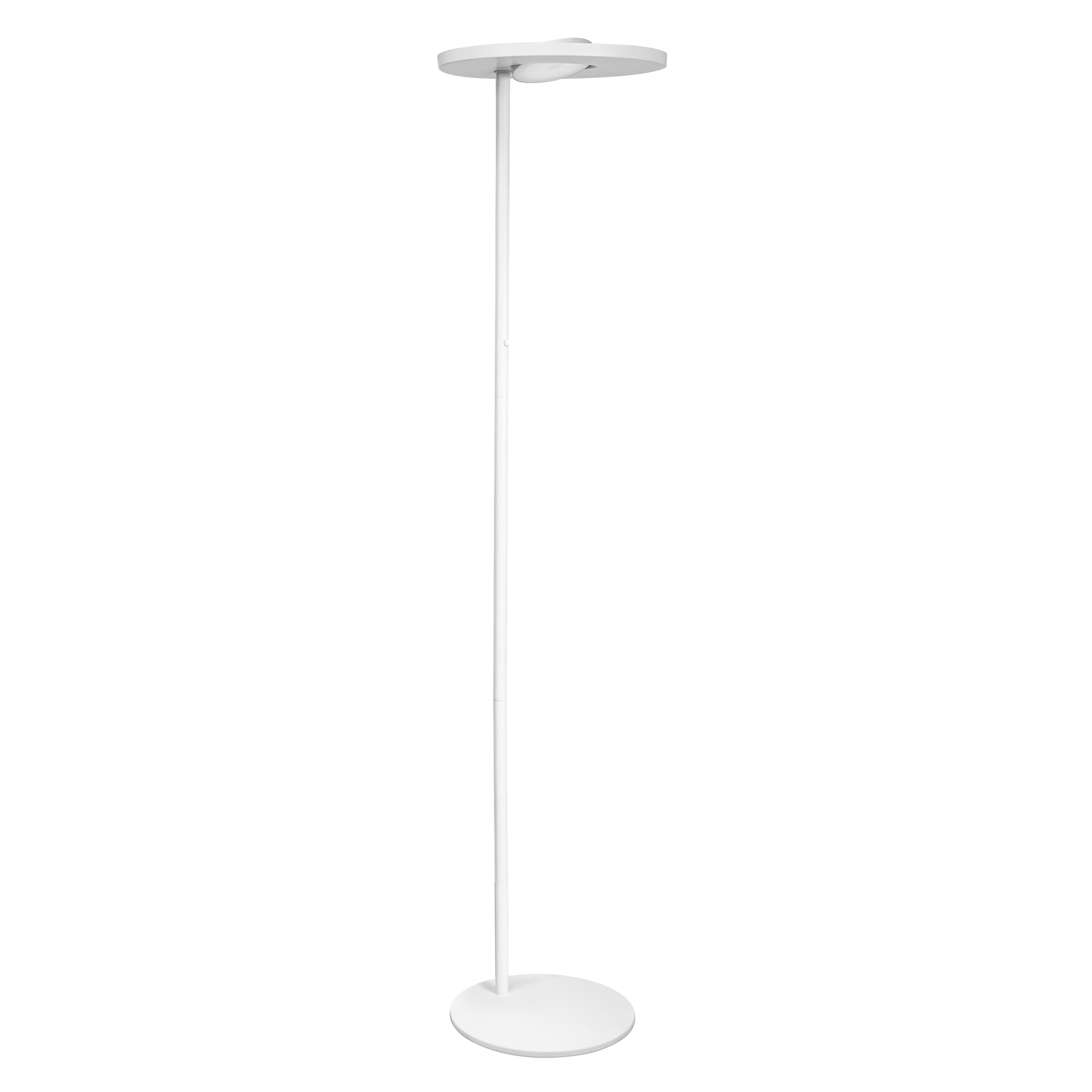

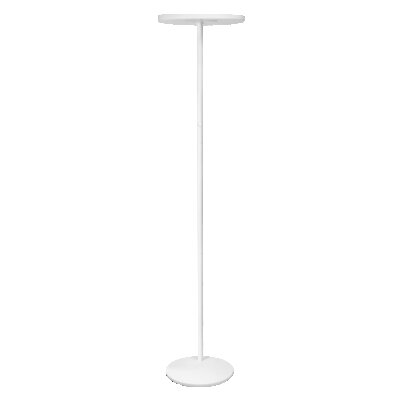

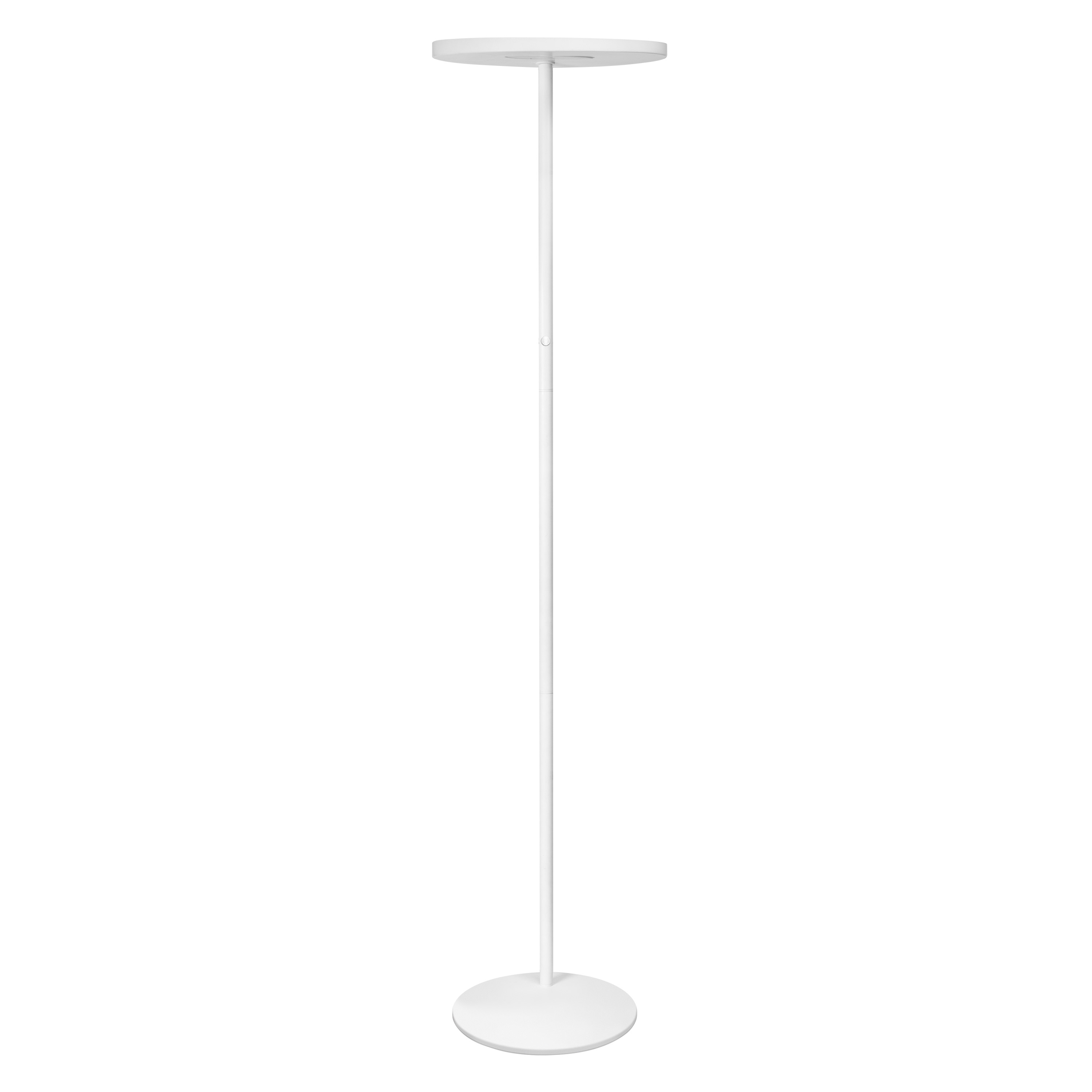

Background: white, upright
HCL SMART PANAN Floor Lamp TW JPG (317.21 KB)
Product line drawing with letters
HCL SMART PANAN Floor Lamp TW SVG (5.1 KB)
Product line drawing with numbers
HCL SMART PANAN Floor Lamp TW SVG (7.14 KB)
Prod.line drw, front, no dimensions
HCL SMART PANAN Floor Lamp TW SVG (2.5 KB)

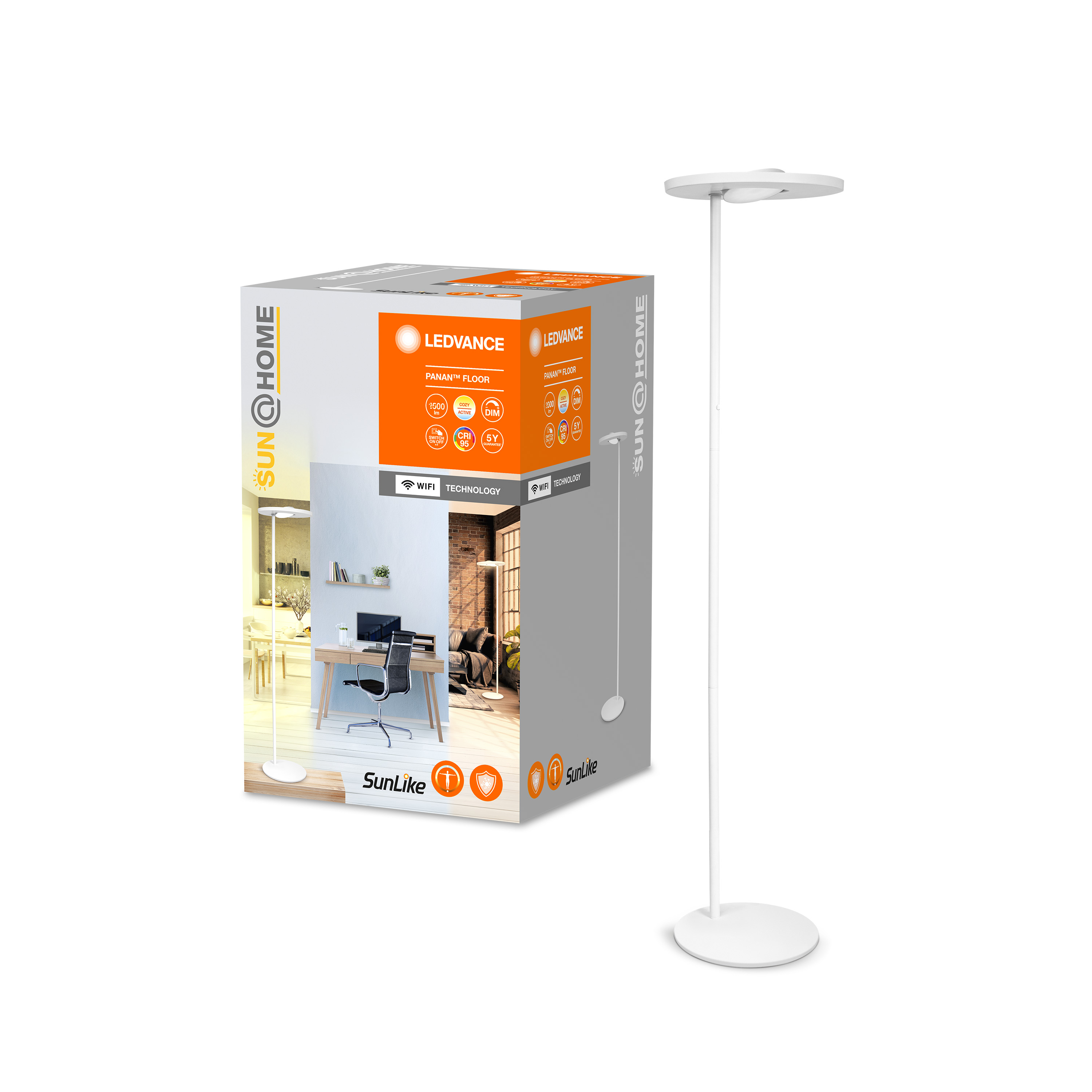

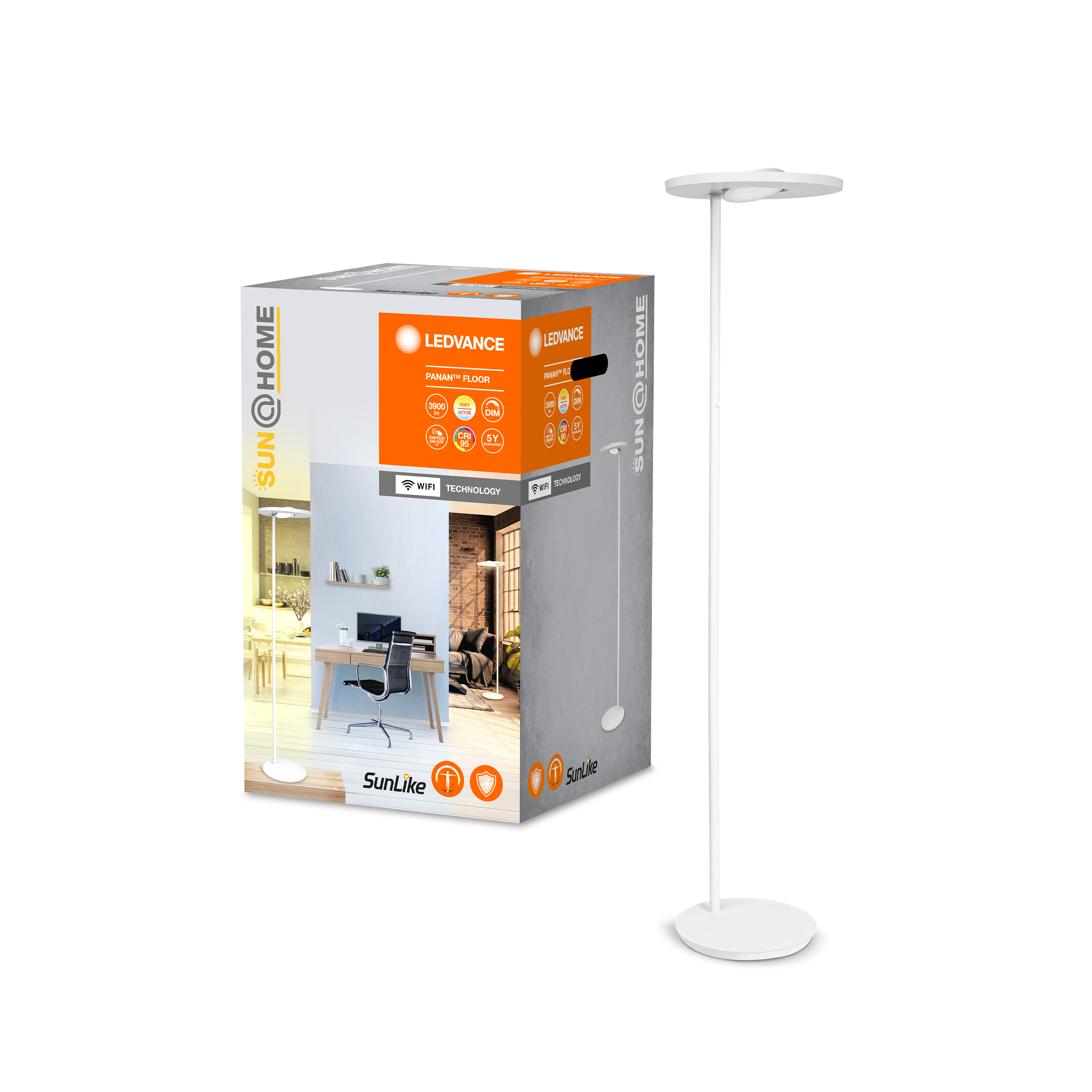

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PANAN FLOOR TW MiPRC JPG (687.08 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PANAN FLOOR TW MiPRC JPG (684.27 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PANAN FLOOR TW MiPRC JPG (692.51 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PANAN FLOOR TW MiPRC JPG (694.64 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI PANAN FLOOR TW MiPRC JPG (686.81 KB)

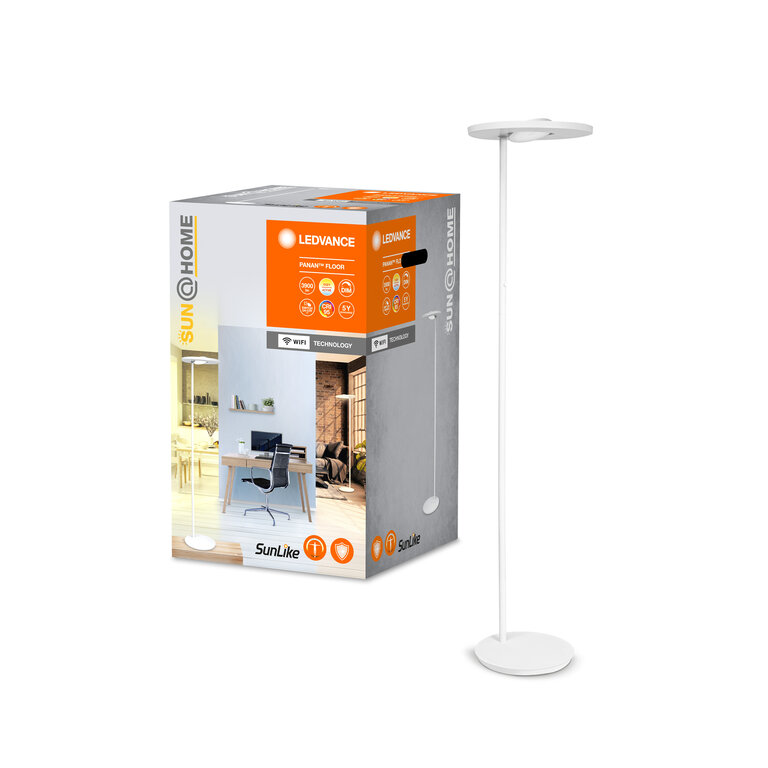

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SUN PANAN F LOOR TW MiPRC JPG (735.68 KB)

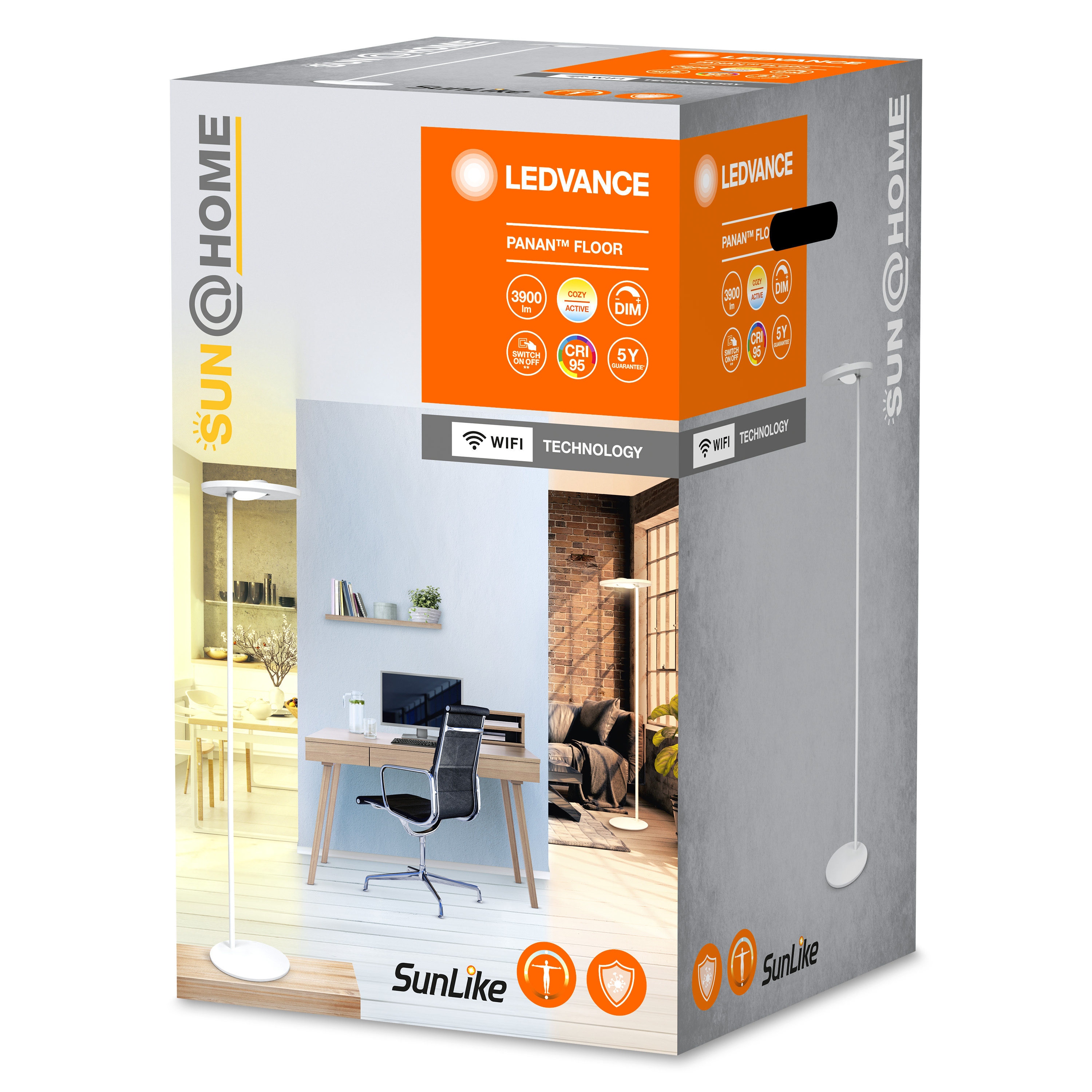

Packaging image, frontal
SH FC WIFI PANAN FLOOR TW MiPRC JPG (1.21 MB)
Packaging image, spacial
SH FC WIFI PANAN FLOOR TW MiPRC JPG (1.33 MB)
BIM_Step_3D
Sun@Home P floor STEP (1.04 MB)
Application Pictures
Sun at Home Familiy Co uch 2700K JPG (11.32 MB)
Application Pictures
SUN@HOME SMART Indoor HCL Packaging Front JPG (4.41 MB)

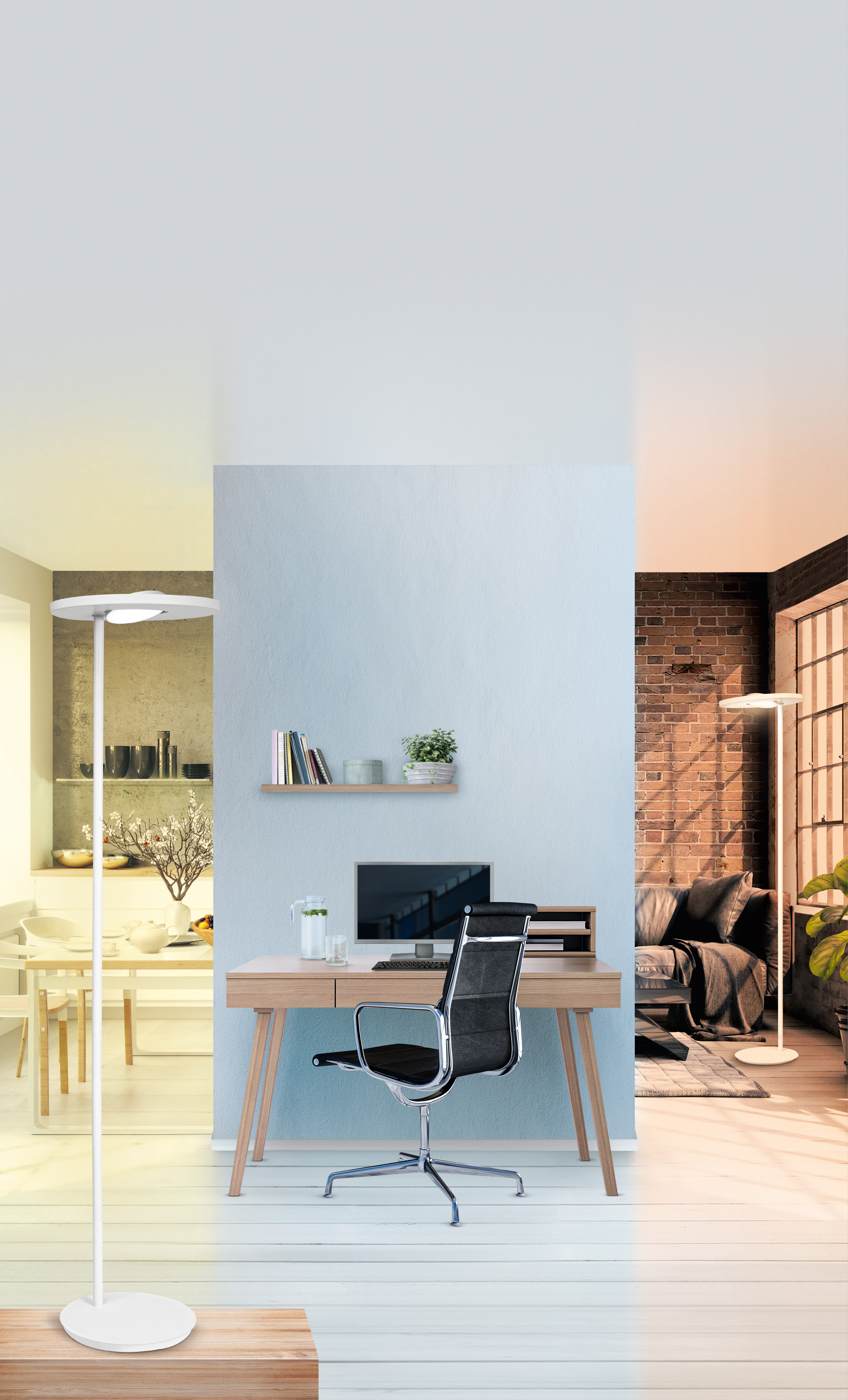

Application Pictures
SMART INDOOR WIFI HCL PANAN FLOOR LAMP JPG (6.23 MB)
Application Pictures
LDV SUN@HOME Key Visua l Couch overarching JPG (47.27 MB)
Application Pictures
LDV Sun@Home Key Visua l Home Office JPG (45.27 MB)
Application Pictures
Influencer livelikearc hi Instagram Campaign SUN@HOME JPG (548.07 KB)
Application Pictures
Influencer livelikearc hi Instagram Campaign SUN@HOME without logo JPG (546.49 KB)
Video
Woman transitioning fr om Outside to Inside d uring Fall MP4 (10.8 MB)
EAN EFO number
4058075575899 3311427
