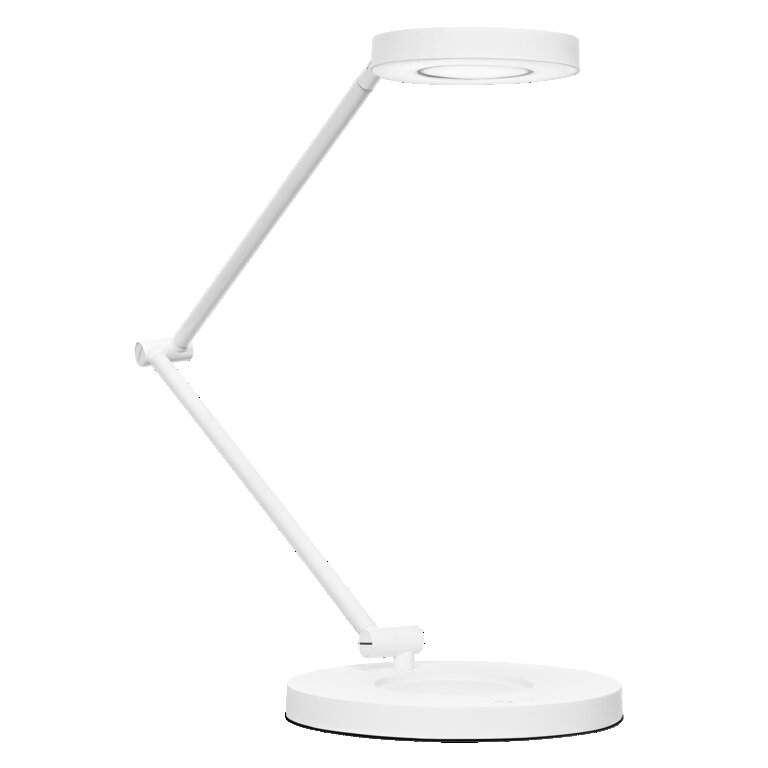

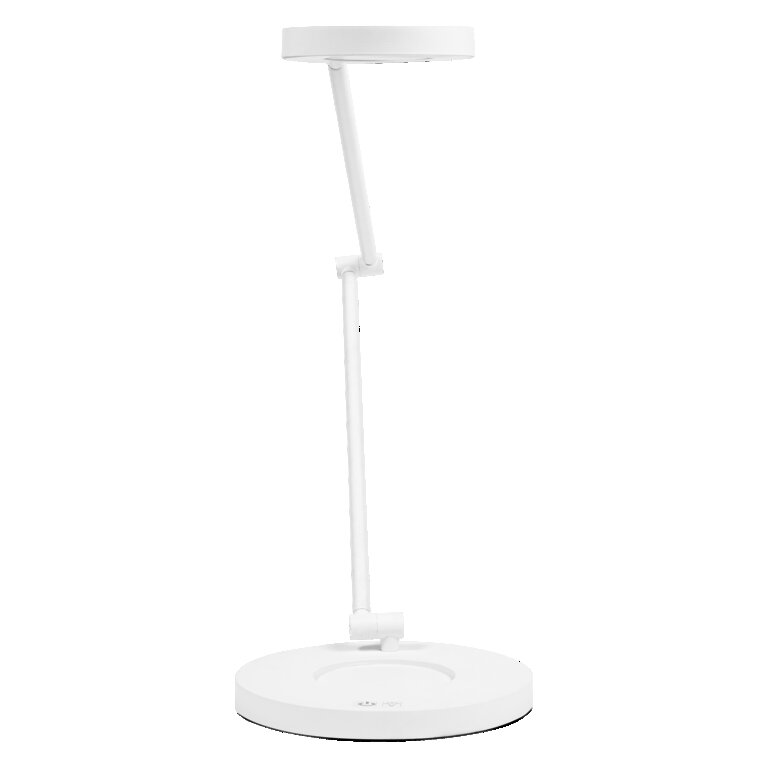

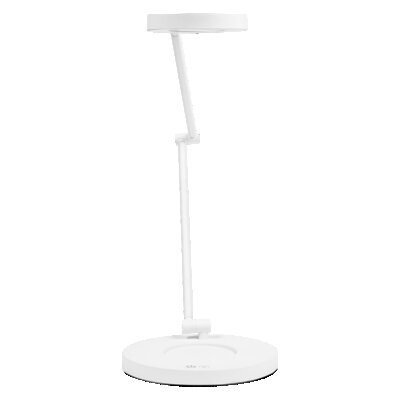

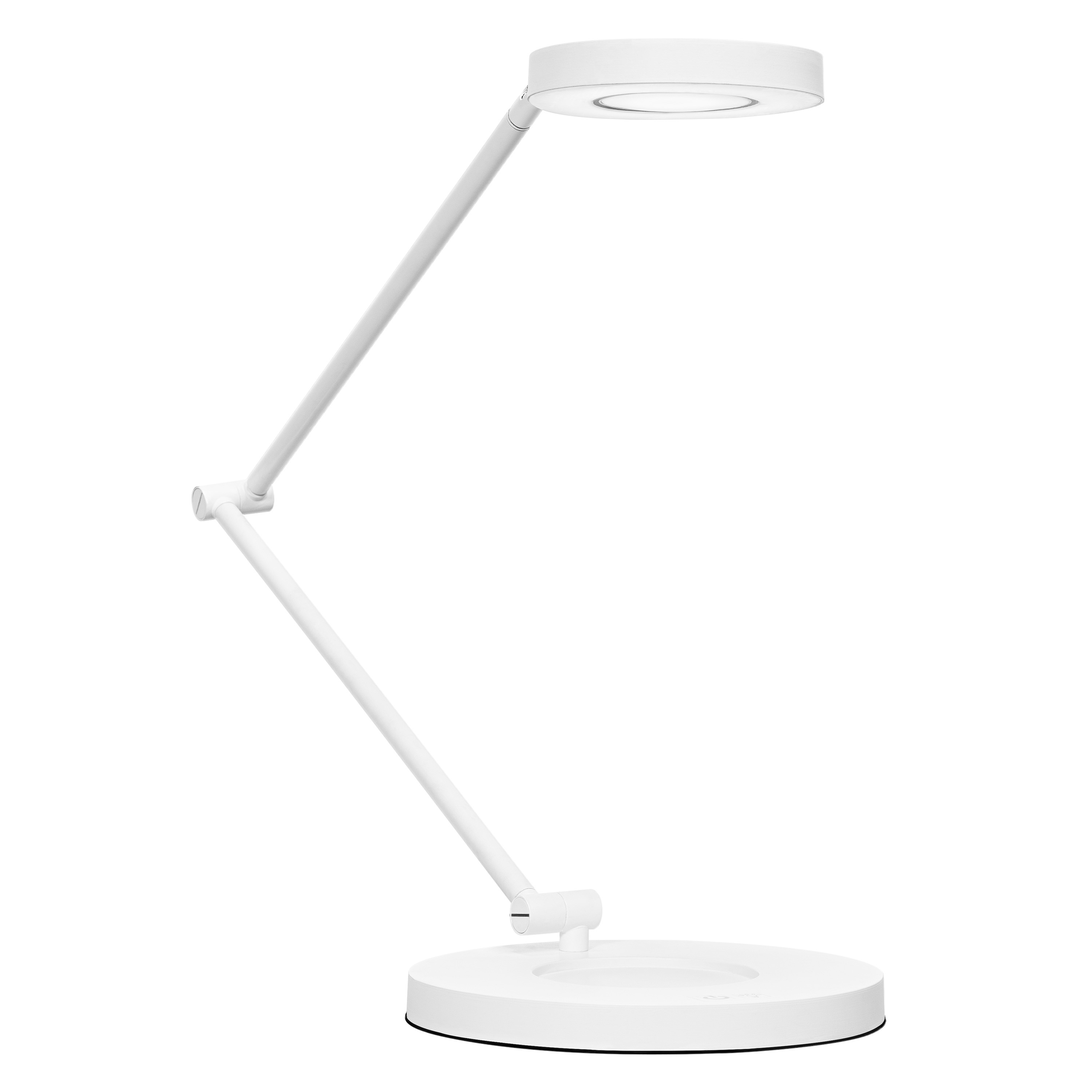

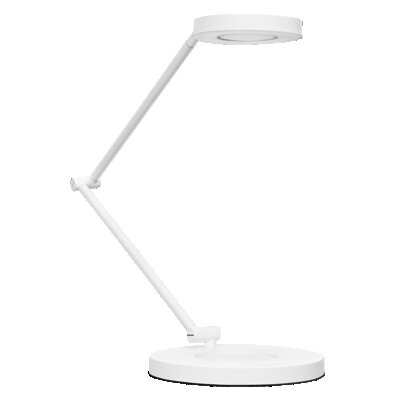

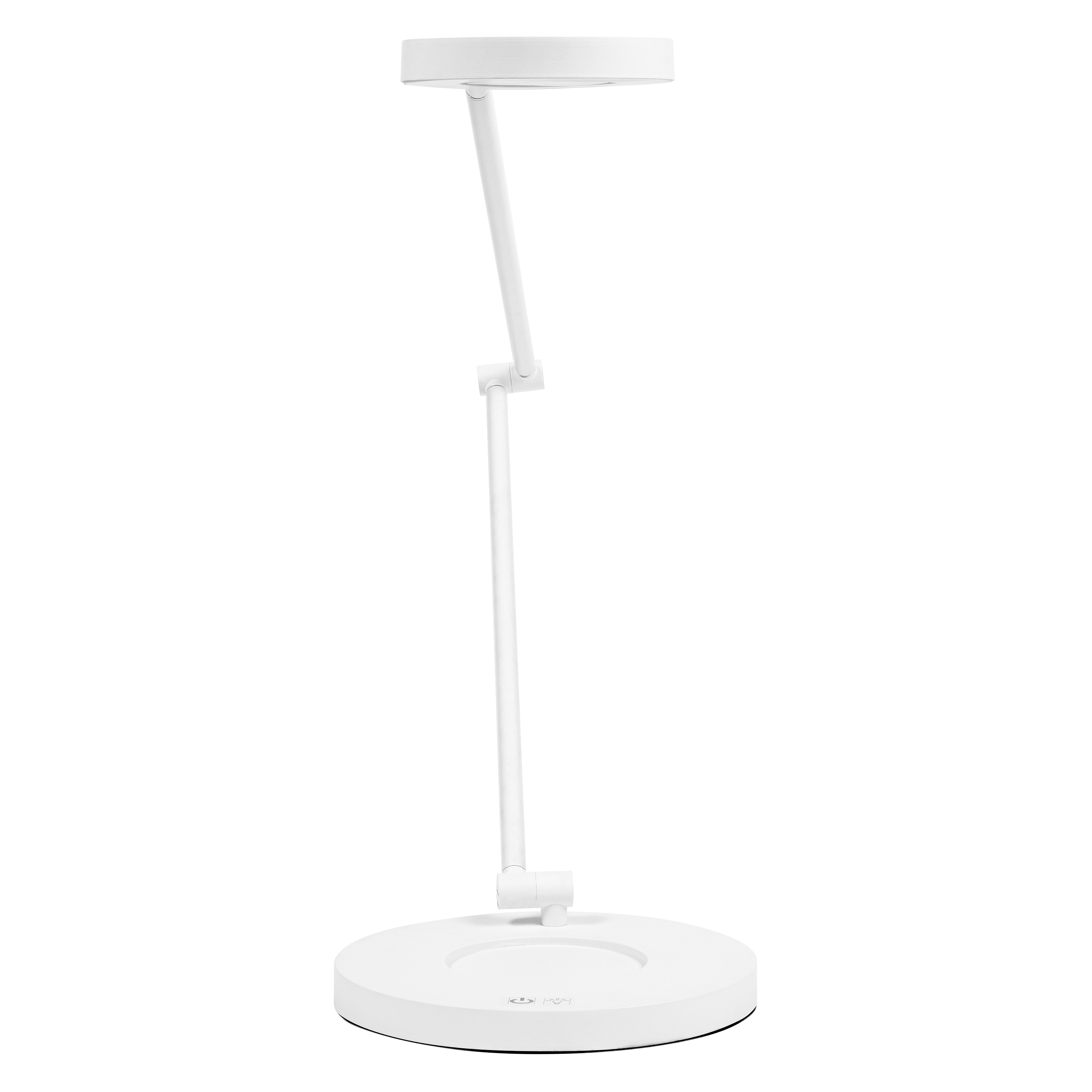

SUN@Home PANAN Desk

Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 76.000 mA
Inrush current 6.32 A
Max. no. of lum. on circuit break. B16 A 115
Max. no. of lum. on circuit break. C16 A 231
Max. no. of lum. on circuit break. C10 A 144
Power factor λ ≥0.5
Protection class II
Operating mode Mains voltage

Photometrical data

Luminous flux 600 lm
Total luminous flux of contained light sources 1200 lm
Luminous efficacy 60 lm/W
Color temperature 2200…5000 K
Light color (designation) Tunable White
Color rendering index Ra > 95
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 220.00 mm
Length 220.00 mm
Height 700.00 mm
Width 220.00 mm
Product weight 2000.00 g
Cable length 1800 mm

Materials & Colors

Product color White
Housing color White
Body material Metal
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming WiFi
Mounting type Standing
Mounting location Table
Application environment Indoor
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

Emergency lighting

Luminous flux in maintained operation mode -

Certificates & Standards

Standards CE
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

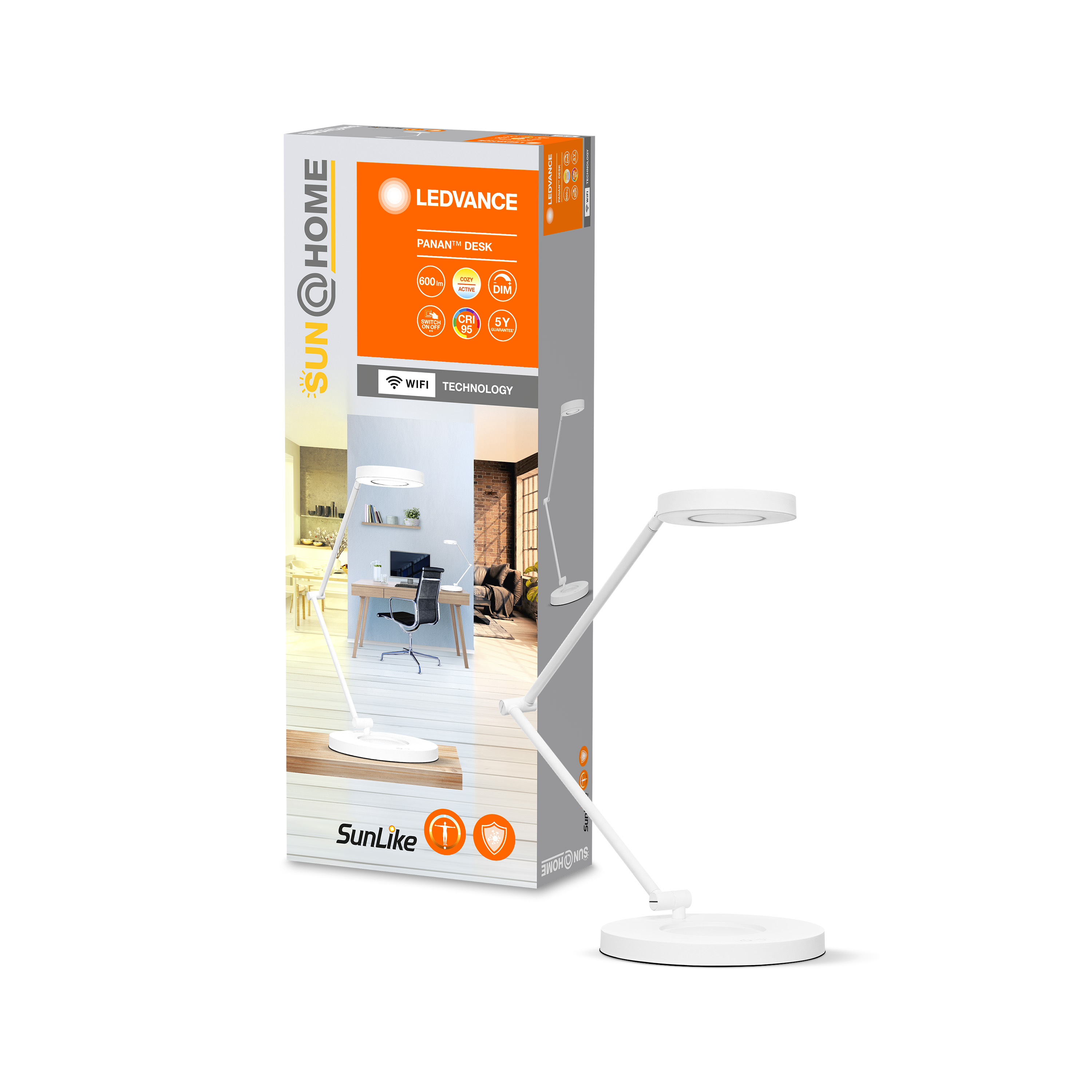

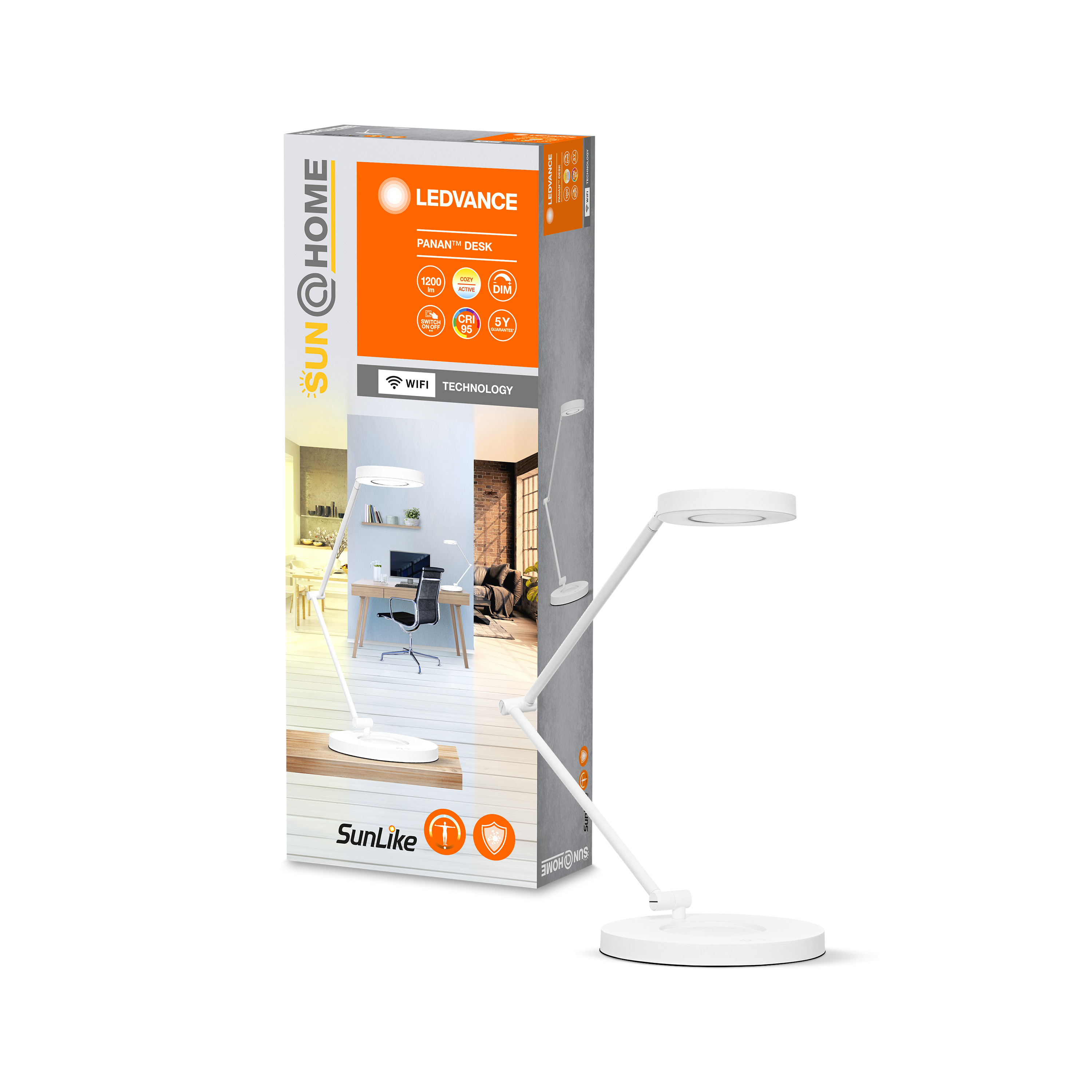

4058075575875 Folding box
1
112 mm x 252 mm x 653 mm 1638.00 g 18.43 dm³
4058075575882 Shipping box
4
471 mm x 274 mm x 680 mm 7683.00 g 87.76 dm³
EAN EFO number
4058075575875 3311428
Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Controllable via LEDVANCE SMART+ WiFi App (with minimum Android™️ 4.4 or iOS 10.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Automated biorhythm feature
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART + WiFi App, a smart phone or Tablet PC is required
  • Complete mounting and connecting accessories included
