FLOODLIGHT VALUE 100 W 4000 K IP65 BK

Product benefits
  • Energy savings of up to 80 % compared to halogen lamp floodlights
  • Semi-frosted, tempered glass cover for uniform illumination
  • Quick and simple installation thanks to low profile, compact and light weight design
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 100.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 550 mA
Inrush current 15.0 A
Inrush current time Th50 360 µs
Max. number of luminaires per miniature circuit breaker B16 12
Max. number of luminaires per miniature circuit breaker C10 12
Max. number of luminaires per miniature circuit breaker C16 20
Power factor λ ≥0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 9000 lm
Luminous efficacy 88 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 ° x 110 °

Dimensions & Weight

Length 223.00 mm
Height 43.00 mm
Width 191.00 mm
Product weight 3500.00 g
Cable length 1000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling, Floor
Application environment Outdoor
Adjustable Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 10000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

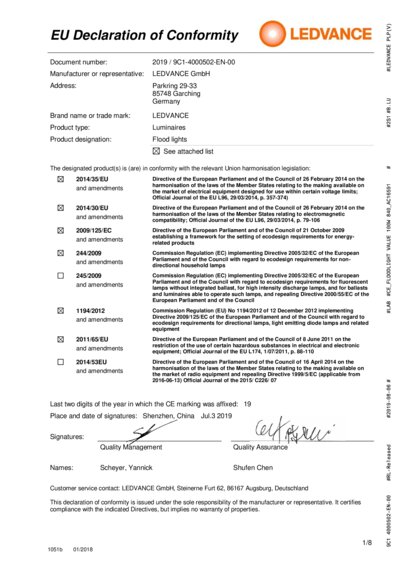

Standards CE, CB, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 80 % compared to halogen lamp floodlights
  • Semi-frosted, tempered glass cover for uniform illumination
  • Quick and simple installation thanks to low profile, compact and light weight design
  • 3 years guarantee
Areas of application
  • Replacement for floodlights with halogen lamps
  • Car parks and underpasses
  • Public areas
  • Building facades
  • Construction areas
Product features
  • Luminous efficacy: up to 90 lm/W
  • Symmetrical beam angle: 110° x 110°

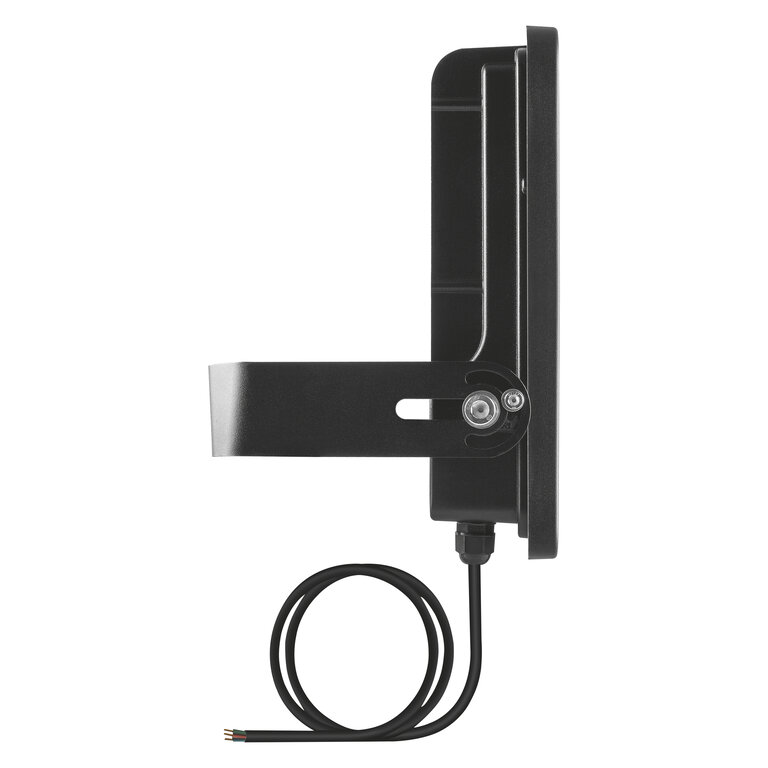

  • Mounting bracket for up to 180° tilting
  • Type of protection: IP65
  • Impact resistance: IK06 (10 W to 50 W), IK08 (from 100 W)
  • Ambient temperature in operation: -20…+45 °C
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075268661 Folding box
1
120 mm x 326 mm x 375 mm 3569.00 g 14.67 dm³
4058075268678 Shipping box
2
340 mm x 255 mm x 395 mm 2656.00 g 34.25 dm³
