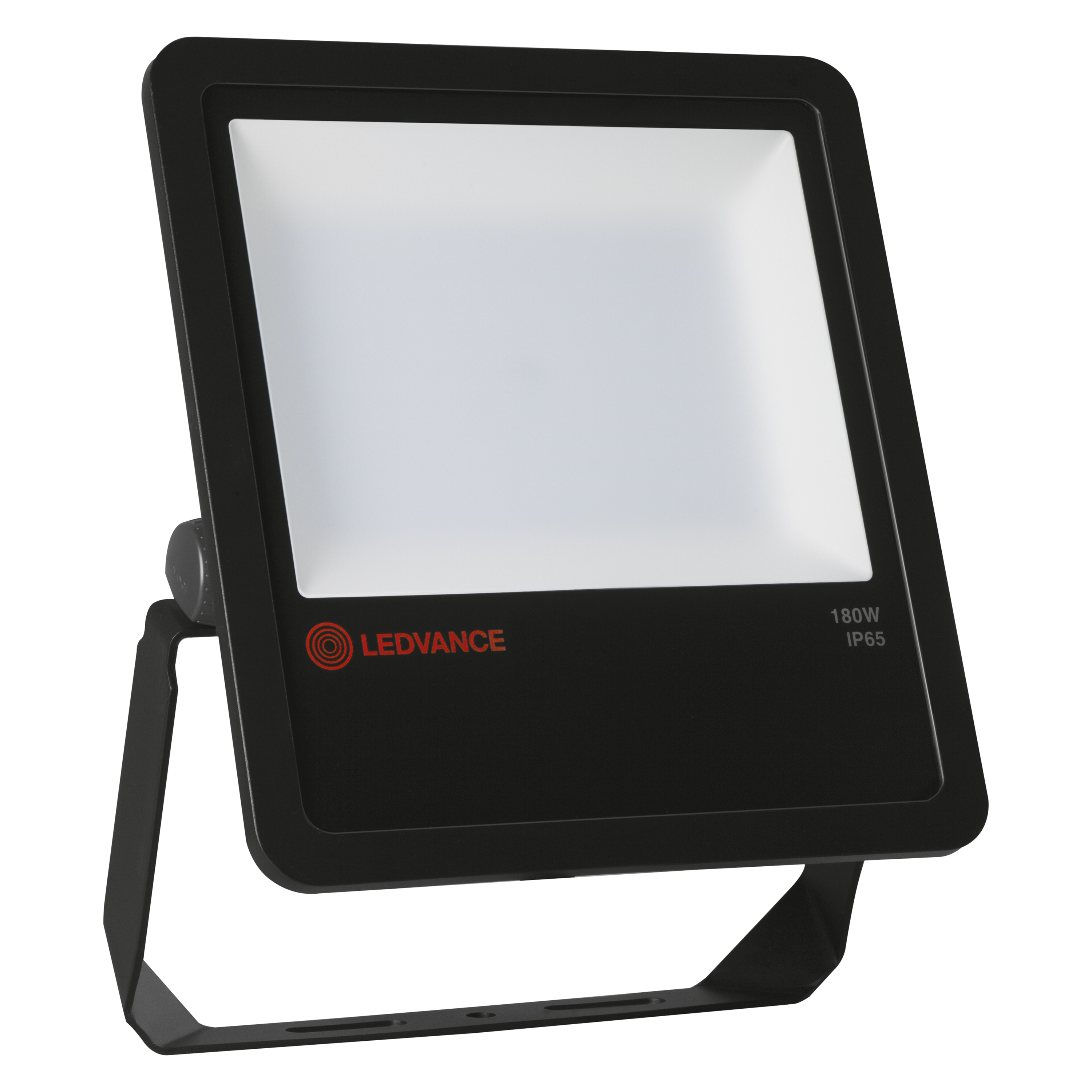

FLOODLIGHT 180 W 4000 K IP65 BK

Product benefits
  • Frosted cover made of tempered glass for uniform illumination
  • Optimized weight and size due to compact design
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 5 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 180.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 820 mA
Inrush current 68 A
Inrush current time Th50 1000 µs
Max. number of luminaires per miniature circuit breaker B16 10
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 20000 lm
Luminous efficacy 110 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 100 ° x 100 °

Dimensions & Weight

Length 340.00 mm
Height 81.00 mm
Width 310.00 mm
Product weight 4900.00 g
Cable length 1000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Tempered glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 30000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 790 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Frosted cover made of tempered glass for uniform illumination
  • Optimized weight and size due to compact design
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 5 years guarantee
Areas of application
  • Replacement for floodlights with halogen lamps
  • Garages
  • Public areas
  • Building facades
  • Construction areas
  • D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
Product features
  • Luminaire efficacy: up to 110 lm/W
  • Symmetrical beam angle: 100° x 100°
  • Mounting bracket for up to 180° tilting
  • Type of protection: IP65
  • Impact resistance: IK08
  • Ambient temperature in operation: -20…+50 °C
  • Connection via 1 m cable, wiring required
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075097728 Shipping box
1
423 mm x 355 mm x 144 mm 5559.00 g 21.62 dm³
EAN SEG number STK number EFO number ELDAS number
4058075097728 7764757 4567457 3201924 941500230
