PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	50.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	240 mA
Inrush current	20 A
Inrush current time T_h50	1500 µs
Max. number of luminaires per miniature circuit breaker B16	4
Max. number of luminaires per miniature circuit breaker C10	4
Max. number of luminaires per miniature circuit breaker C16	7
Power factor λ	> 0.90
Total harmonic distortion	< 25 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	5250 lm
Luminous efficacy	105 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	≥80
Standard deviation of color matching	≤5 sdcm
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG0
Beam angle	100 ° x 100 °

Dimensions & Weight

Length	155.00 mm
Height	46.00 mm
Width	180.00 mm
Product weight	930.00 g
Cable length	1000 mm

Materials & Colors

Product color	Black
Housing color	Black
Body material	Aluminum\|Polycarbonate (PC)
Cover material	Tempered glass
Light emitting surface material	Glass
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+50 °C
Type of connection	Cable, 3-pole
Type of protection	IP65
Protection class IK (shock resistance)	IK07
Dimmable	No
Mounting type	Surface
Mounting location	Wall, Ceiling, Floor
Application environment	Outdoor
Adjustable	Yes

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Lifespan L80/B10 at 25 °C	30000 h ¹⁾
Lifespan L90/B10 at 25 °C	15000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

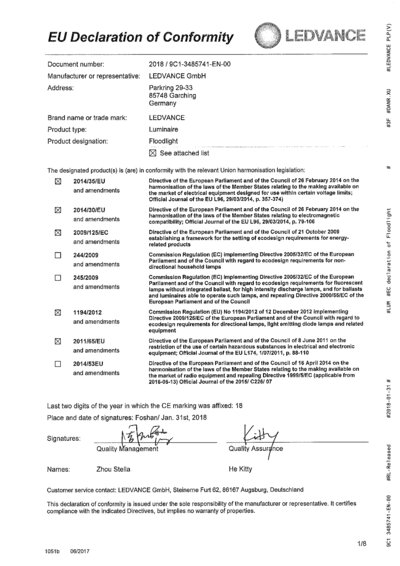

Certificates & Standards

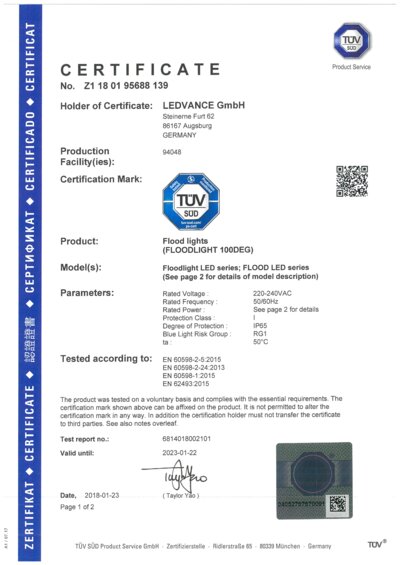

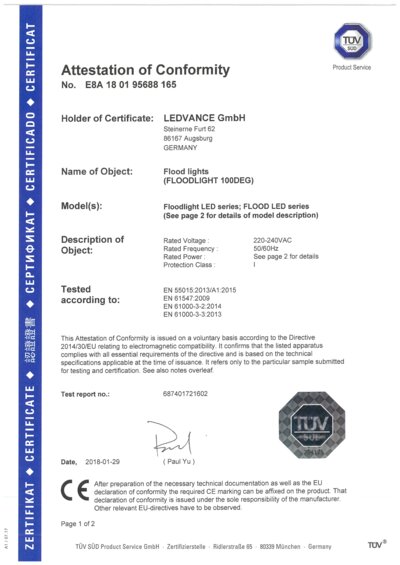

Standards	CE, CB, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

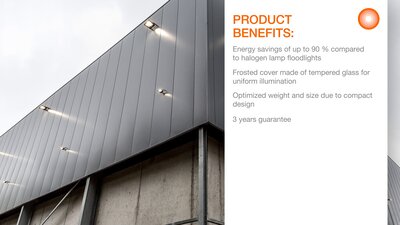

Product benefits

Frosted cover made of tempered glass for uniform illumination
Optimized weight and size due to compact design
No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Energy savings of up to 90 % compared to halogen lamp floodlights
3 years guarantee

Areas of application

Replacement for floodlights with halogen lamps
Car parks and underpasses
Garages
Public areas
Building facades
Construction areas
D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust

Product features

Luminaire efficacy: up to 110 lm/W
Symmetrical beam angle: 100° x 100°
Mounting bracket for up to 180° tilting
Type of protection: IP65
Impact resistance: IK07
Ambient temperature in operation: -20…+50 °C
Connection via 1 m cable, wiring required

References / Links

For Guarantee see www.ledvance.com/guarantee

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075097568	Folding box 1	52 mm x 186 mm x 207 mm	999.00 g	2.00 dm³
4058075097575	Shipping box 10	393 mm x 285 mm x 238 mm	10690.00 g	26.66 dm³

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number
4058075097568	7764747	4567447	3201914	941500120

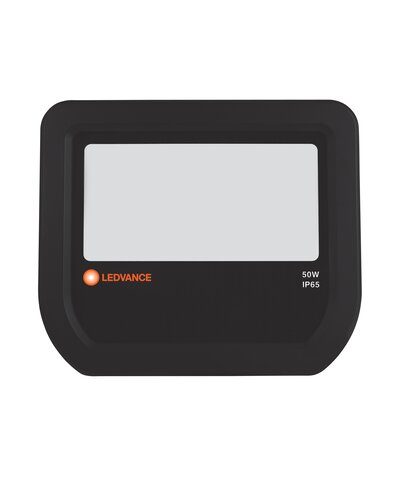

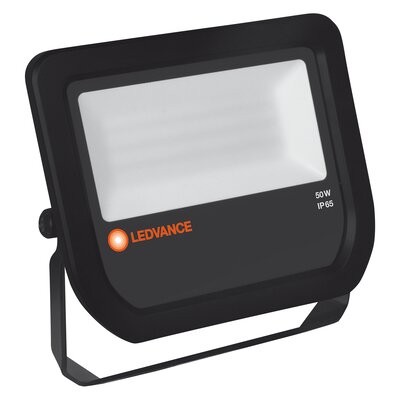

FLOODLIGHT 50 W 3000 K IP65 BK
