HB 95 W 4000 K 90DEG IP65 BK

Product benefits
  • High luminous efficacy
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 95.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 440 mA
Inrush current 56 A
Inrush current time Th50 300 µs
Max. number of luminaires per miniature circuit breaker B16 7
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ ≥0.95
Total harmonic distortion < 10 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 13000 lm
Luminous efficacy 135 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 °

Dimensions & Weight

Diameter 285.00 mm
Height 129.50 mm
Product weight 3135.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Adjustable Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 400 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High luminous efficacy
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Luminous efficacy: up to 135 lm/W
  • Type of protection: IP65
  • Available with beam angle: 70°, 90°, 110°
Equipment / Accessories
  • Mounting hook and brackets included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075074330 Shipping box
1		 335 mm x 335 mm x 188 mm 4034.00 g 21.10 dm³
User instruction / safety instructions

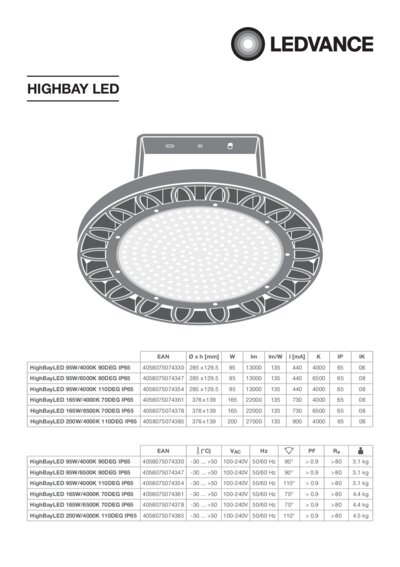

User Instruction HighB ay LED PDF (3.59 MB)
On-Pack-Info

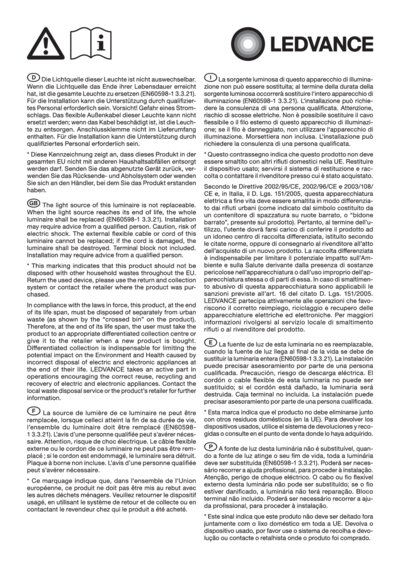

Legal Insert HIGH BAY LED PDF (4.7 MB)
Declarations of conformity

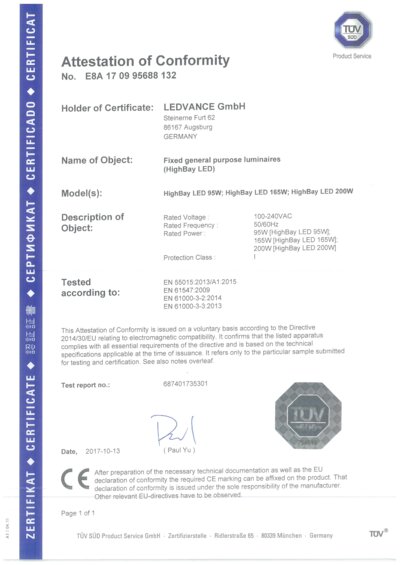

Attestation-of-Conform ity HighBay LED TÜV PDF (531.61 KB)

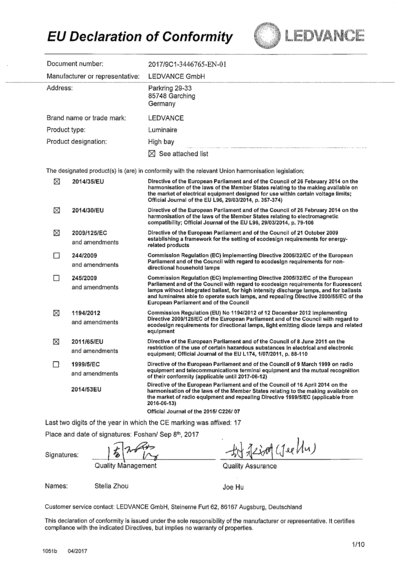

Declarations of conformity
EC declaration HighBa y PDF (915.81 KB)

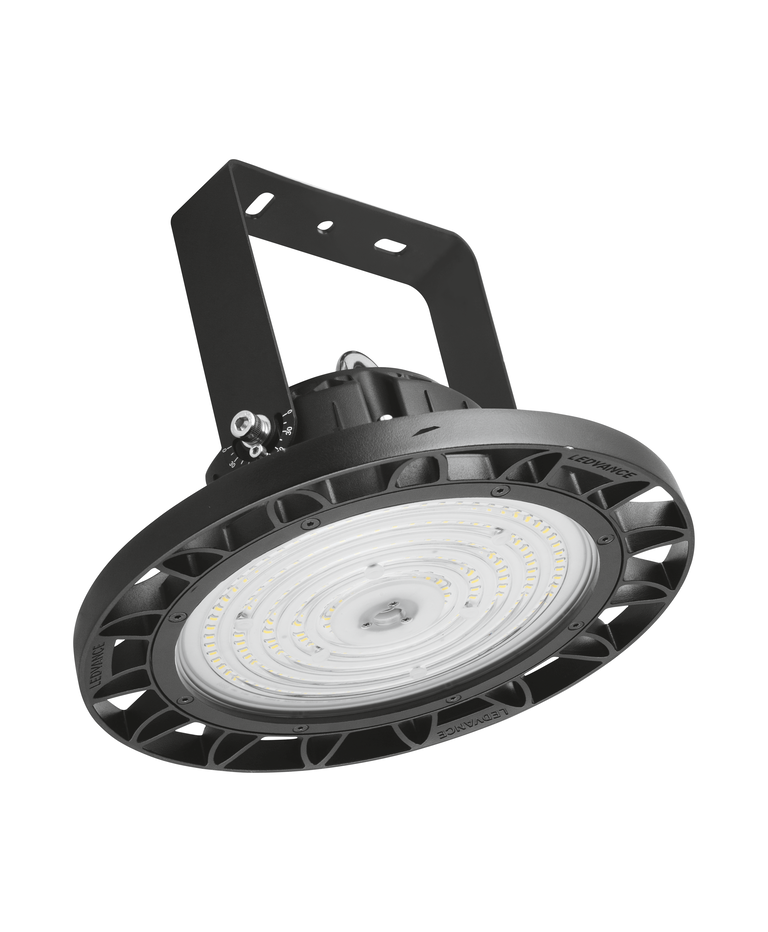

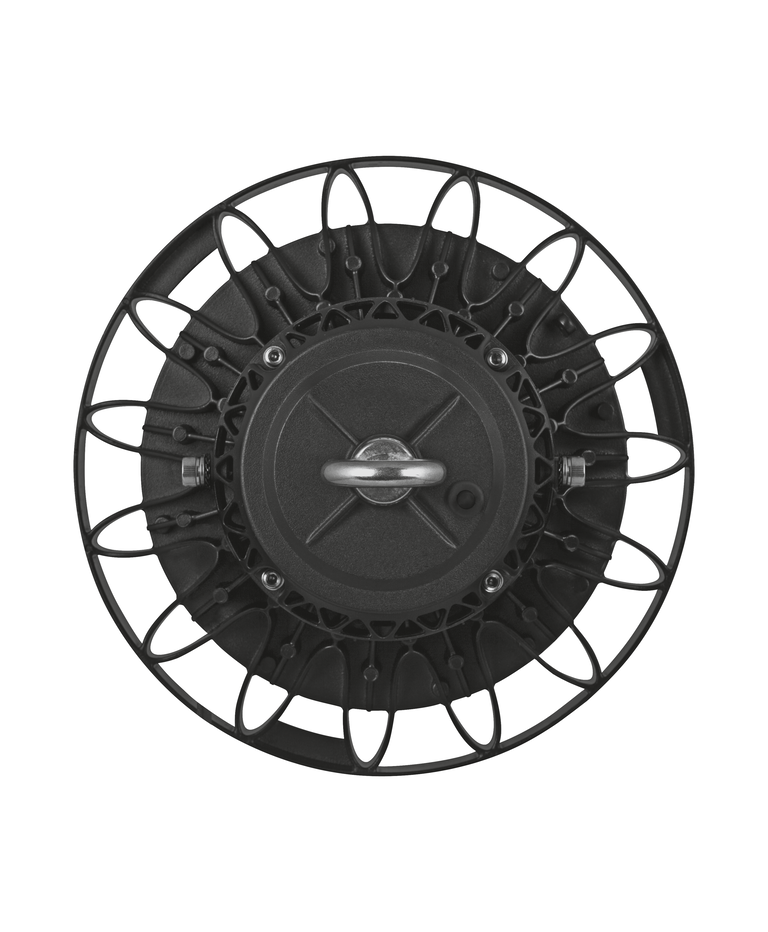

Product image: white background, horizontal
HighBayLED 95W 90DEG I P65 TIF (97.51 MB)

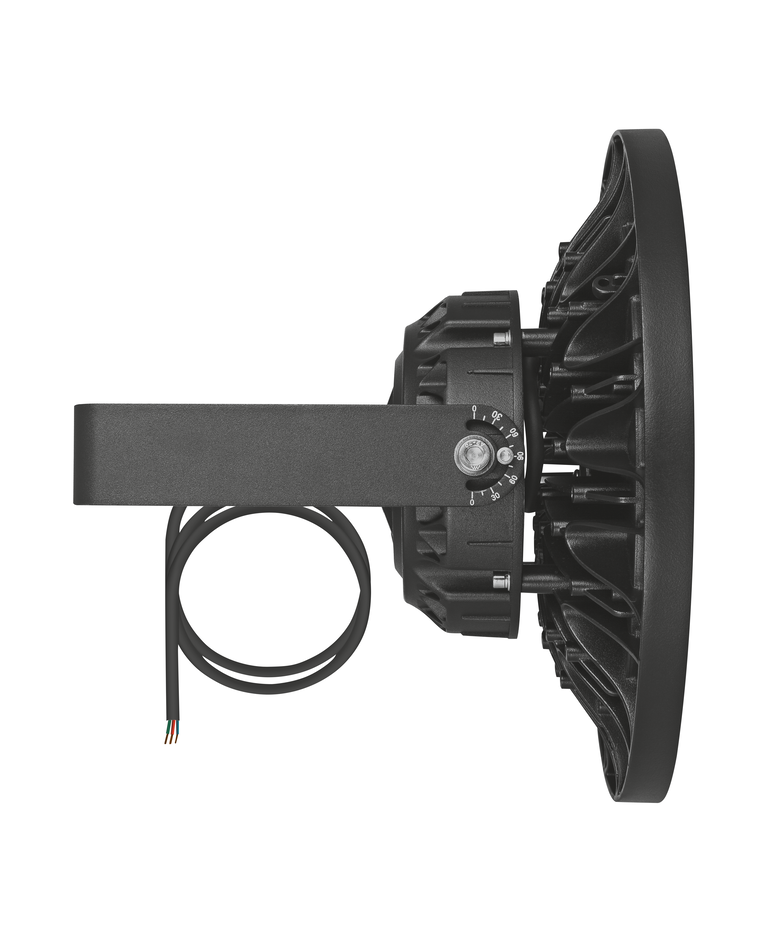

Product image: white background, upright
HighBayLED 95W 90DEG I P65 TIF (5.41 MB)

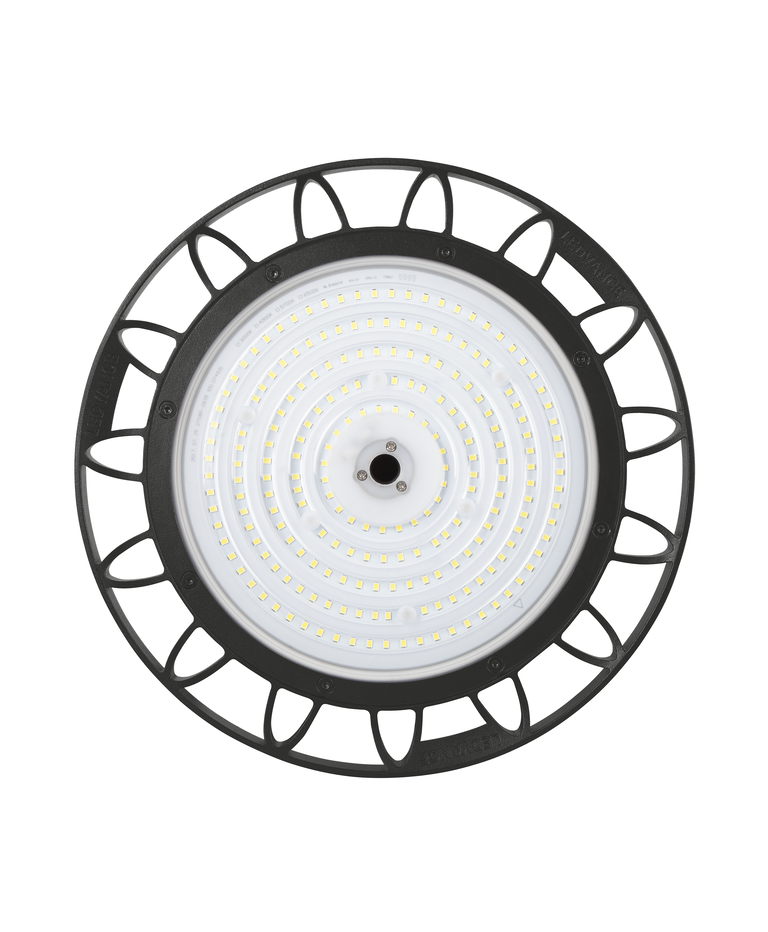

Product image: white background, spacial
HighBayLED 95W 90DEG I P65 TIF (78.72 MB)
Product line drawing with letters
HighBayLED 95W 90DEG I P65 SVG (48.13 KB)
Product line drawing with numbers
HighBayLED 95W 90DEG I P65 SVG (48.56 KB)

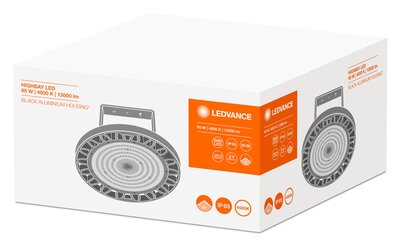

Packaging image, spacial
HighBay LED 95W 840 90 DEG MiCh Side TIF (18.07 MB)
Catalog info 1
HighBay LED SVG (53.22 KB)
IES file (IES)
HighBayLED 95W 4000K 9 0DEG IP65 IES (7.11 KB)
LDT file (Eulumdat)
HighBayLED 95W 4000K 9 0DEG IP65 LDT (7.27 KB)
ULD file (DIALux)
HIGHBAYGen295W4000K90D EGIP65BK ULD (3.66 MB)

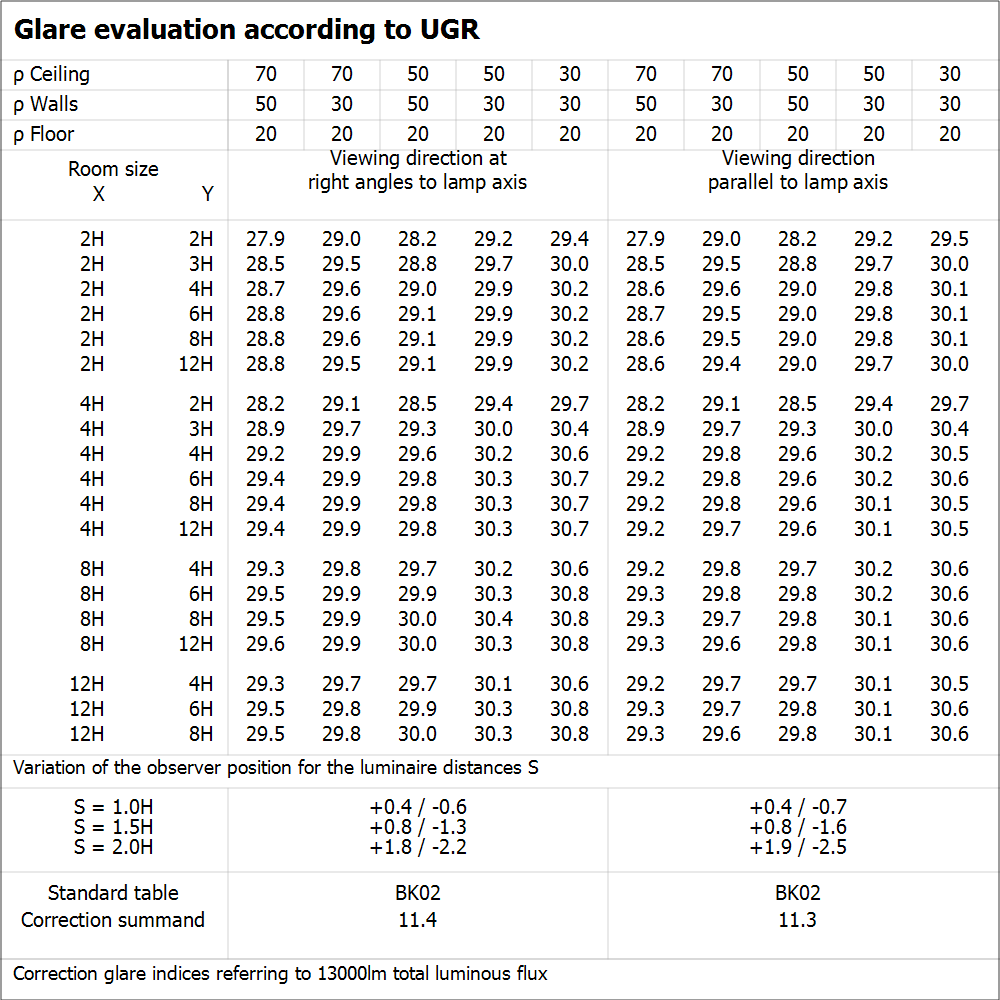

UGR file (UGR table)
4058075074330 HighBayL ED 95W 4000K 90DEG IP6 5 PNG (59.99 KB)
Light distribution curve type cone
4058075074330 HighBayL ED 95W 4000K 90DEG IP6 5 SVG (83.87 KB)
Light distribution curve type polar
4058075074330 HighBayL ED 95W 4000K 90DEG IP6 5 SVG (239.87 KB)

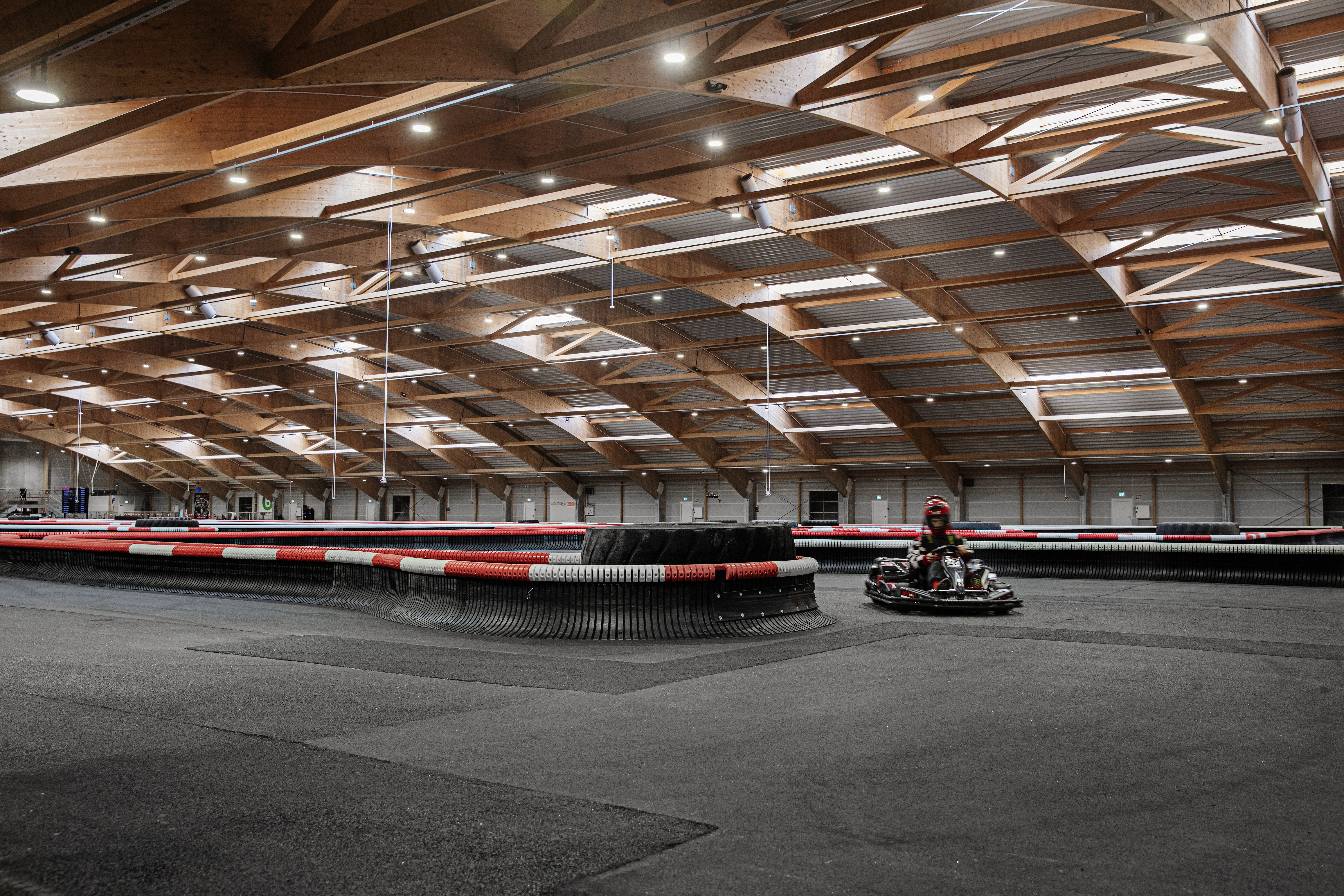

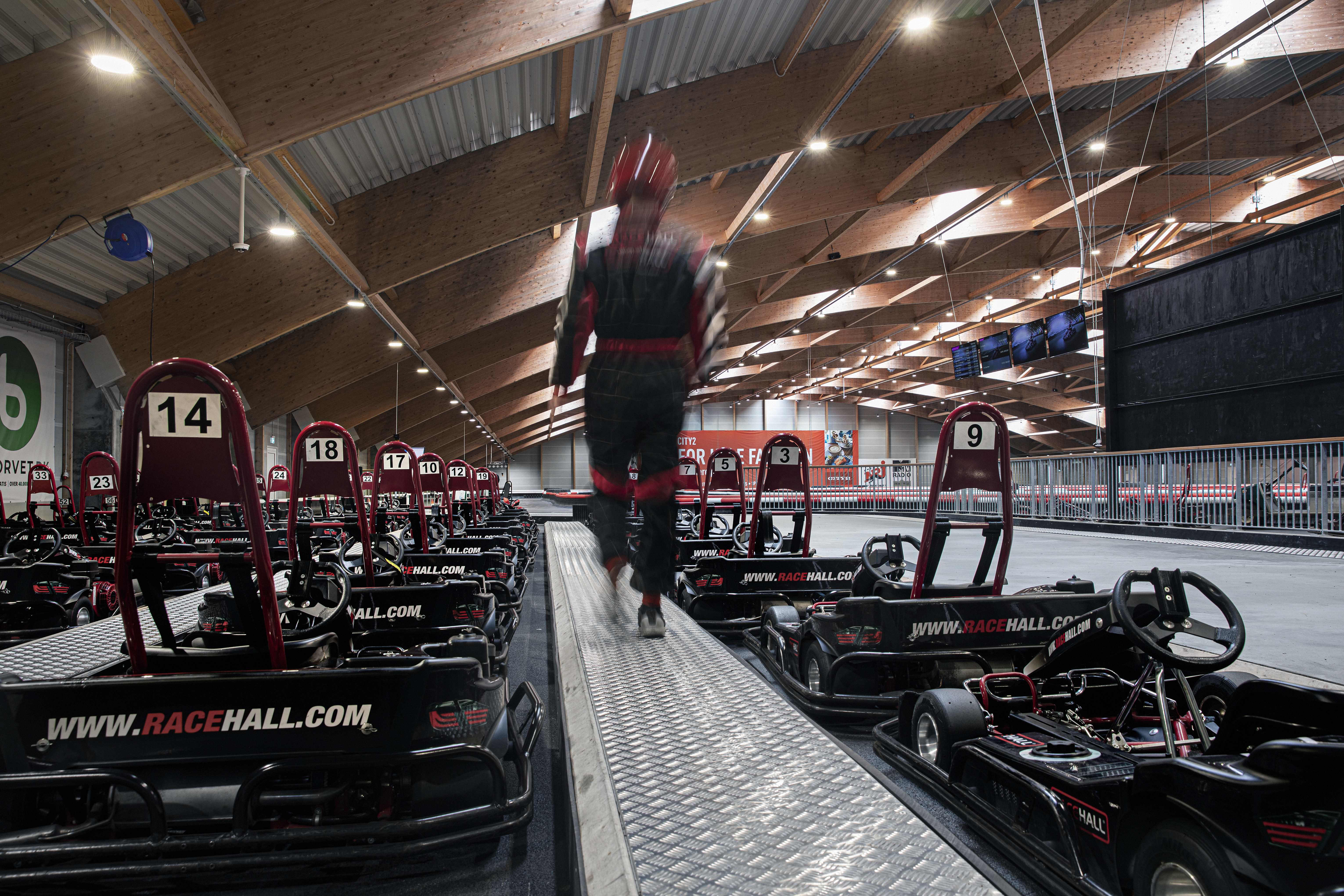

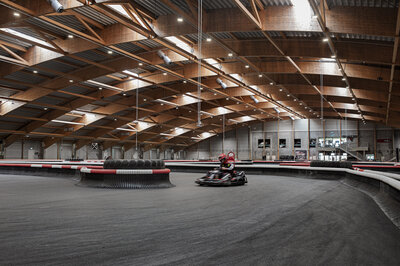

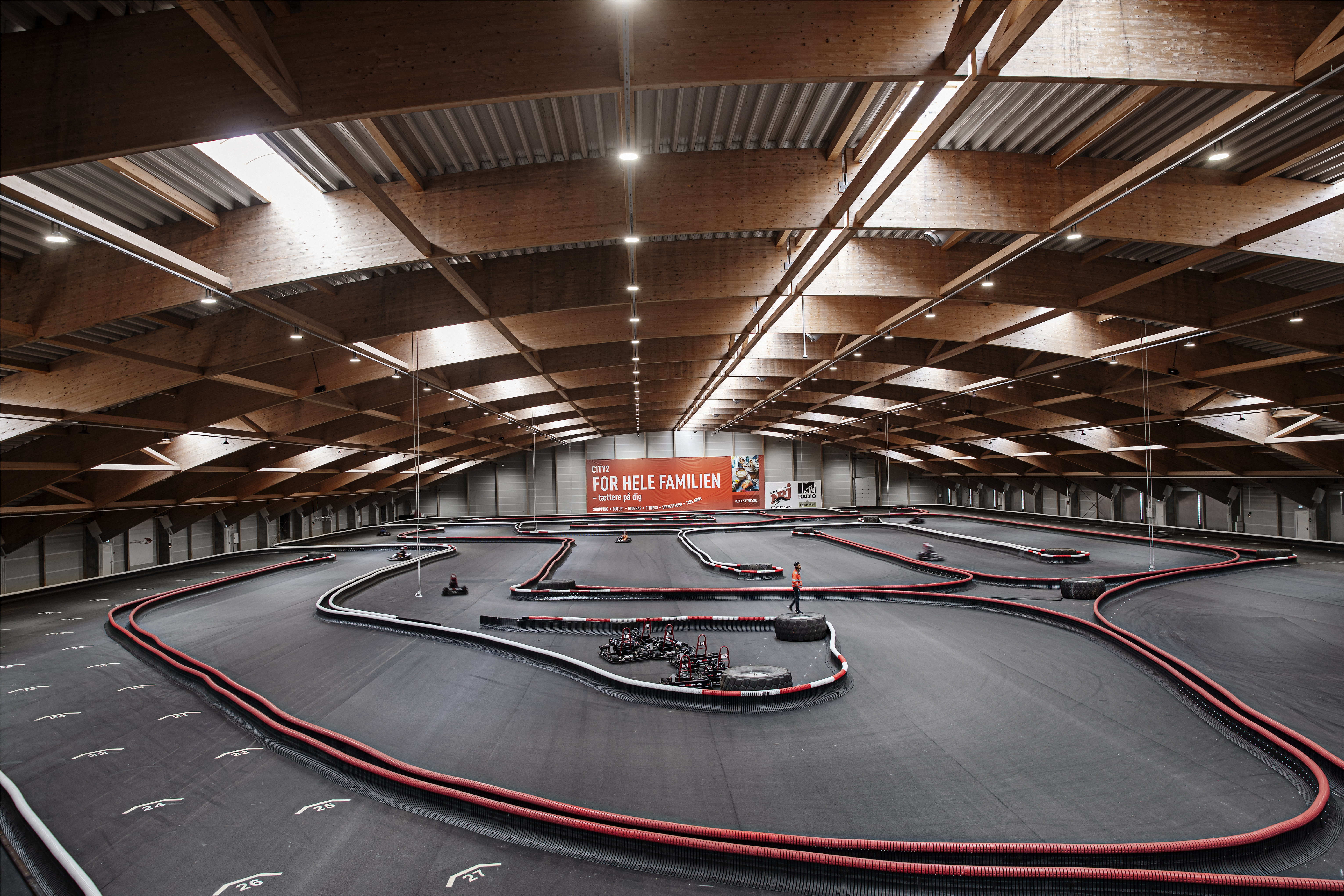

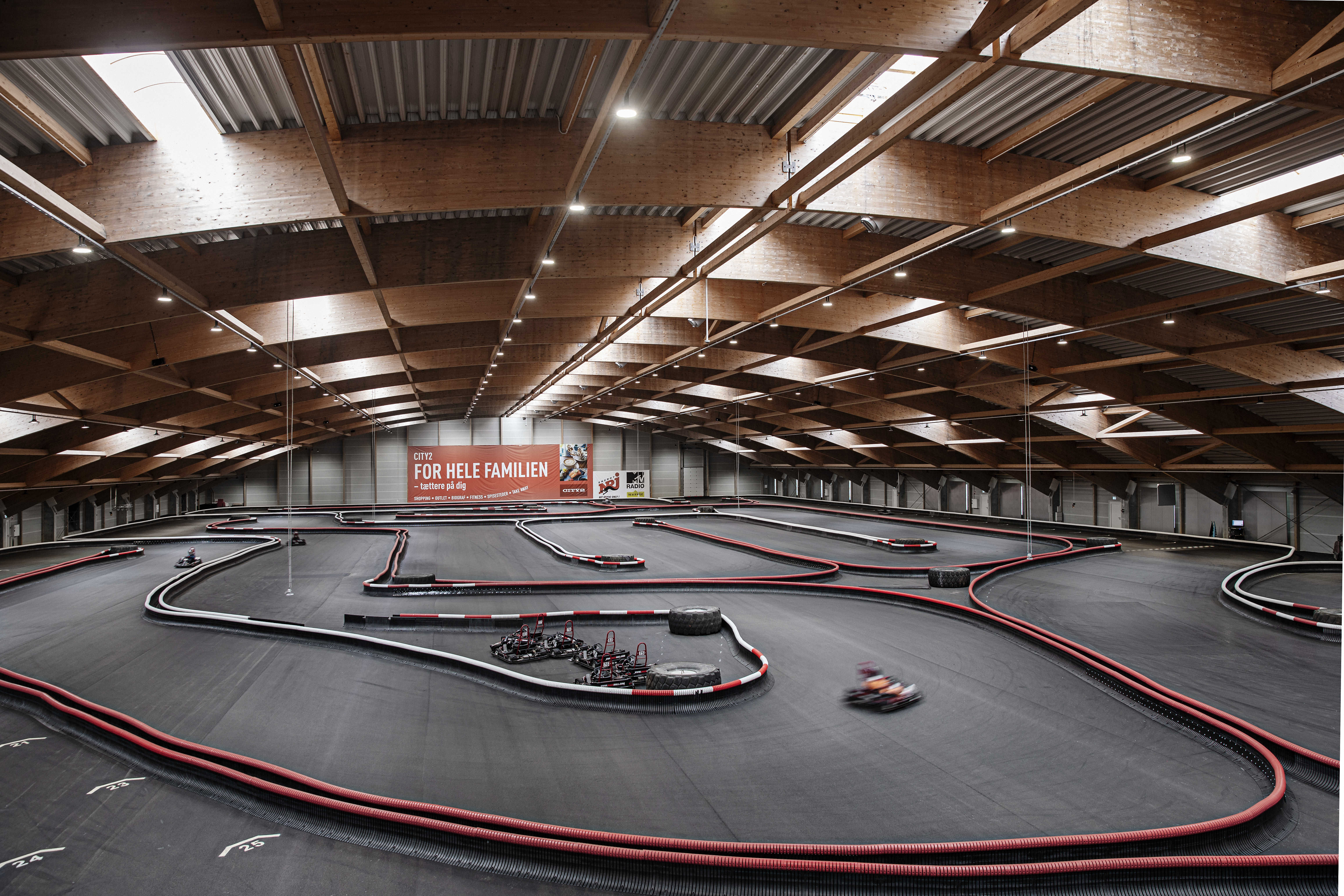

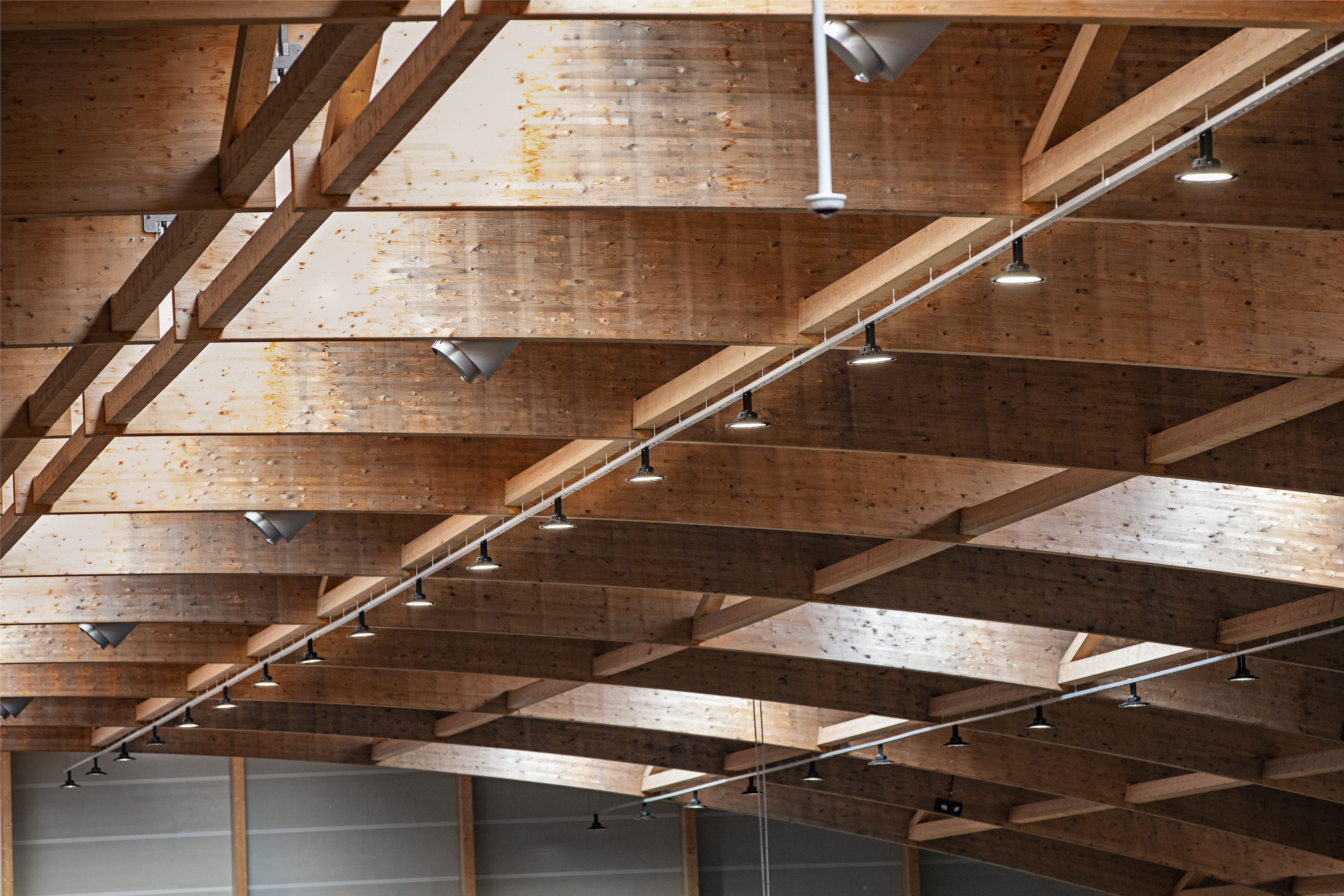

Application pictures
Racehall CPH JPG (17.91 MB)
Application pictures
Racehall CPH JPG (20.19 MB)
Application pictures
Racehall CPH JPG (22.76 MB)
Application pictures
Racehall CPH JPG (18.41 MB)
Application pictures
Racehall CPH JPG (18.61 MB)
Application pictures
Racehall CPH JPG (23.31 MB)

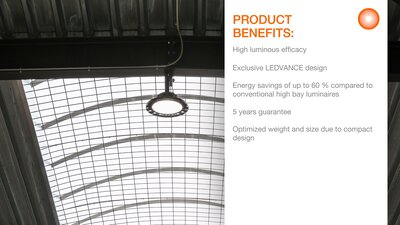

Video
LEDVANCE High Bay EN MP4 (74.47 MB)
EAN SEG number STK number EFO number ELDAS number
4058075074330 7214035 4295694 3206994 941465300
