LS PFM -1000/RGBW/865/5

Product benefits
  • Great scope of design options due to long and flexible RGBW LED strips
  • Easy installation, no tools required for connection
  • Easy mounting thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
  • Good white light quality thanks to dedicated white LEDs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 98.00 W 1)
Construction wattage 98.00 W
Nominal wattage per meter 20.0 W 2)
Nominal voltage 24 V 3)
Input voltage range 23…25 V 3)
Type of current DC
Nominal current 4080 mA

1) 48W for white, 14.4 W for Red, 16.1W for Green, 16.1W for Blue
2) 3.3W per meter for Red, 3.3W per meter for Green, 3.3W per meter for Blue, 9.6W per meter for White
3) VDC

Photometrical data

Luminous efficacy 113 lm/W
Luminous flux 6655 lm 1)
Luminous flux per meter 1260 lm
Luminous flux per module chain 6655 lm
Luminous flux per meter - Red 100 lm/m
Luminous flux per meter - Green 260 lm/m
Luminous flux per meter - Blue 65 lm/m
Luminous flux per meter - RGB 395 lm/m
Color temperature 6500 K
Color rendering index Ra > 80
Light color LED RGB, white
Light color (designation) RGBW, Cold White
Standard deviation of color matching ‹4 sdcm

1) 4790lm for 2700K, 4820lm for 3000K, 5130lm for 4000K, 5160lm for 6500K, 425lm for Red, 1255lm for Green, 315lm for Blue

Light technical data

Beam angle 120 °
Rated beam angle (half peak value) 120.00 °

LED MODULE INFORMATION

Number of LEDs per meter 120
Number of LEDs per module 600
Number of LEDs per smallest unit 12

Dimensions & Weight

Length 5000.00 mm
Length – smallest unit 100 mm
Cable length 500.000
Width 12.00 mm
Height 1.90 mm
Prewired Yes
Conductor cross section 0.5 mm²
LED pitch 16.67 mm
Short pitch No
Product weight 188.00 g

Temperatures & operating conditions

Ambient temperature range -20…+55 °C 1)
Maximum temperature at tc test point 85 °C 2)

1) Providing that temperature at Tc point is below max value during operation
2) Exceeding the maximum specified ratings can reduce expected life time or destroy the LED strip

Lifespan

Nominal lamp life time 40000 h

Capabilities

Dimmable Yes 1)
Lowest bending radius 30 mm
Self-adhesive Yes

1) Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval TUV, RoHS, CE, REACH
Protection class III
Type of protection IP00
Energy class of contained light source F
Salt mist resistance acc. IEC 60068-2-52 No
UV resistance acc. IEC 60068-2-5 No

LOGISTICAL DATA

Temperature range at storage -35…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Great scope of design options due to long and flexible RGBW LED strips
  • Easy installation, no tools required for connection
  • Easy mounting thanks to self-adhesive tape
  • Maximum flexibility due to large range of accessories
  • Simple connection thanks to integrated cables on both sides
  • Good white light quality thanks to dedicated white LEDs
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Intensive color effects for special moods
  • Cove lighting
  • Hotels and Offices
  • Residential interiors
Product features
  • Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
  • Smallest cuttable unit: 100 mm
  • Lifetime (L70/B50): up to 40,000 h at Tc max. ≤ 85°C
  • Dimmable by pulse width modulation (PWM)
Safety advice
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075436312 Folding box
1		 242 mm x 242 mm x 26 mm 379.00 g 1.52 dm³
4058075436329 Shipping box
10		 260 mm x 260 mm x 265 mm 4181.00 g 17.91 dm³
4058075436336 Shipping box
40		 540 mm x 280 mm x 555 mm 17731.00 g 83.92 dm³
Product image Product name EAN
DR DIM-PFM -250/220-240/24/P 4058075240155
DR DIM-PFM -100/220-240/24/P 4058075240070
DR-PFM -150/220-240/24/P 4058075239975
DR-PFM -100/220-240/24/P 4058075239937
DR DIM-PFM -150/220-240/24/P 4058075240117
DR-PFM -250/220-240/24/P 4058075240032
Product image Product name EAN
LS AY -PF03/UW/25X7/12/1 4058075278257
LS AY -PW02/UW/39X26/14/2 4058075401471
LS AY -PW01/U/26X8/14/1 4058075278103
LS AY -PM05/U/17,5X14,5/10/2 4058075401778
LS AY -PM06/E/18X18/12/1 4058075279308
LS AY -PF04/U/17X7/12/1 4058075278288
LS AY -PM05/U/17,5X14,5/10/1 4058075279278
LS AY -PW02/UW/39X26/14/1 4058075278134
LS AY -PF03/UW/25X7/12/2 4058075401594
LS AY PFM -CSD/P5 4058075451117
LS AY -PW01/U/26X8/14/2 4058075401440
LS AY PFM -13/SMB 4058075451292
LS AY PFM -CP/P5/500 4058075451087
LS AY -PF04/U/17X7/12/2 4058075401624
LS AY -PW03/U/26X26/14/2 4058075401501
LS AY -PM01/UW/21,5X12/10/2 4058075401655
LS AY PFM -CSW/P5/50 4058075451148
LS AY -PW03/U/26X26/14/1 4058075278165
LS AY -PM06/E/18X18/12/2 4058075401808
LS AY -PM04/UW/23X15,5/10/2 4058075401747
LS AY -PM04/UW/23X15,5/10/1 4058075278400
LS AY -PM01/UW/21,5X12/10/1 4058075278318

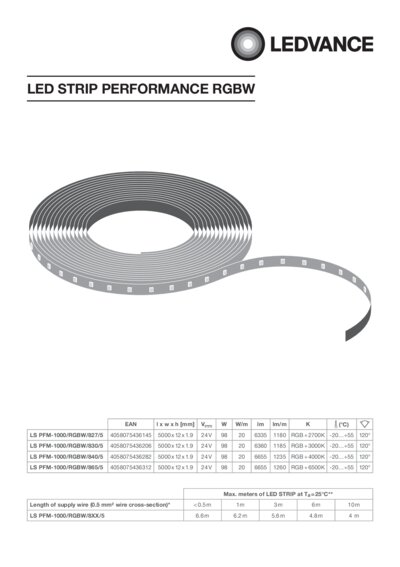

User instruction / safety instructions
LED STRIP PERFORMANCE RGBW PDF (3.21 MB)

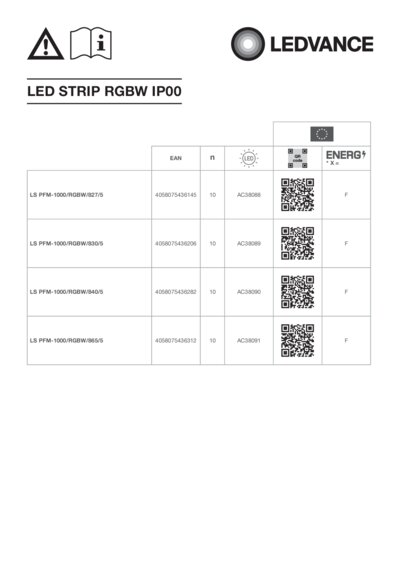

Legal information
LED STRIP RGBW IP00 PDF (1.23 MB)

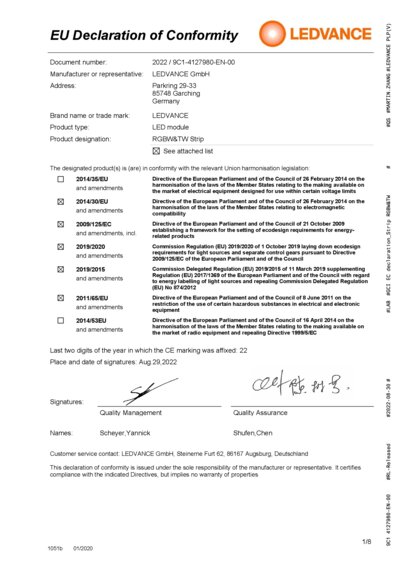

Declarations of conformity
LS SUP TW and LS PFM R GBW PDF (208.13 KB)

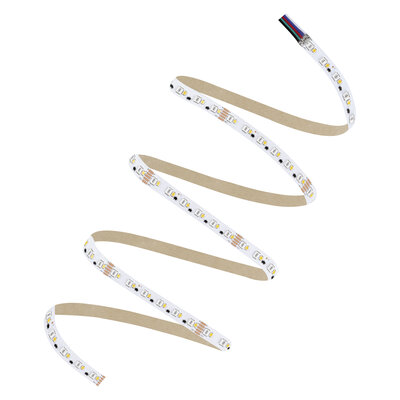

Product image: white background, diagonal
LS PFM 1000 RGBW Unpro tected JPG (1.28 MB)

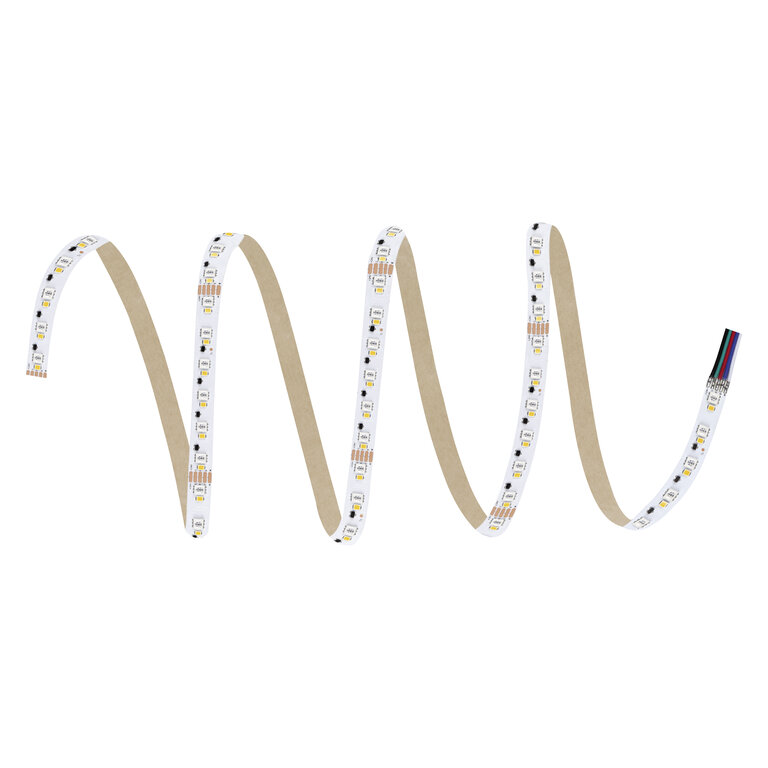

Product image: white background, horizontal
LS PFM 1000 RGBW Unpro tected JPG (1.17 MB)
Product line drawing with letters
LS PFM 1000 RGBW Unpro tected SVG (65.07 KB)
Product line drawing with numbers
LS PFM RGBW IP00 EPS (2.34 MB)
Product line drawing, front, no dimensions
LS PFM 1000 RGBW Unpro tected SVG (55.5 KB)
Tender documents
LED STRIP PERFORMANCE 1000 RGBW 1000 RGBW 86 5 5-EN TXT (2.51 KB)

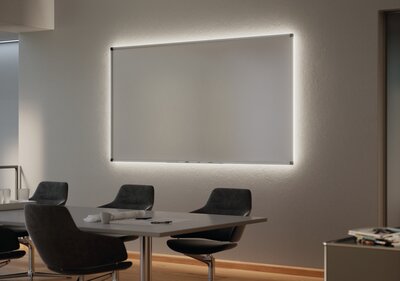

Application pictures
LED Strip Category PER FORMANCE RGBW Close Up Cove Lighting Whitebo ard (white) TIF (10.09 MB)

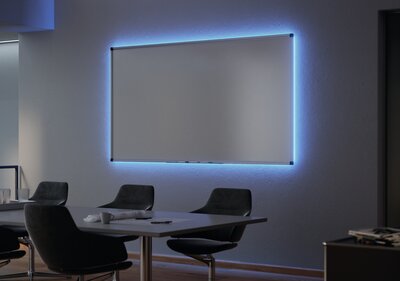

Application pictures
