| Nominal wattage | 1 W |
| Construction wattage | 1.00 W |
| Nominal voltage | 2.9 V |
| Input voltage range | 2.7…3.3 V |
| Type of current | DC |
| Nominal current | 0.35 A |
| Total useful luminous flux [PICOS] | 100 lm |
| Luminous efficacy | 100 lm/W |
| Luminous flux | 95 lm |
| Luminous intensity | 800 cd |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color LED | White |
| Light color (designation) | Warm White |
| Standard deviation of color matching | 4 sdcm |
| Rated peak intensity | 800 cd |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Beam angle | 15 ° |
| Rated beam angle (half peak value) | 15.00 ° |
| Warm-up time (60 %) | ‹ 2.00 s |
| Number of LEDs per module | 1 |

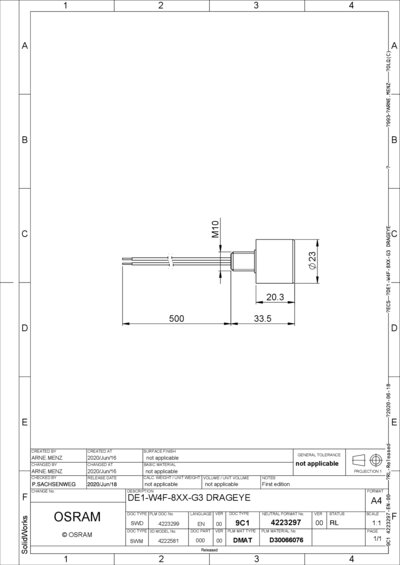

| Length | 20.0 mm |
| Cable length | 500.000 |
| Width | 23.00 mm |
| Height | 23.00 mm |
| Diameter | 23 mm |
| Product weight | 24.00 g |
| Ambient temperature range | -25…+55 °C |
| Maximum temperature at tc test point | -25…90 °C |
| Temperature range in operation | -25…90 °C 1) |
1) At the Tc point
| Nominal lamp life time | 70000 h |
| Number of switching cycles | 35000 |
| Product remark |
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant table), For current photometric data and important safety, installation and application information, see |
| Dimmable | Yes |
| Type of protection | IP65 |
| Energy consumption | 2.00 kWh/1000h |
| Energy efficiency class | F |
| Energy class of contained light source | F |
| Temperature range at storage | -25…85 °C |
| Lighting technology used | LED |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899474741 | Unpacked 1 |
24.00 g | ||
| 4052899474758 | Folding box 6 |
113 mm x 83 mm x 88 mm | 197.00 g | 0.83 dm³ |
| 4052899474765 | Shipping box 264 |
950 mm x 240 mm x 205 mm | 10568.00 g | 46.74 dm³ |
