| Nominal wattage | 79.00 W |
| Nominal voltage | 230…240 V |
| Nominal output voltage | 11.5 V, 11.7 V 1) |
| Input voltage range | 230…240 V |
| Input voltage AC | 207…254 V |
| Inrush current | 0.37 A 2) |
| Mains frequency | 50/60 Hz 3) |
| Power factor λ | 0.95 4) |
| ECG efficiency | 95 % 5) |
| Device power loss | 4 W 2) |
| Max. ECG no. on circuit breaker 10 A (B) | 37 |
| Max. ECG no. on circuit breaker 16 A (B) | 59 |
| Operating frequency | 50 kHz |
1) 75 W / 20 W
2) Maximum
3) Approximately
4) Minimum
5) At full load

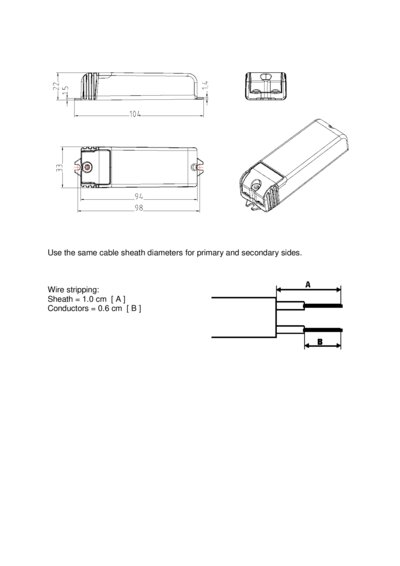

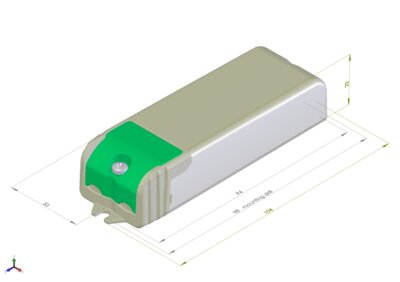

| Length | 104.00 mm |
| Mounting hole spacing, length | 98,0 mm |
| Width | 33.00 mm |
| Height | 22.00 mm |
| Cable cross-section, input side | 1.5 mm² |
| Cable cross-section, output side | 1.5 mm² |
| Wire preparation length, input side | 10 mm, 6,0 mm 1) |
| Wire preparation length, output side | 10 mm, 6,0 mm 1) |
| Product weight | 68.00 g |
1) Cable sheath / Wire
| Product color | Grey |
| Casing material | Plastic |
| Body material | Plastic |
| Ambient temperature range | 0…+50 °C |
| Maximum temperature at tc test point | 85 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
| Encapsulated | No |
| Dimmable | Yes |
| Dimming range | 0…100 % |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | II |
| Type of connection, output side | Screw terminal |

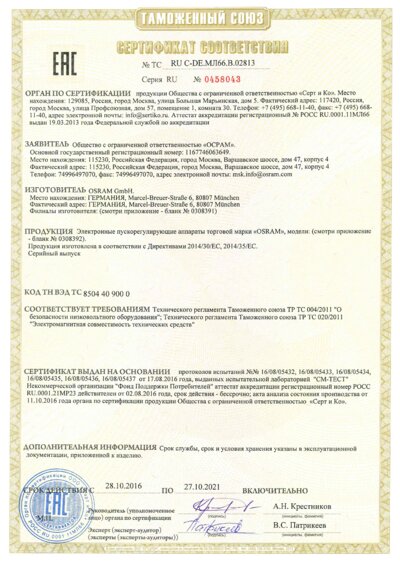

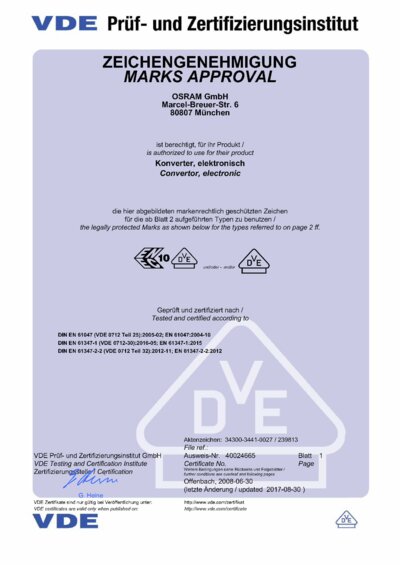

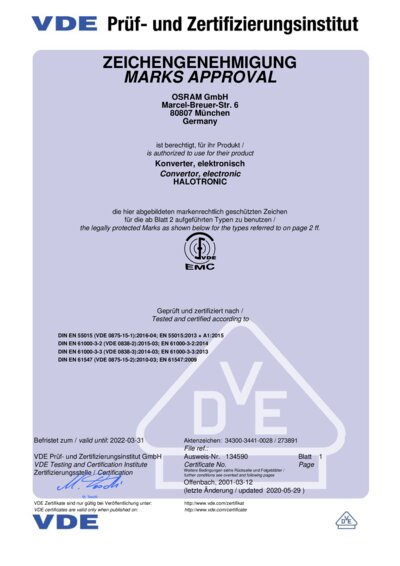

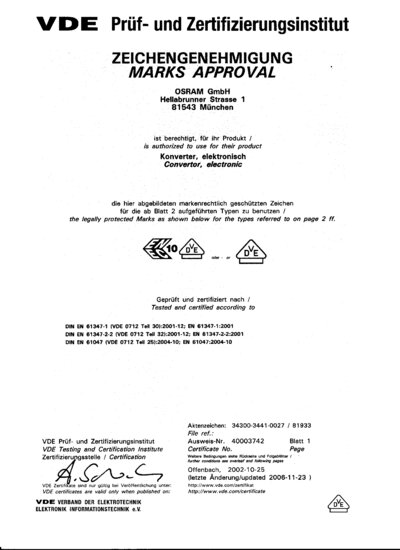

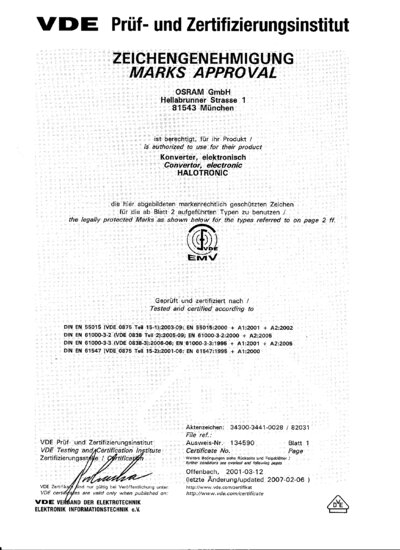

| Approval marks – approval | VDE, VDE-EMC, E1 approval, EAC |
| Standards | Acc. to DIN VDE 0875/CISPR 15/EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 61047, Acc. to EN 61347, Acc. to EN 55015 |
| Protection class | II |
| Type of protection | IP20 |
| Temperature range at storage | -40…+85 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321073037 | Unpacked 1 |
70.00 g | ||
| 4008321073044 | Shipping box 20 |
235 mm x 75 mm x 179 mm | 1692.00 g | 3.15 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321073037 | 5280325 | 4030201 | 6659800 | 919491900 |
