PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	23.00 W
Nominal voltage	220…240 V
Input voltage DC	176…254 V
U-OUT (working voltage)	250 V
Inrush current	13 A
Mains frequency	50 Hz ¹⁾
Max. ECG no. on circuit breaker 10 A (B)	36
Max. ECG no. on circuit breaker 16 A (B)	59
Operating frequency	35…45 kHz

¹⁾ Approximately

Light technical data

Starting time [PIM]

1.5 s

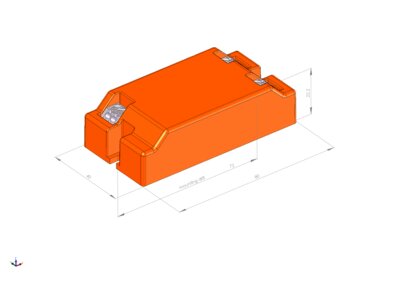

Dimensions & Weight

Length	80.00 mm
Mounting hole spacing, length	72,0…75,0 mm
Width	40.00 mm
Height	22.00 mm
Product weight	50.00 g

Colors & materials

Casing material	Plastic
Body material	Plastic

Temperatures & operating conditions

Ambient temperature range	-15…+50 °C
Maximum temperature at tc test point	70 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

Lifespan

ECG lifetime

30000 h ¹⁾

¹⁾ T_c = 70°C, with max. 10% failure rate

Capabilities

Dimmable	No

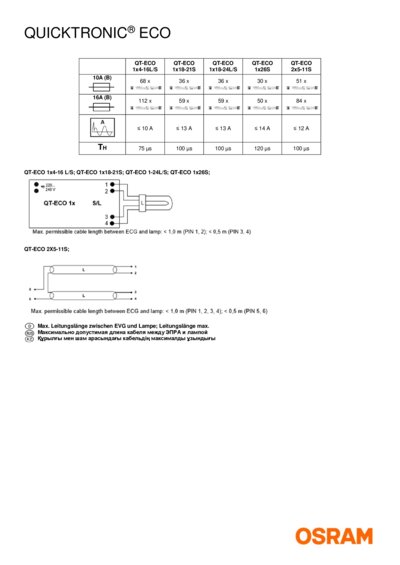

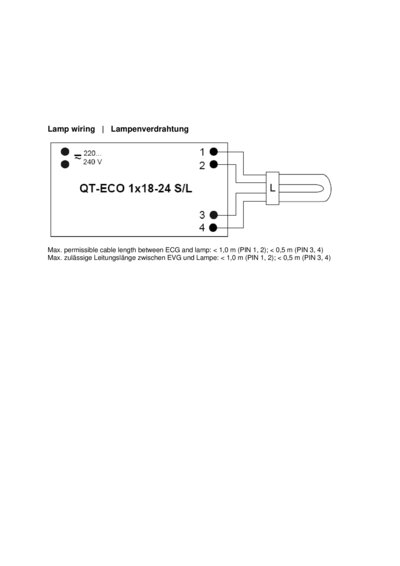

Max. cable length to lamp/LED module	1.0 m / 0.5 m
Suitable for fixtures with prot. class	I, II
End of lamp life safety shutdown	EOL T.2

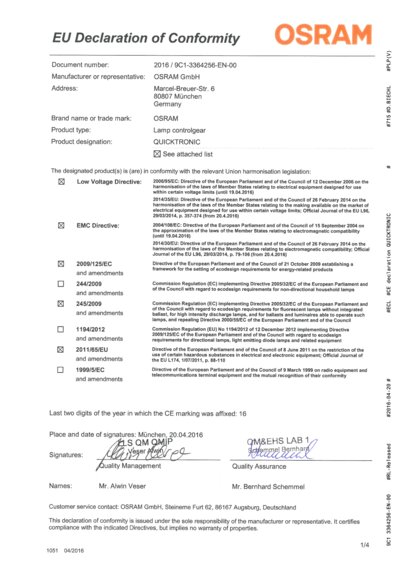

Certificates & Standards

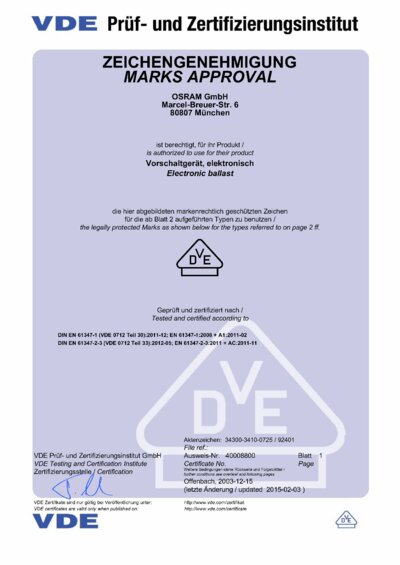

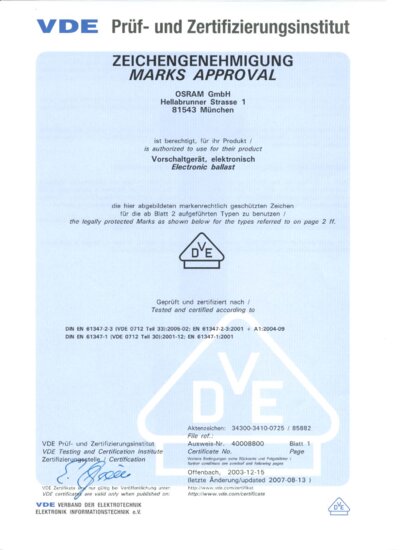

Approval marks – approval	VDE, VDE-EMC
Standards	Acc. to EN 61347-2-3, Acc. to EN 55015:2006 + A1:2007, Acc. to IEC 61000-3-2, Acc. to EN 61547
Protection class	I
Type of protection	IP20
Energy efficiency class	A3
EEI – Energy Label	A3

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Compact housing
Automatic restart after lamp replacement
Large input voltage range

Areas of application

Public buildings

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50 Hz
Energy Efficiency Index EEI: A2 / A3 (depending on lamp)
Automatic shutdown of defective lamps and at end of life (EoL)

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4050300638560	Unpacked 1		51.00 g
4050300655253	Shipping box 50	212 mm x 142 mm x 170 mm	2791.00 g	5.12 dm³

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number
4050300638560	7980040	4030113	3322294	919440830

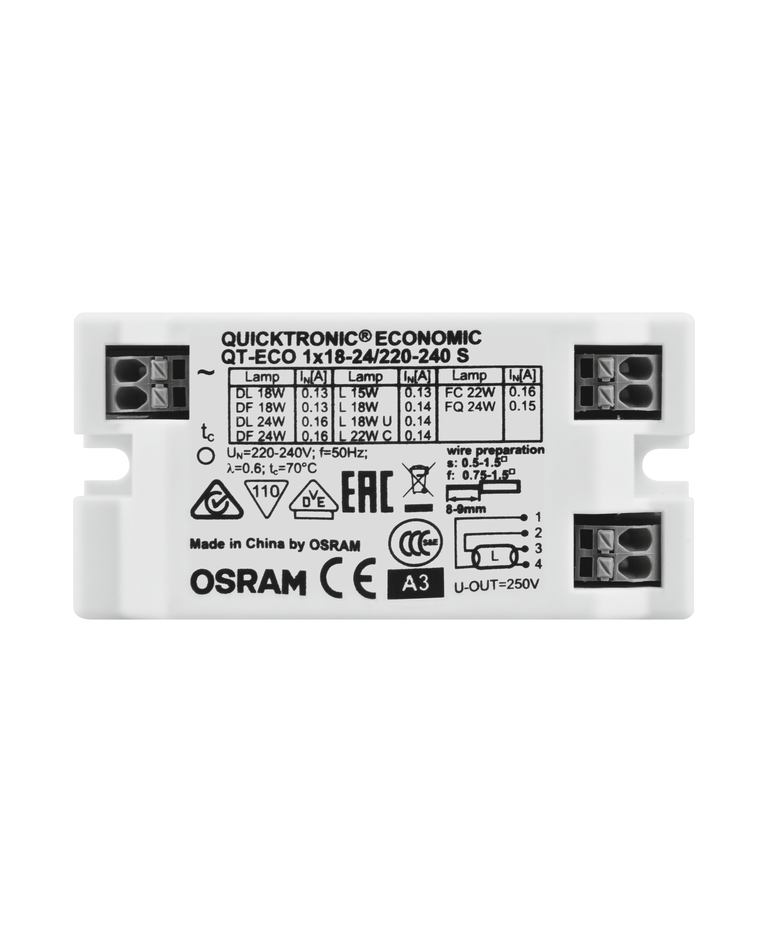

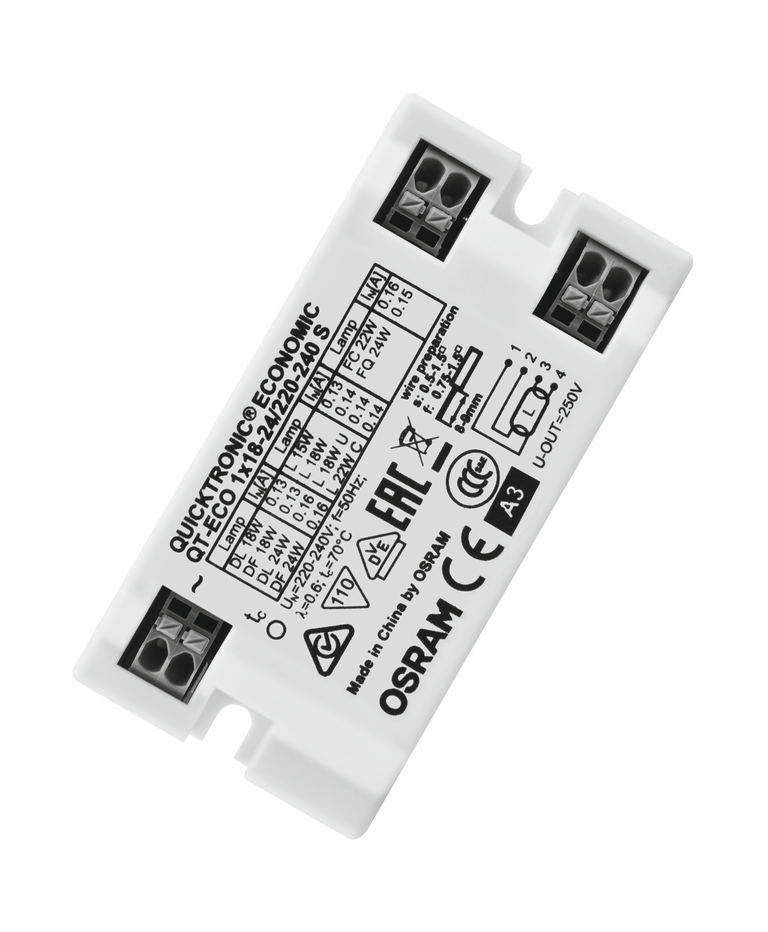

QT-ECO 1X18…24 S
