DALI magic

Product benefits
    DALI wizard software features (included)
  • Intuitive configuration of up to 64 DALI electronic control gears
  • Offline / Online configuration of DALI installations
  • “DALI-Spy“-functionality for recording DALI line data flow

    • Tuner4TRONIC software features
  • Programming of OSRAM ECG
  • Suitable for the shop floor environments
  • Performs fast manual and automatic programming
  • Easily enables the use of the pre-parameterization service

View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz

Dimensions & Weight

Length 120.0 mm
Width 120.00 mm
Height 28.00 mm
Product weight 370.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range +15…+50 °C

Capabilities

Dimmable Yes
Dimming interface DALI

Certificates & Standards

Protection class I
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
    DALI wizard software features (included)
  • Intuitive configuration of up to 64 DALI electronic control gears
  • Offline / Online configuration of DALI installations
  • “DALI-Spy“-functionality for recording DALI line data flow

    • Tuner4TRONIC software features
  • Programming of OSRAM ECG
  • Suitable for the shop floor environments
  • Performs fast manual and automatic programming
  • Easily enables the use of the pre-parameterization service

Areas of application
  • Configuration of DALI ECG functions
  • Monitoring of DALI installations
Product features
  • USB DALI converter for Tuner4TRONIC and DALI wizard software for Windows PC
  • Pushbutton to test DALI dimming without need of connection to computer
  • Powered by USB or by included universal power supply
  • Integrated automatic DALI supply of up to 64 devices (up to 4 if powered by USB)
Equipment / Accessories
  • Universal power supply (100…240 VAC, 5.9 VDC, 1.15 A, EU plug)
  • USB cable (male A to male B), 180 cm
  • Bipolar plug for DALI connection
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899039551 Shipping box
1		 148 mm x 98 mm x 135 mm 376.00 g 1.96 dm³

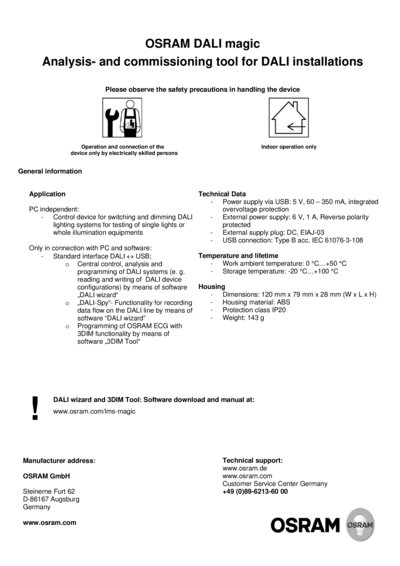

User instruction / safety instructions
334217_Technical instr uction PDF (37.11 KB)

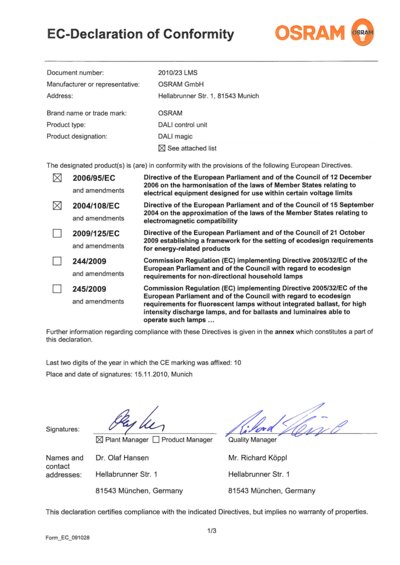

Declarations of conformity
334886_Declaration of conformity – DALI magi c PDF (476.9 KB)

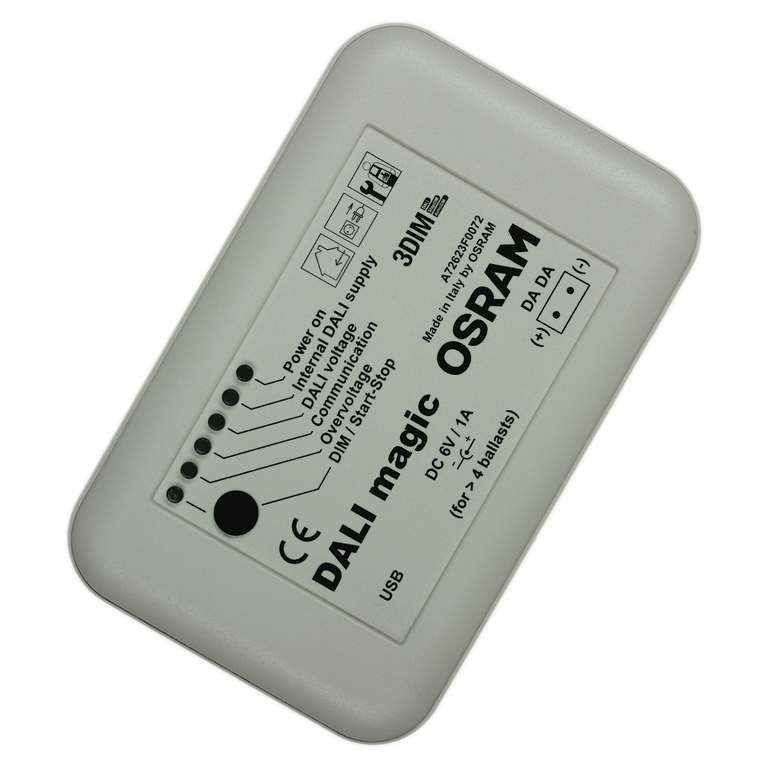

Product image: white background, diagonal
329660_DALI magic TIF (36.02 MB)

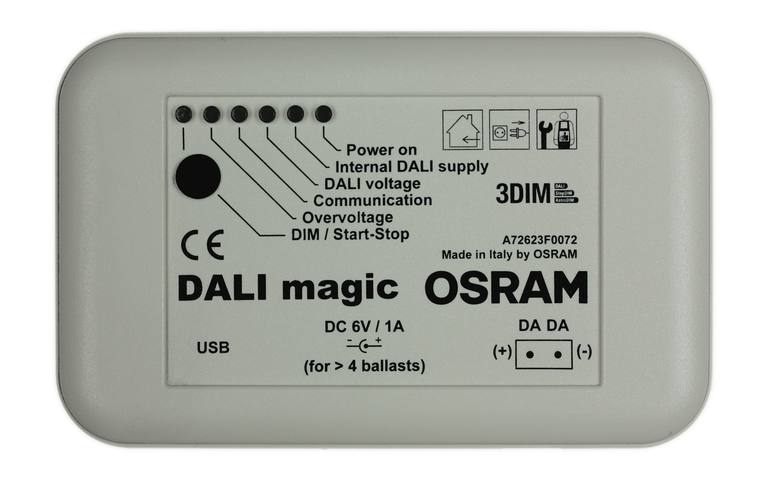

Product image: white background, horizontal
326483_DALI magic TIF (22.51 MB)
Product line drawing with letters
330665_DALI magic SVG (10.06 KB)
EAN STK number ELDAS number
4052899039551 2612554 919000020
