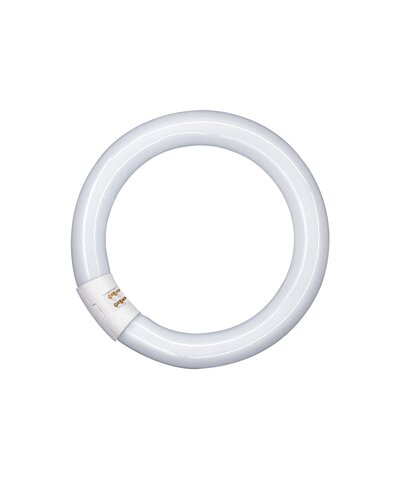

L 22 W/840 G10Q
Product benefits
- Excellent uniform illumination with no shadows
| Nominal wattage | 22 W |
| Construction wattage | 22.90 W |
| Nominal voltage | 62 V |
| Nominal current | 0.4 A |
| Luminous flux | 1250 lm |
| Luminous efficacy | 55 lm/W |
| Light color (designation) | LUMILUX Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Rated LLMF at 2,000 h | 0.80 |
| Rated LLMF at 4,000 h | 0.74 |
| Rated LLMF at 6,000 h | 0.72 |
| Rated LLMF at 8,000 h | 0.70 |
| Overall length | 209.00 mm |
| Diameter | 216 mm |
| Tube diameter | 29 mm |
| Product weight | 124.4 g |
| Service life | 5000 h 1) |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.95 |
| Rated lamp survival factor at 6,000 h | 0.83 |
| Rated lamp survival factor at 8,000 h | 0.62 |
| Lifespan B50 | 9000 h |
1) With preheat ECG
| Base (standard designation) | G10q |
| Mercury content | 4.8 mg |
| Design / version | LUMILUX version |
| Dimmable | Yes |

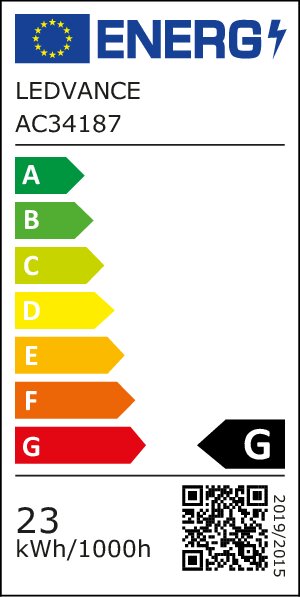

| Energy efficiency class | G |
| Energy consumption | 23.00 kWh/1000h |
| ILCOS | FSC-22/840-E-G10q-29/216 |
| Order reference | L 22W/840 C G10 |
| Lighting technology used | OTHER_FL |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G10q |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 209.00 mm |
| Height | 216 mm |
| Width | 216 mm |
| Chromaticity coordinate x | 0,380 |
| Chromaticity coordinate y | 0,380 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546412 |
| Model number | AC34187 |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321581082 | Sleeve 1 |
225 mm x 212 mm x 38 mm | 192.80 g | 1.81 dm³ |
| 4008321581099 | Shipping box 12 |
450 mm x 238 mm x 227 mm | 2708.60 g | 24.31 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321581082 | 8330924 | 4933411 | 3860786 | 946222120 |
