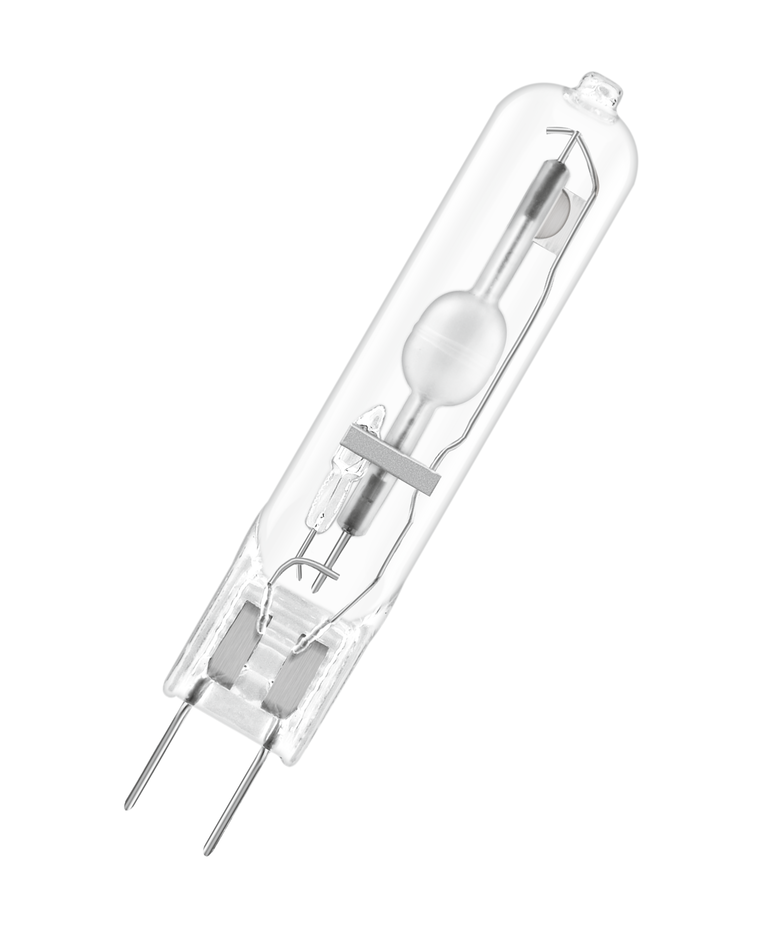

HCI-TC 35 W/830 WDL PB
Product benefits
- Very high efficiency
- Good to excellent color rendering
- Very good color stability
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
| Nominal wattage | 35 W |
| Construction wattage | 39.00 W |
| Nominal voltage | 90 V |
| Ignition voltage | 3.6/5.0 kVp 1) |
| Operating mode | Conventional control gear (CCG) and ignitor, Electronic control gear (ECG) |
| Nominal current | 0.52 A |
| PFC capacitor at 50 Hz | 6 µF |
1) Minimum / for superimposed ignition with square wave electronic ballast 3.0 kVp are sufficient
| Luminous flux | 3700 lm 1) |
| Luminous efficacy | 95 lm/W 2) |
| Color temperature | 2920 K |
| Color rendering index Ra | 85 |
| Light color | 829 |
| Rated LLMF at 2,000 h | 0.85 |
| Rated LLMF at 4,000 h | 0.80 |
| Rated LLMF at 6,000 h | 0.76 |
| Rated LLMF at 8,000 h | 0.71 |
| Rated LLMF at 12,000 h | 0.67 |
| Rated LLMF at 16,000 h | 0.63 |
| Rated LLMF at 20,000 h | 0.59 |
| Rated lamp efficacy (standard co.) | 97 lm/W |
| UV protection | Yes |
1) In operation with electronic control gear with 70…400 Hz square-wave current.Operation with magnetic ballast can be less efficient
2) In operation with low frequency square wave electronic ballast, 70…400 Hz. Operation with electromagnetic ballast may be less efficient.
| Overall length | 81.00 mm |
| Light center length (LCL) | 52,0 mm |
| Diameter | 15,0 mm |
| Product weight | 9.00 g |
| Maximum permitted outer bulb temperature | 500 °C |
| Maximum permitted pinch temperature | 330 °C |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.98 |
| Rated lamp survival factor at 6,000 h | 0.97 |
| Rated lamp survival factor at 8,000 h | 0.96 |
| Rated lamp survival factor at 12,000 h | 0.80 |
| Rated lamp survival factor at 16,000 | 0.50 |
| Rated lamp survival factor at 20,000 h | 0.19 |
| Lifespan B50 | 15000 h 1) |
| Operation mode LLMF/LSF | ECG |
1) At ECG
| Base (standard designation) | G8.5 |
| Mercury content | 4.3 mg |
| Mercury-free | No |
| Design / version | Clear |
| System guarantee level | 3 (2/5) |
| Dimmable | Yes |
| Burning position | Any |
| Enclosed luminaire required | Yes |
| Hot restart | No |
| Energy efficiency class | F |
| Energy consumption | 42.90 kWh/1000h |
| ILCOS | MT/UB-35/830-H/SL-G8.5-17/85 |
| Order reference | HCI-TC 35W/830 |
| Lighting technology used | MH |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G8.5 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | SECOND |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 81.00 mm |
| Height | 15,0 mm |
| Width | 15,0 mm |
| Chromaticity coordinate x | 0.439 |
| Chromaticity coordinate y | 0.400 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 1535157 |
| Model number | AC13773 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321681997 | Folding box 1 |
111 mm x 42 mm x 42 mm | 22.50 g | 0.20 dm³ |
| 4008321682000 | Shipping box 12 |
180 mm x 127 mm x 140 mm | 357.00 g | 3.20 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321681997 | 8333083 | 4834608 | 3861054 | 948812190 |
