Phase out


HCI-T 70 W/942 NDL PB

Product benefits
  • Very high efficiency
  • Good to excellent color rendering
  • Very good color stability
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 70 W
Construction wattage 73.00 W
Nominal voltage 91 V
Ignition voltage 3.6/5.0 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Nominal current 0.99 A
PFC capacitor at 50 Hz 12 µF

1) Minimum / for superimposed ignition with square wave electronic ballast 3.0 kVp are sufficient

Photometrical data

Luminous flux 6800 lm 1)
Luminous efficacy 93 lm/W 2)
Color temperature 3890 K
Color rendering index Ra 95
Light color 938
Rated LLMF at 2,000 h 0.87
Rated LLMF at 4,000 h 0.81
Rated LLMF at 6,000 h 0.78
Rated LLMF at 8,000 h 0.77
Rated LLMF at 12,000 h 0.76
Rated LLMF at 16,000 h 0.69
Rated lamp efficacy (standard co.) 93 lm/W
UV protection Yes

1) In operation with electronic control gear with 70…400 Hz square-wave current.Operation with magnetic ballast can be less efficient
2) In operation with low frequency square wave electronic ballast, 70…400 Hz. Operation with electromagnetic ballast may be less efficient.

Dimensions & Weight

Overall length 100.00 mm
Light center length (LCL) 56,0 mm
Diameter 20,0 mm
Product weight 28.00 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 500 °C
Maximum permitted pinch temperature 350 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.97
Rated lamp survival factor at 8,000 h 0.96
Rated lamp survival factor at 12,000 h 0.80
Rated lamp survival factor at 16,000 0.50
Rated lamp survival factor at 20,000 h 0.19
Lifespan B50 15000 h 1)
Operation mode LLMF/LSF ECG

1) At ECG

Additional product data

Base (standard designation) G12
Mercury content 7.3 mg 1)
Mercury-free No
Design / version Clear
System guarantee level 3 (2/5)

1) Maximum

Capabilities

Dimmable Yes 1)
Burning position Any
Enclosed luminaire required Yes
Hot restart No

1) In combination with POWERTRONIC PTo

Certificates & Standards

Energy efficiency class F
Energy consumption 80.30 kWh/1000h

Country-specific categorizations

ILCOS MT/UB-70/942-H/SL-G12-20/90
Order reference HCI-T 70W/942 N

Energy labelling regulation data acc EU 2019/2015

Lighting technology used MH
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G12
Connected light source (CLS) No
Color-tuneable light source No
Envelope SECOND
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 100.00 mm
Height 20,0 mm
Width 20,0 mm
Chromaticity coordinate x 0.388
Chromaticity coordinate y 0.380
Beam angle correspondence SPHERE_360
EPREL ID 1535154
Model number AC13769

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very high efficiency
  • Good to excellent color rendering
  • Very good color stability
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Shop interiors, shop windows
  • Shopping arcades
  • Foyers, reception areas
  • Museums, exhibitions
  • Exhibition halls and trade fairs
  • Factories and workshops
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERBALL® ceramic technology
  • Light colors: warm white (830 WDL, 930 WDL), neutral white (942 NDL)
  • Average lifetime: 15,000 h (ECG with 70…400 Hz square-wave current)
  • Average lifetime 150 W version: 20,000 h (ECG with 70...400 Hz square-wave current)
  • Average lifetime: 12,000 h (with magnetic control gear)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321678522 Folding box
1		 42 mm x 42 mm x 142 mm 43.00 g 0.25 dm³
4008321678539 Shipping box
12		 180 mm x 161 mm x 139 mm 600.40 g 4.03 dm³
User instruction / safety instructions
High-Intensity-Dischar ge lamps. Operation in structions PDF (563.46 KB)

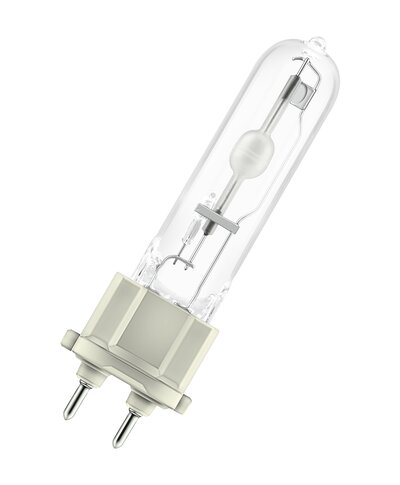

Product image: white background, diagonal
330237_HCI-T 35W/830 W DL PB Plus G8.5 12X1 TIF (18.74 MB)
Product line drawing with letters
319254_POWERBALL HCI-T G12 SVG (9.89 KB)
Product line drawing, front, no dimensions
325800_POWERBALL HCI-T G12 SVG (5.22 KB)
Energy label
EL-4008321678522-AC137 69 PDF (21.85 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
384070_HCI_942_NDL PNG (99.21 KB)
EAN SEG number STK number EFO number ELDAS number
4008321678522 8332860 4834653 3861052 948816440
