HQL LED HIGHBAY 400 117 ° 140 W/4000 K E40

Product benefits
  • Energy savings of up to 65 % when replacing mercury vapor lamps (HQL)
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 140 W
Construction wattage 140.00 W
Nominal voltage 220…240 V
Operating mode AC, Conventional control gear (CCG)
Claimed equiv. conventional lamp power 400 W
Nominal current 650 mA
Type of current AC
Inrush current 23 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 5
Max. lamp number on MCB B16 A 8
Total harmonic distortion < 25 %
Power factor λ > 0.90

Photometrical data

Luminous flux 20000 lm
Nominal useful luminous flux 90° 20000 lm
Luminous efficacy 142 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 117 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 310.00 mm
Diameter 229.00 mm
Maximum diameter 230 mm
Product weight 1070.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 100 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h 0.90

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D
Energy consumption 140.00 kWh/1000h
Type of protection IP40
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference HQLEDHB20000 14

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E40
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 310.00 mm
Height 229.00 mm
Width 229.00 mm
Chromaticity coordinate x 0.381
Chromaticity coordinate y 0.379
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 567214
Model number AC35214

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 65 % when replacing mercury vapor lamps (HQL)
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • LED alternative for applications requiring a high luminous flux
  • Industrial and storage facilities
  • Outdoor applications only in suitable luminaires
Product features
  • Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
  • Replacement for other HID: Suitable for operation with line voltage without control gear
  • Power factor: 0.9
  • Type of protection: IP40
  • High surge protection: up to 4 kV (L-N)
Equipment / Accessories
  • Safety sling for lamp included
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. Safety sling has to be installed.
  • Only suitable for temperatures of up to 50 °C inside of the luminaire.
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075612617 Folding box
1		 247 mm x 247 mm x 333 mm 1291.00 g 20.32 dm³
4058075612624 Shipping box
4		 515 mm x 515 mm x 355 mm 5841.00 g 94.15 dm³
User instruction / safety instructions
HQL LED Highbay PDF (3.21 MB)
Product image: white background, diagonal with OSRAM logo
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product image: white background, diagonal
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product image: white background, upright, OSRAM logo
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product image: white background, upright
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product line drawing with letters
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 SVG (40.55 KB)
Product line drawing with numbers
HQL LED Highbay 140W 2 0.000lm SVG (53.62 KB)
Product line drawing, front, no dimensions
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 SVG (37.52 KB)

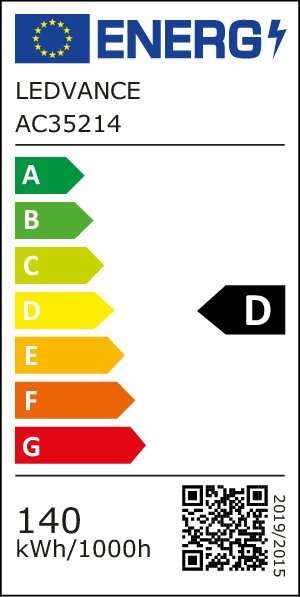

Energy label
EL-4058075612617-AC352 14 PDF (21.36 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
EAN SEG number STK number EFO number
4058075612617 8296735 4802853 3755148
