P PIN 40 3.8 W/4000 K G9

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 3.8 W
Construction wattage 3.80 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 35 mA
Type of current AC
Inrush current 6.4 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 11
Max. lamp number on MCB B16 A 18
Total harmonic distortion < 160 %
Power factor λ 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 123 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 58.00 mm
Diameter 20,0 mm
Maximum diameter 20 mm
Product weight 10.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 100 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A++ 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, CB
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS DRT/C-3,8/840-220-240-G9-20/58
Order reference LEDPPIN40 3,8W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G9
Length 58.00 mm
Height 20,0 mm
Width 20,0 mm
Displacement factor 0.5
EPREL ID 1403255
Model number AC24755

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075812710 Folding box
1		 28 mm x 28 mm x 67 mm 14.00 g 0.05 dm³
4058075812727 Shipping box
20		 150 mm x 122 mm x 77 mm 336.00 g 1.41 dm³
4058075042513 Shipping box
120		 256 mm x 160 mm x 248 mm 2151.00 g 10.16 dm³

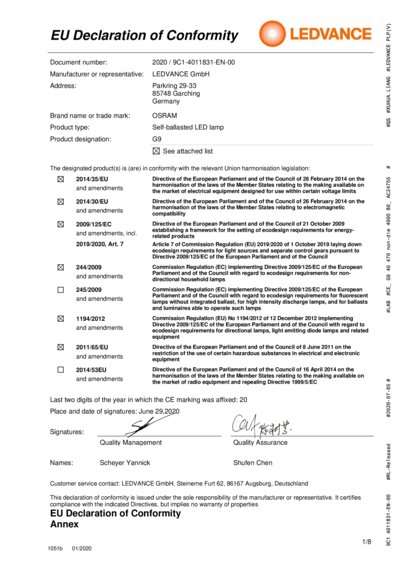

Declarations of conformity
Self-ballasted LED lam p PIN 20,30,40_G9 PDF (275.82 KB)

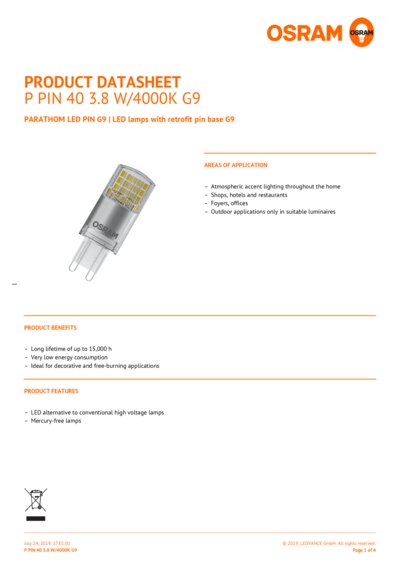

PRODUCT DATASHEET
P PIN 40 3.8 W 4000K G 9 DATASHEET PDF (233.79 KB)
Product image: white background, diagonal with OSRAM logo
LED PIN 40 32 DIM G9 C L TIF (1.28 MB)
Product image: white background, diagonal
LED PIN 40 32 DIM G9 C L TIF (1.27 MB)

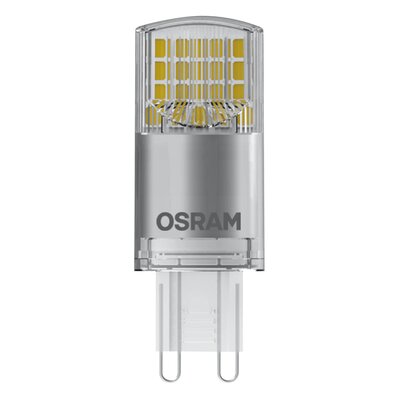

Product image: white background, upright, OSRAM logo
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)

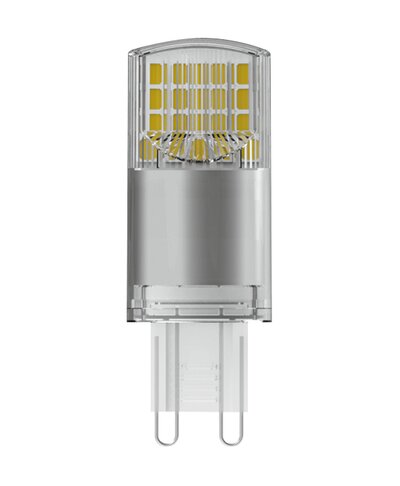

Product image: white background, upright
LED PIN 40 + 32 DIM G9 clear TIF (1.39 MB)

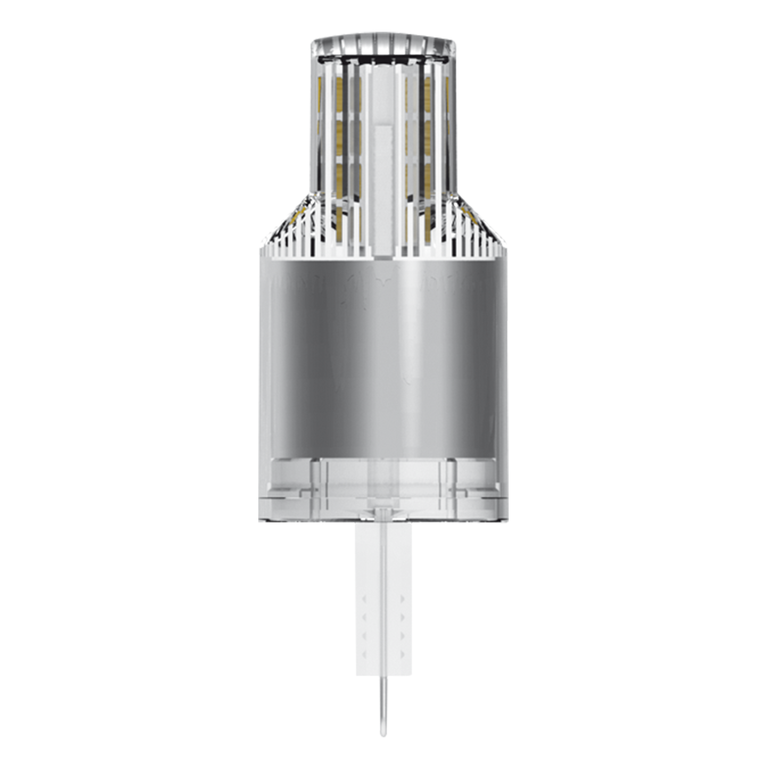

Product image: white background, upright, alternative image
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)
Product line drawing with letters
LED PIN 40 + 32 DIM G9 clear SVG (7.58 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
EAN SEG number STK number ELDAS number
4058075812710 8293107 4730957 941159970
