P LINE R7s 78.00 mm 100 12 W/2700 K R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Lower thermal output (compared with the standard reference product)
  • Four year guarantee
View all details
Product data sheet
Go to LEDVANCE successor product

PRODUCT DETAILS

Electrical data

Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 100 W
Nominal current 80 mA
Type of current AC
Inrush current 5 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 43
Max. lamp number on MCB B16 A 51
Total harmonic distortion < 180 %
Power factor λ ≥ 0.50

Photometrical data

Luminous flux 1521 lm
Nominal useful luminous flux 90° 1521 lm
Luminous efficacy 126 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 78.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 52.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 91 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 12.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPLI78 100 12

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Claim of equivalent power Yes
Length 78.00 mm
Height 28.00 mm
Width 28.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 522894
Model number AC32127

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Lower thermal output (compared with the standard reference product)
  • Four year guarantee
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Hospitality
  • Domestic applications
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075627055 Folding box
1		 30 mm x 30 mm x 82 mm 55.00 g 0.07 dm³
4058075627062 Shipping box
20		 159 mm x 129 mm x 91 mm 1145.00 g 1.87 dm³
4058075627079 Shipping box
120		 269 mm x 169 mm x 291 mm 7025.00 g 13.23 dm³
Declarations of conformity
LED SLIM LINE 78 60 NO N-DIM PDF (161.98 KB)

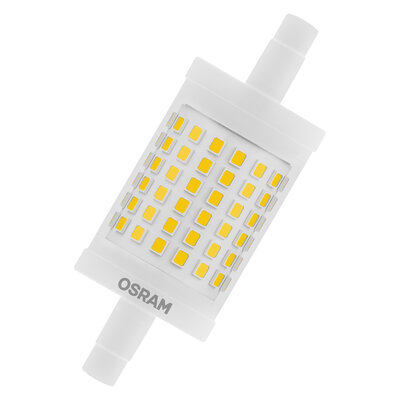

Product image: white background, diagonal with OSRAM logo
LED LINE R7S 78mm 100 21/22 JPG (1.23 MB)

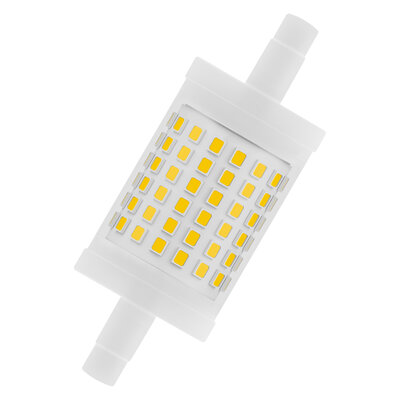

Product image: white background, diagonal
LED LINE R7S 78mm 100 21/22 JPG (1.22 MB)

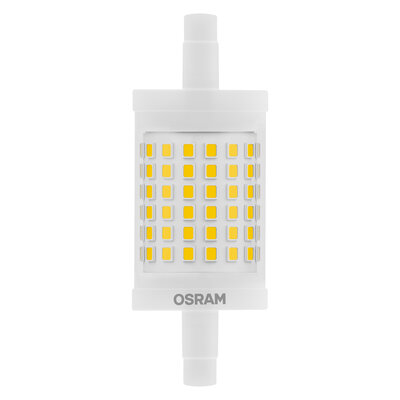

Product image: white background, upright, OSRAM logo
LED LINE R7S 78mm 100 21/22 JPG (1.06 MB)

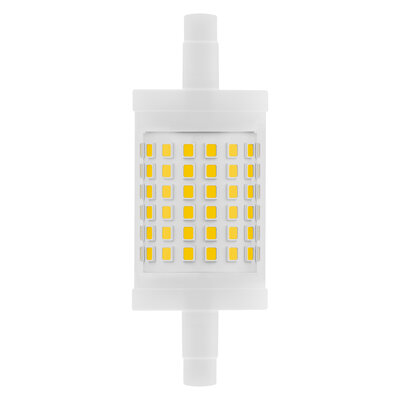

Product image: white background, upright
LED LINE R7S 78mm 100 21/22 JPG (1.05 MB)
Product line drawing with letters
LED LINE R7S 78mm 100 21/22 SVG (84.83 KB)
Product line drawing with numbers
LED LINE R7S 78mm 100 21/22 SVG (87.77 KB)
Product line drawing - technical
LED LINE R7S 78mm 100 21/22 SVG (83.23 KB)

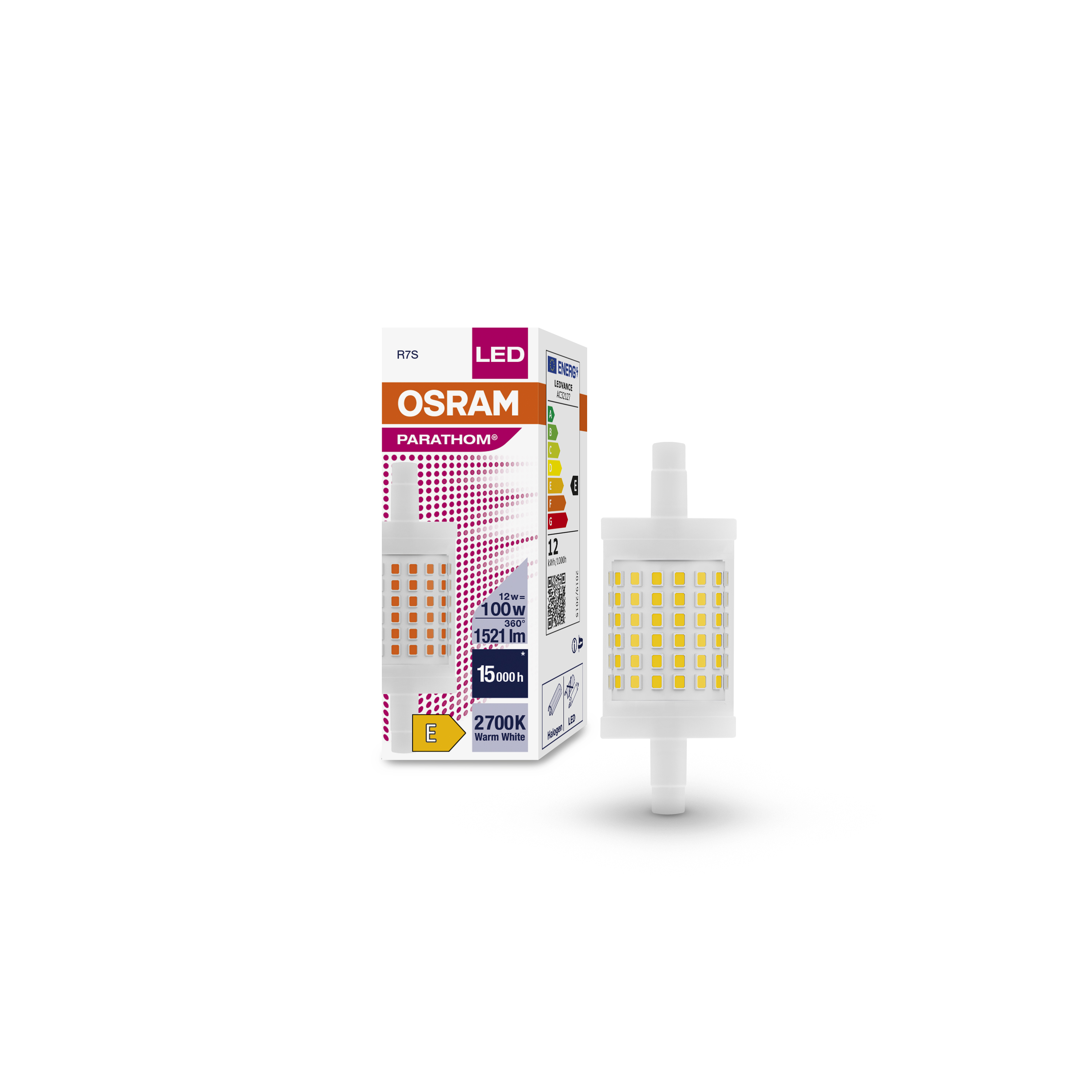

Combo Shot = Product Beauty Shot + Packaging Image
PARA LINE78 100 12W 82 7 CL R7S MiCh JPG (1.17 MB)
Packaging image, frontal
PARA LINE78 100 12W 82 7 CL R7S MiCh JPG (1.59 MB)
Packaging image, spacial
PARA LINE78 100 12W 82 7 CL R7S MiCh JPG (1.79 MB)
Energy label
EL-4058075627055-AC321 27 PDF (21.49 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN SEG number STK number EFO number
4058075627055 8296974 4731838 3752171
