Vintage 1906 Globe 100 Filament O Lamp DIM 4W 818 Smoke E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Instant 100 % light, no warm-up time
  • Type of protection: IP20, Ideal for indoor use
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 12 W
Nominal current 24 mA
Type of current AC
Inrush current 0.024 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 333
Max. lamp number on MCB B16 A 533
Total harmonic distortion < 110 %
Power factor λ ≥ 0.70

Photometrical data

Luminous flux 110 lm
Luminous efficacy 27 lm/W
Lumen main.fact.at end of nom.life time 0.96
Light color (designation) Comfort warm white
Color temperature 1800 K
Color rendering index Ra ≥80
Light color 818
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 330 °
Warm-up time (60 %) 0.50 s
Starting time 0.5 s

Dimensions & Weight

Overall length 189.00 mm
Diameter 100.00 mm
Maximum diameter 100 mm
Product weight 121.00 g

Temperatures & operating conditions

Ambient temperature range -25…+40 °C
Maximum temperature at tc test point 85 °C

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear smoke
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference 1906LG100D12 4W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Claim of equivalent power Yes
Length 189.00 mm
Height 100.00 mm
Width 100.00 mm
Chromaticity coordinate x 0.5499
Chromaticity coordinate y 0.4050
R9 Colour rendering index 24
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor ≥0.8
LED light source replaces a fluorescent light source No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Instant 100 % light, no warm-up time
  • Type of protection: IP20, Ideal for indoor use
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.osram-lamps.com/dim)
  • Pleasant light: Warm white comfort light color
  • Lifetime up to 25,000 h
  • Rotation angle luminaire head: 180°
  • Can be used directly as luminaire
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075846081 Folding box
1		 73 mm x 97 mm x 241 mm 170.00 g 1.71 dm³
4058075846098 Shipping box
4		 214 mm x 162 mm x 253 mm 1048.00 g 8.77 dm³
Declarations of conformity
LED lamp PDF (280.53 KB)

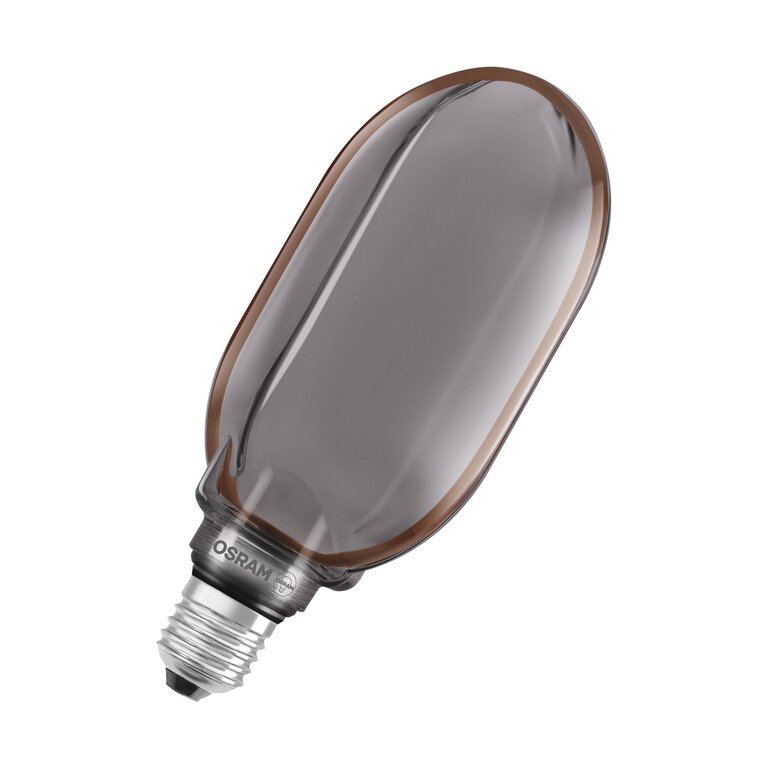

Product image: white background, diagonal with OSRAM logo
CL GLOBE 100 12 DIM O- FIL SM 80 1800 E27 JPG (3.89 MB)

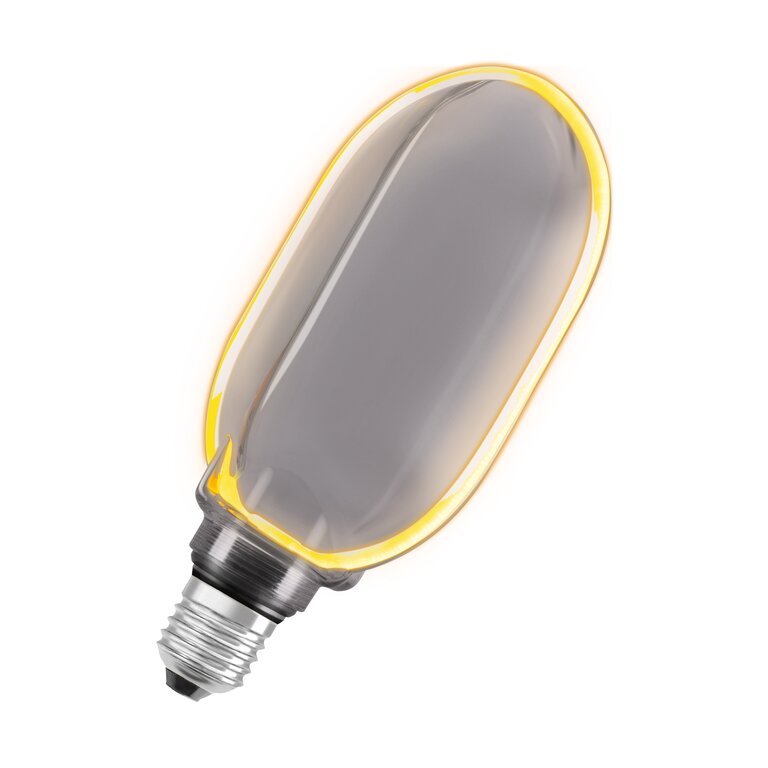

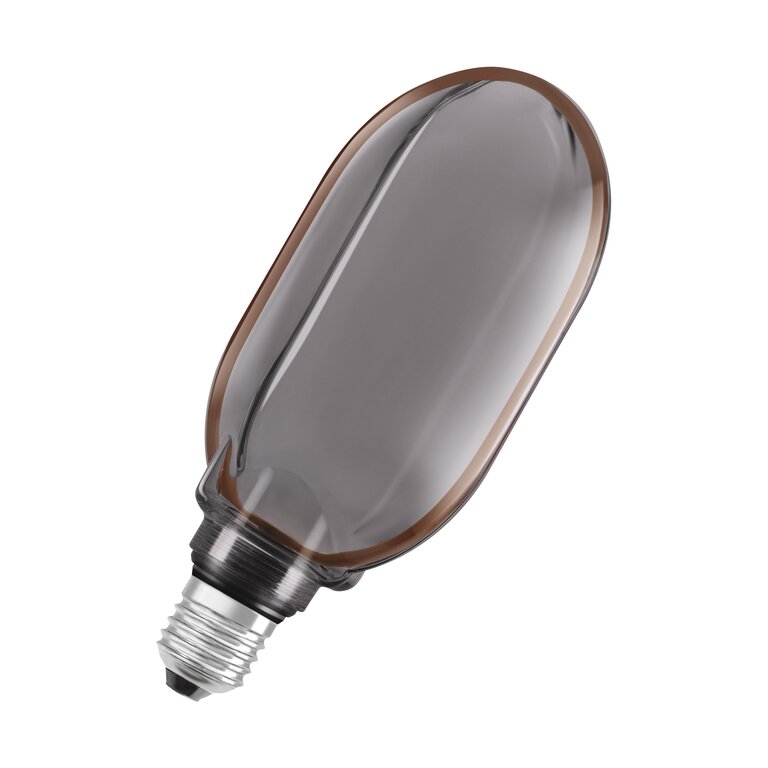

Product image: white background, diagonal
CL GLOBE 100 12 DIM O- FIL SM 80 1800 E27 JPG (3.87 MB)

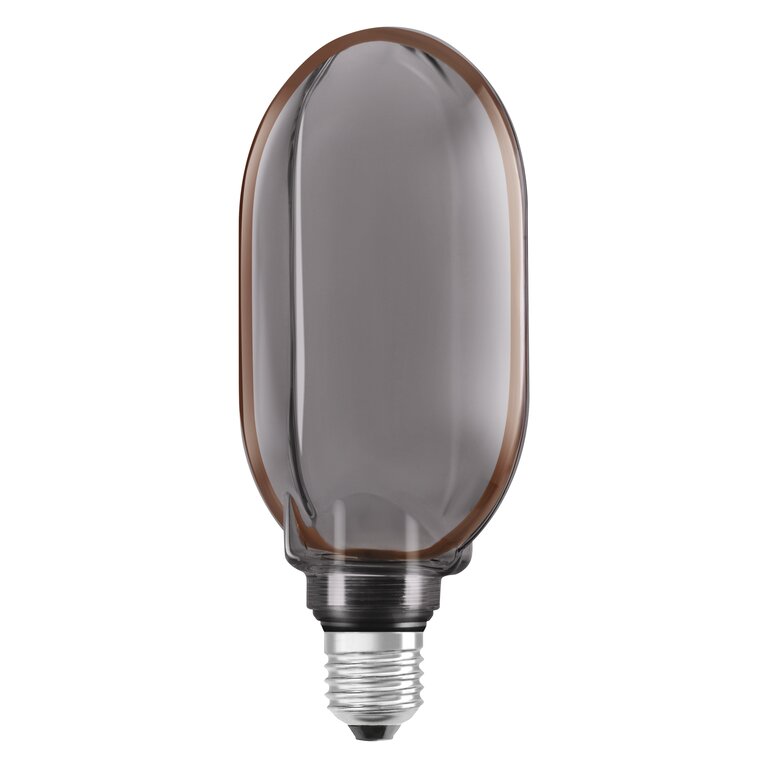

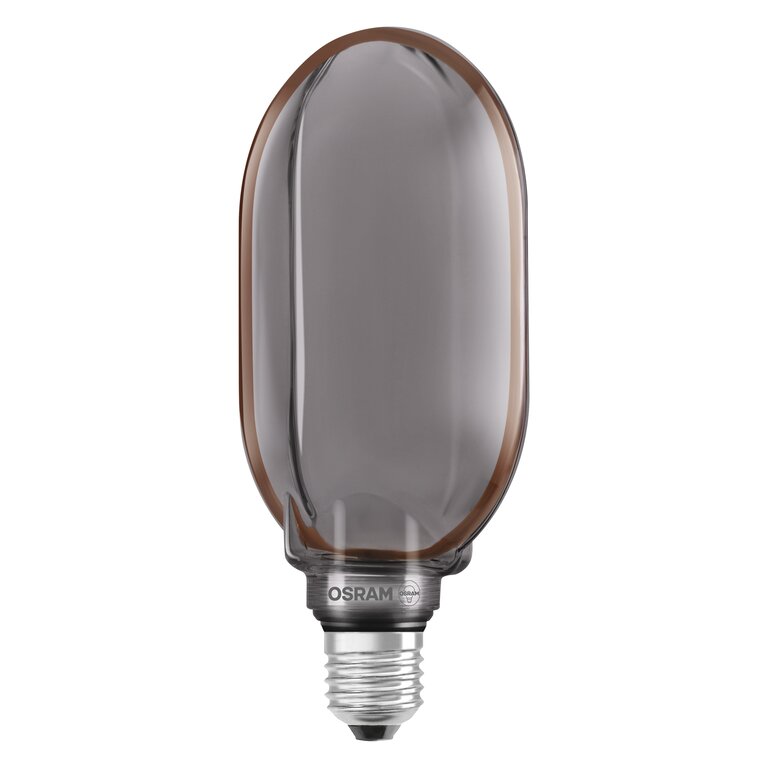

Product image: white background, upright, OSRAM logo
CL GLOBE 100 12 DIM O- FIL SM 80 1800 E27 JPG (3.81 MB)
Product image: white background, upright
CL GLOBE 100 12 DIM O- FIL SM 80 1800 E27 JPG (3.8 MB)
Product line drawing with letters
CL Globe 100 22 DIM O- FIL 80 1800 E27 SVG (10.77 KB)
Product line drawing with numbers
CL Globe 100 22 DIM O- FIL 80 1800 E27 SVG (17.77 KB)
Product line drawing - technical
CL Globe 100 22 DIM O- FIL 80 1800 E27 SVG (7.13 KB)

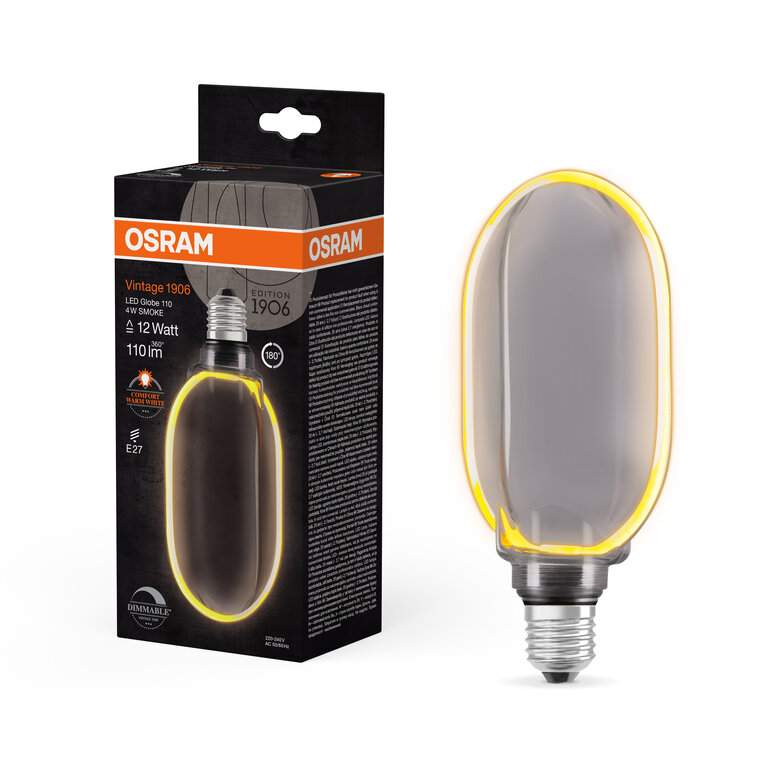

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 GLOBE 100 D1 2 4W 818 FILSM E27 JPG (1.55 MB)

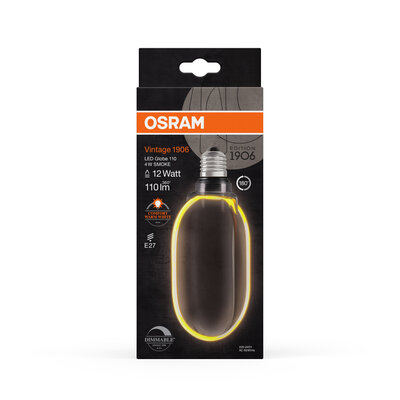

Packaging image, frontal
LED V1906 GLOBE 100 D1 2 4W 818 FILSM E27 JPG (1.03 MB)

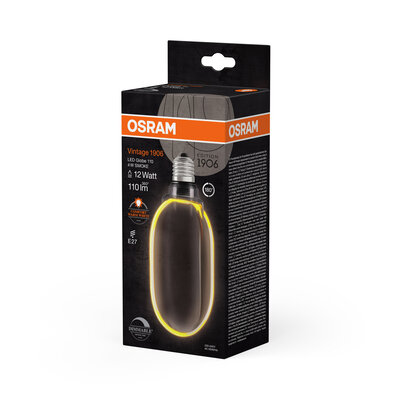

Packaging image, spacial
LED V1906 GLOBE 100 D1 2 4W 818 FILSM E27 JPG (1.32 MB)
Application pictures

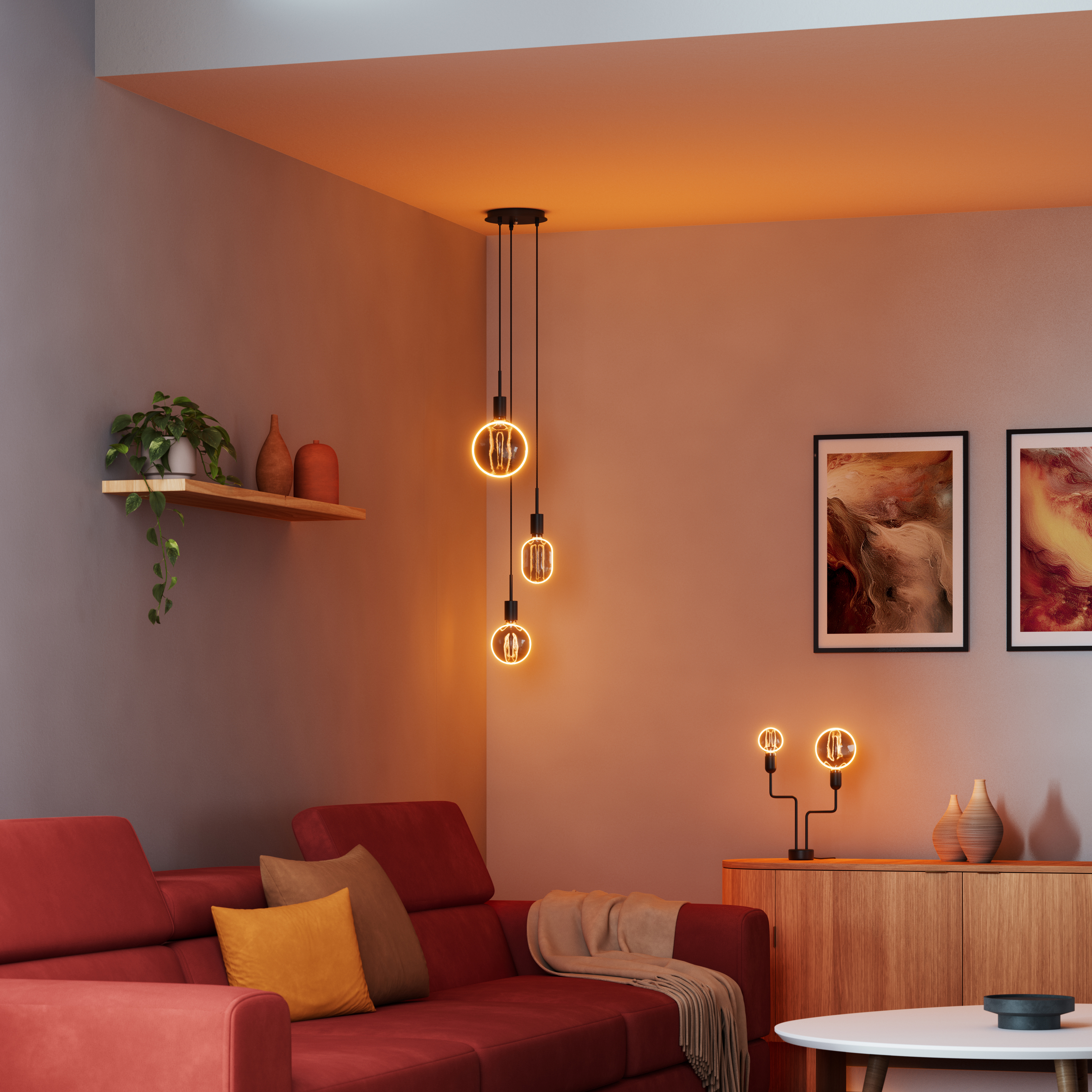

Application picture O- Series Smoke JPG (6.76 MB)
Application pictures

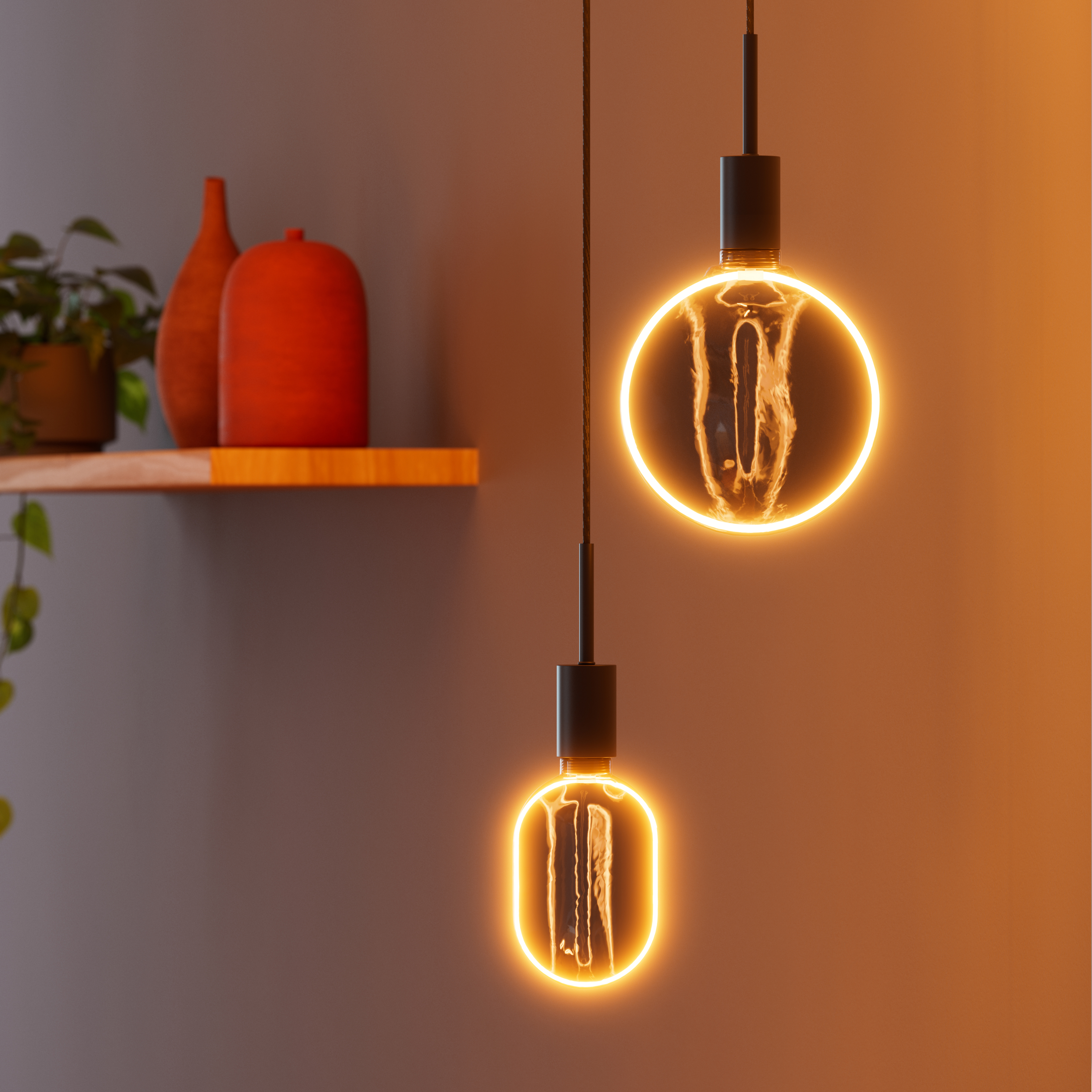

Close-up LED FILAMENT “O” Series Smoke Globe 100 183 JPG (6.3 MB)
