ST5HO54-AC 26 W/6500 K 1149 mm

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 26 W
Construction wattage 26.00 W
Nominal voltage 100…240 V
Operating mode AC
Nominal current 285 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion < 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 153 lm/W
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra > 80
Light color 865
Standard deviation of color matching ≤5 sdcm

Light technical data

Beam angle › 160.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 1149.00 mm
Diameter 16.50 mm
Product weight 200.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 63 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, IEC62776

Country-specific categorizations

Order reference ST5HO54-1.2M26W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) G5
Length 1149.00 mm
Height 16.50 mm
Width 16.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
Areas of application
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
  • General illumination within ambient temperatures from -20…+45 °C
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 50,000 h
  • Low flicker according to EU 2019/2020
  • Type of protection: IP20
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854098772 Sleeve
1		 1,165 mm x 20 mm x 24 mm 218.00 g 0.56 dm³
4099854098789 Shipping box
10		 1,245 mm x 140 mm x 85 mm 2573.00 g 14.82 dm³

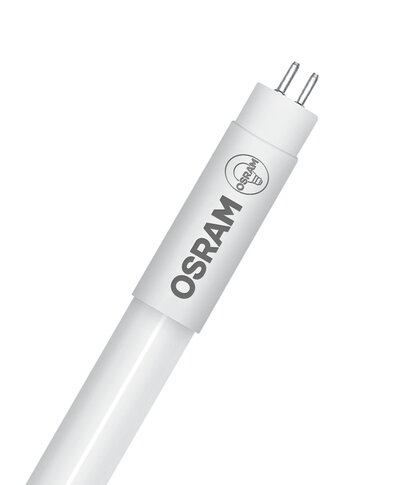

Product image: white background, diagonal with OSRAM logo
T5 OSRAM SubstiTube TIF (146.04 MB)

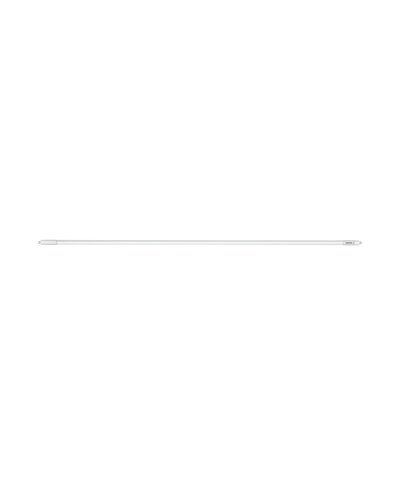

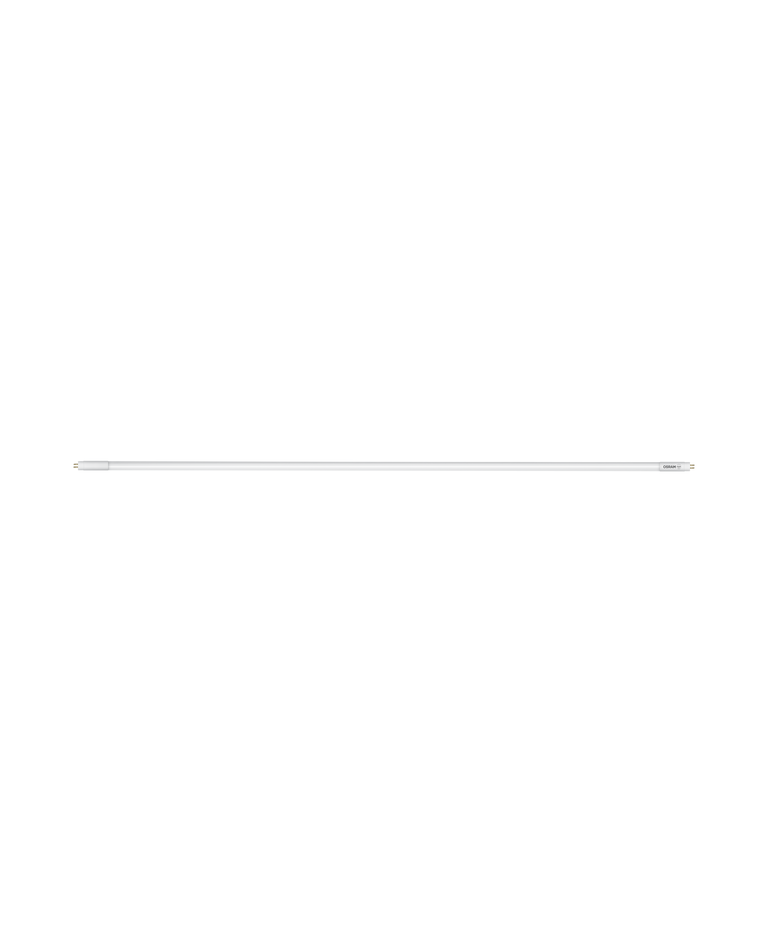

Product image: white background, horizontal, OSRAM logo
T5 LED tube TIF (72.64 MB)

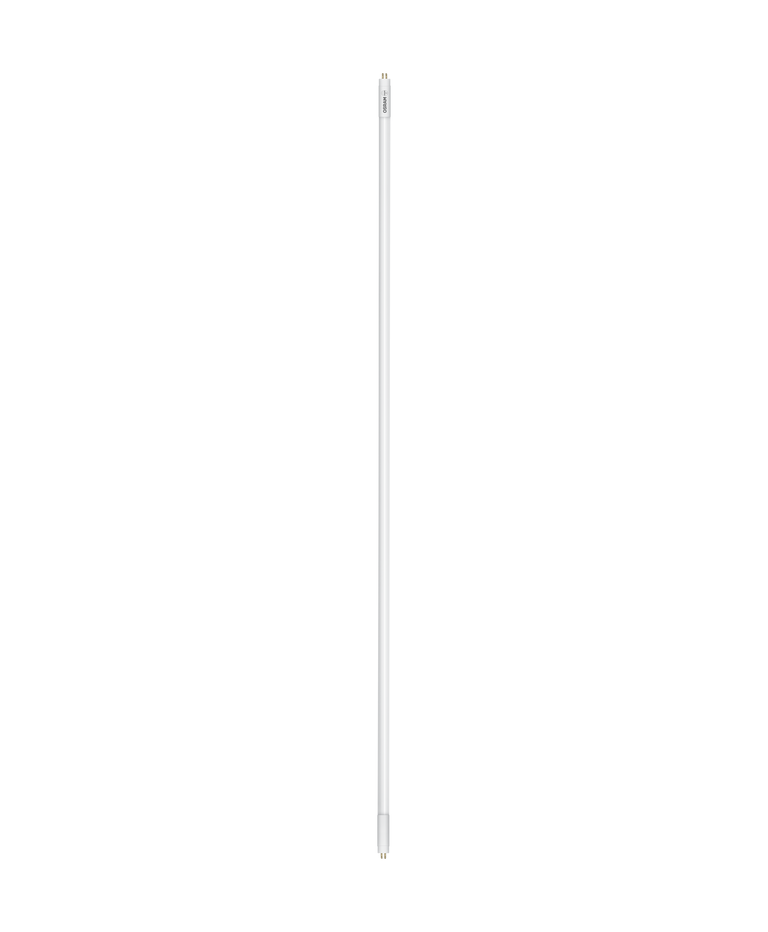

Product image: white background, upright, OSRAM logo
T5 LED tube TIF (72.64 MB)

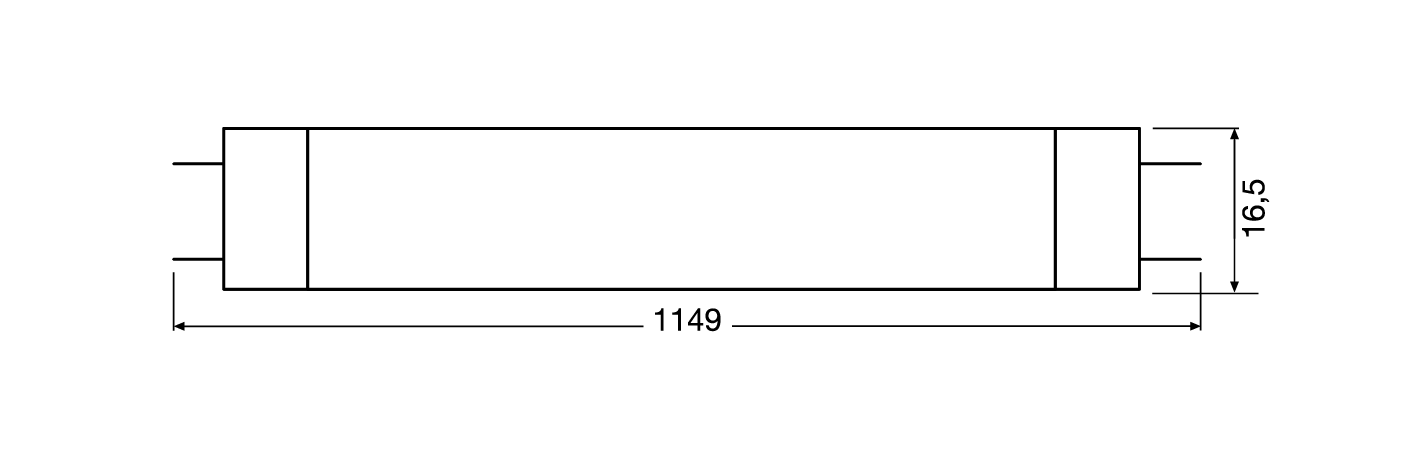

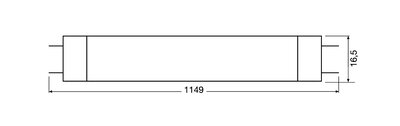

Product line drawing with numbers
ST5 1,2M PNG (16.19 KB)
IES file (IES)
ST 5HO 54 1.2M 26W 865 IES (43.96 KB)
Light distribution curve type polar
ST 5HO 54 1.2M 26W 865 SVG (19.6 KB)
