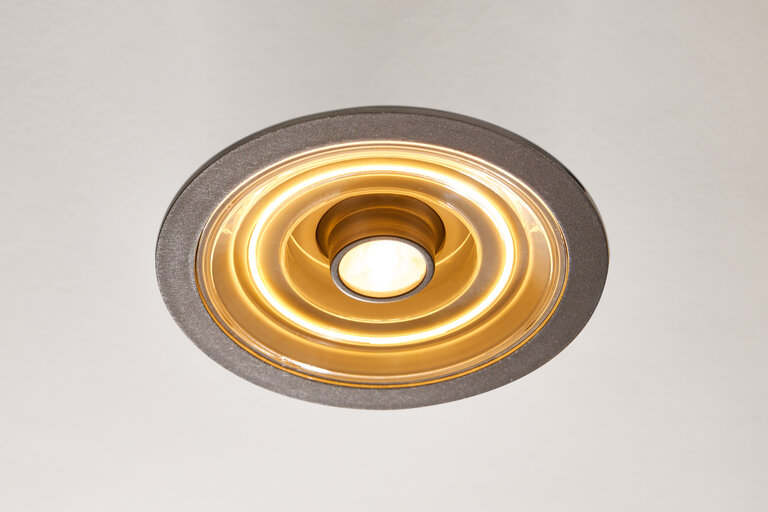

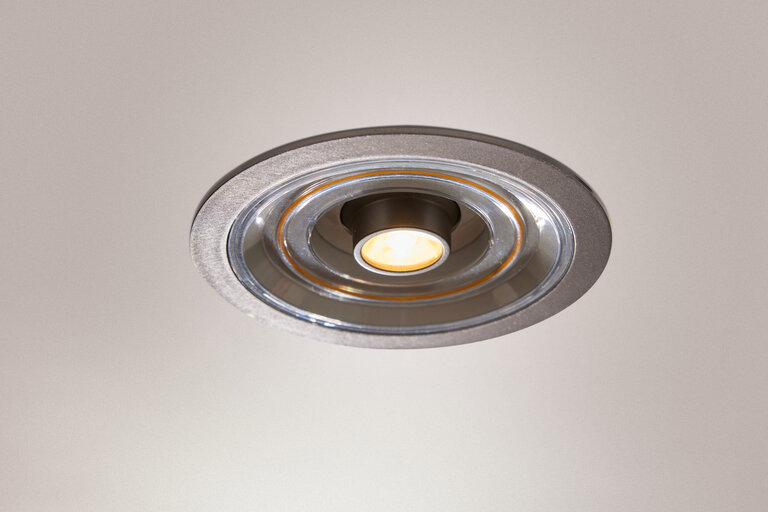

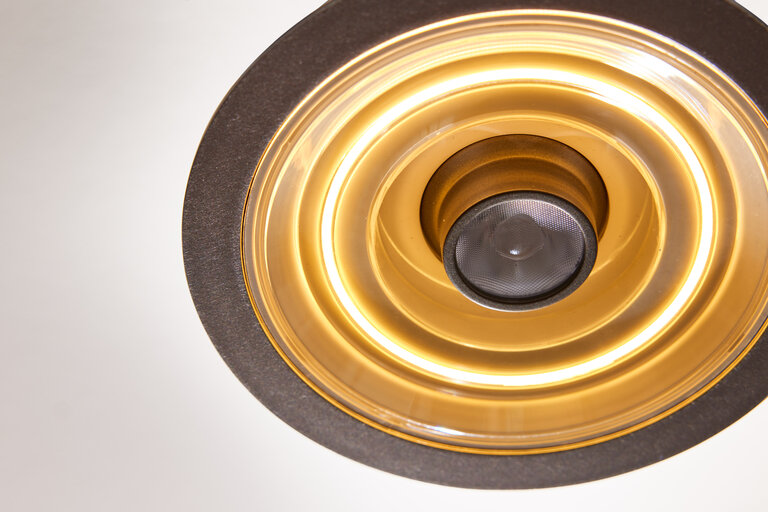

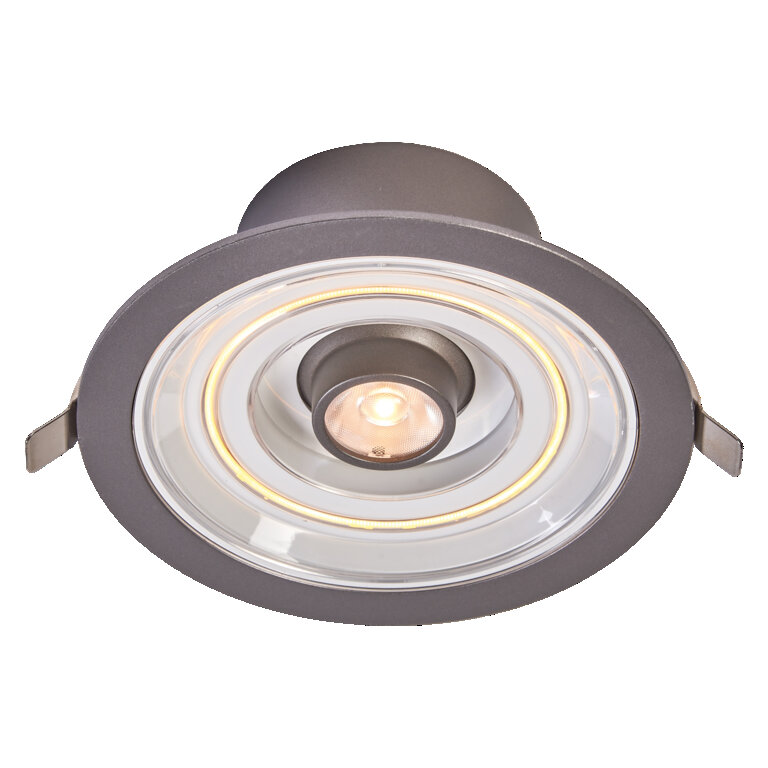

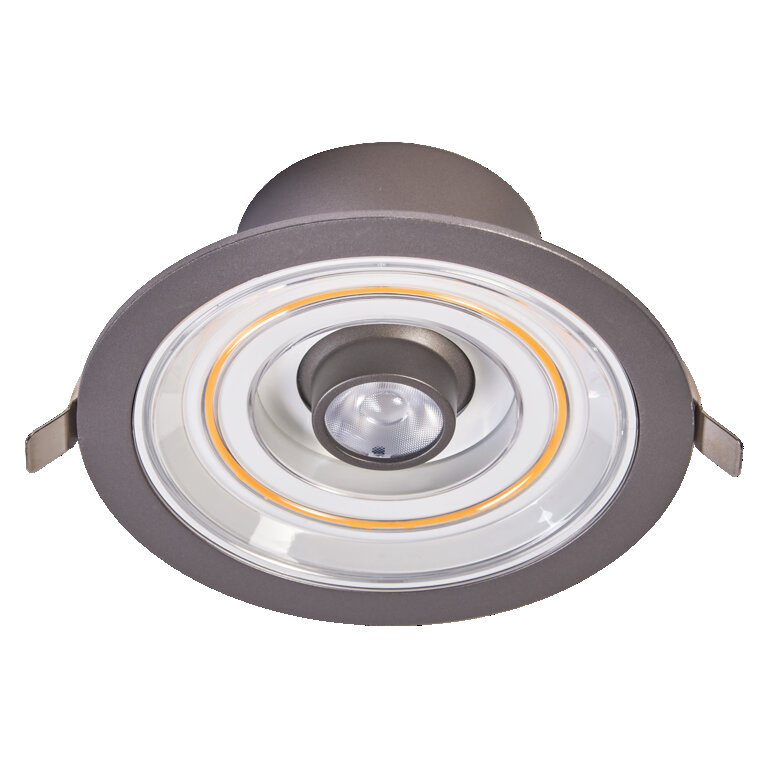

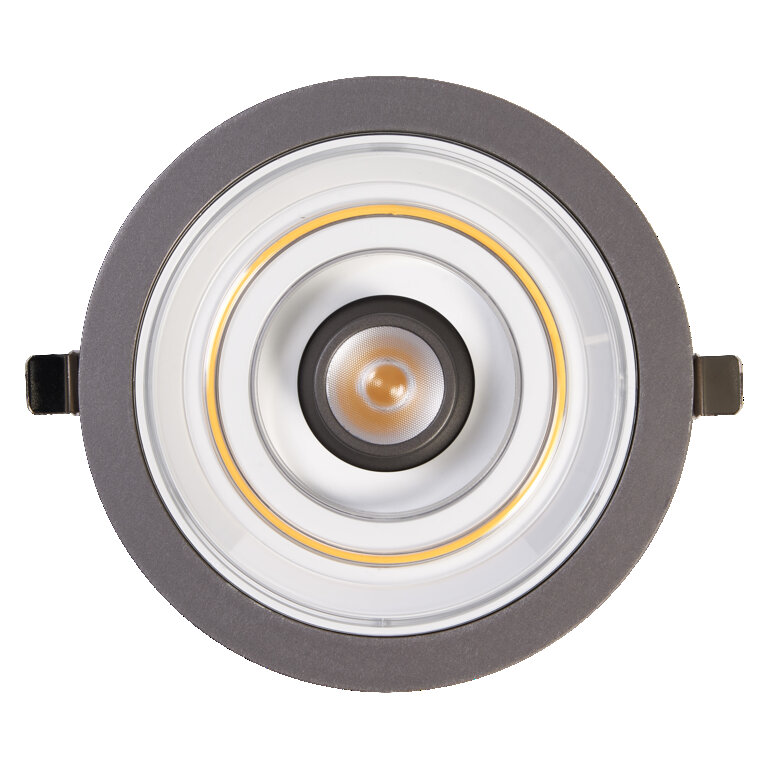

Decor Filament Downlight Halo
Product benefits
- Individual control of brightness
- General and directional illumination (Halo version only)
| Nominal wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 60.000 mA |
| Inrush current | 6 A |
| Inrush current time Th50 | 300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 37 |
| Max. number of luminaires per miniature circuit breaker C16 | 37 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | 120 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
| Luminous flux | 610 lm |
| Total luminous flux of contained light sources | 620 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Luminous intensity | 610 cd |
| Flickering metric (Pst LM) | 5 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| UGR | 15 |

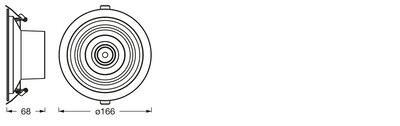

| Diameter | 166.00 mm |
| Height | 68.00 mm |
| Product weight | 500.00 g |
| Cable length | 120 mm |
| Product color | Aluminum |
| Housing color | Aluminum |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push button terminal, 2-pole |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Application environment | Indoor |
| Mounting diameter | 145 mm |
| Mounting depth | 180 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 20000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 85 mA |

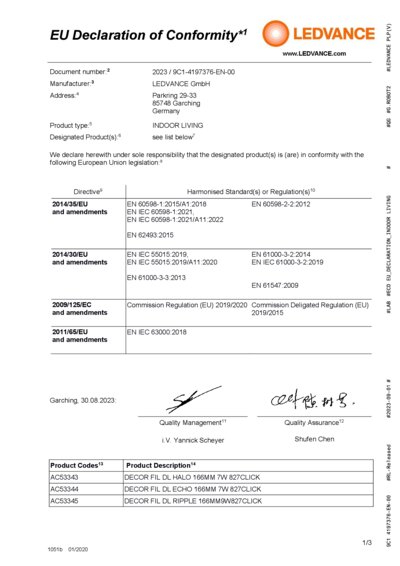

| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | empty |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

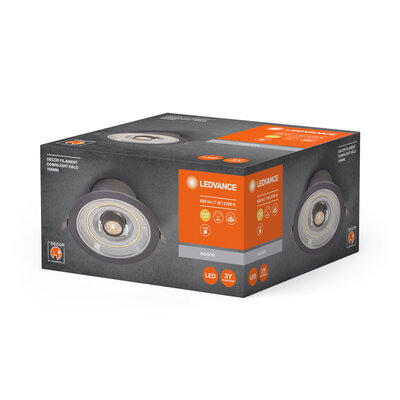

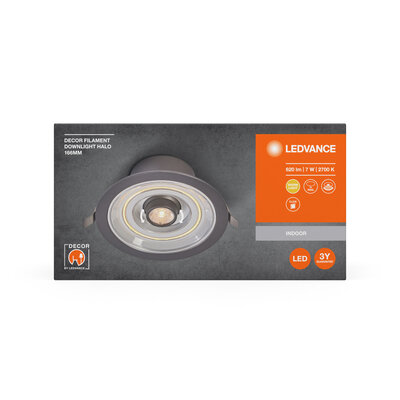

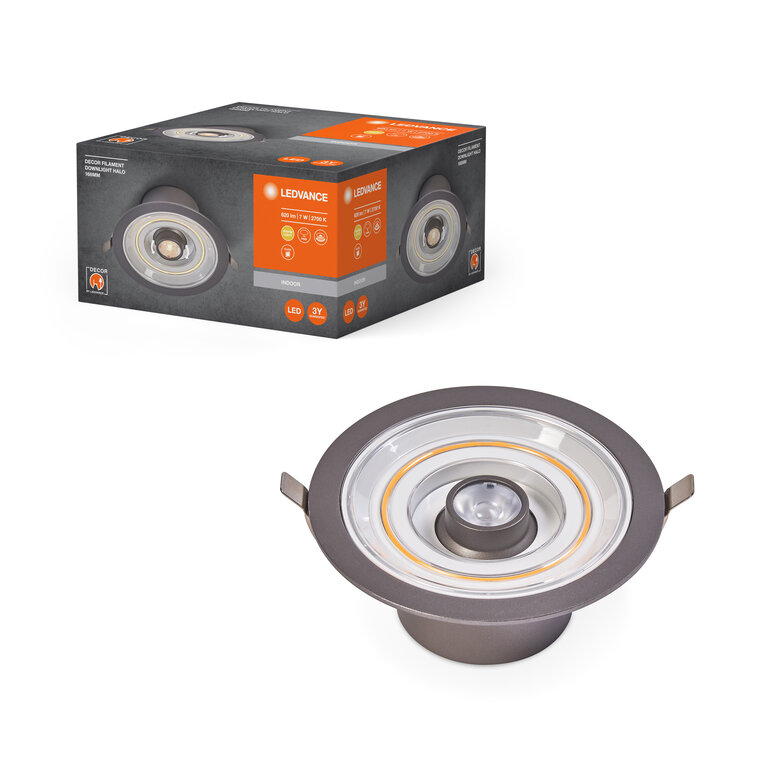

| 4058075832954 | Folding box 1 |
208 mm x 208 mm x 112 mm | 673.00 g | 4.85 dm³ |
| 4058075832961 | Shipping box 8 |
434 mm x 434 mm x 262 mm | 6270.00 g | 49.35 dm³ |
