Vintage 1906 Globe 95 55 Filament DIM 6.5W 824 Gold E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "filament" technology
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.5 W
Construction wattage 6.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 55 W
Nominal current 42 mA
Type of current AC
Inrush current 0.372 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 1209
Max. lamp number on MCB B16 A 1935
Power factor λ ≥ 0.50

Photometrical data

Luminous flux 725 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Comfort warm white
Color temperature 2400 K
Color rendering index Ra 80
Light color 824
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 135.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 54.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 70 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LEDGL95D6,5

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 135.00 mm
Height 95.00 mm
Width 95.00 mm
Chromaticity coordinate x 0.494
Chromaticity coordinate y 0.424
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
EPREL ID 1421165
Model number AC45234,AC45234

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "filament" technology
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854132315 Folding box
1		 111 mm x 111 mm x 191 mm 126.00 g 2.35 dm³
4099854132322 Shipping box
4		 238 mm x 230 mm x 203 mm 691.00 g 11.11 dm³

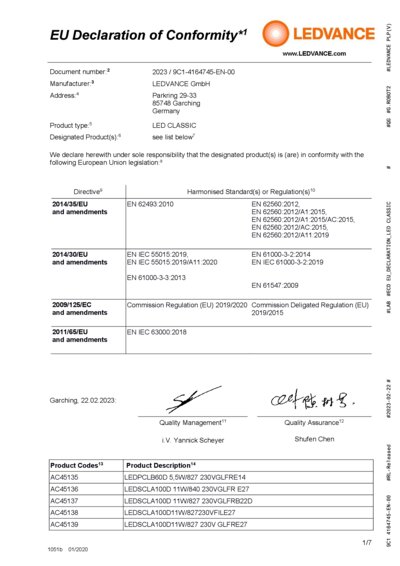

Declarations of conformity
LED CLASSIC PDF (433.11 KB)

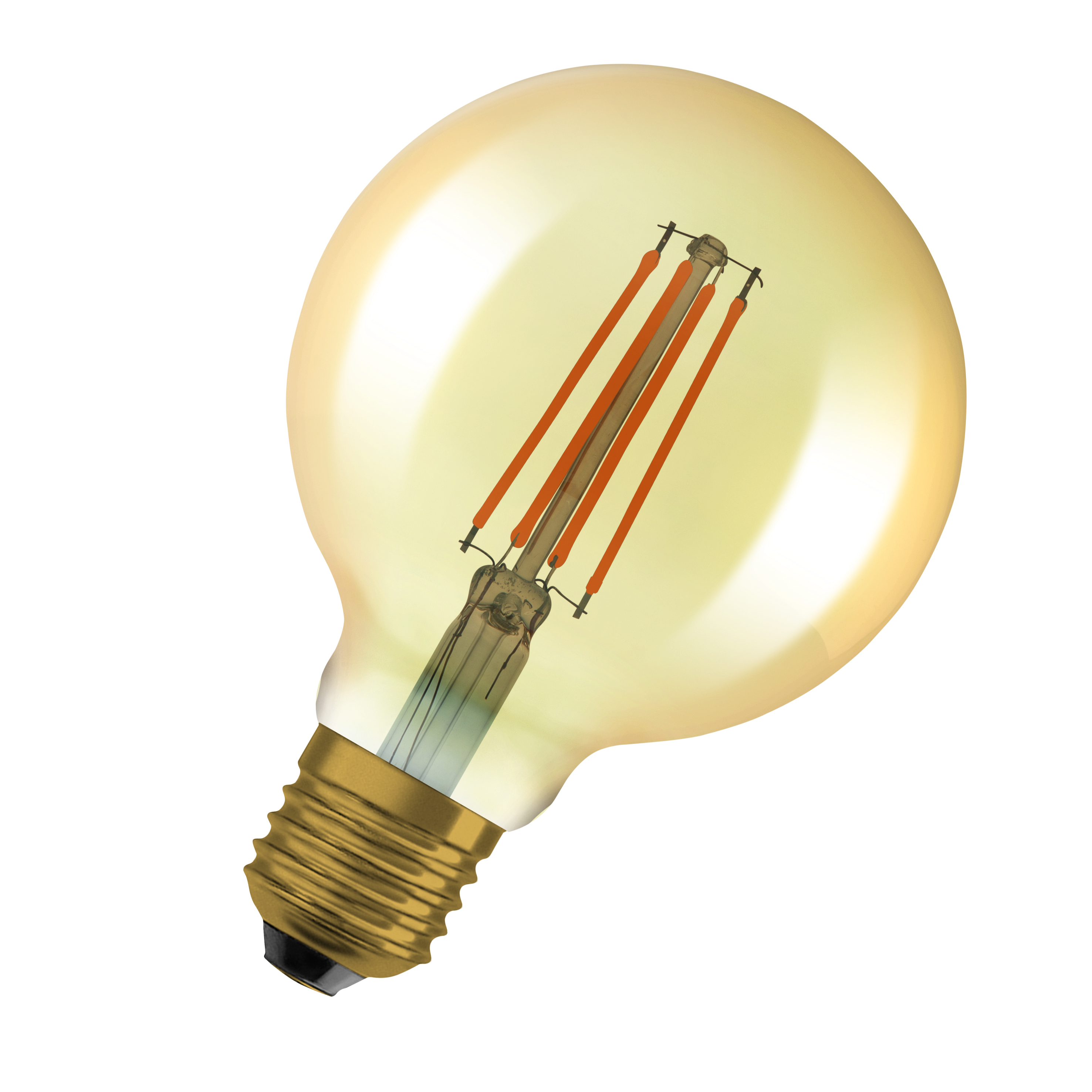

Product image: white background, diagonal
1906LEDGL95D 6,5W/824 230VFILGD E27 4X2OSRAM JPG (2.05 MB)

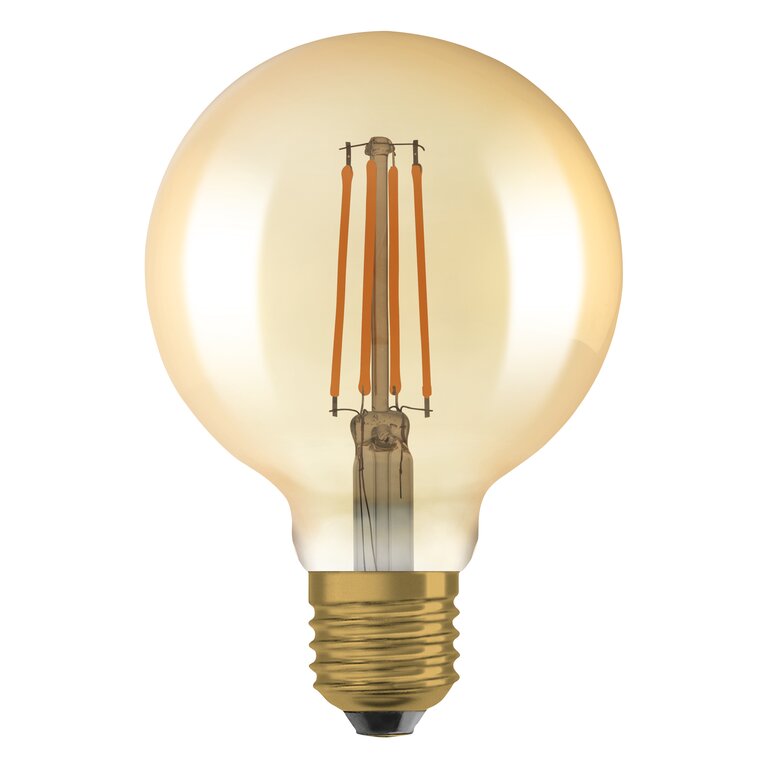

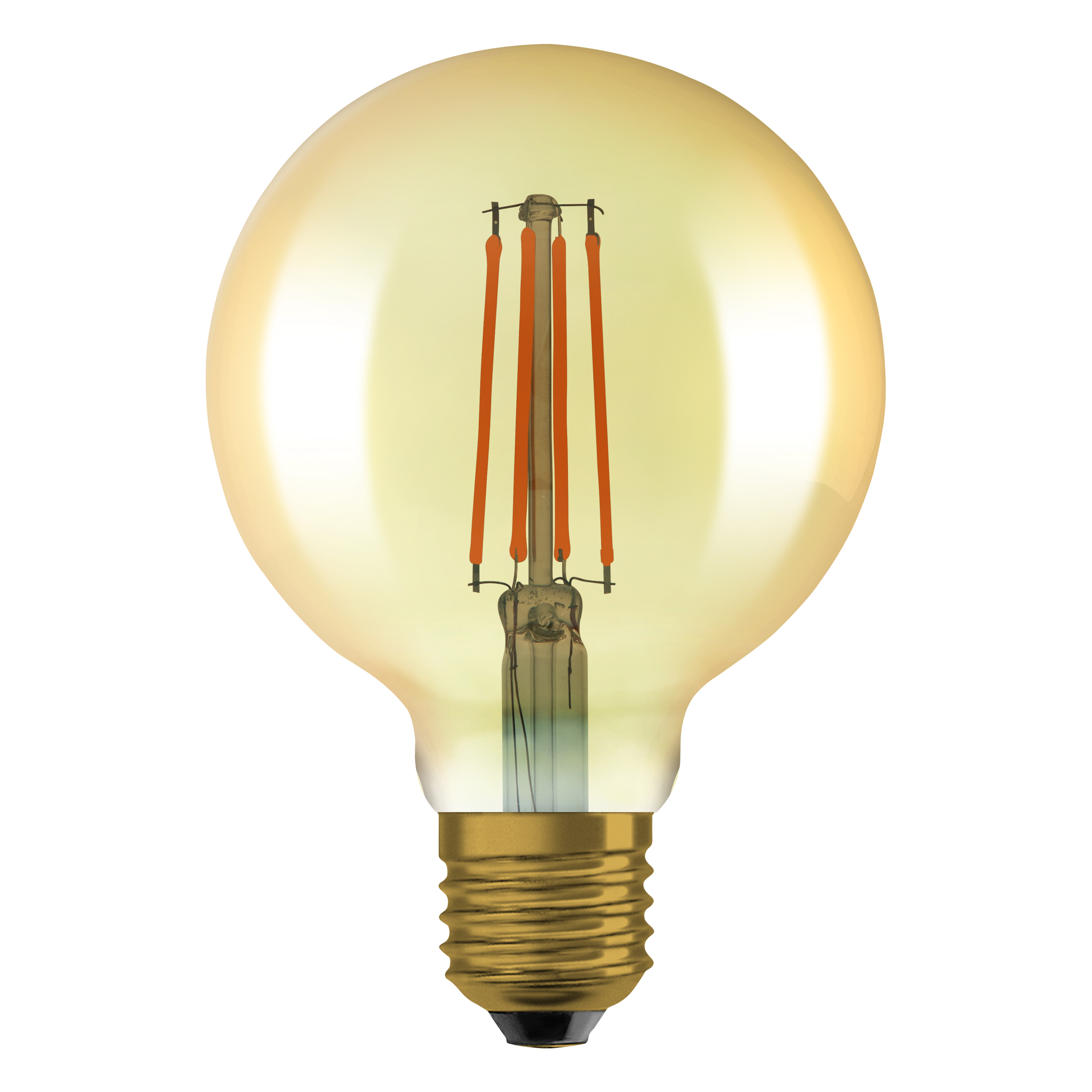

Product image: white background, upright
1906LEDGL95D 6,5W/824 230VFILGD E27 4X2OSRAM JPG (1.96 MB)
Product line drawing with letters
1906LEDGL95D 6,5W/824 230VFILGD E27 4X2OSRAM SVG (15.08 KB)
Product line drawing with numbers
1906LEDGL95D 6,5W/824 230VFILGD E27 4X2OSRAM SVG (17.38 KB)
Product line drawing - technical
1906LEDGL95D 6,5W/824 230VFILGD E27 4X2OSRAM SVG (10.94 KB)

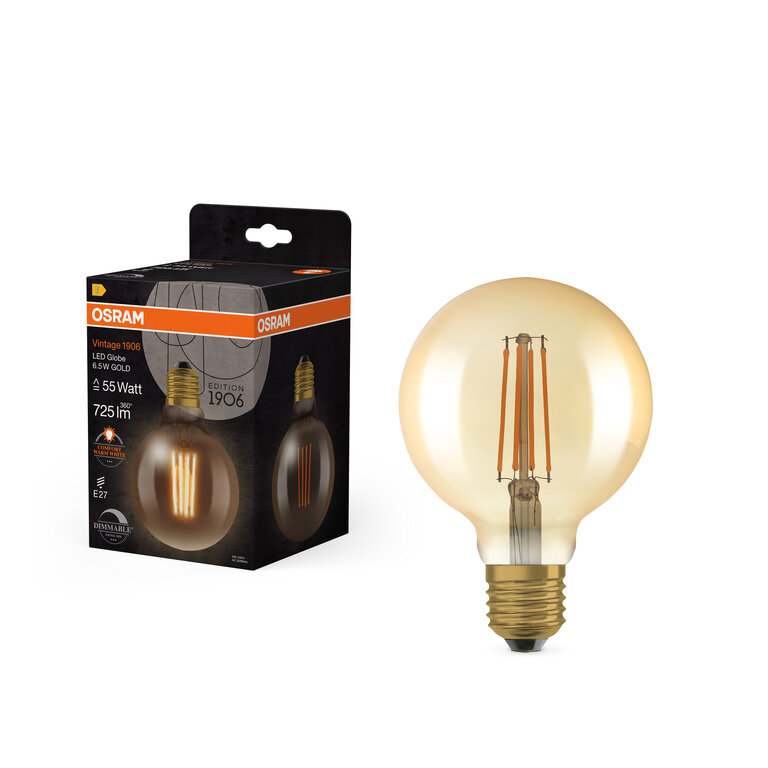

Combo Shot = Product Beauty Shot + Packaging Image
LEDV1906GLOBE95DIM6.5W 824FILGOLDE27MiCh JPG (1.07 MB)

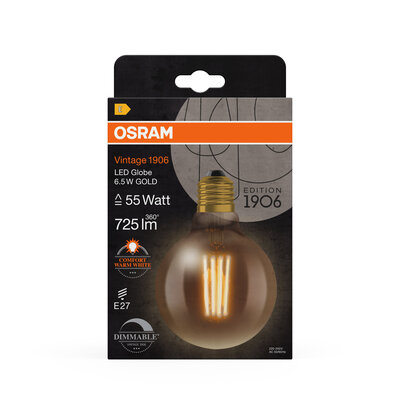

Packaging image, frontal
LEDV1906GLOBE95DIM6.5W 824FILGOLDE27MiCh JPG (1.12 MB)

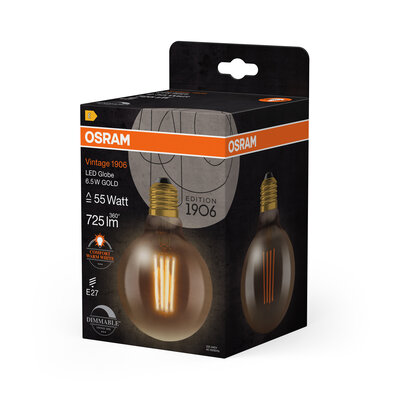

Packaging image, spacial
LEDV1906GLOBE95DIM6.5W 824FILGOLDE27MiCh JPG (1.25 MB)

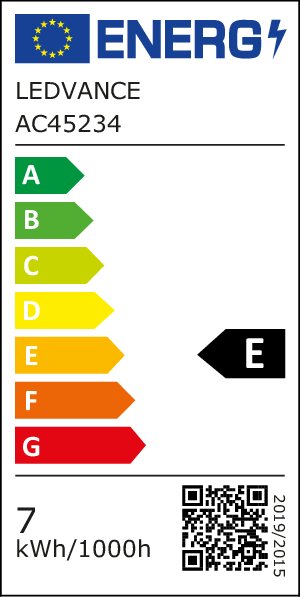

Energy label
EL-4099854132315-AC452 34 PDF (21.47 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)

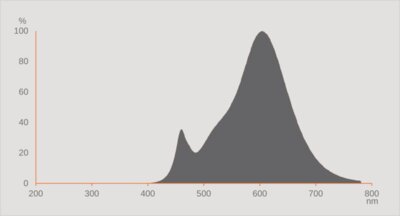

Spectral power distribution
LISO spectral power di stribution 2700K CRI80 v1 PNG (110.19 KB)
EAN SEG number
4099854132315 8298883
