Vintage 1906 Globe 80 42 Filament DIM 11W 818 Smoke E27

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W
Construction wattage 11.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 42 W
Nominal current 55 mA
Type of current AC
Inrush current 0.4 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 145
Max. lamp number on MCB B16 A 232
Total harmonic distortion 30 %
Power factor λ > 0.50

Photometrical data

Luminous flux 500 lm
Nominal useful luminous flux 90° 500 lm
Luminous efficacy 45 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm Comfort Light
Color temperature 1800 K
Color rendering index Ra 80
Light color 818
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 120.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 42.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 67.2 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear smoke
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 11.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LGL80D 11W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 120.00 mm
Height 80.00 mm
Width 80.00 mm
Chromaticity coordinate x 0,552
Chromaticity coordinate y 0.408
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.7
LED light source replaces a fluorescent light source No
EPREL ID 1212439
Model number AC41914,AC41914

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
  • Thinner filament, better decorative effect
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854090783 Folding box
1		 81 mm x 81 mm x 155 mm 67.00 g 1.02 dm³
4099854090790 Shipping box
4		 180 mm x 174 mm x 170 mm 454.00 g 5.32 dm³
Declarations of conformity
1906 LED lamps PDF (307.46 KB)

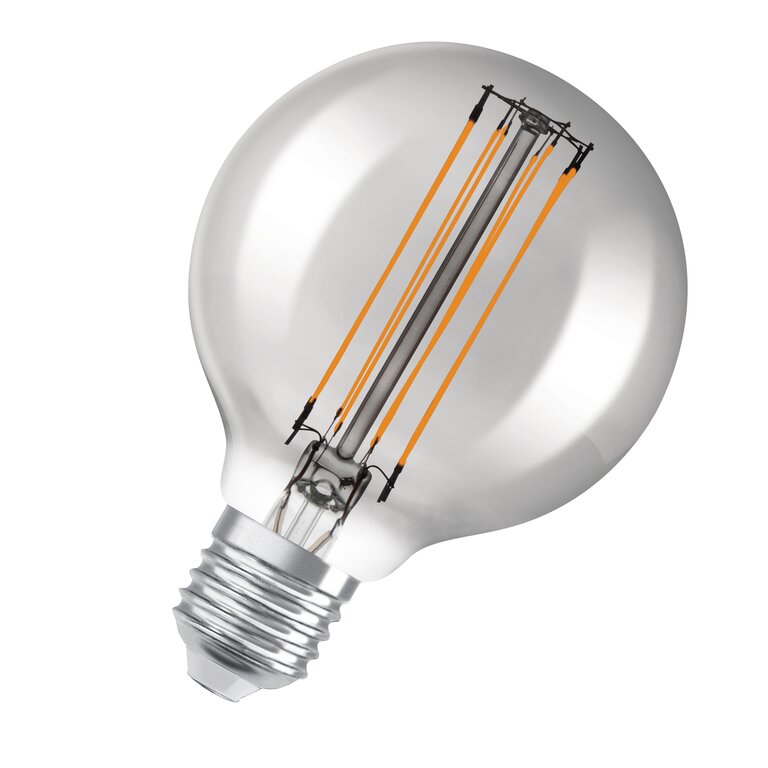

Product image: white background, diagonal
1906LED Globe80D42 81 8 230V FILISM E27 JPG (2.57 MB)

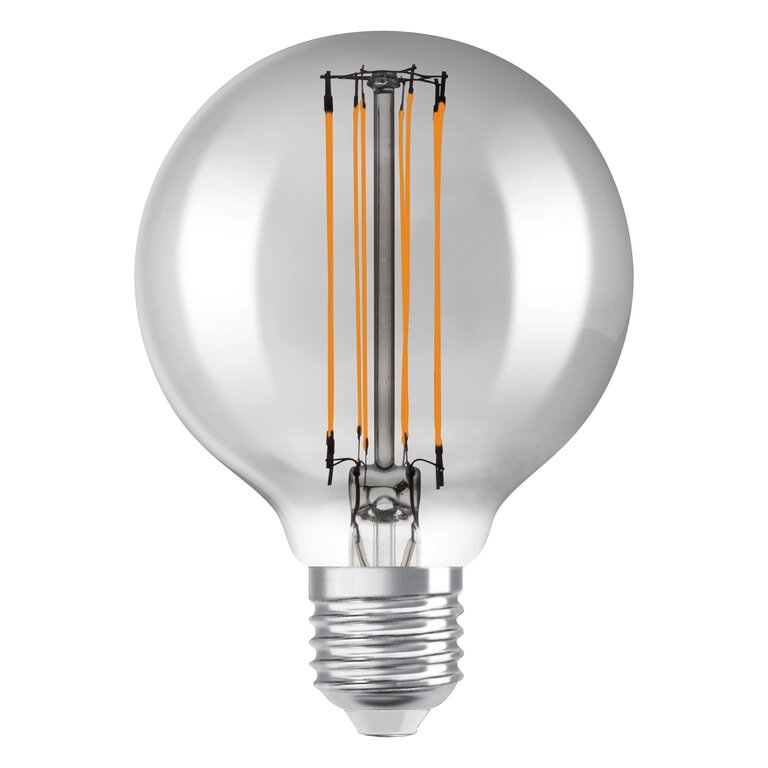

Product image: white background, upright
1906LED Globe80D42 81 8 230V FILISM E27 JPG (2.34 MB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E -Com_Grafik V2 1200x12 00px 2023 EN JPG (809.28 KB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E -Com Grafik V1 1200x12 00px 2023 EN JPG (629.63 KB)
Product line drawing with letters
1906LED Globe80D42 81 8 230V FILISM E27 SVG (18.83 KB)
Product line drawing with numbers
1906LED Globe80D42 81 8 230V FILISM E27 SVG (20.73 KB)
Product line drawing - technical
1906LED Globe80D42 81 8 230V FILISM E27 SVG (14.66 KB)

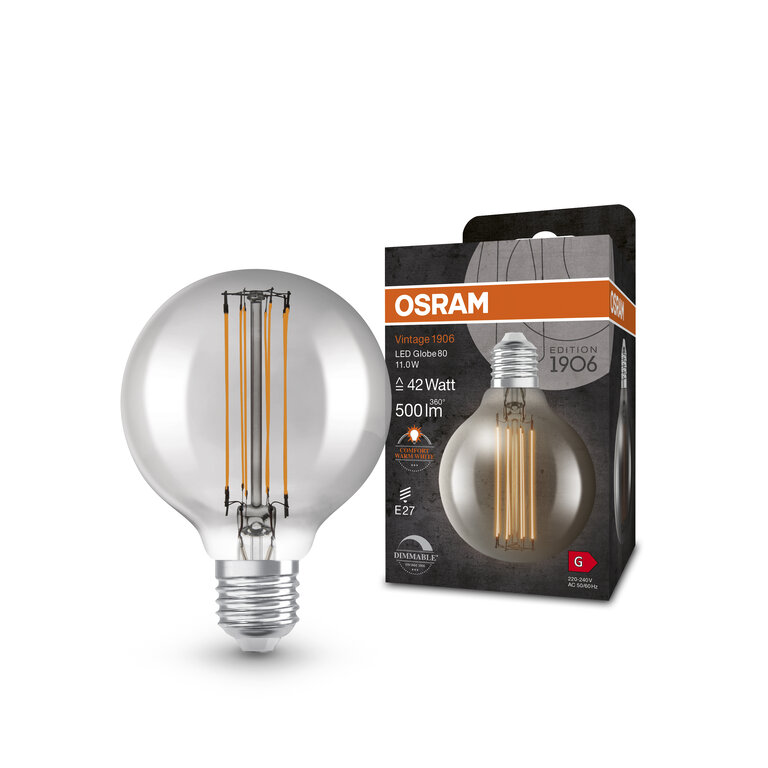

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 GLOBE 80 42 DIM 11W 818 FIL SMOKE E27 MiCh JPG (1.79 MB)

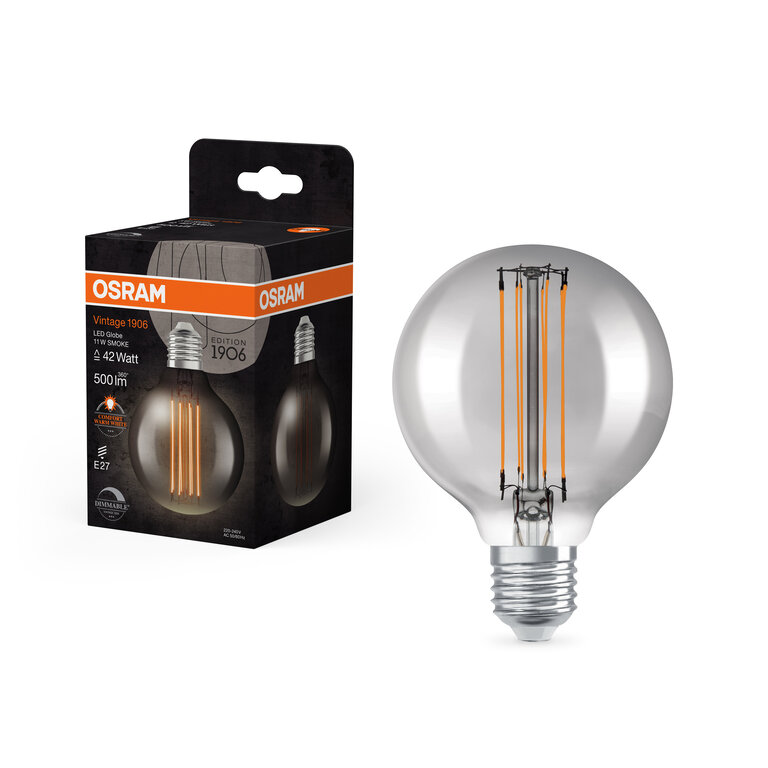

Combo Shot = Product Beauty Shot + Packaging Image
LEDV1906GLOBE8042DIM11 W818FILSMOKEE27MiCh JPG (1.15 MB)

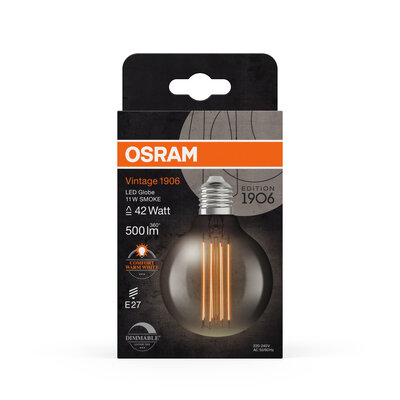

Packaging image, frontal
LED V1906 GLOBE 80 42 DIM 11W 818 FIL SMOKE E27 MiCh JPG (1.09 MB)

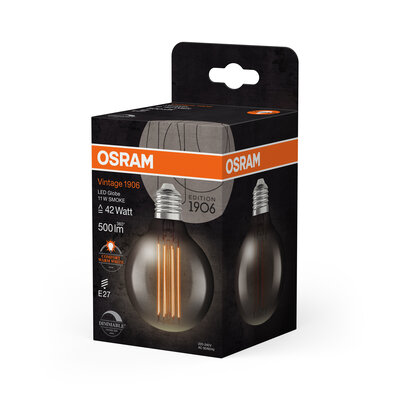

Packaging image, spacial
LED V1906 GLOBE 80 42 DIM 11W 818 FIL SMOKE E27 MiCh JPG (1.2 MB)
Energy label
EL-4099854090783-AC419 14 PDF (21.27 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
EPREL Data Spectral Di agram LEDr _1800K_1906 _Vintage_Smoke SVG (75 KB)
EAN SEG number EFO number ELDAS number
4099854090783 8299185 3763290 941004290
