Vintage 1906 Classic P 40 Spiral Filament DIM 4.6W 927 Clear E14

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.6 W
Construction wattage 4.60 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 27.4 mA
Type of current AC
Inrush current 0.2 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 150
Max. lamp number on MCB B16 A 240
Total harmonic distortion ≤ 120 %
Power factor λ ≥ 0.50

Photometrical data

Luminous flux 470 lm
Luminous efficacy 102 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 90
Light color 927
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ≤ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 80.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 14.9 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 71 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LCLP40D 4,6

LOGISTICAL DATA

Temperature range at storage -40…+85 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS Not relevant
Claim of equivalent power Yes
Length 80.00 mm
Height 45.00 mm
Width 45.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
EPREL ID 1854782
Model number AC58083,AC58083

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
  • Thinner filament, better decorative effect
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075836747 Folding box
1		 49 mm x 49 mm x 133 mm 26.00 g 0.32 dm³
4058075836754 Shipping box
6		 165 mm x 122 mm x 145 mm 239.00 g 2.92 dm³
Declarations of conformity
LED lamp PDF (289.2 KB)

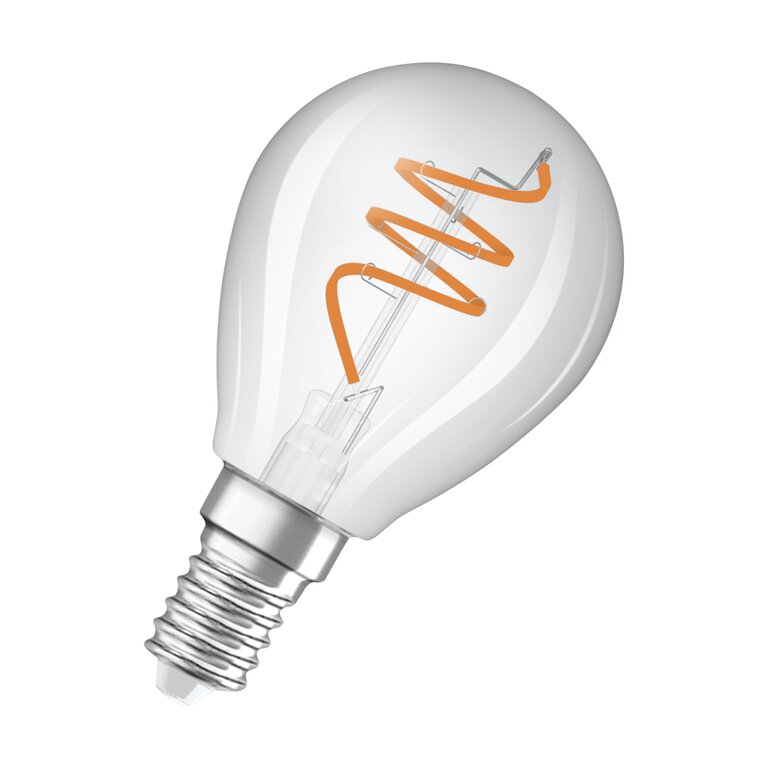

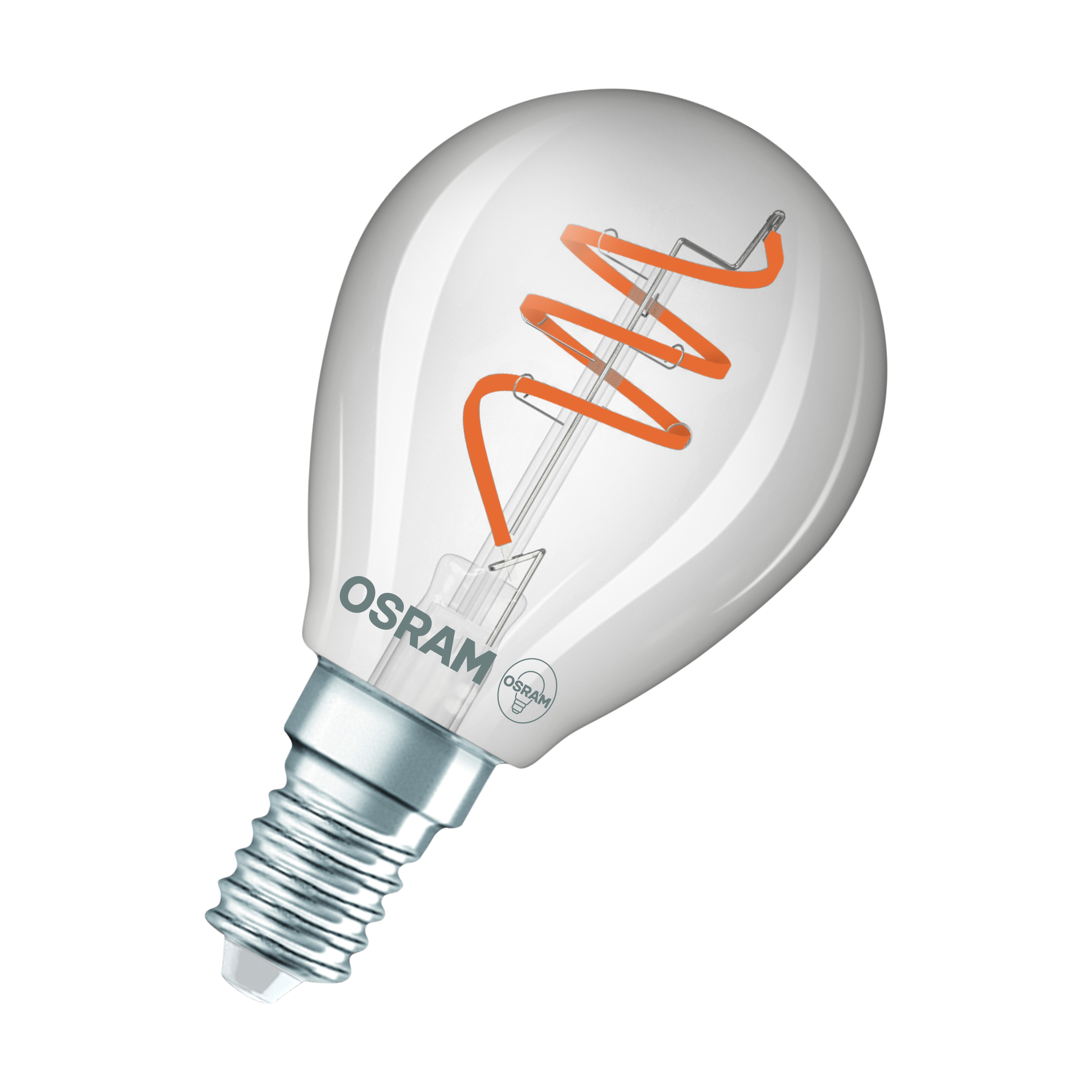

Product image: white background, diagonal with OSRAM logo
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM JPG (2.36 MB)

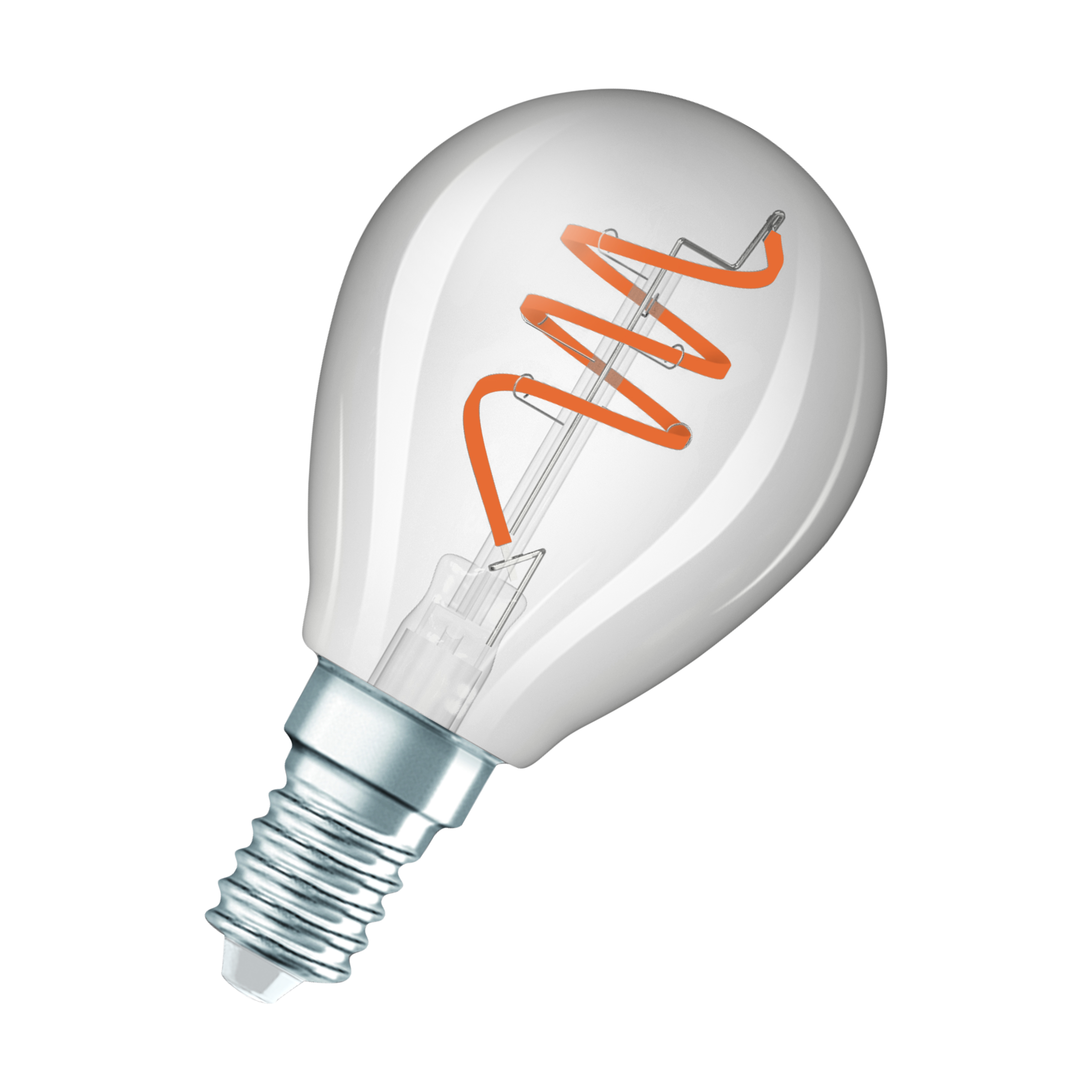

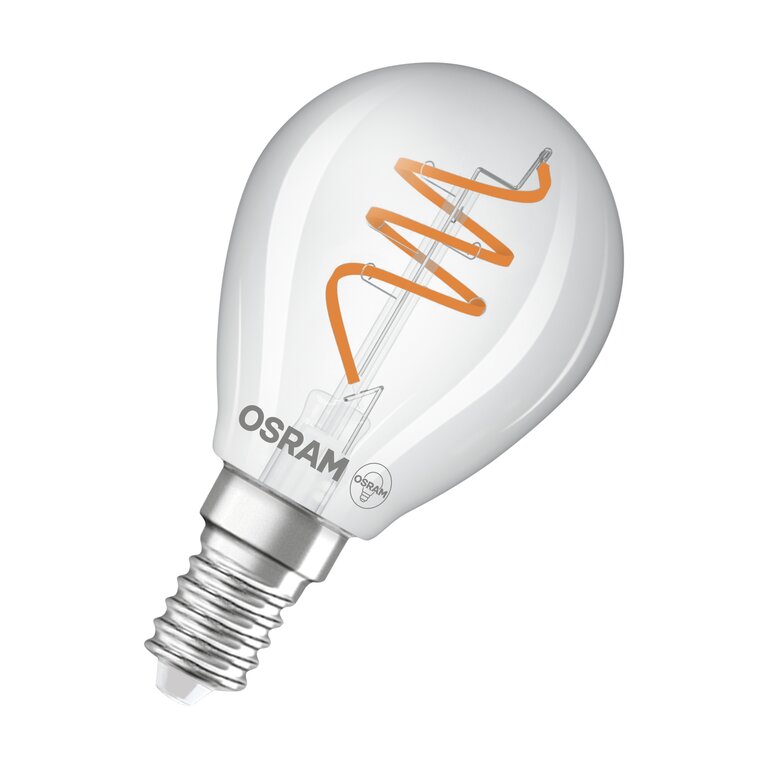

Product image: white background, diagonal
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM JPG (2.32 MB)

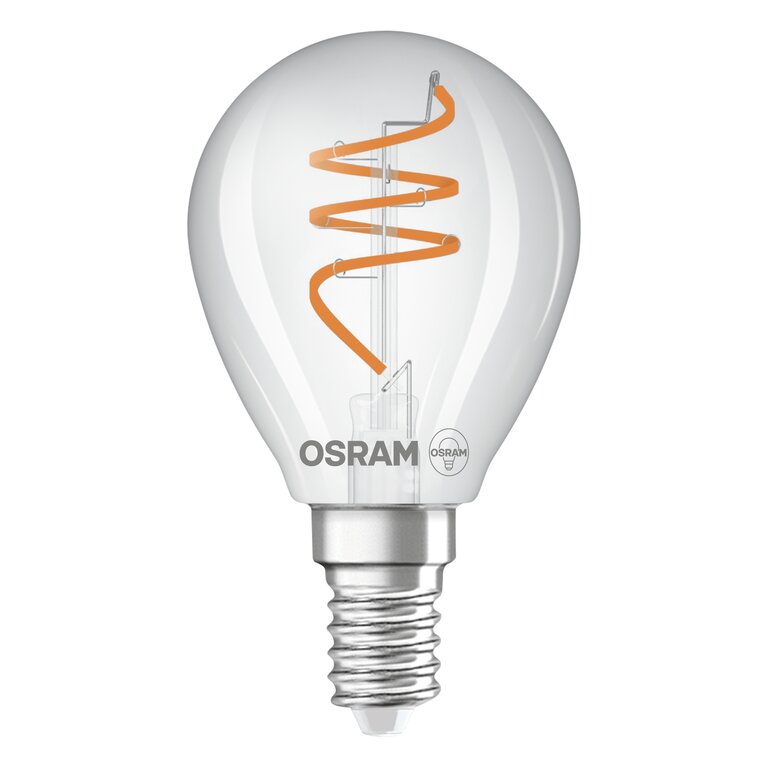

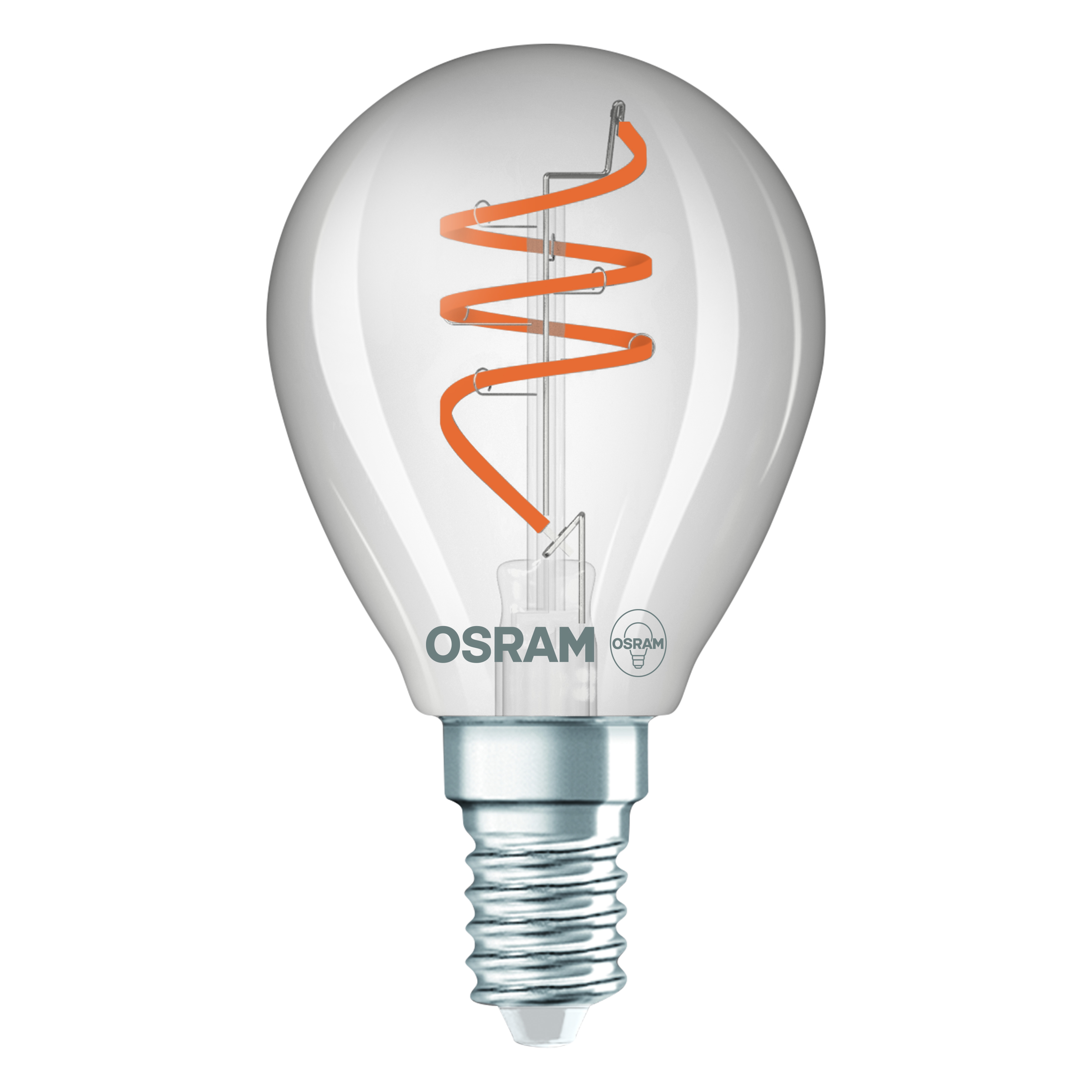

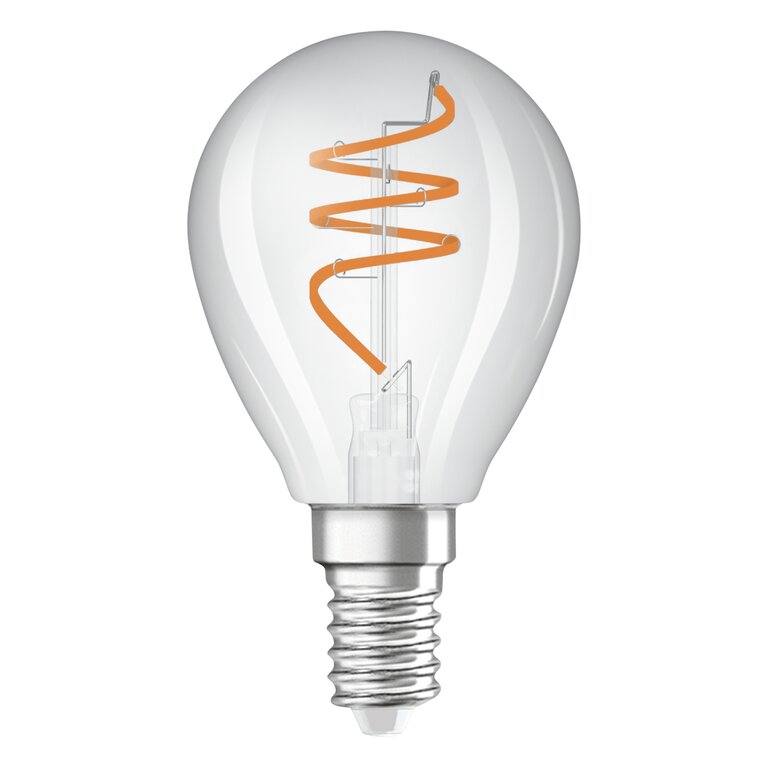

Product image: white background, upright, OSRAM logo
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM JPG (2.31 MB)

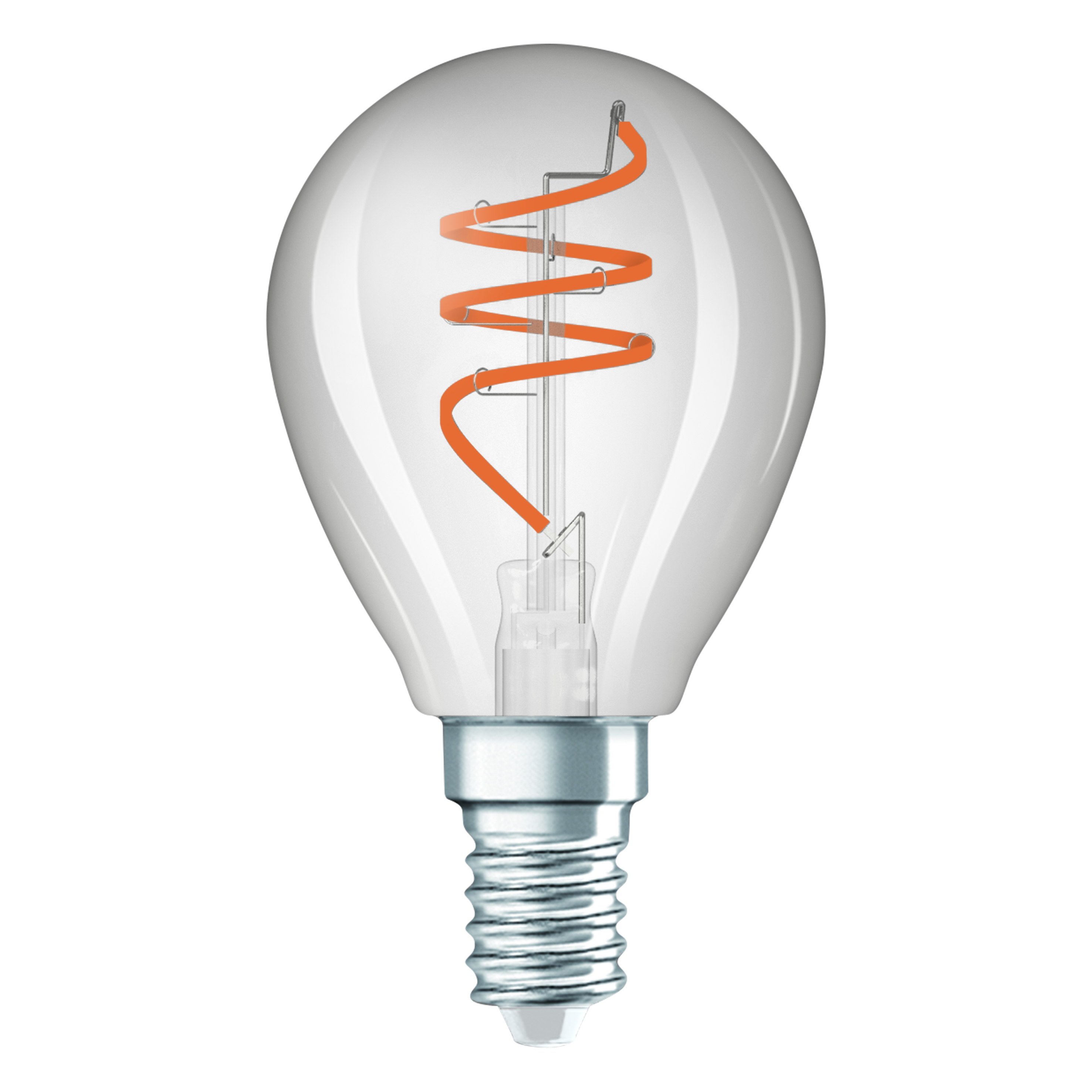

Product image: white background, upright
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM JPG (2.28 MB)
Product line drawing with letters
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM SVG (12.01 KB)
Product line drawing with numbers
1906LCLP40 4,9W/922230 VSFILGDE14 OSRAM SVG (16.89 KB)
Product line drawing - technical
1906LCLP40D 4,6W/927 2 30VSFILE14 OSRAM SVG (8.13 KB)

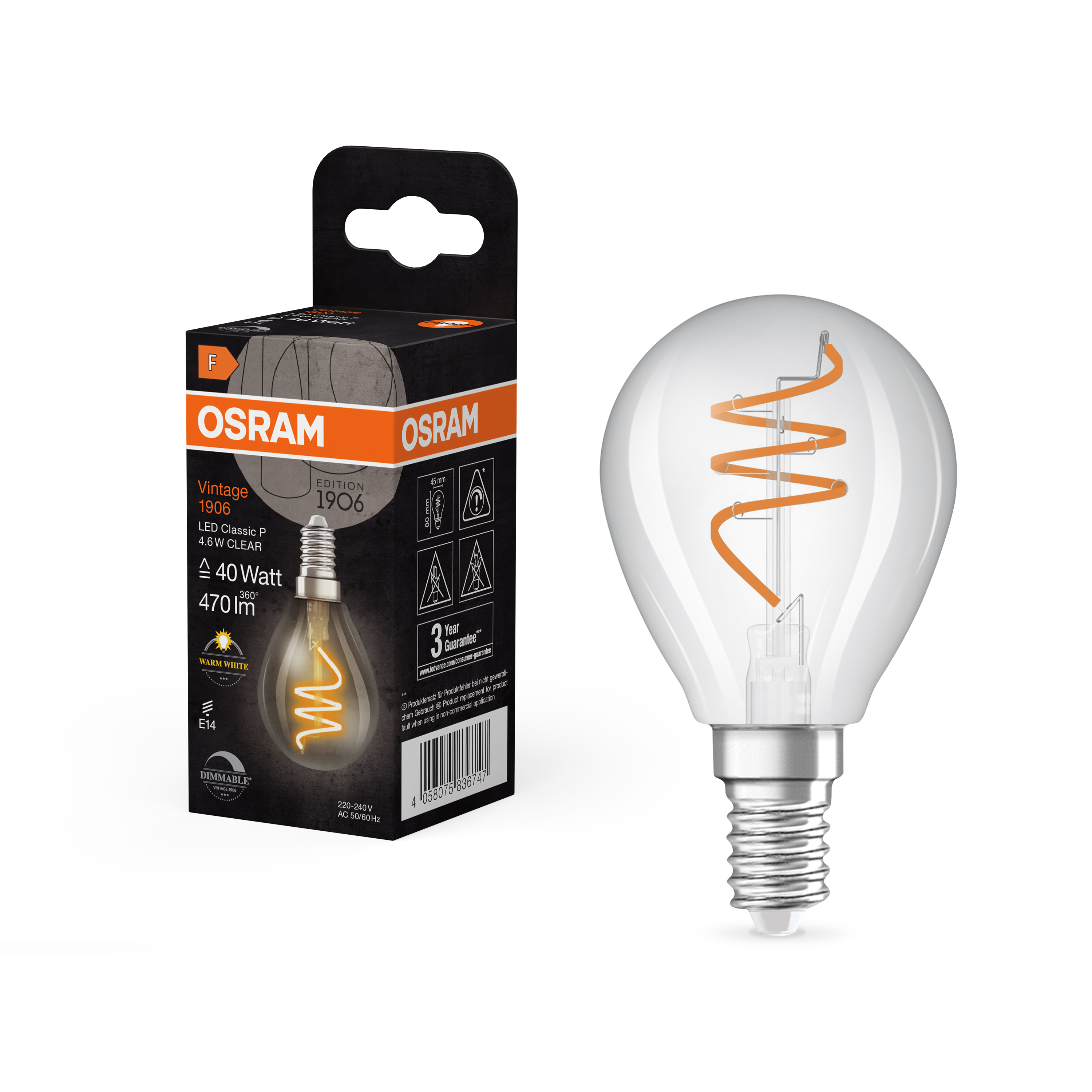

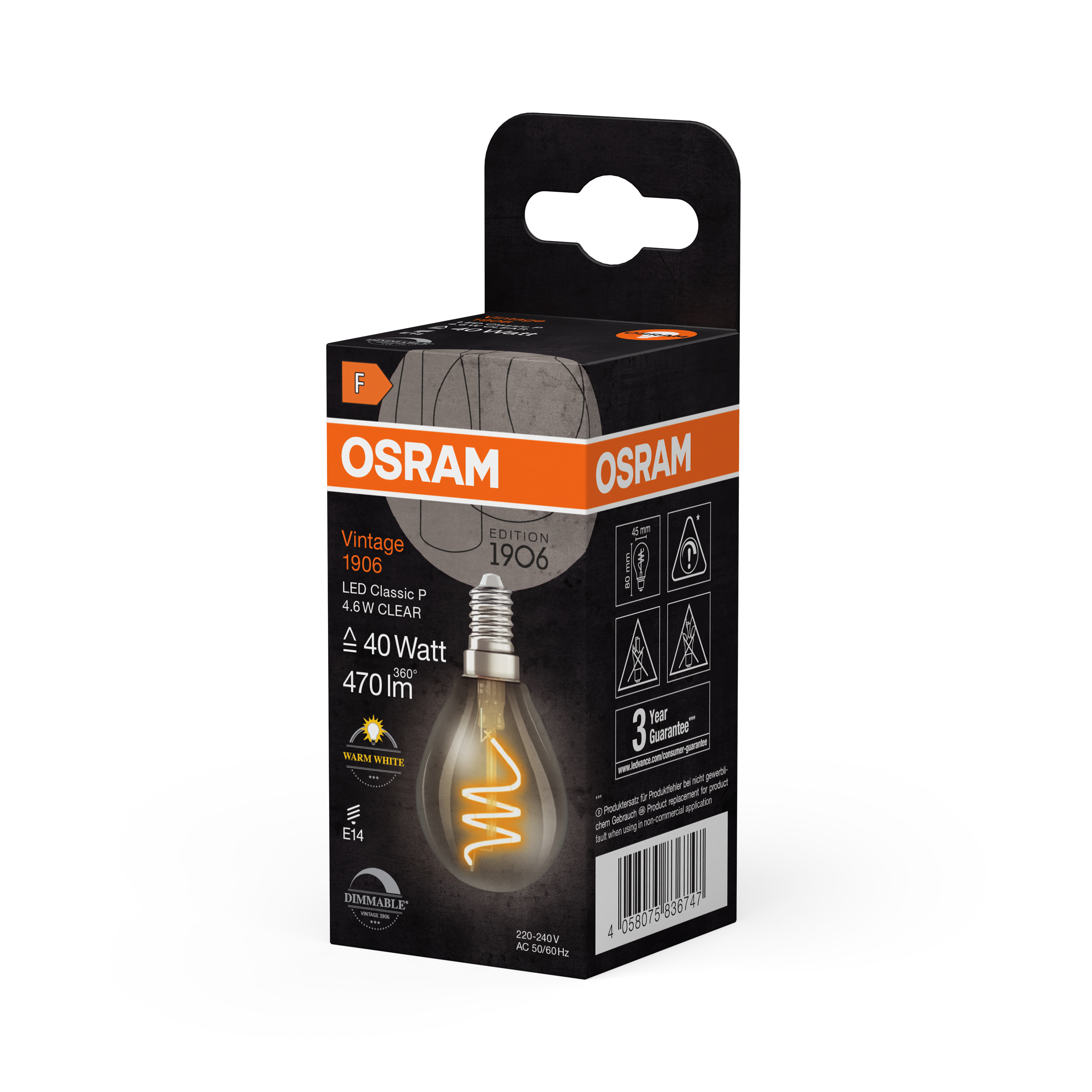

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED V1906 CLP 40 D IM 4.6W 927 FILCL E14 JPG (1.14 MB)

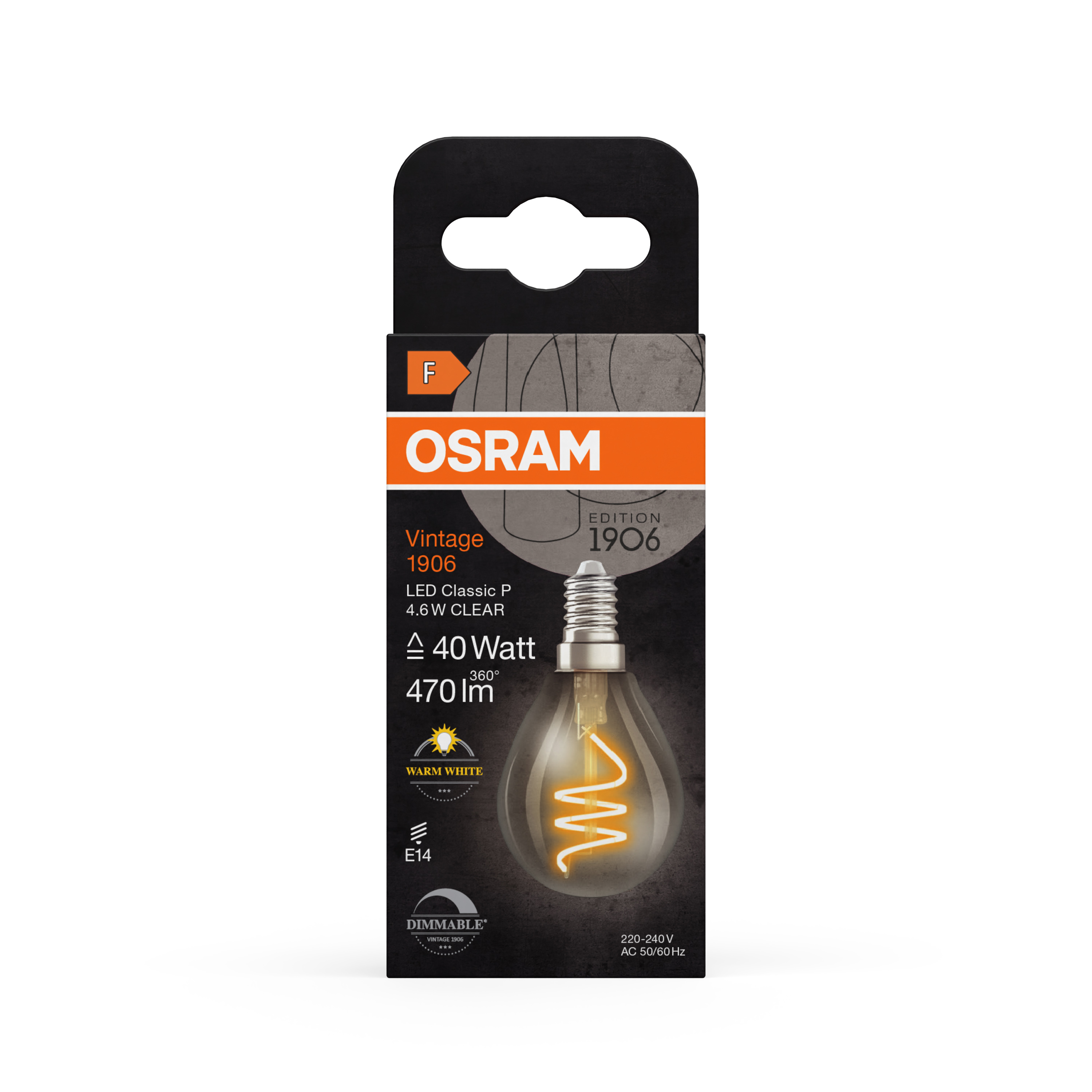

Packaging image, frontal
FC1 LED V1906 CLP 40 D IM 4.6W 927 FILCL E14 JPG (930.22 KB)
Packaging image, spacial
FC1 LED V1906 CLP 40 D IM 4.6W 927 FILCL E14 JPG (1.11 MB)
Energy label
EL-4058075836747-AC580 83 PDF (21.62 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)

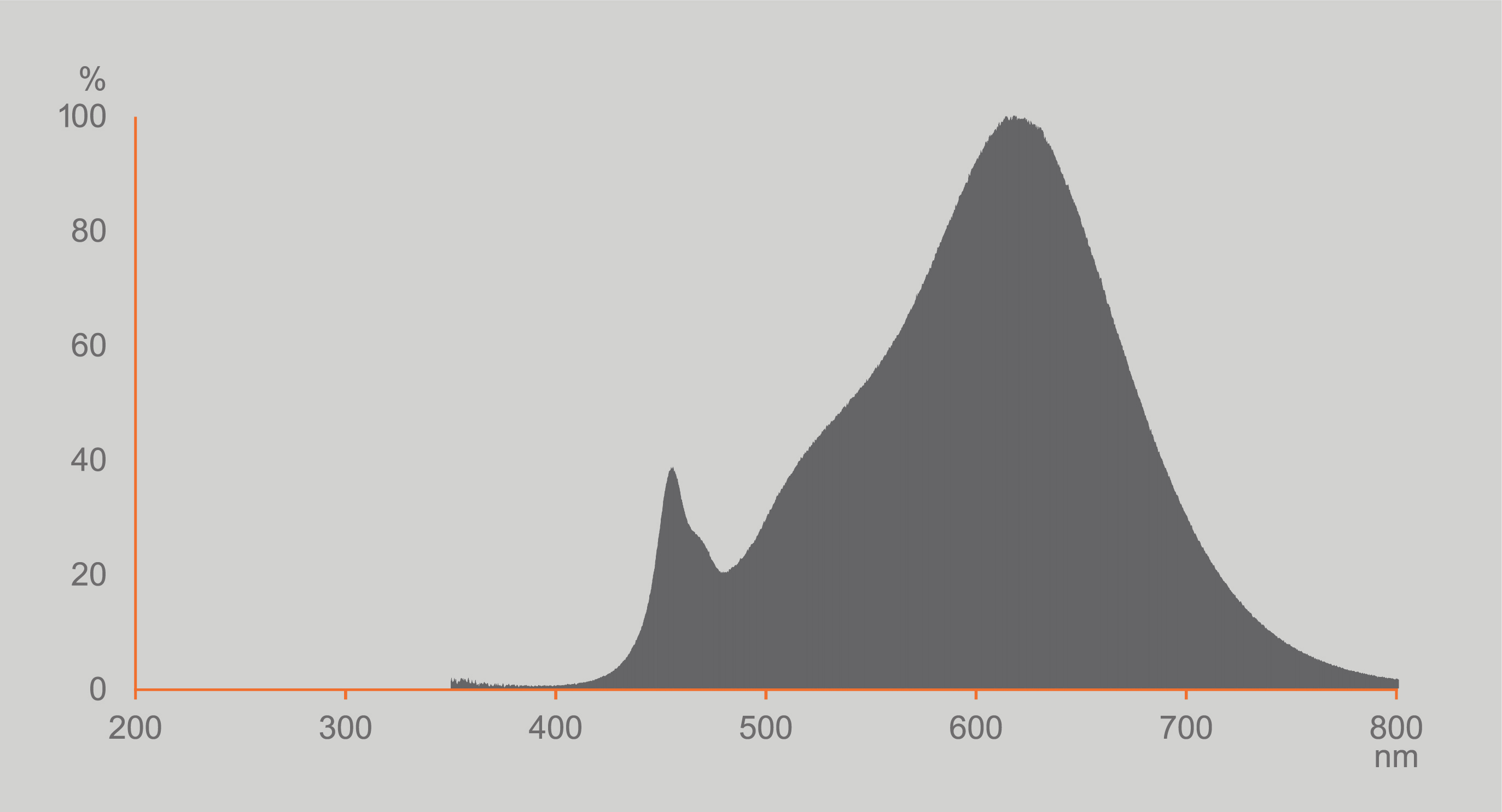

Spectral power distribution
Spectral graph Classic P 2700K DIM JPG (426.18 KB)

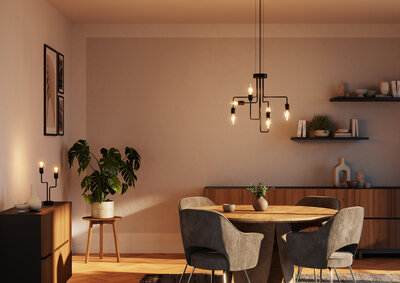

Application pictures
Vintage 1906 Special F ilament CLASSIC P/B JPG (10.72 MB)
EAN SEG number ELDAS number
4058075836747 8299686 941903300
