Vintage 1906 Classic B 25 Filament DIM 3.4W 822 Gold E14

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3.4 W
Construction wattage 3.40 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 25 W
Nominal current 20 mA
Type of current AC
Inrush current 0.025 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 363
Max. lamp number on MCB B16 A 581
Power factor λ > 0.50

Photometrical data

Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 73 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm Comfort Light
Color temperature 2200 K
Color rendering index Ra 80
Light color 822
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 97.00 mm
Diameter 35.00 mm
Maximum diameter 35 mm
Product weight 13.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 55 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear gold
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference 1906LCLBD 3,4W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 97.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.502
Chromaticity coordinate y 0,415
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.5
LED light source replaces a fluorescent light source No
EPREL ID 1212442
Model number AC41917,AC41917

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "slim-filament" technology
  • Spiral slim-filament with φ 0.6 mm
  • Straight, long slim - filament width: minimum 0.7 mm
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Dimmable
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Can be used directly as luminaire
  • Thinner filament, better decorative effect
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854091612 Folding box
1		 36 mm x 47 mm x 133 mm 25.00 g 0.23 dm³
4099854091629 Shipping box
6		 120 mm x 112 mm x 147 mm 215.00 g 1.98 dm³
Declarations of conformity
1906 LED lamps PDF (307.2 KB)

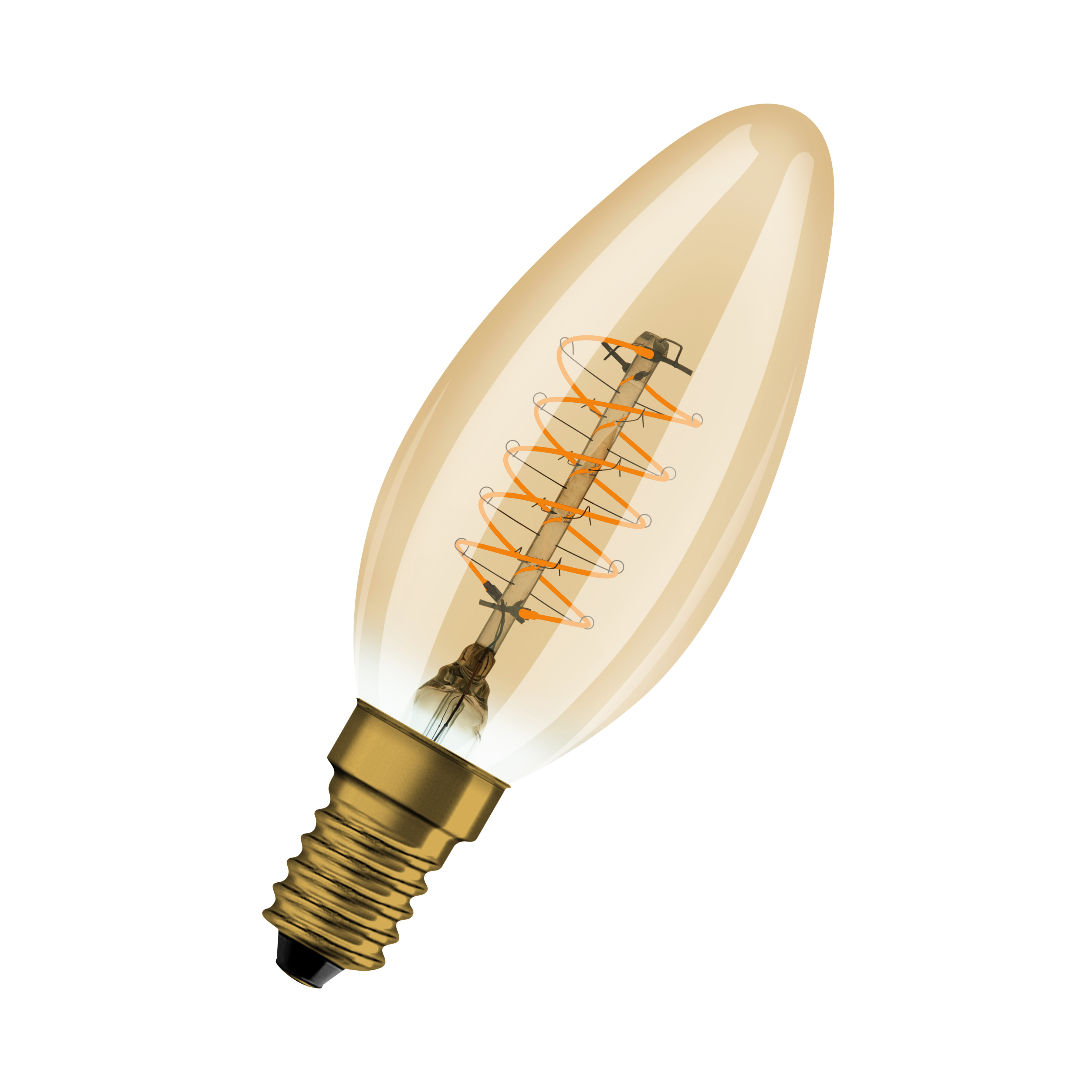

Product image: white background, diagonal
1906LCLBD 822 230V FIL GD E14 JPG (1.52 MB)

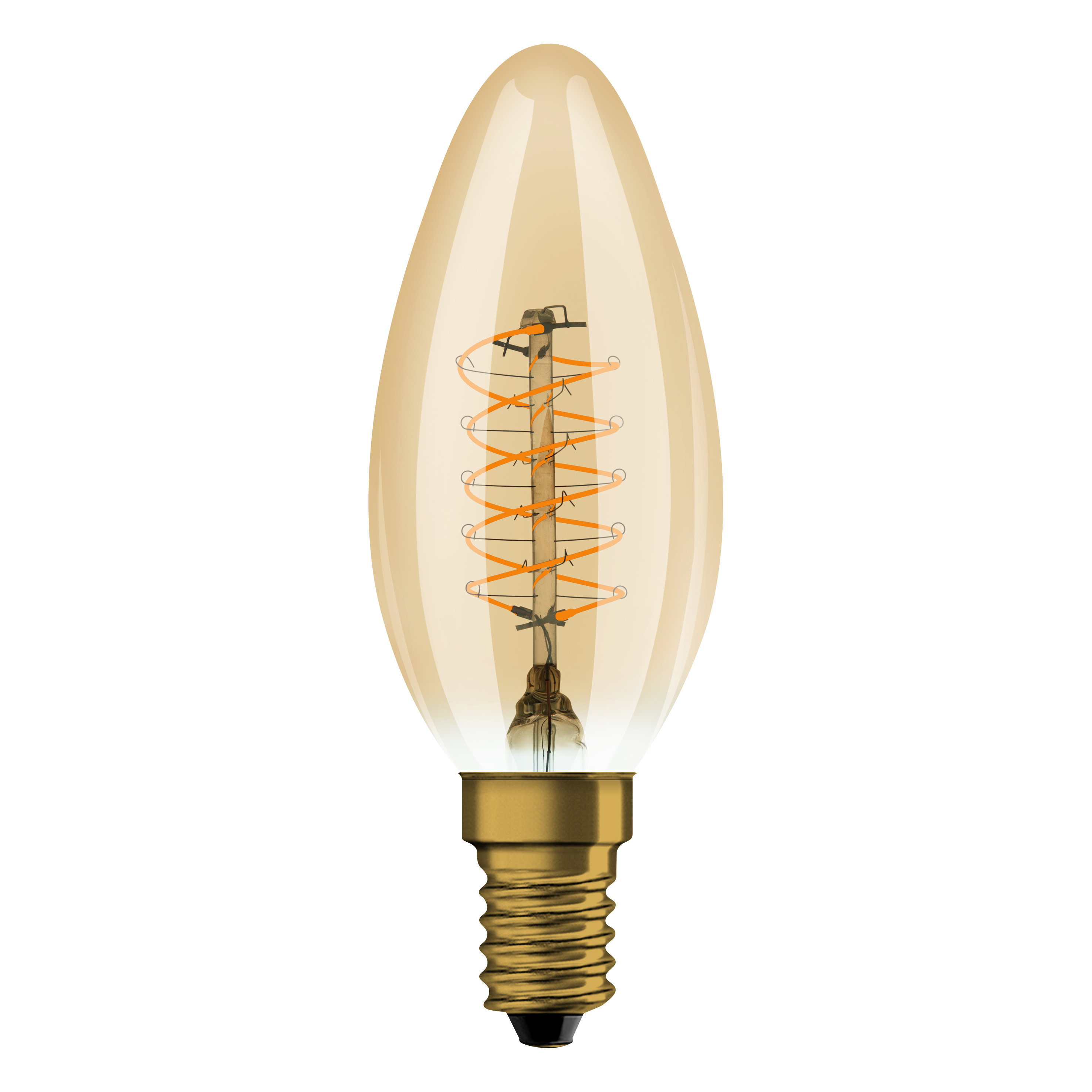

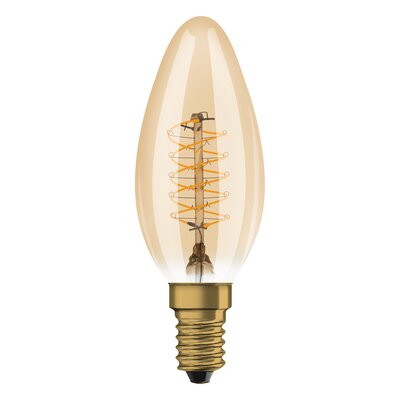

Product image: white background, upright
1906LCLBD 822 230V FIL GD E14 JPG (1.44 MB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E -Com_Grafik V2 1200x12 00px 2023 EN JPG (809.28 KB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E -Com Grafik V1 1200x12 00px 2023 EN JPG (629.63 KB)
Product line drawing with letters
1906LCLBD 822 230V FIL GD E14 SVG (13.89 KB)
Product line drawing with numbers
1906LCLBD 822 230V FIL GD E14 SVG (15.45 KB)
Product line drawing - technical
1906LCLBD 822 230V FIL GD E14 SVG (9.75 KB)

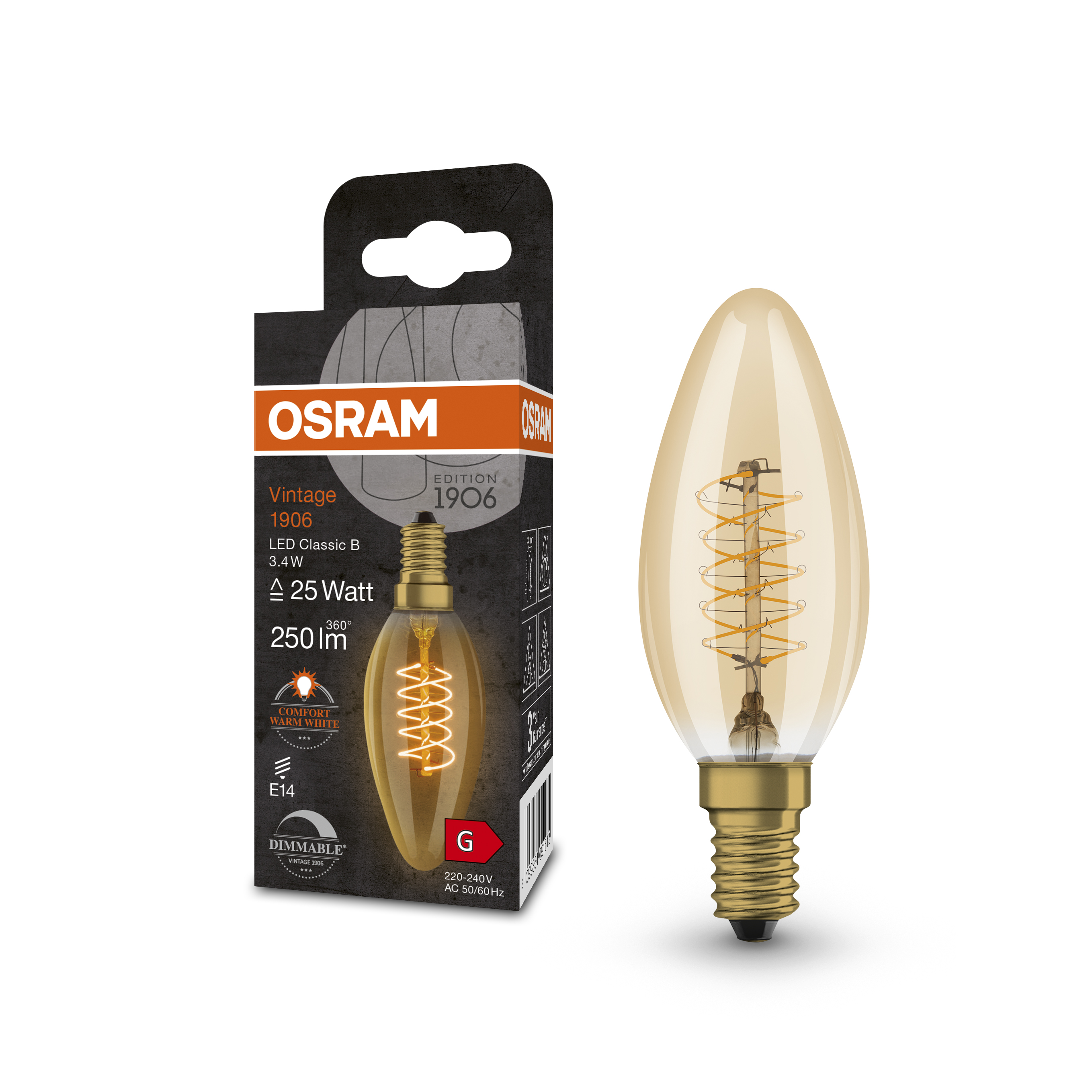

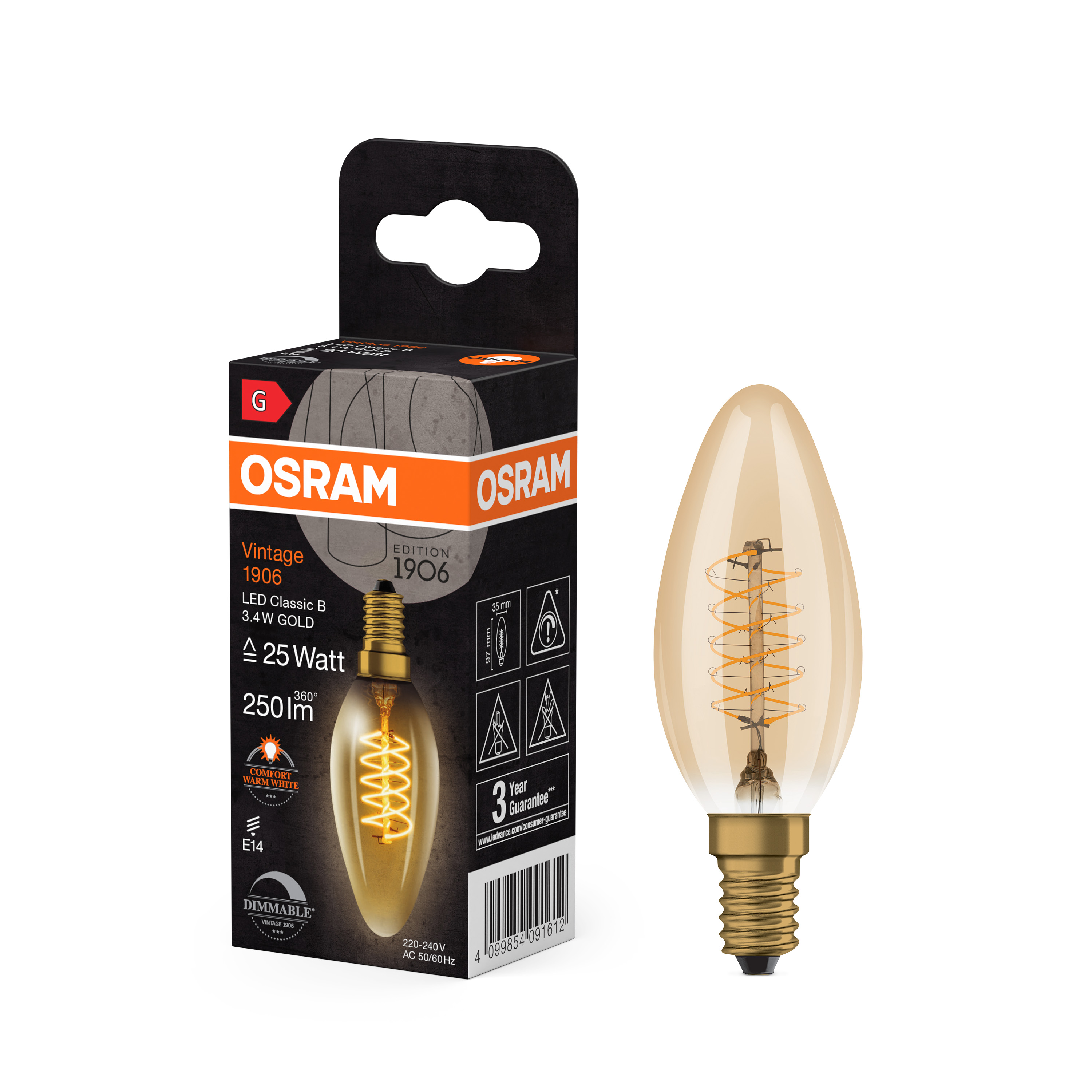

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLB DIM 25 3 .4W 822 FIL GOLD E14Mi Ch JPG (1.61 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLB DIM 25 3 .4W 822 FIL GOLD E14 M iCh JPG (859.96 KB)

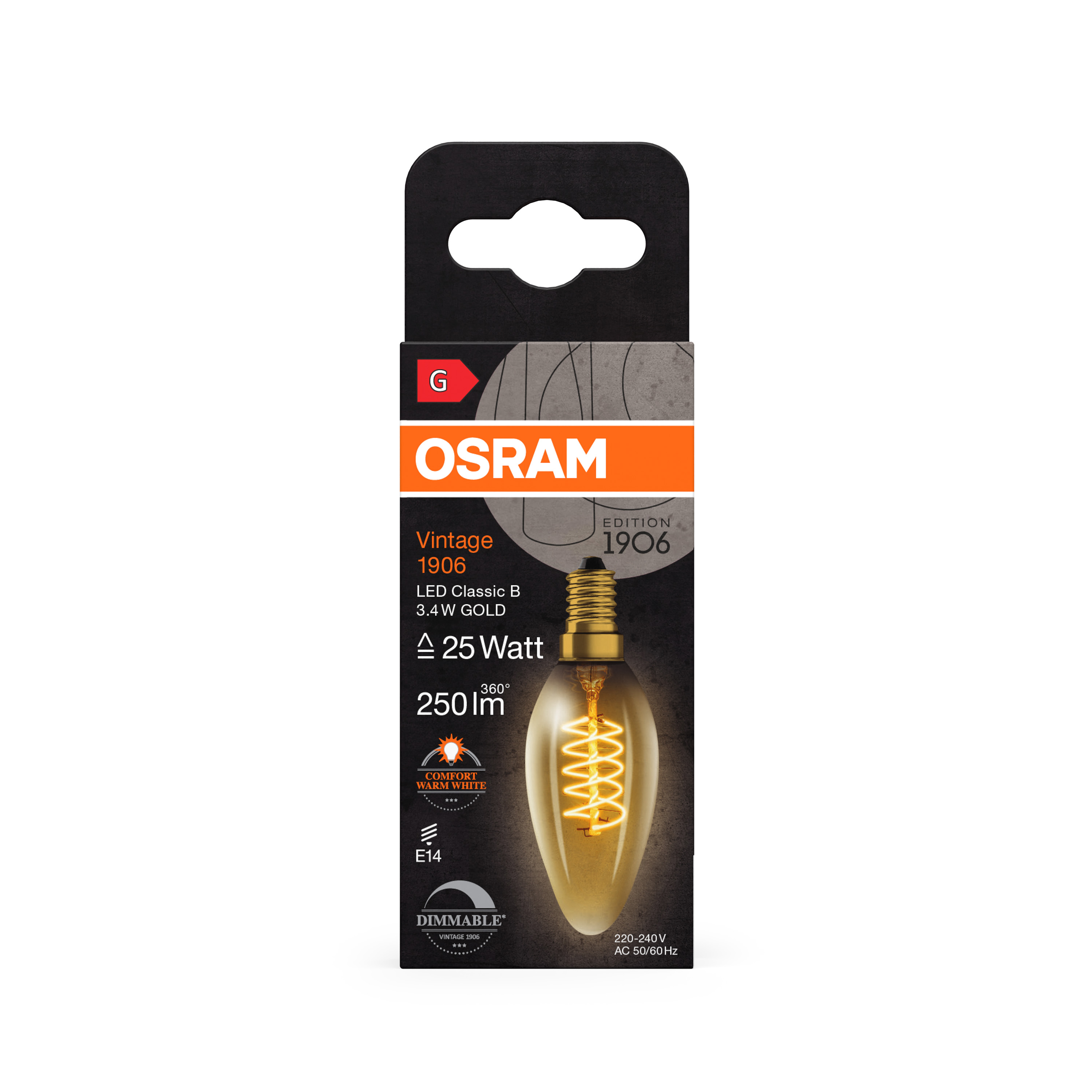

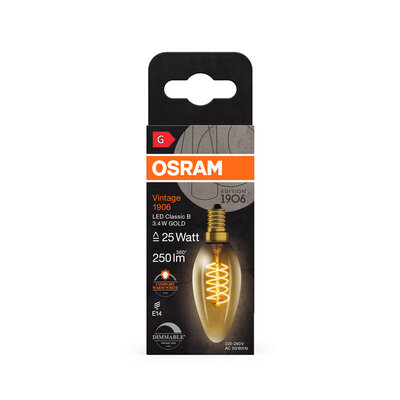

Packaging image, frontal
LED V1906 CLB DIM 25 3 .4W 822 FIL GOLD E14Mi Ch JPG (649.45 KB)

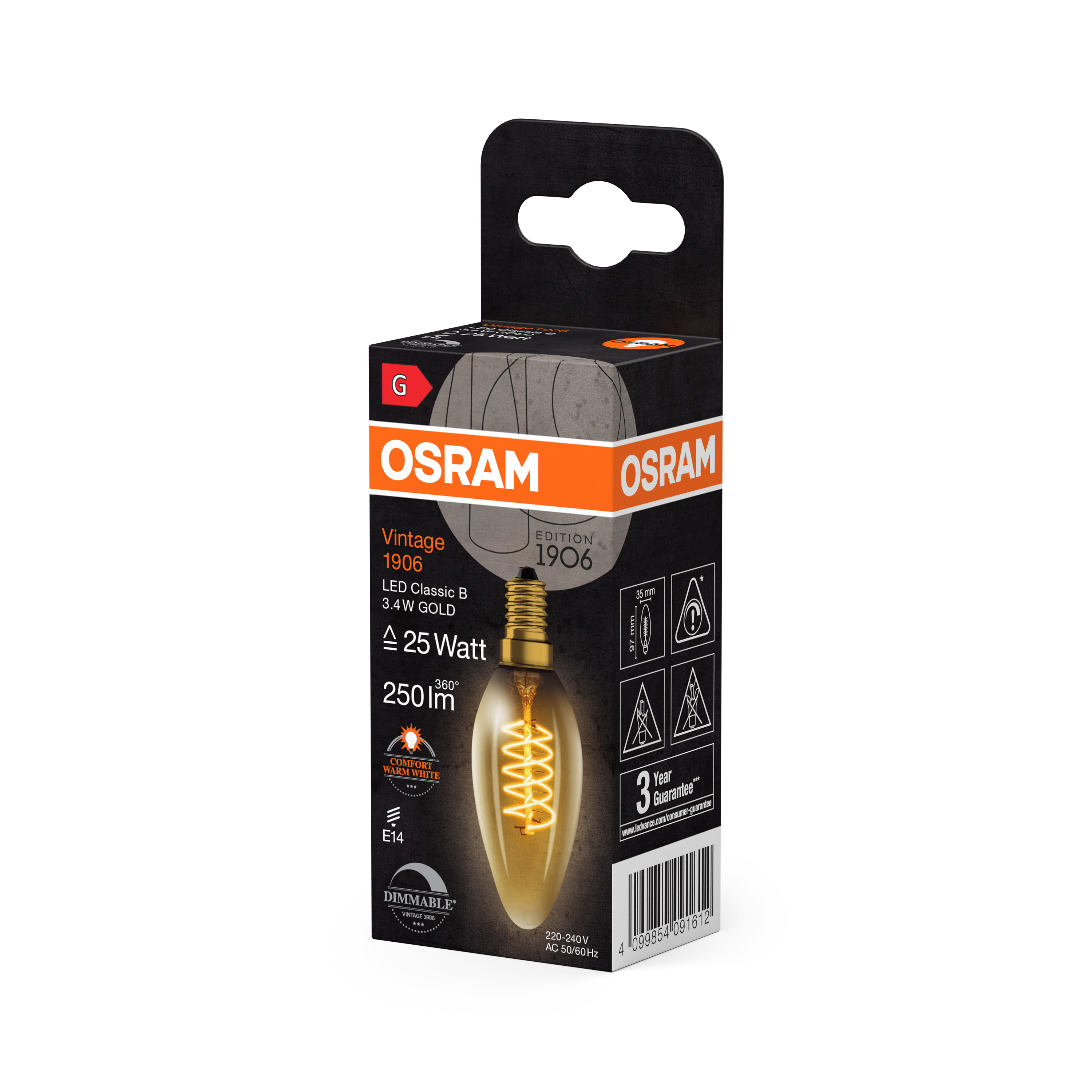

Packaging image, spacial
LED V1906 CLB DIM 25 3 .4W 822 FIL GOLD E14Mi Ch JPG (757.41 KB)
Energy label
EL-4099854091612-AC419 17 PDF (21.28 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

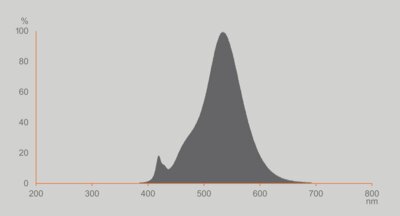

Spectral power distribution
EPREL Data Spectral Di agram LEDr _2200K PNG (87.22 KB)
EAN SEG number EFO number ELDAS number
4099854091612 8299186 3763291 941004650
