NAV 70 LED FILAMENT V 5400LM 35W 727 E27

Product benefits
  • Same design as traditional NAV lamps with clear, tubular full glass bulb
  • Full use of reflector of existing luminaire thanks to 360 degree beam angle
  • Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
  • Instant 100 % light, no warm-up time
  • Similar light distribution as traditional NAV lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 35 W
Construction wattage 35.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 70 W
Nominal current 155 mA
Type of current AC
Inrush current 11.1 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 11
Max. lamp number on MCB B10 A - CCG without compensation 16
Max. lamp number on MCB B10 A - CCG with compensation 6
Max. lamp number on MCB B16 A 14
Max. lamp number on MCB B16 A - CCG without compensation 20
Max. lamp number on MCB B16 A - CCG with compensation 8
Total harmonic distortion 12 %
Power factor λ > 0.90
Surge capability (L-N) 2 kV

Photometrical data

Luminous flux 5400 lm
Nominal useful luminous flux 90° 5400 lm
Luminous efficacy 154 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 70
Light color 727
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0,4

Light technical data

Beam angle 360 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 210.00 mm
Diameter 38.00 mm
Maximum diameter 38 mm
Product weight 120.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 90 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 35.00 kWh/1000h
Type of protection IP65
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference NAV 70 LED FIL

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 210.00 mm
Height 38.00 mm
Width 38.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.41
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1371177
Model number AC46362,AC46362,AC46362

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Same design as traditional NAV lamps with clear, tubular full glass bulb
  • Full use of reflector of existing luminaire thanks to 360 degree beam angle
  • Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
  • Instant 100 % light, no warm-up time
  • Similar light distribution as traditional NAV lamps
Areas of application
  • Streets
  • Area lighting
  • Pedestrian zones
  • Parks
  • Outdoor applications only in suitable luminaires
Product features
  • Suitable for operation with conventional control gear (CCG) or 230 V AC mains
  • Very high efficiency of up to 190 lm/W
  • Power factor: 0.9
  • Type of protection: IP65
  • Surge protection: up to 2 kV (L-N)
Safety advice
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
  • Use in tight luminaires and luminaires with tight reflectors not recommended.
  • Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854072017 Folding box
1		 44 mm x 44 mm x 296 mm 170.00 g 0.57 dm³
4099854072024 Shipping box
6		 314 mm x 152 mm x 117 mm 1080.00 g 5.58 dm³
User instruction / safety instructions
NAV LED FILAMENT V PDF (2.69 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
HID LED FILAMENT PDF (239.33 KB)

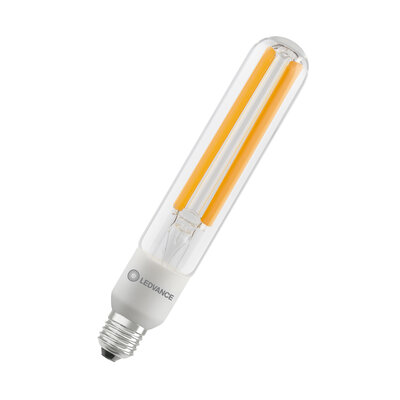

Product image: white background, diagonal with LEDVANCE logo
NAV 70 LED FIL V 35W JPG (1.11 MB)

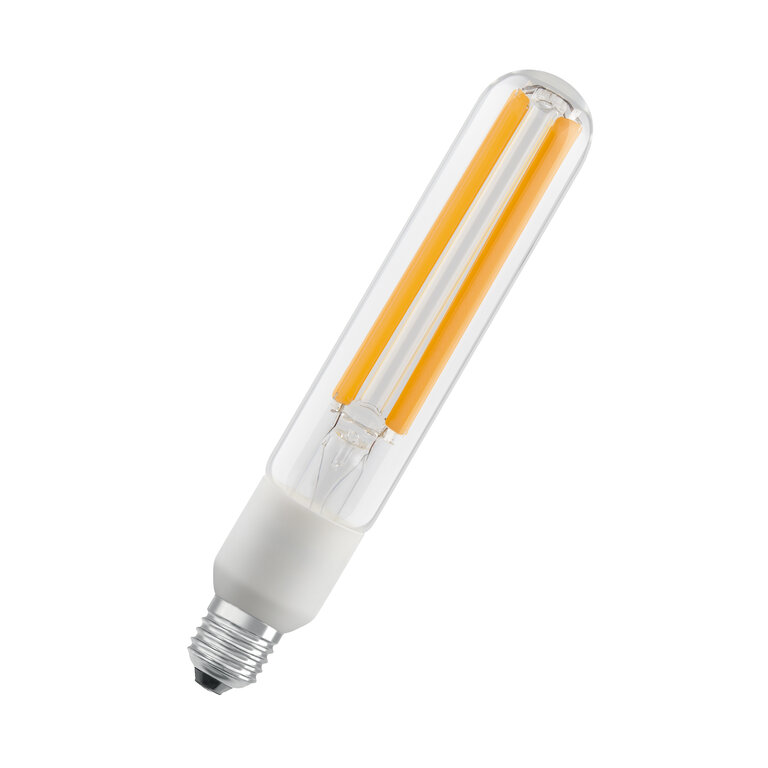

Product image: white background, diagonal
NAV 70 LED FIL V 35W JPG (1.1 MB)

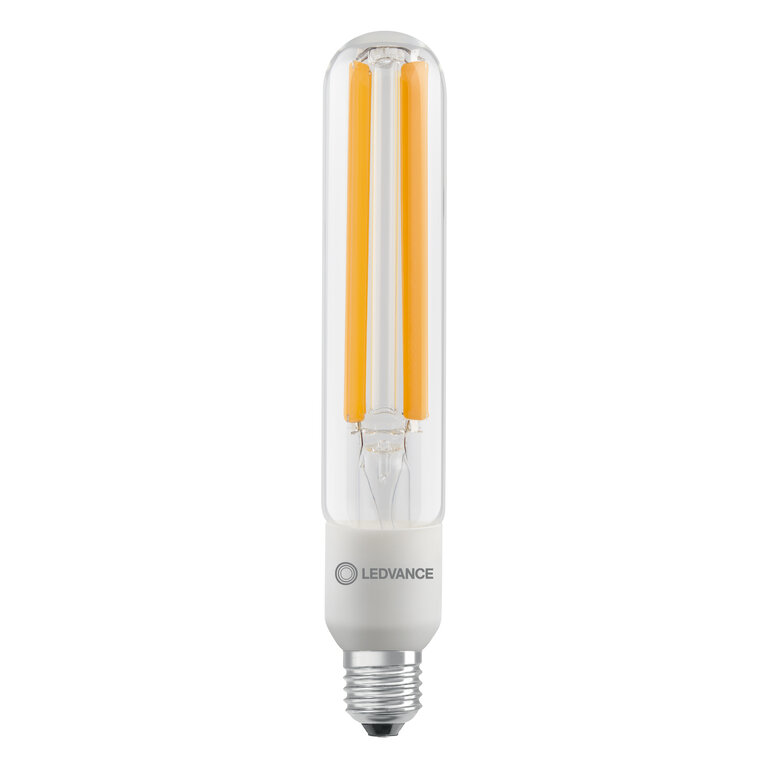

Product image: white background, upright LEDVANCE logo
NAV 70 LED FIL V 35W JPG (1.04 MB)

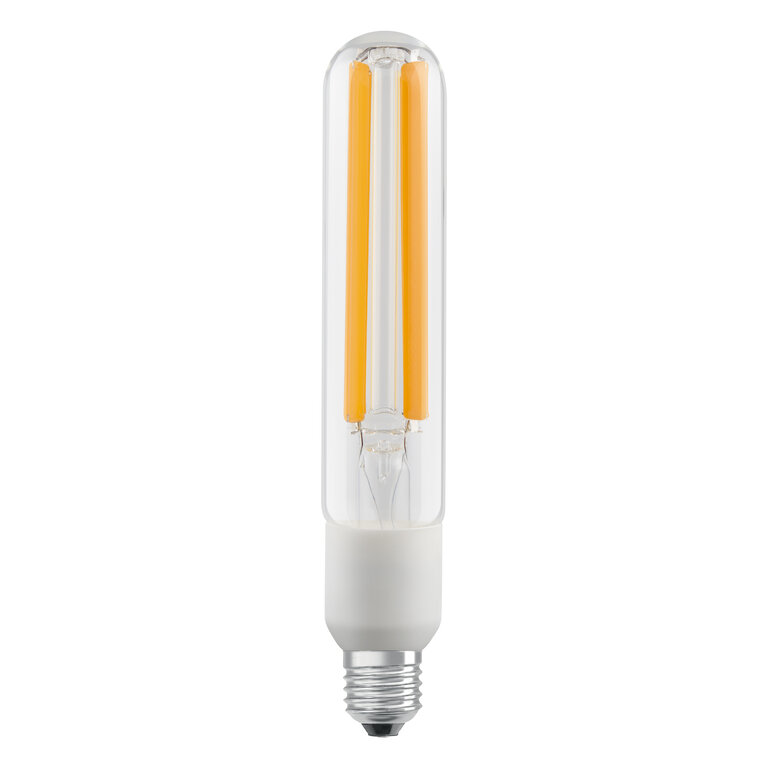

Product image: white background, upright
NAV 70 LED FIL V 35W JPG (1.03 MB)
Product line drawing with letters
NAV LED FIL SVG (14.62 KB)
Product line drawing with numbers
NAV 70 LED FIL V 35W SVG (21.08 KB)
Product line drawing - technical
NAV LED FIL SVG (10.67 KB)

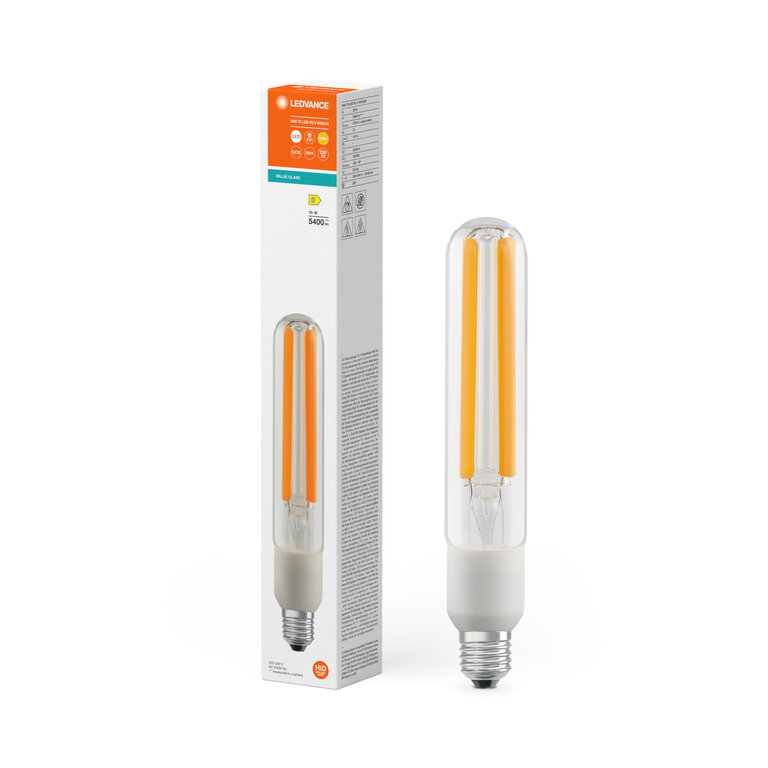

Combo Shot = Product Beauty Shot + Packaging Image
FC1 NAV 70 LED V 5400L M 35W 727 FIL E27 JPG (898.35 KB)

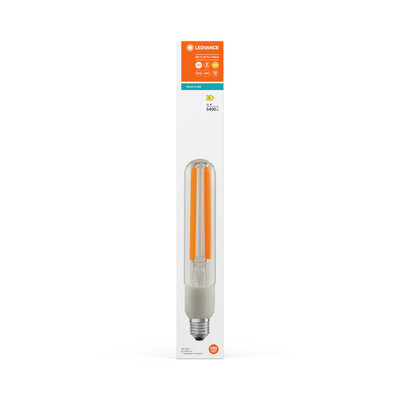

Packaging image, frontal
FC1 NAV 70 LED V 5400L M 35W 727 FIL E27 JPG (668.47 KB)
Packaging image, spacial
FC1 NAV 70 LED V 5400L M 35W 727 FIL E27 JPG (785.84 KB)

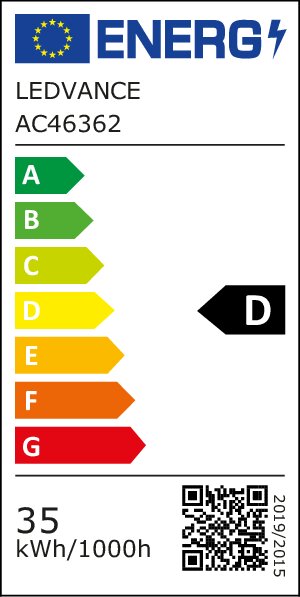

Energy label
EL-4099854072017-AC463 62 PDF (21.49 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
IES file (IES)
NAV 70 LED FIL V 5400L M 35W 727 E27LEDV IES (2.45 KB)
LDT file (Eulumdat)
NAV 70 LED FIL V 5400L M 35W 727 E27LEDV LDT (1.82 KB)
UGR file (UGR table)
NAV 70 LED FIL V 5400L M 35W 727 E27LEDV PNG (61.67 KB)
Light distribution curve type polar
NAV 70 LED FIL V 5400L M 35W 727 E27LEDV SVG (20.41 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
Tender documents
NAV LED FILAMENT V 540 0LM 35W 727 E27-en TXT (2.94 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4099854072017 8298681 4803029 3768092 941820480 NAV7035W727E27
