DULUX LED T/E26 HF & AC MAINS V 10W 840 GX24Q-3

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Operating mode ECG, AC Mains 1)
Claimed equiv. conventional lamp power 26 W
Nominal current 44 mA
Type of current AC
Inrush current 5 A
Suitable for DC input Yes
Input voltage DC 186…260 V 2)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 90
Max. lamp number on MCB B16 A 144
Total harmonic distortion ≤ 30 %

1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range

Photometrical data

Luminous flux 1100 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °

Dimensions & Weight

Overall length 140.00 mm
Diameter 41.00 mm
Tube diameter 45,0 mm
Product weight 98.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 70 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) GX24q-3
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX LED T/E26

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GX24q-3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 140.00 mm
Height 41.00 mm
Width 41.00 mm
Chromaticity coordinate x 0.381
Chromaticity coordinate y 0.379
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1404793,2206822
Model number AC46451,AC71231

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
  • Lifetime up to 30,000 h
  • Single-ended four-pin plug-in GX24q base
  • Rotatable base around its longitudinal axis (± 90°)
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
  • Not suitable for operation with conventional control gear.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Do not touch the lamp with bare fingers.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075822313 Folding box
1		 48 mm x 48 mm x 146 mm 110.00 g 0.34 dm³
4058075822320 Shipping box
10		 246 mm x 102 mm x 157 mm 1221.00 g 3.94 dm³

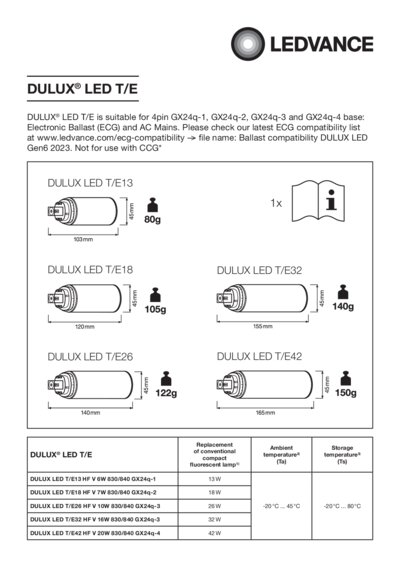

User instruction / safety instructions
DULUX LED T/E HF V PDF (3.54 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DULUX LED PDF (385.17 KB)
Declarations of conformity
DULUX LED PDF (261.24 KB)

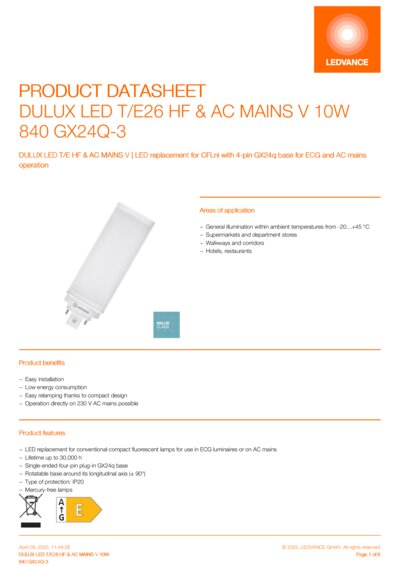

Product datasheet -> old version of product
DULUXLEDTE26HF&ACMAINS V10W840GX24Q3en PDF (295.45 KB)

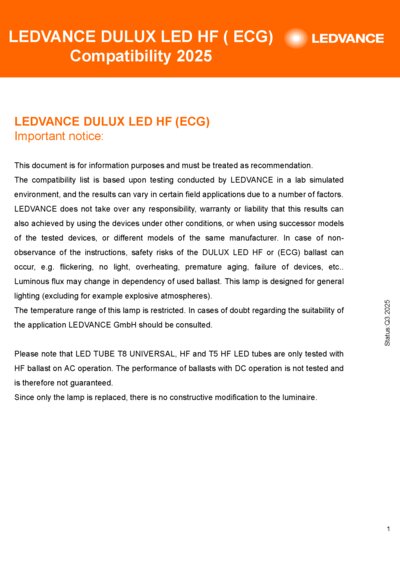

ECG compatibility list
Ballast compatibility DULUX LED 2025 PDF (768.4 KB)

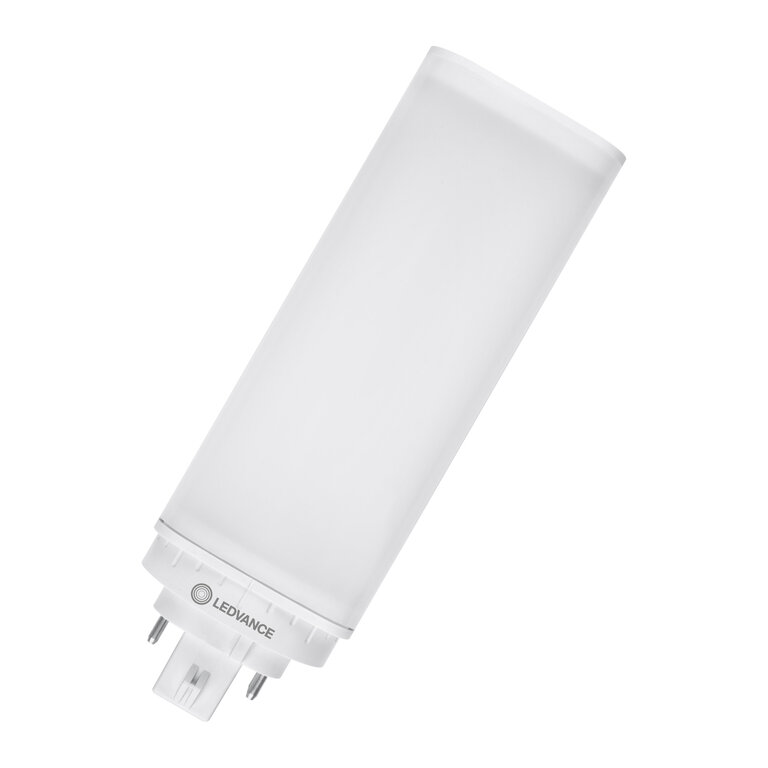

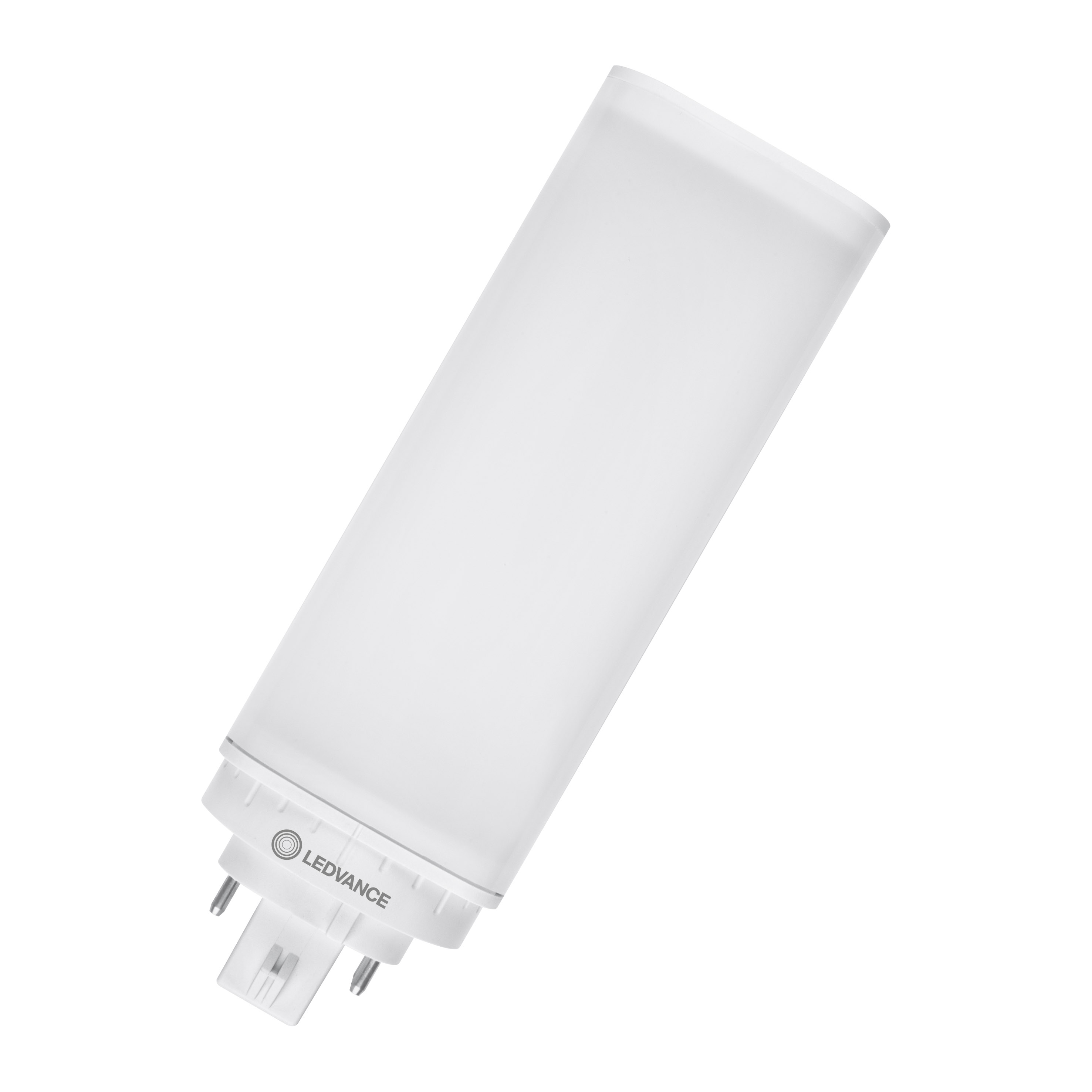

Product image: white background, diagonal with LEDVANCE logo
DULUX LED T/E HF V 10W JPG (345.35 KB)

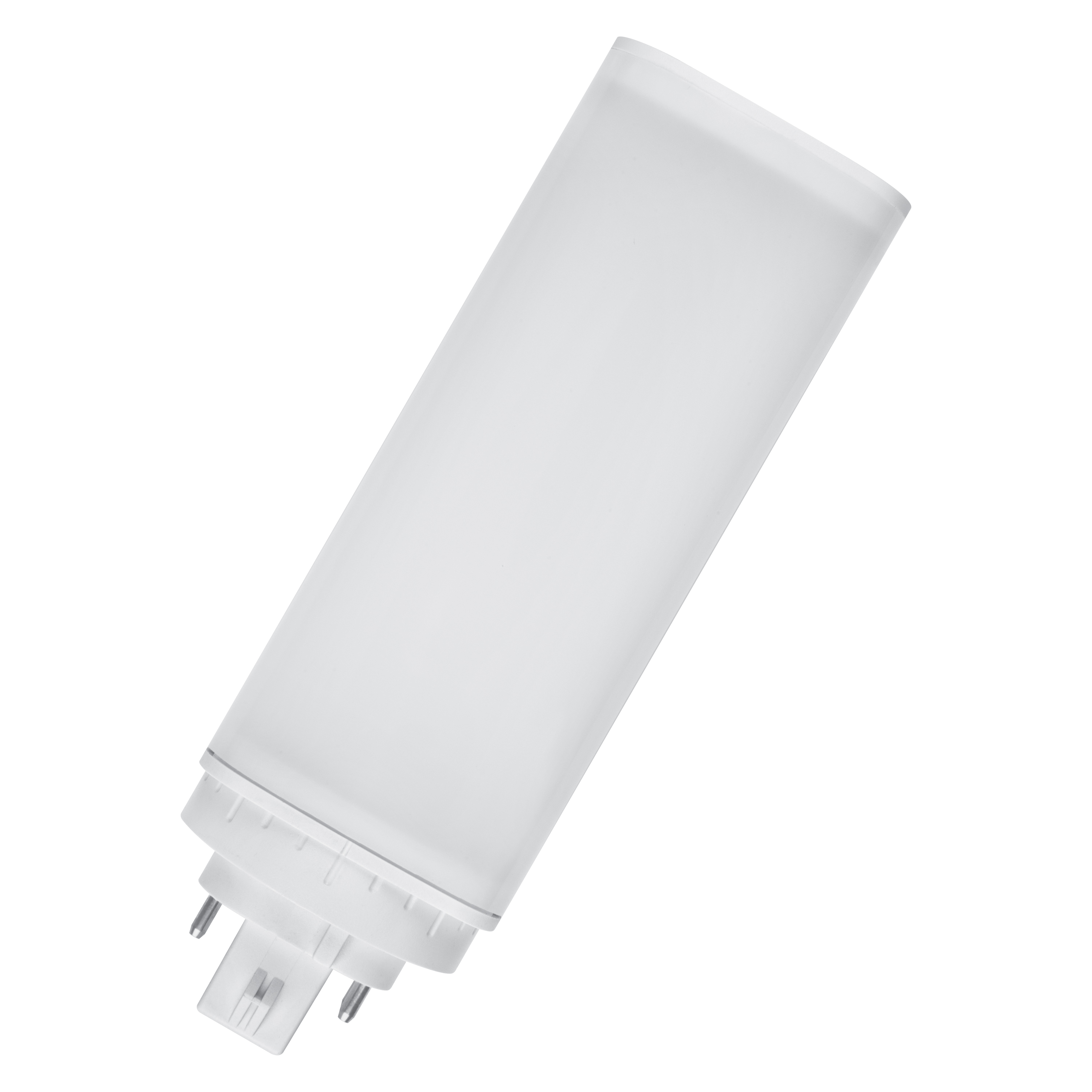

Product image: white background, diagonal
DULUX LED T/E26 HF 10W JPG (1.33 MB)

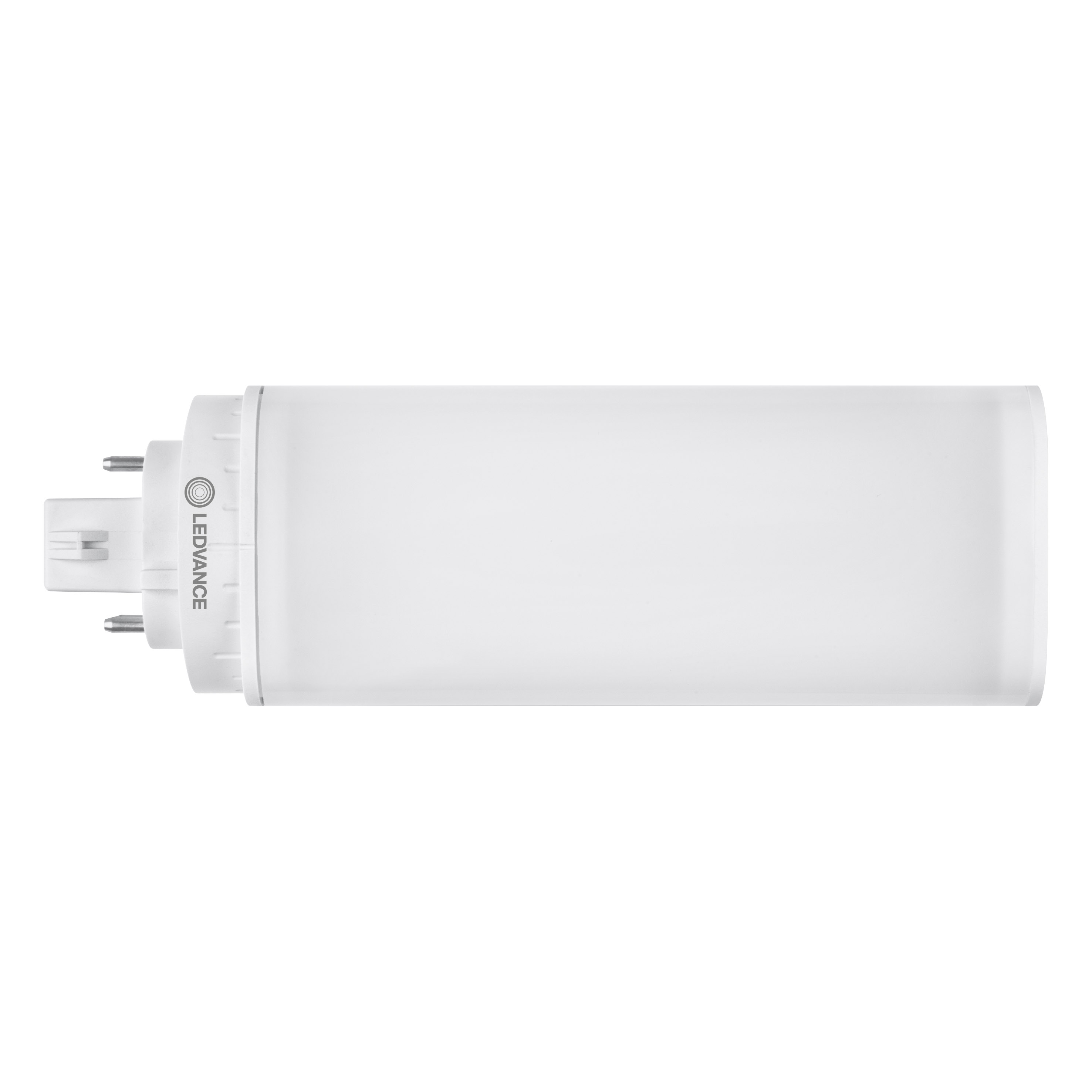

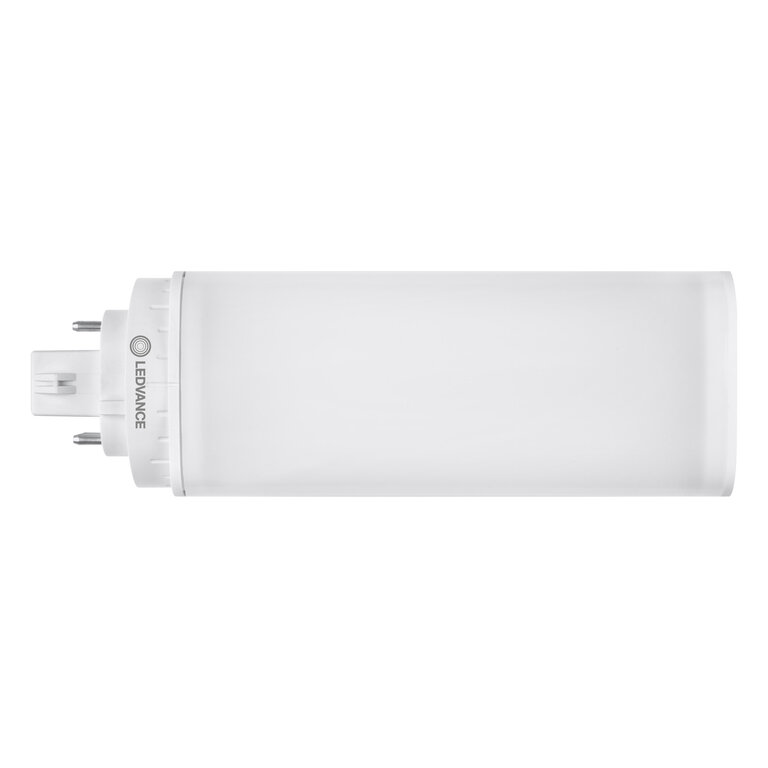

Product image: white background, horizontal, LEDVANCE logo
DULUX LED T/E HF V 10W JPG (336.41 KB)

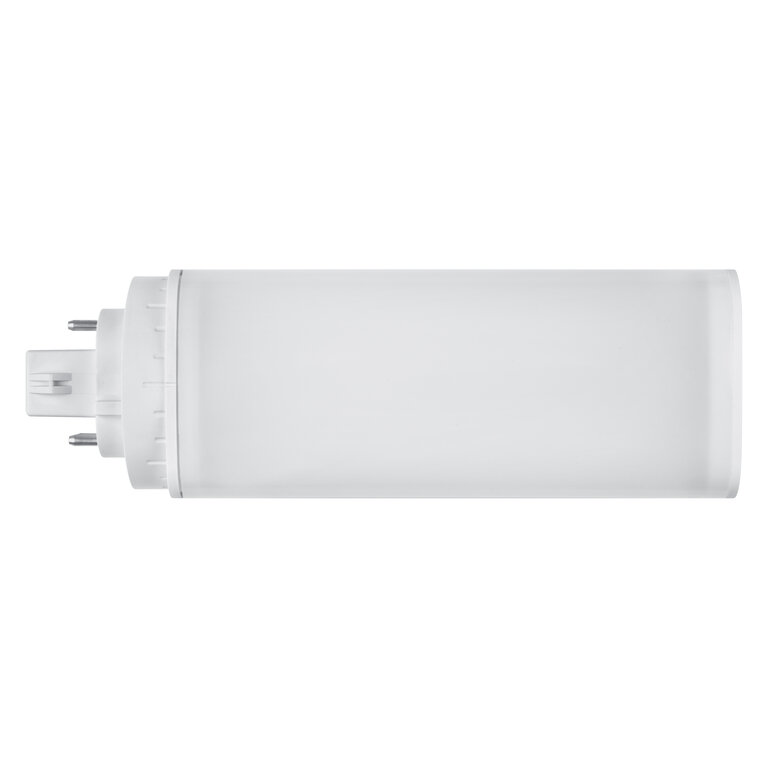

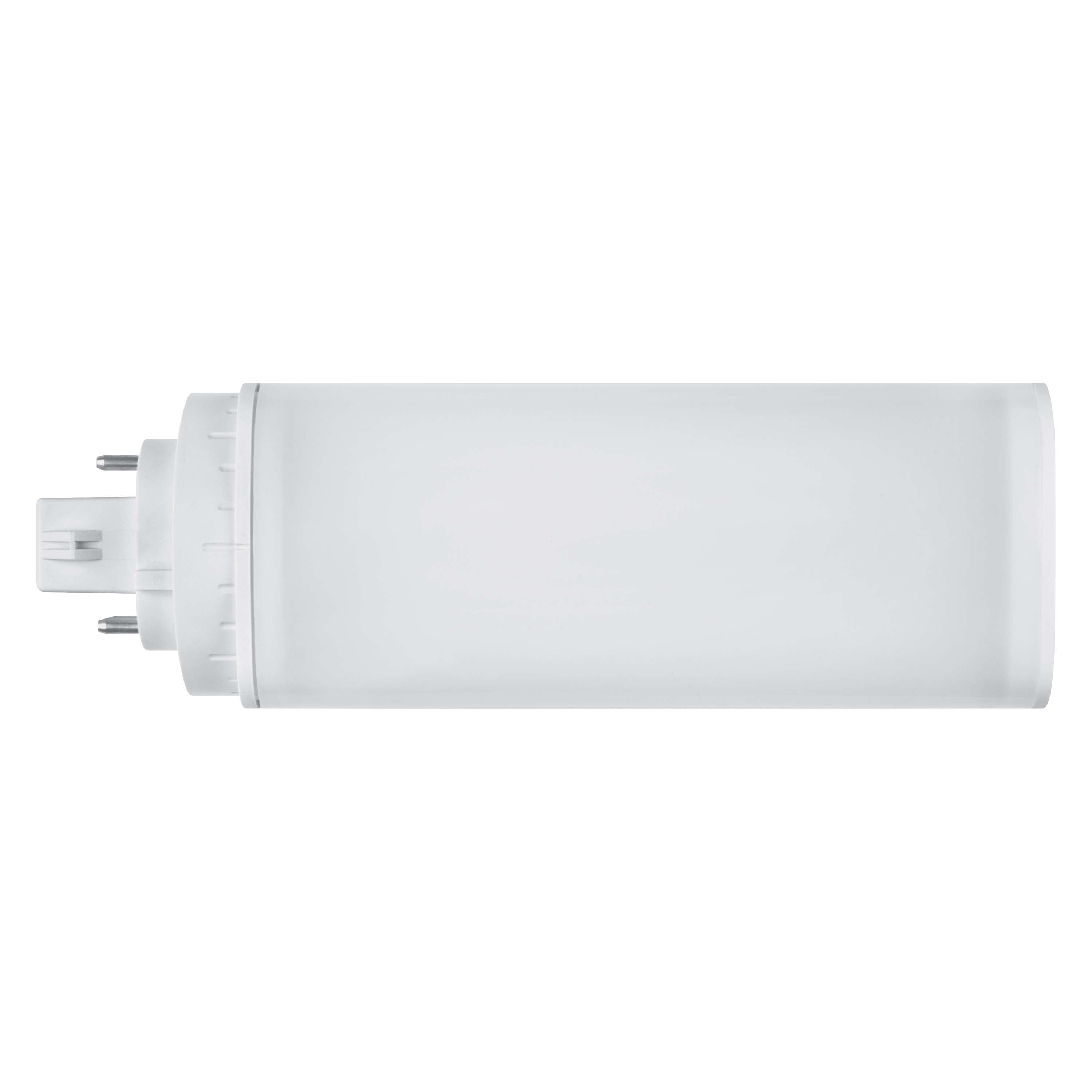

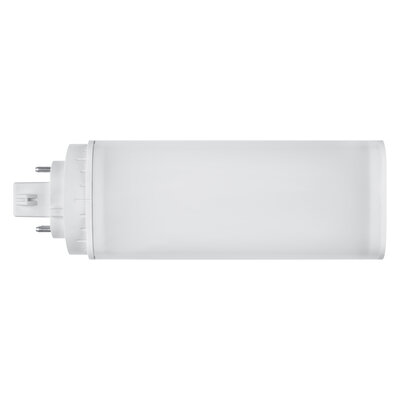

Product image: white background, horizontal
DULUX LED T/E26 HF 10W JPG (1.25 MB)

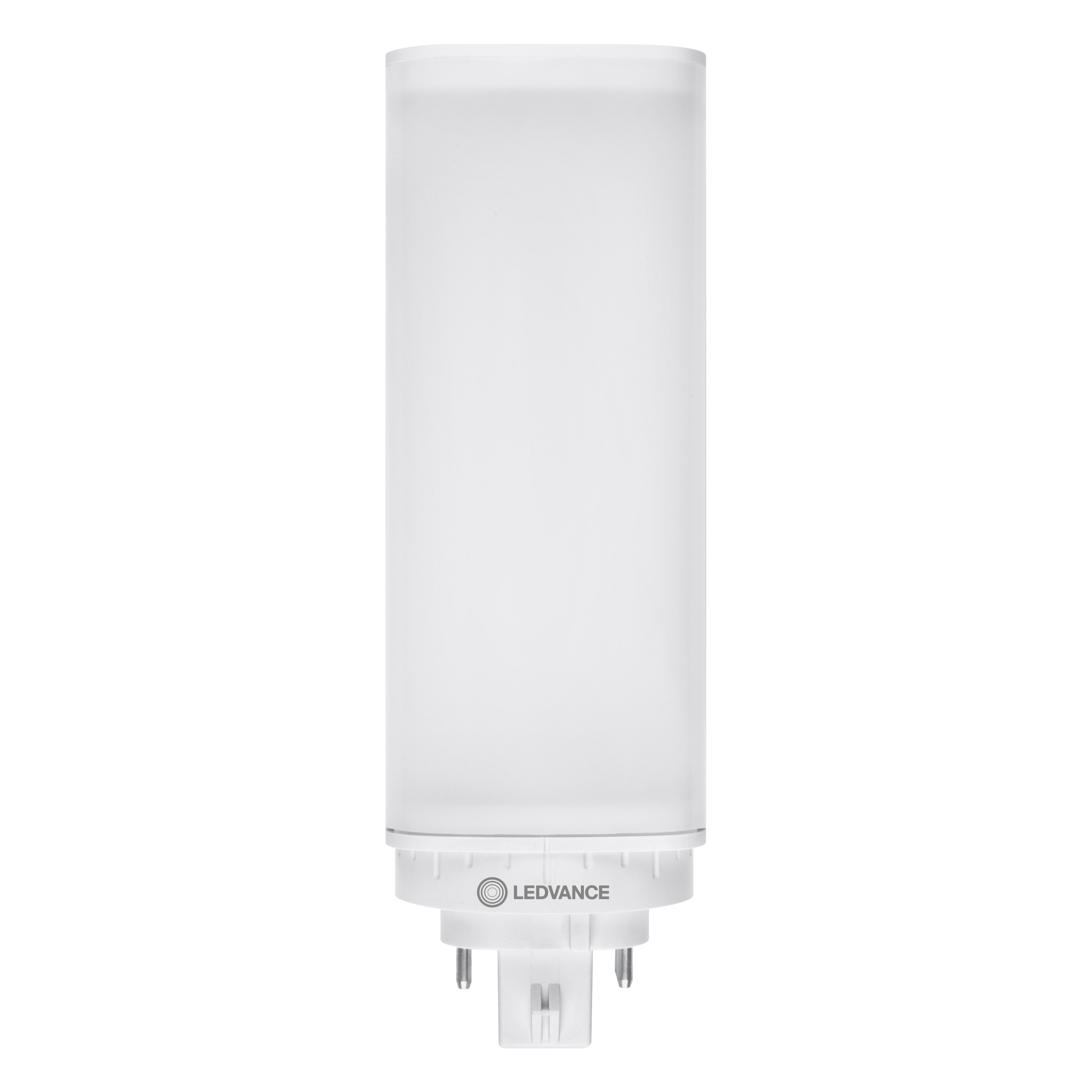

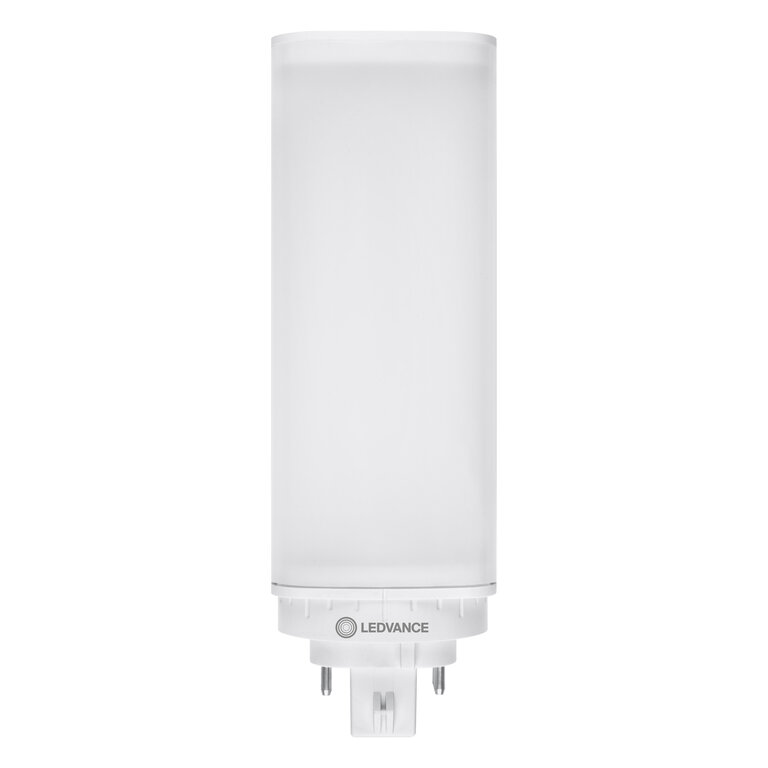

Product image: white background, upright LEDVANCE logo
DULUX LED T/E HF V 10W JPG (337.03 KB)

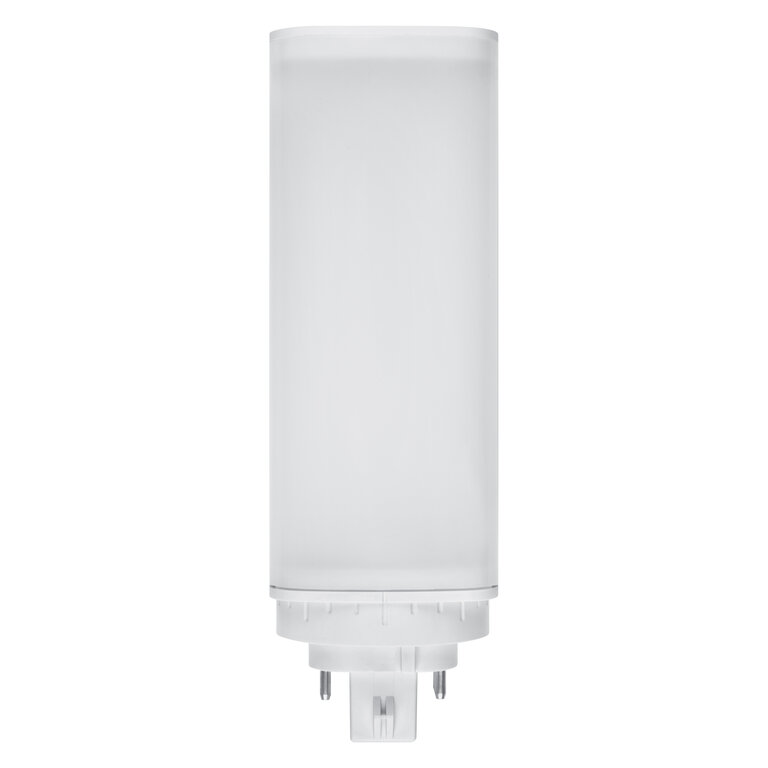

Product image: white background, upright
DULUX LED T/E26 HF 10W JPG (1.25 MB)
Product line drawing with letters
DULUX LED T/E26 HF 10W SVG (15.24 KB)
Product line drawing with numbers
DULUX LED T/E 26 SVG (14.58 KB)
Product line drawing - technical
DULUX LED T/E26 HF 10W SVG (8.84 KB)
Catalog info 6
LIFETIME CURVE TC_DULU X LED TE 10W 26W SVG (37.5 KB)
Energy label
EL-4058075822313-AC464 51 PDF (21.52 KB)
Energy label
EL-4058075822313-AC712 31 PDF (21.35 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
DULUX LED TE26 HF V 10 W 840 GX24Q-3 LEDV IES (14.42 KB)
LDT file (Eulumdat)
DULUX LED TE26 HF V 10 W 840 GX24Q-3 LEDV LDT (10.66 KB)

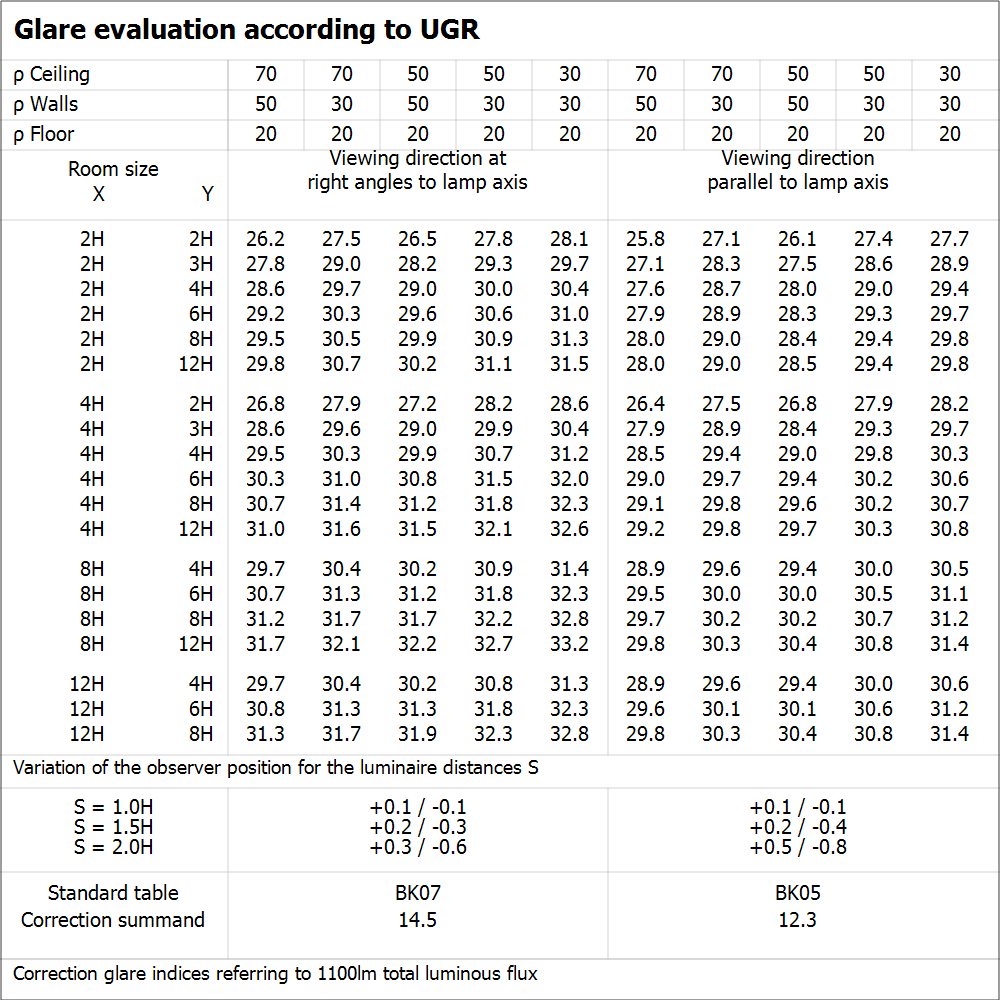

UGR file (UGR table)
