DULUX LED D26 EM & AC MAINS V 9W 840 G24D-3

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details

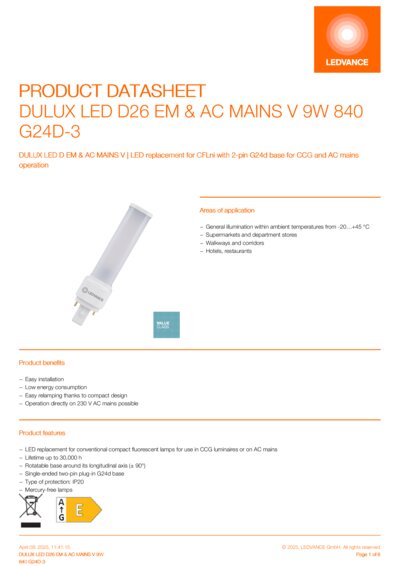

Product data sheet
Go to OSRAM predecessor product

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Claimed equiv. conventional lamp power 26 W
Nominal current 43 mA
Type of current AC
Inrush current 18.2 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 32
Max. lamp number on MCB B10 A - CCG without compensation 93
Max. lamp number on MCB B10 A - CCG with compensation 8
Max. lamp number on MCB B16 A 41
Max. lamp number on MCB B16 A - CCG without compensation 149
Max. lamp number on MCB B16 A - CCG with compensation 11
Total harmonic distortion ≤ 30 %

1) Permitted voltage range

Photometrical data

Luminous flux 1100 lm
Luminous efficacy 122 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 120 °

Dimensions & Weight

Overall length 171.00 mm
Diameter 35.00 mm
Tube diameter 27,0 mm
Product weight 62.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 75 °C

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) G24d-3
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 9.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference DULUX LED D26 E

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G24d-3
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 171.00 mm
Height 35.00 mm
Width 35.00 mm
Chromaticity coordinate x 0.381
Chromaticity coordinate y 0.379
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 1404751,2206807,2324416
Model number AC46419,AC71069,AC81489

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Lifetime up to 30,000 h
  • Rotatable base around its longitudinal axis (± 90°)
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Do not touch the lamp with bare fingers.
  • Must not be used if outer bulb is defective.
  • Lamp not suitable for emergency operation.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075823198 Folding box
1		 37 mm x 37 mm x 174 mm 78.00 g 0.24 dm³
4058075823204 Shipping box
10		 193 mm x 82 mm x 188 mm 851.00 g 2.98 dm³

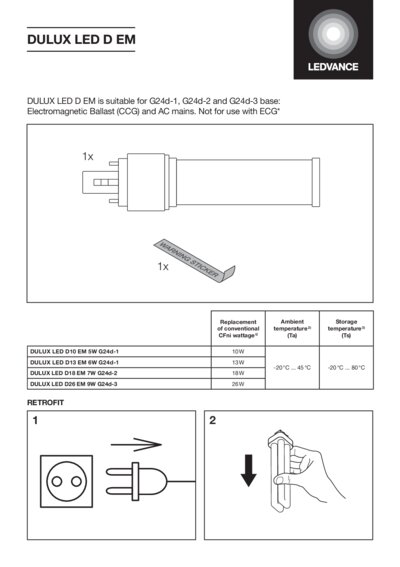

User instruction / safety instructions
DULUX LED EM VALUE PDF (3.4 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
DULUX LED PDF (383.39 KB)
Declarations of conformity
LEDTUBE PDF (310.92 KB)
Product datasheet -> old version of product
DULUXLEDD26EM&ACMAINSV 9W840G24D3en PDF (301.73 KB)

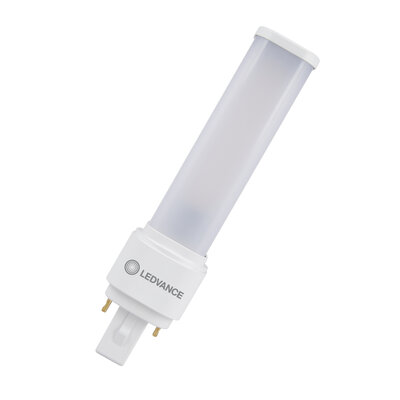

Product image: white background, diagonal with LEDVANCE logo
DULUX LED D EM JPG (1.04 MB)
Product image: white background, diagonal
DULUX LED D EM JPG (1.02 MB)

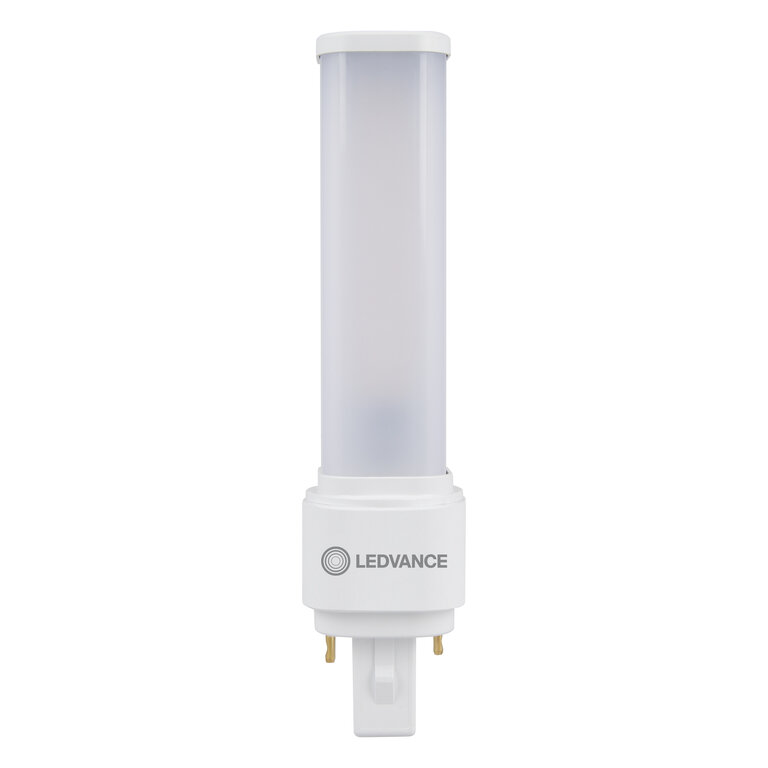

Product image: white background, upright LEDVANCE logo
DULUX LED D EM JPG (1.03 MB)
Product image: white background, upright
DULUX LED D EM JPG (176.06 KB)
Product line drawing with letters
DULUX LED D EM SVG (12.34 KB)
Product line drawing with numbers
DULUX LED D EM 9W SVG (12.33 KB)
Product line drawing - technical
DULUX LED D EM SVG (6.44 KB)

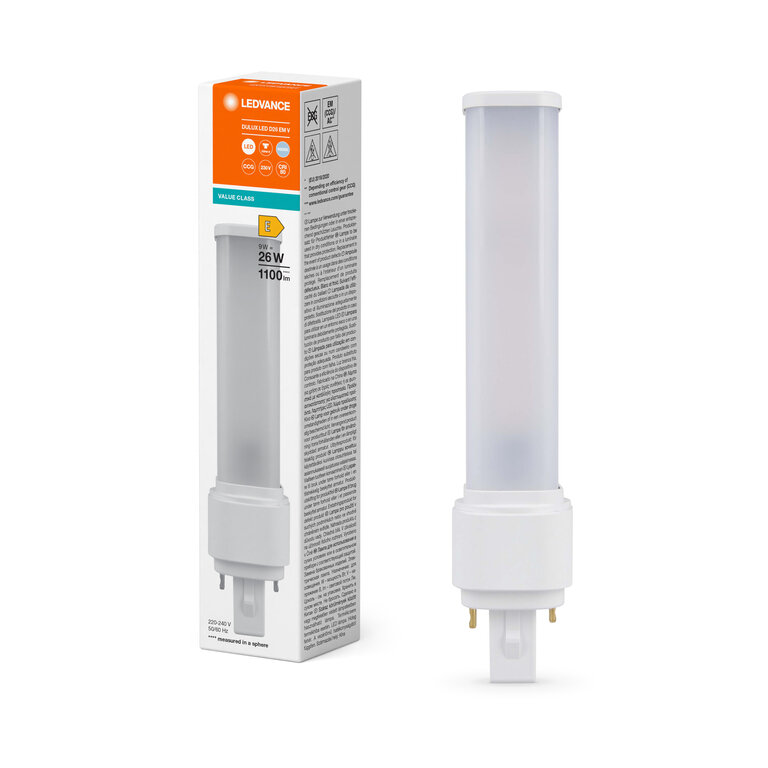

Combo Shot = Product Beauty Shot + Packaging Image
DULUX LED D26 EM V 9W 840 G24D-3 LEDV JPG (615.32 KB)

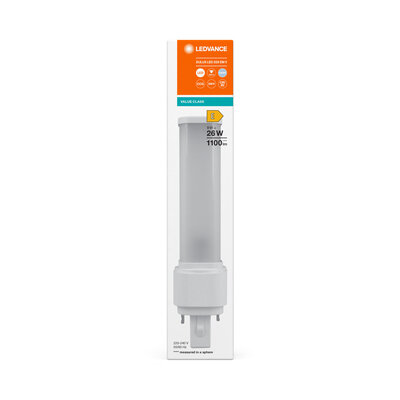

Packaging image, frontal
DULUX LED D26 EM V 9W 840 G24D-3 LEDV JPG (404.36 KB)

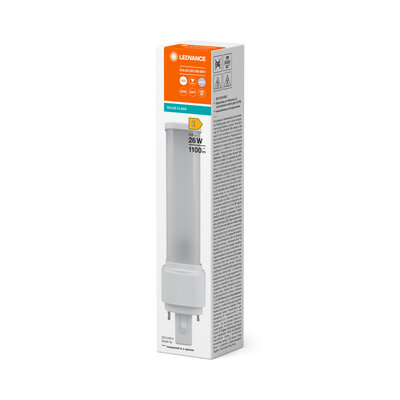

Packaging image, spacial
