LED TUBE T5 HF HO80 P 1449 mm 36W 830

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36 W
Construction wattage 36.00 W
Nominal voltage 70…90 V
Operating mode ECG 1)
Nominal current 530 mA
Type of current AC
Inrush current 27 A
Operating frequency 25…75 kHz
Mains frequency 25…75 kHz
Max. lamp number on MCB B10 A 11
Max. lamp number on MCB B16 A 18
Total harmonic distortion 16 %
Power factor λ > 0.90

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous flux 5050 lm
Luminous efficacy 140 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1463.00 mm
Length with base excl. base pins/connection 1449.00 mm
Diameter 18.50 mm
Tube diameter 16 mm
Maximum diameter 19 mm
Product weight 185.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 75 °C
Performance temp. acc. to IEC 62717 55 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 60000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark (QTi 1x35/49/80 GII(AA3529702OL)

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 36.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 HF H

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 1463.00 mm
Height 18.50 mm
Width 18.50 mm
Chromaticity coordinate x 0.434
Chromaticity coordinate y 0.403
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1317806
Model number AC44144,AC44144

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
Product features
  • Retrofit replacement of existing T5 lamps on HF ballast installations
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 60,000 h
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
  • Compatible with many common electronic control gears (see also compatibility list)
Legal advice
  • When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Lamp not suitable for emergency operation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854029059 Sleeve
1		 1,465 mm x 20 mm x 24 mm 211.00 g 0.70 dm³
4099854029066 Shipping box
10		 1,525 mm x 155 mm x 90 mm 2641.00 g 21.27 dm³

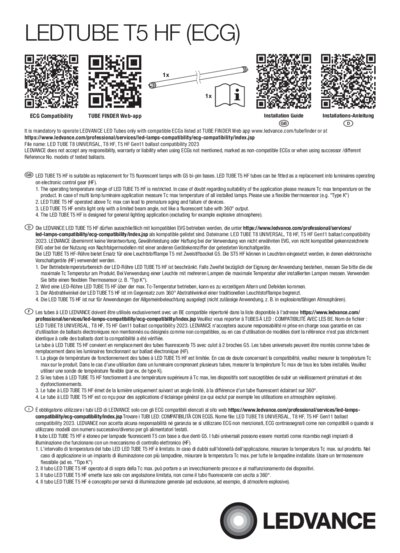

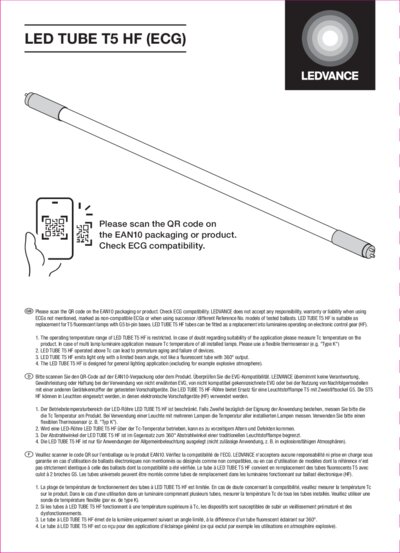

User instruction / safety instructions
LEDTUBE T5 HF (ECG) PDF (3 MB)
User instruction / safety instructions
PDF (2.96 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

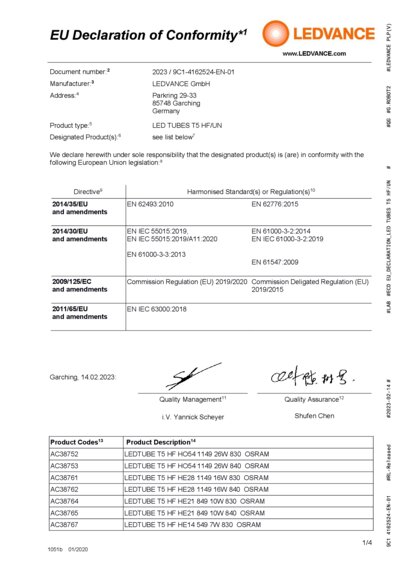

Declarations of conformity
LED TUBE T5 HF PDF (391.36 KB)

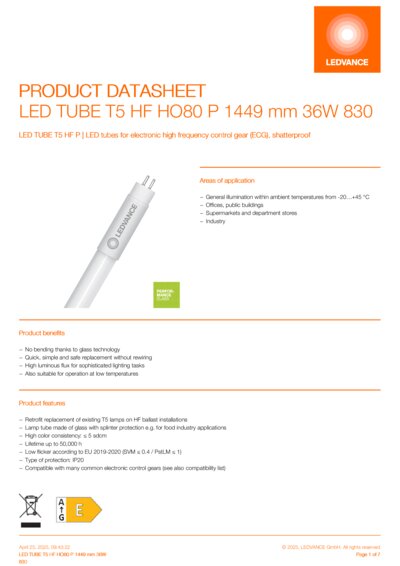

Product datasheet -> old version of product
LEDTUBET5HFHO80P1449mm 36W830en PDF (316.54 KB)

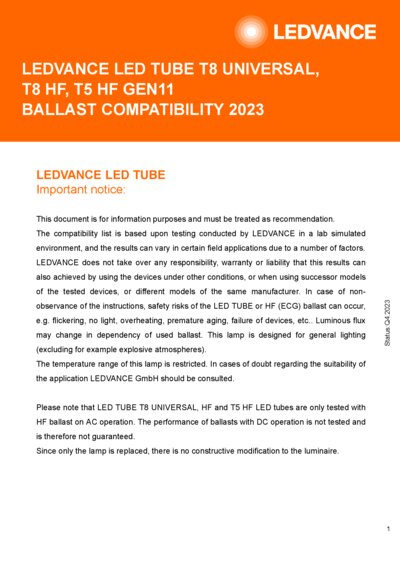

ECG compatibility list
LED TUBE T8 UNIVERSAL T8 HF T5 HF Gen 11 bal last compatibility 202 3 PDF (1.37 MB)

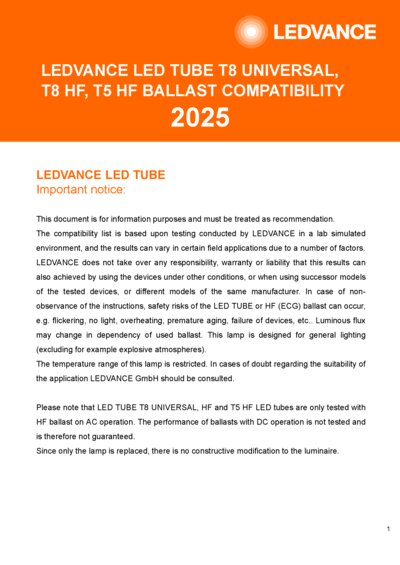

ECG compatibility list
Ballast compatibility LEDVANCE LED TUBE T5 H F_T8 HF_T8 UNIVERSAL 2 025 PDF (1.39 MB)

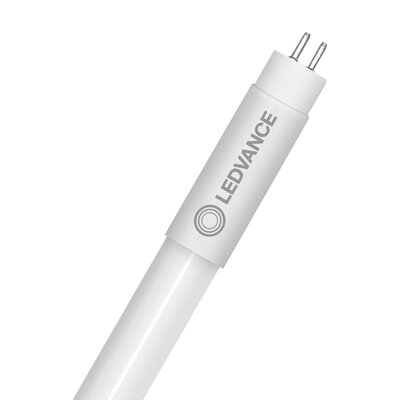

Product image: white background, diagonal with LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (906.84 KB)

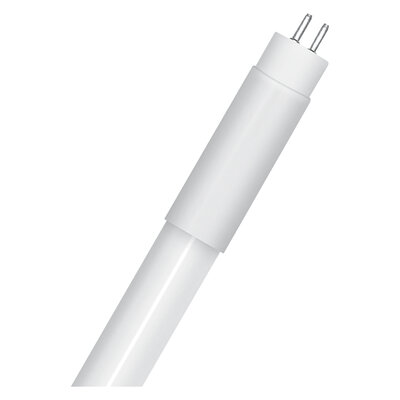

Product image: white background, diagonal
LED TUBE T5 AC HF JPG (877.8 KB)

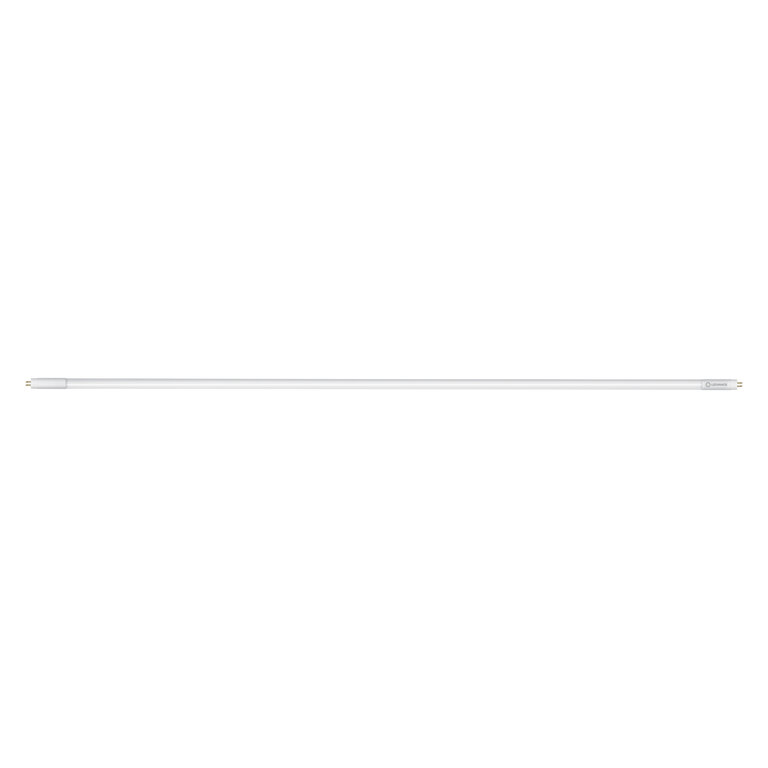

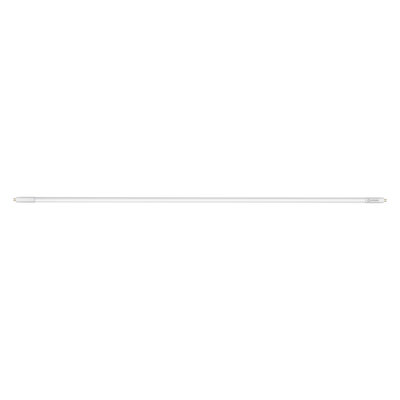

Product image: white background, horizontal, LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (684.83 KB)

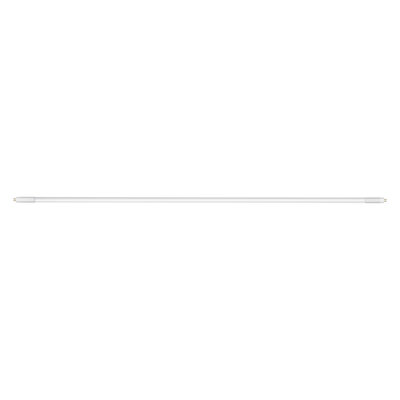

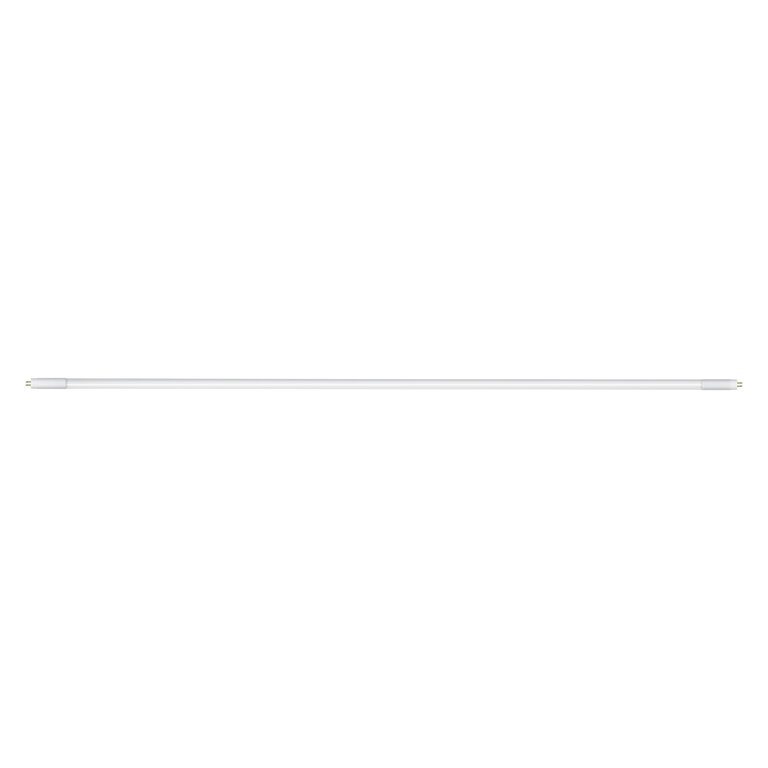

Product image: white background, horizontal
LED TUBE T5 AC HF JPG (653.78 KB)

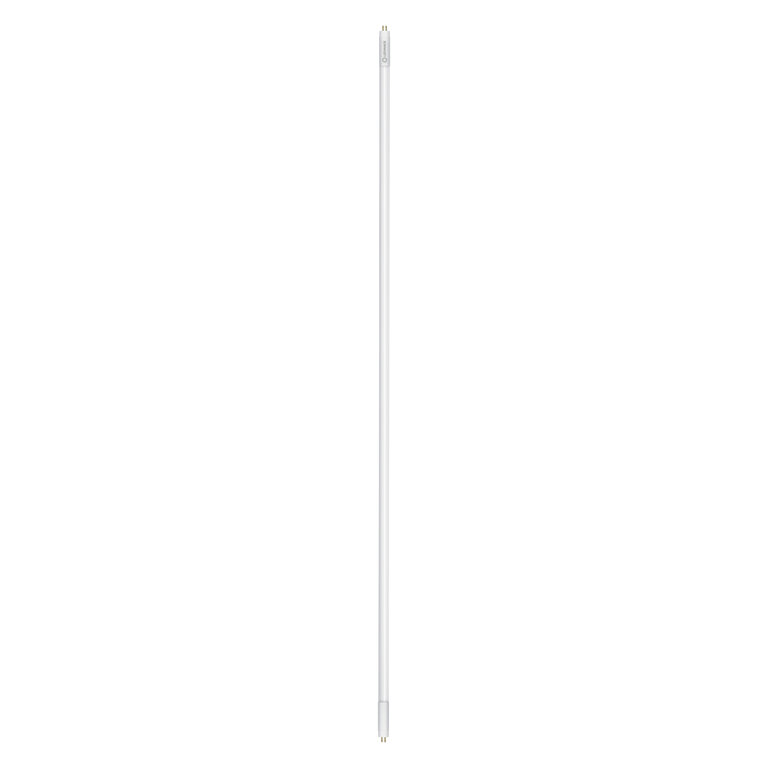

Product image: white background, upright LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (685.13 KB)

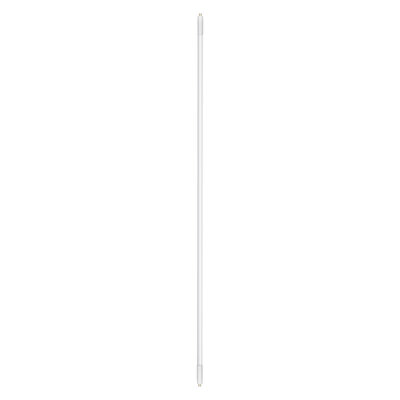

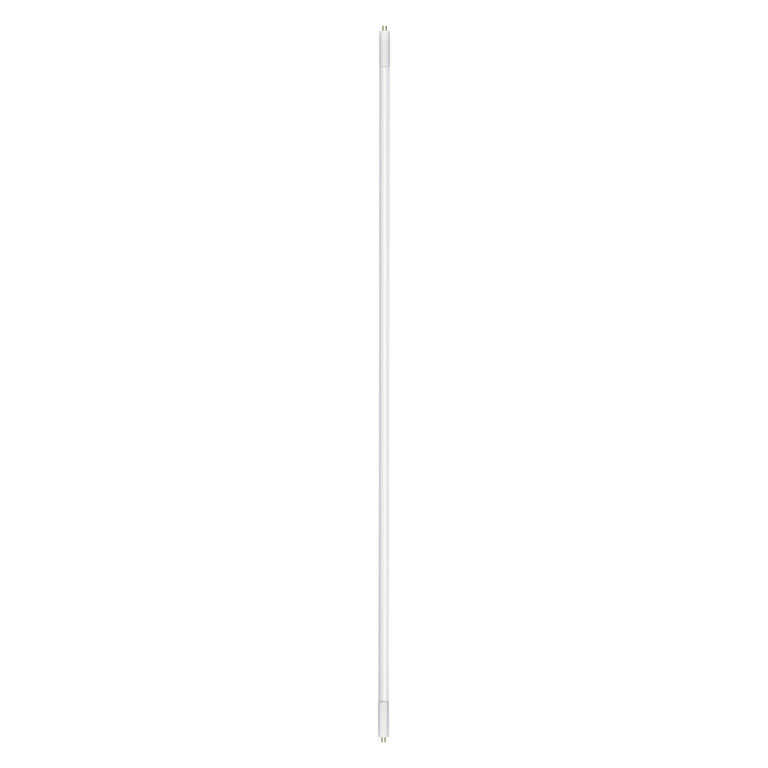

Product image: white background, upright
LED TUBE T5 AC HF JPG (654.05 KB)
Product line drawing with letters
LED TUBE T5 AC HF SVG (13.26 KB)
Product line drawing with numbers
LEDTUBE T5 HF_AC 1449m m SVG (16.27 KB)
Product line drawing - technical
LEDTUBE T5 HF_AC SVG (7.5 KB)
Catalog info 6
LEDTUBE T5 HF HO80 SVG (40.32 KB)
Energy label
EL-4099854029059-AC441 44 PDF (21.75 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
IES file (IES)
LEDTUBE T5 HF HO80 P 1 449 36W 830 LEDV IES (14.42 KB)
LDT file (Eulumdat)
LEDTUBE T5 HF HO80 P 1 449 36W 830 LEDV LDT (11.03 KB)
UGR file (UGR table)
LEDTUBE T5 HF HO80 P 1 449 36W 830 LEDV PNG (64.77 KB)
Light distribution curve type polar
LEDTUBE T5 HF HO80 P 1 449 36W 830 LEDV SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
Tender documents
LED TUBE T5 HF P 1449 mm 36W 830-EN TXT (3.63 KB)
EAN SEG number STK number EFO number ELDAS number
4099854029059 8298529 4933379 3750200 941819010
