ENDURA Classic Square UpDown White

Product benefits
  • High flexibility in the choice of the light source thanks to GU10 socket
  • Easy and quick installation
  • High-quality materials
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I

Photometrical data

Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -

Dimensions & Weight

Length 68.00 mm
Height 92.00 mm
Width 150.00 mm
Product weight 550.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Terminal, 3-pin
Type of protection IP44
Protection class IK (shock resistance) IK04
Dimmable No
Mounting type Surface
Application environment Outdoor
With light source No
Replaceable light source No
Holder designation GU10

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Product remark Maximum bulb wattage: 35 W
Number of illuminants 2

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High flexibility in the choice of the light source thanks to GU10 socket
  • Easy and quick installation
  • High-quality materials
Areas of application
  • Entrance lighting
  • Patios, balconies
  • Building facades
Product features
  • Die-cast aluminum housing
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • No light sources included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075763685 Folding box
1		 77 mm x 102 mm x 162 mm 631.00 g 1.27 dm³
4058075763692 Shipping box
6		 245 mm x 120 mm x 352 mm 3840.00 g 10.35 dm³
User instruction / safety instructions

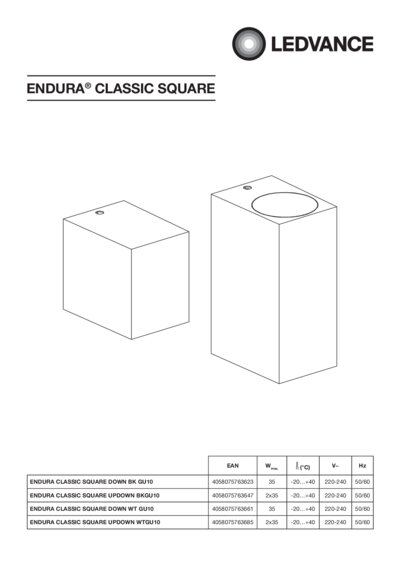

ENDURA CLASSIC SQUARE PDF (473.48 KB)
Legal information
Legal insert I-Outdoor PDF (2.62 MB)

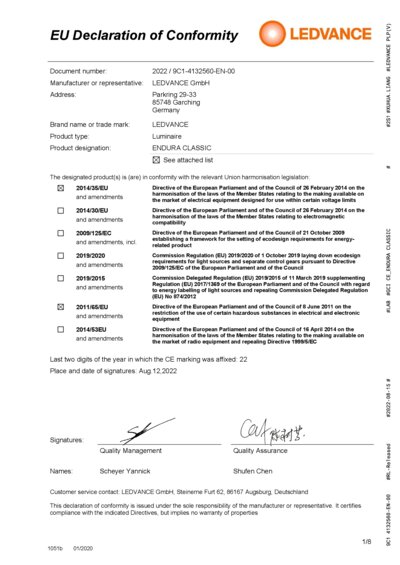

Declarations of conformity
ENDURA CLASSIC PDF (298.89 KB)

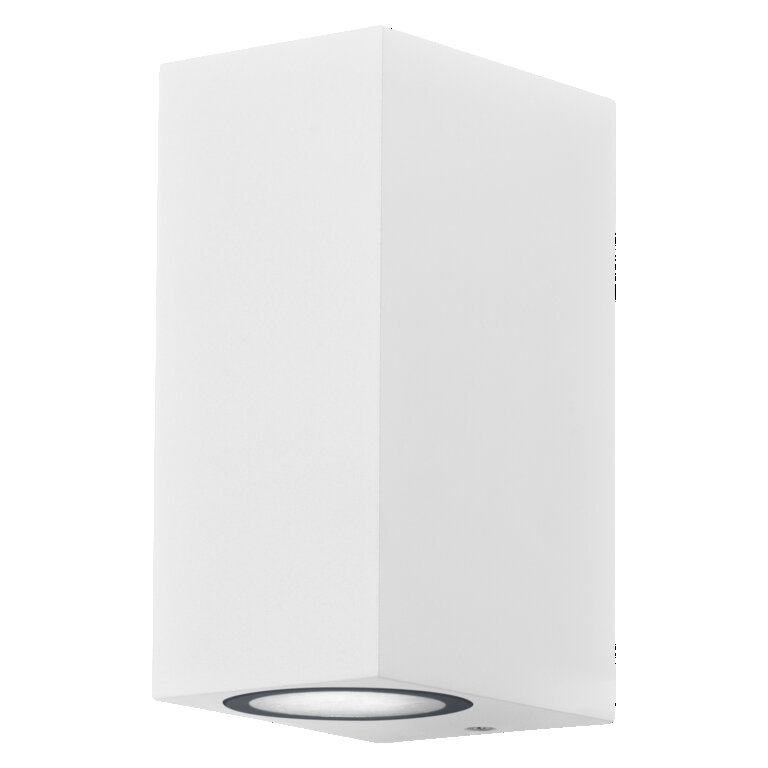

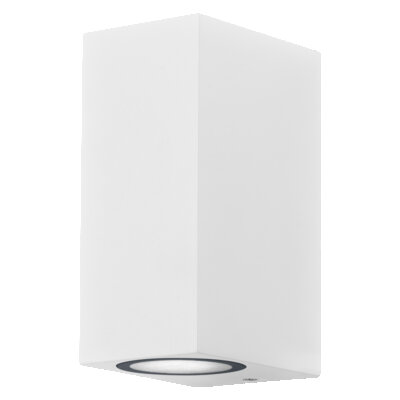

Product image: white background, upright
ENDURA CLASSIC SQUARE UPDOWN WTGU10 JPG (664.12 KB)
Product image: white background, upright, switched on
ENDURA CLASSIC SQUARE UPDOWN WTGU10 JPG (665.53 KB)

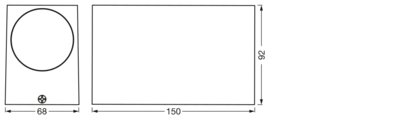

Product line drawing with letters
ENDURA CLASSIC SQUARE UPDOWN WT SVG (5.3 KB)
Product line drawing with numbers
ENDURA CLASSIC SQUARE UPDOWN WT PNG (22.59 KB)
Product line drawing, front, no dimensions
ENDURA CLASSIC SQUARE UPDOWN WT SVG (3.52 KB)

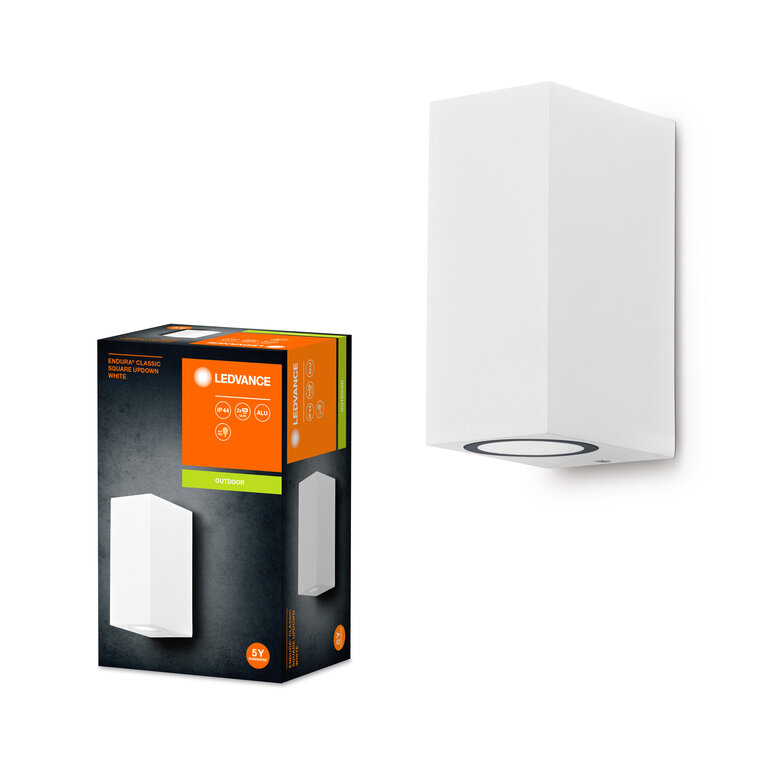

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ENDURA SQUARE U PDOWN WT MiPRC JPG (696.23 KB)

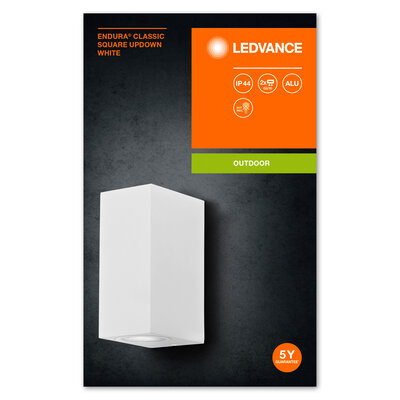

Packaging image, frontal
LUM FC ENDURA SQUARE U PDOWN WT MiPRC TIF (861.92 KB)

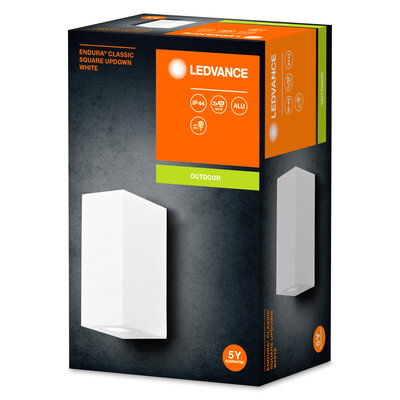

Packaging image, spacial
LUM FC ENDURA SQUARE U PDOWN WT MiPRC JPG (1.08 MB)

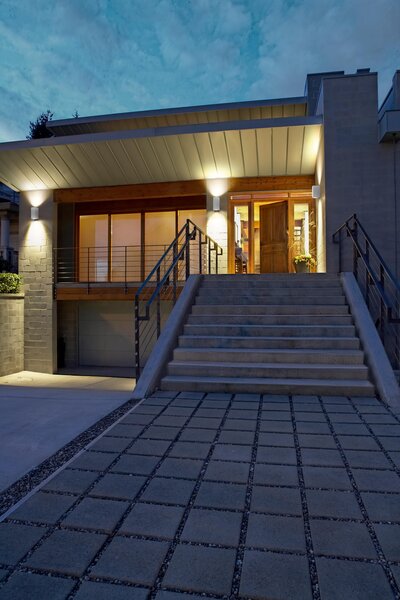

Application pictures Getty
ENDURA CLASSIC UPDOWN Square GU10 WT JPG (1.14 MB)
EAN ELDAS number
4058075763685 941005060
