| Nominal wattage | 8 W / 6 W / 4 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 36.000 mA |
| Inrush current | 3 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 336 |
| Max. number of luminaires per miniature circuit breaker C10 | 210 |
| Max. number of luminaires per miniature circuit breaker C16 | 336 |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
| Luminous flux | 680 lm / 530 lm / 350 lm |
| Luminous efficacy | 88 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 90 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 36 ° |

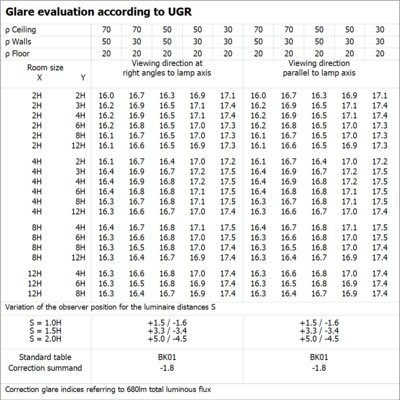

| UGR | < 28 |
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 8 W | 3000 K | 680 lm | 85 lm/W |
| 6 W | 3000 K | 530 lm | 88 lm/W |
| 4 W | 3000 K | 350 lm | 88 lm/W |
| Diameter | 90.00 mm |
| Height | 38.50 mm |
| Product weight | 235.00 g |
| Cable length | 300 mm |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push terminal |
| Type of protection | IP20/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 83 mm |
| Mounting depth | 50 mm |
| Adjustable | Yes |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 41000 h 1) |
| Lifespan L90/B10 at 25 °C | 18000 h |
| Number of switching cycles | 30000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 180 mA |
| ECG - Output ripple current | < 5 % |
| ECG - Length | 68 mm |
| ECG - Width | 55 mm |
| ECG - Height | 22,0 mm |

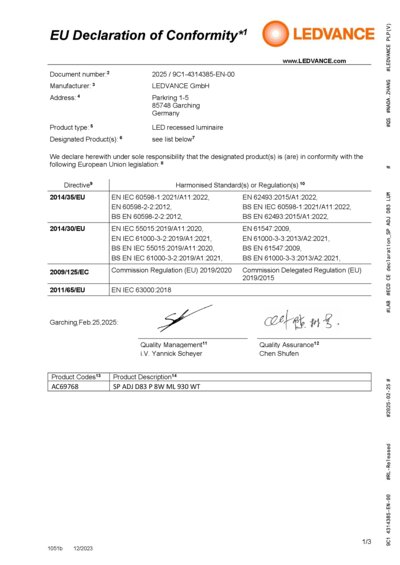

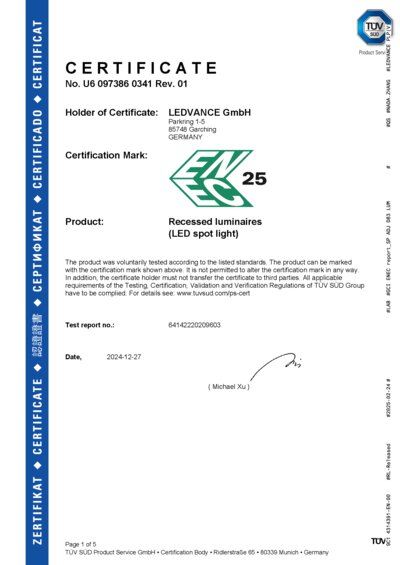

| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from March 2025 |
| Added function | MULTI SELECT |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Tripnehyl Phosphate (115-86-6), Formaldehyde (25214-70-4), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854459825 | Folding box 1 |
107 mm x 102 mm x 87 mm | 276.00 g | 0.95 dm³ |
| 4099854459832 | Shipping box 20 |
540 mm x 215 mm x 185 mm | 6111.00 g | 21.48 dm³ |
| EAN | STK number | ELDAS number |
|---|---|---|
| 4099854459825 | 4161007 | 941403310 |
