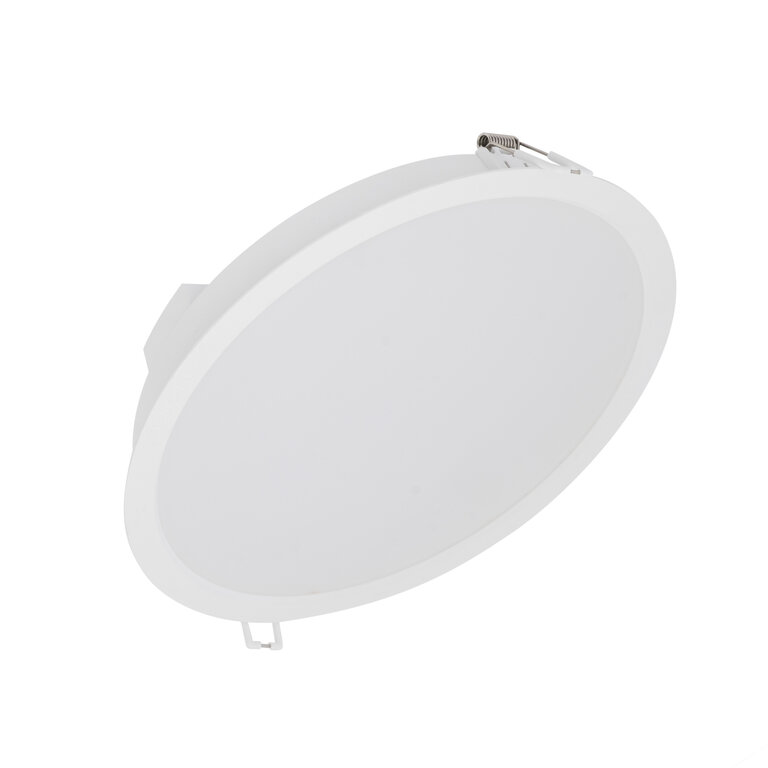

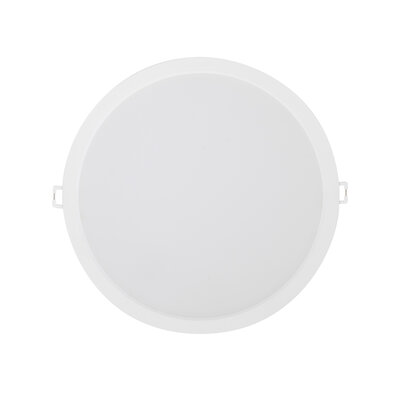

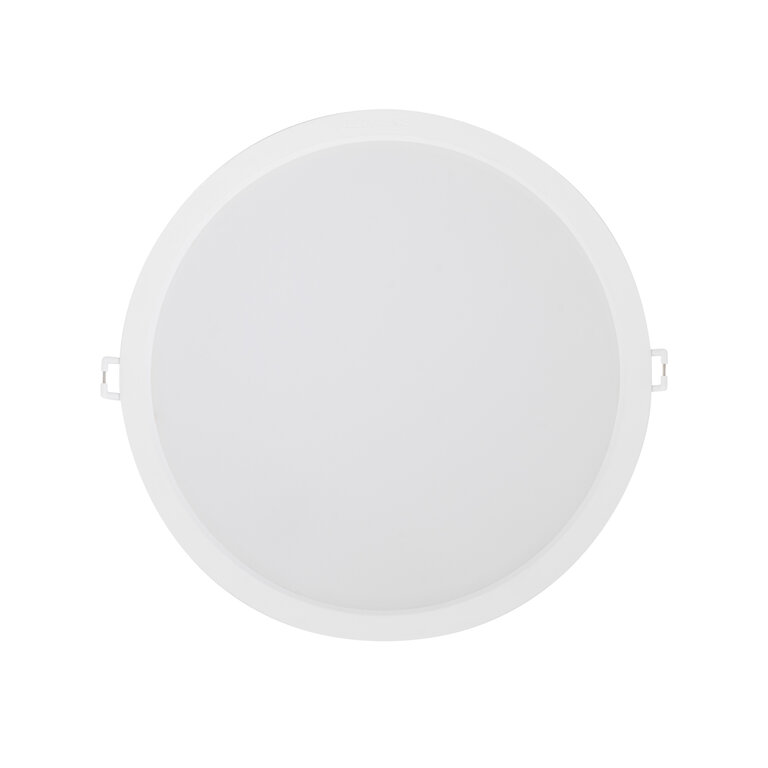

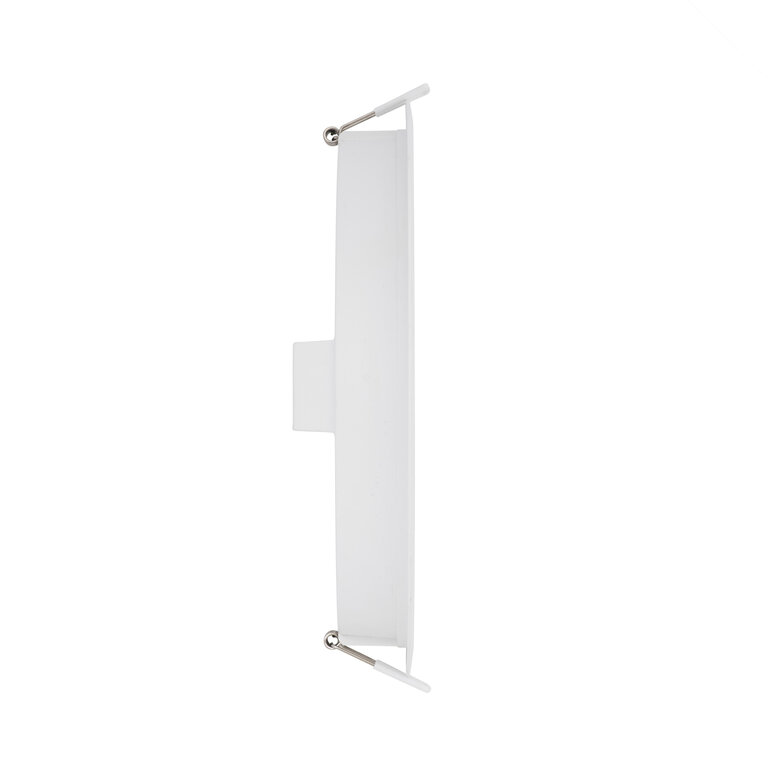

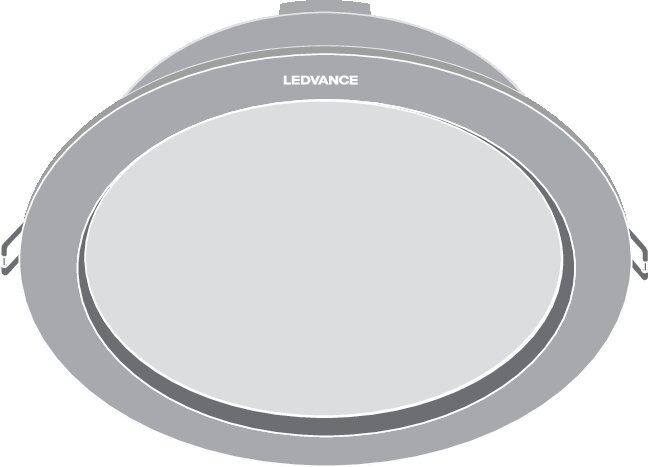

DL IP44 DN 215 24W 840 WT
Product benefits
- High luminous efficacy
- Very homogenous light
- Simple installation thanks to integrated driver
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 11.7 A |
| Inrush current time Th50 | 250 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 62 |
| Max. number of luminaires per miniature circuit breaker C10 | 33 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | 0.50 |
| Total harmonic distortion | < 90 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
| Luminous flux | 2400 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |

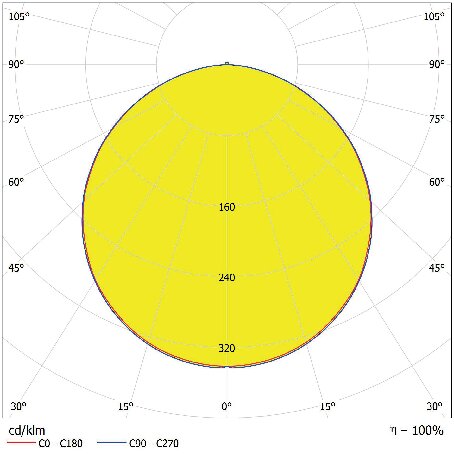

| Beam angle | 100 ° |

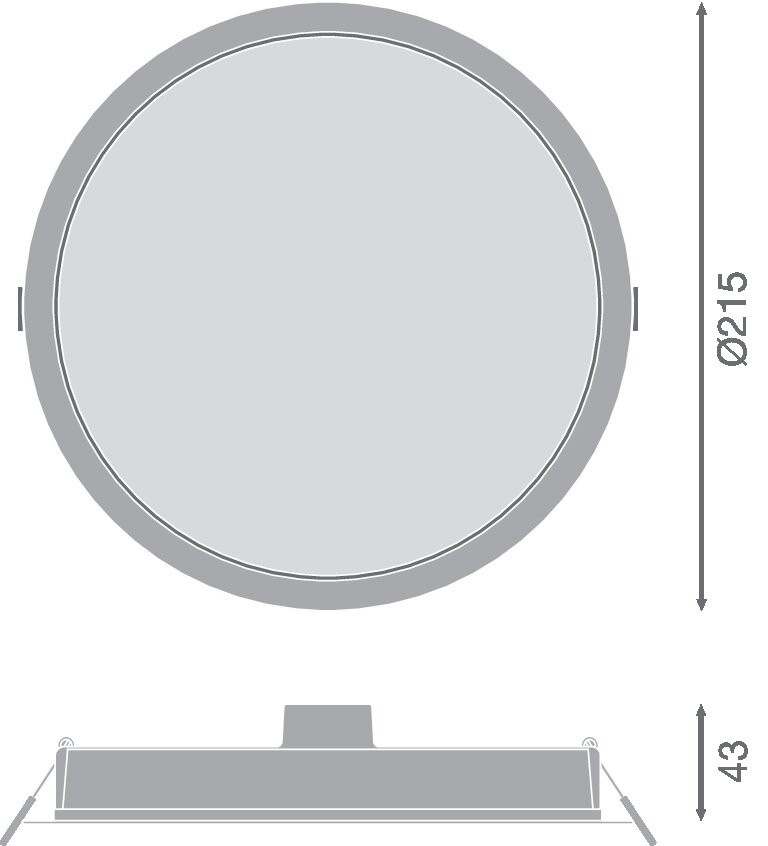

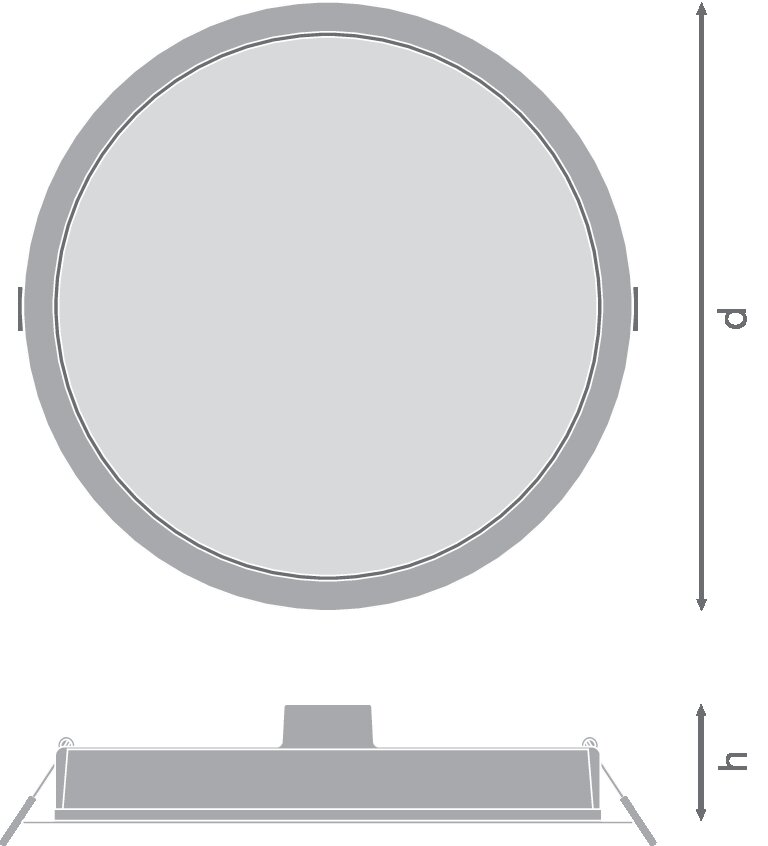

| Diameter | 215.00 mm |
| Height | 42.00 mm |
| Product weight | 252.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Cable, 2-pole |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 200 mm |
| Mounting depth | 40 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 20000 h 1) |
| Lifespan L80/B10 at 25 °C | 18000 h 1) |
| Lifespan L90/B10 at 25 °C | 15000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 180 mA |
| ECG - Output ripple current | < 5 % |
| Standards | CE, EMC, ROHS 2.0, REACH |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075703223 | Folding box 1 |
220 mm x 52 mm x 220 mm | 296.00 g | 2.52 dm³ |
| 4058075703230 | Shipping box 10 |
450 mm x 274 mm x 236 mm | 3467.00 g | 29.10 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
DL IP44 FRAME DN 215 WT | 4058075709966 |
| EAN | STK number |
|---|---|
| 4058075703223 | 4136117 |
