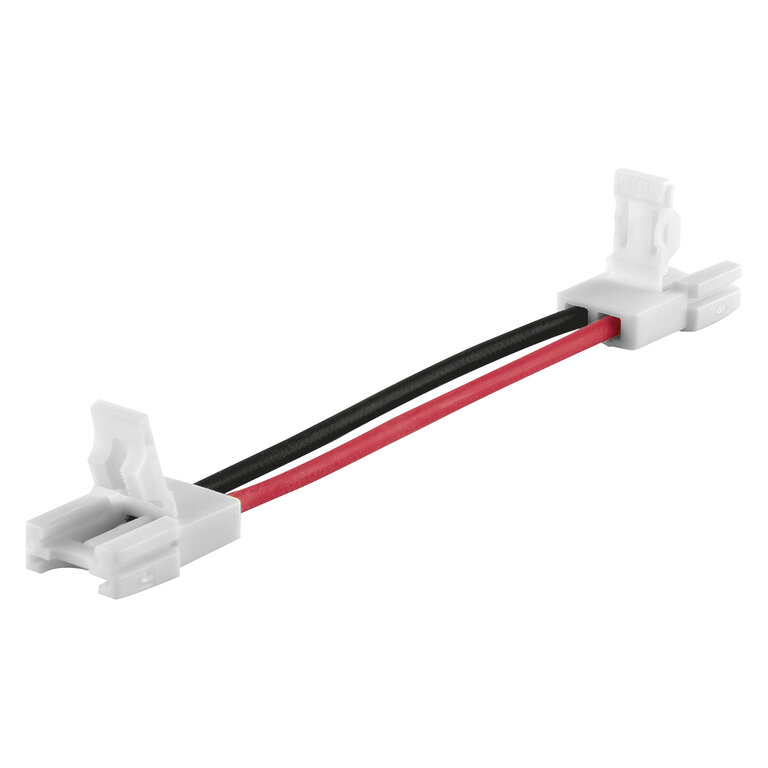

LS AY -CSW/P2/50
Product benefits
- Easy installation of connector, no manual wiring required
- Tool-free installation
| Nominal voltage | 24 V |
| Nominal current | 5000 mA |
| Length | 82 mm |
| Cable length | 50 mm |
| Width | 10.5 mm |
| Height | 4.5 mm |
| Cable cross-section, input side | 0.5 mm² |
| Product weight | 4.00 g |
| Product color | White |
| Ambient temperature range | -20…+55 °C |
| Type of protection | IP00 |
| Temperature range at storage | -20…+80 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075727434 | BAG 2 |
80 mm x 120 mm x 5 mm | 9.00 g | 0.05 dm³ |
| 4058075727441 | Shipping box 100 |
180 mm x 100 mm x 180 mm | 529.00 g | 3.24 dm³ |
| 4058075727458 | Shipping box 1,000 |
520 mm x 380 mm x 210 mm | 6058.00 g | 41.50 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075727434 | 7509065 | 4127298 | 3252650 | 941902490 |
