LS PFM -1000/COB/930/5

Product benefits
  • Excellent homogenous light, without visible light points thanks to COB technology
  • Great design freedom thanks to flexibility and cuttability of module
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
  • Simple connection thanks to integrated cables on both sides
  • Maximum flexibility due to large range of accessories
  • Easy installation, no tools required for connection
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 38.00 W
Construction wattage 38.00 W
Nominal wattage per meter 11.0 W 1)
Nominal voltage 24 V
Input voltage range 23…25 V
Reverse Voltage 144 V
Type of current DC
Nominal current 1600 mA

1) Value based on first meter of the product

Photometrical data

Luminous efficacy 95 lm/W 1)
Luminous flux 3100 lm
Luminous flux per meter 1010 lm 1)
Color temperature 3000 K
Color rendering index Ra > 90
Light color LED White
Light color (designation) 3000 K
Standard deviation of color matching ≤5 sdcm

1) Value based on first meter of the product

Light technical data

Beam angle 140 °

LED MODULE INFORMATION

Number of LEDs per meter 384
Number of LEDs per module 384
Number of LEDs per smallest unit 24

Dimensions & Weight

Length 5000.00 mm
Length – smallest unit 62.5 mm
Cable length 500.000
Width 8.00 mm
Height 1.70 mm
Prewired Yes
Conductor cross section 0.5 mm²
Short pitch Yes
Product weight 188.00 g

Temperatures & operating conditions

Ambient temperature range -20…+55 °C
Maximum temperature at tc test point 75 °C
Temperature range in operation -20…+55 °C

Lifespan

Nominal lamp life time 50000 h

Capabilities

Dimmable Yes 1)
Lowest bending radius 10 mm
Self-adhesive Yes

1) Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval CE, TUV
Protection class III
Type of protection IP00
Energy consumption 5.50 kWh/1000h 1)
Energy class of contained light source F
Salt mist resistance acc. IEC 60068-2-52 No
UV resistance acc. IEC 60068-2-5 No

1) Value based on 0.5 meter

LOGISTICAL DATA

Temperature range at storage -40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent homogenous light, without visible light points thanks to COB technology
  • Great design freedom thanks to flexibility and cuttability of module
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
  • Simple connection thanks to integrated cables on both sides
  • Maximum flexibility due to large range of accessories
  • Easy installation, no tools required for connection
Areas of application
  • General illumination
  • Cove lighting
  • Bars, restaurants, hotels
  • Offices
  • Residential interiors
Product features
  • Flexible and cuttable LED strip
  • Luminous flux: 1000 lm/m
  • Very good color rendering index Ra: > 90
  • Smallest cuttable unit: 62.5 mm
  • Large range of color temperatures: from warm white to cool daylight
  • Dimmable with suitable drivers, see also www.ledvance.com/dim
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075597532 Folding box
1		 242 mm x 242 mm x 26 mm 335.00 g 1.52 dm³
4058075600737 Shipping box
10		 260 mm x 260 mm x 265 mm 3741.00 g 17.91 dm³
4058075600744 Shipping box
40		 540 mm x 288 mm x 563 mm 16364.00 g 87.56 dm³
Product image Product name EAN
LS AY -PF02/U/16X5/10/1 4058075278226
LS AY -PM04/UW/23X15,5/10/1 4058075278400
LS AY -PM02/R/18X15,5/10/1 4058075278349
LS AY -PM01/UW/21,5X12/10/1 4058075278318
LS AY -PM06/E/18X18/12/1 4058075279308
LS AY -PF01/UW/22X6/10/1 4058075278196
LS AY -PM05/U/17,5X14,5/10/1 4058075279278
LS AY -PF01/UW/22X6/10/2 4058075401532
LS AY -PF02/U/16X5/10/2 4058075401563
LS AY -PF04/U/17X7/12/1 4058075278288
LS AY -PM03/E/19X19/10/1 4058075278370
LS AY -PW01/U/26X8/14/2 4058075401440
LS AY -PW03/U/26X26/14/2 4058075401501
LS AY -PW01/U/26X8/14/1 4058075278103
LS AY -PF03/UW/25X7/12/1 4058075278257
LS AY -PW02/UW/39X26/14/1 4058075278134
LS AY -PW02/UW/39X26/14/2 4058075401471
LS AY -PW03/U/26X26/14/1 4058075278165
DR-PFM -250/220-240/24/P 4058075240032
DR-PFM -100/220-240/24/P 4058075239937
DR-PFM -150/220-240/24/P 4058075239975
DR-PFM -60/220-240/24/P 4058075239913
DR DIM-PFM -250/220-240/24/P 4058075240155
DR DIM-PFM -150/220-240/24/P 4058075240117
DR DIM-PFM -100/220-240/24/P 4058075240070
LS AY PFM -CSW-P2-50-COB 4058075654099
LS AY PFM -CP-P2-500 COB 4058075654075
DR DIM-PFM -60/220-240/24/P 4058075379190
User instruction / safety instructions

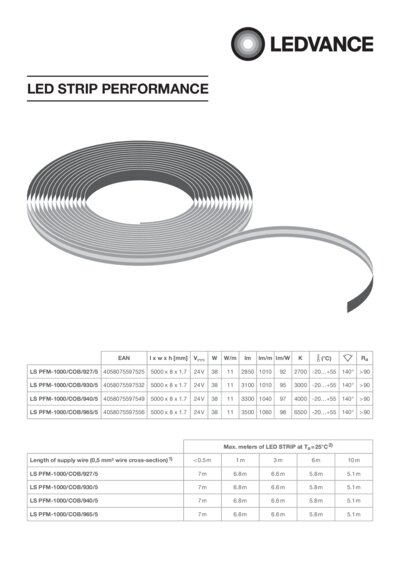

LED STRIP PERFORMANCE- 1000 COB -1000 PDF (3.21 MB)
Legal information
LED STRIP COB PDF (1.23 MB)

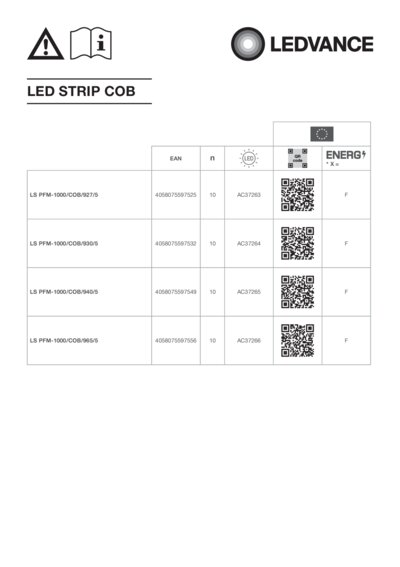

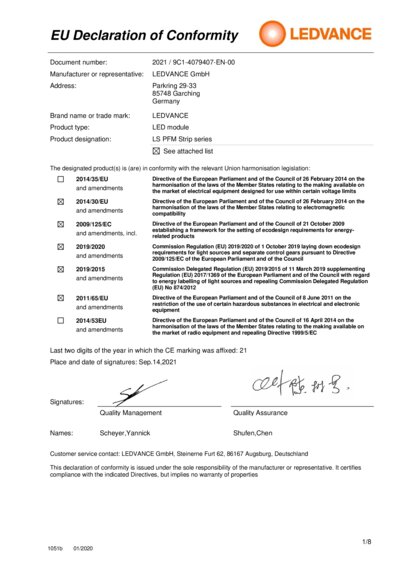

Declarations of conformity
LS PFM COB PDF (189.53 KB)

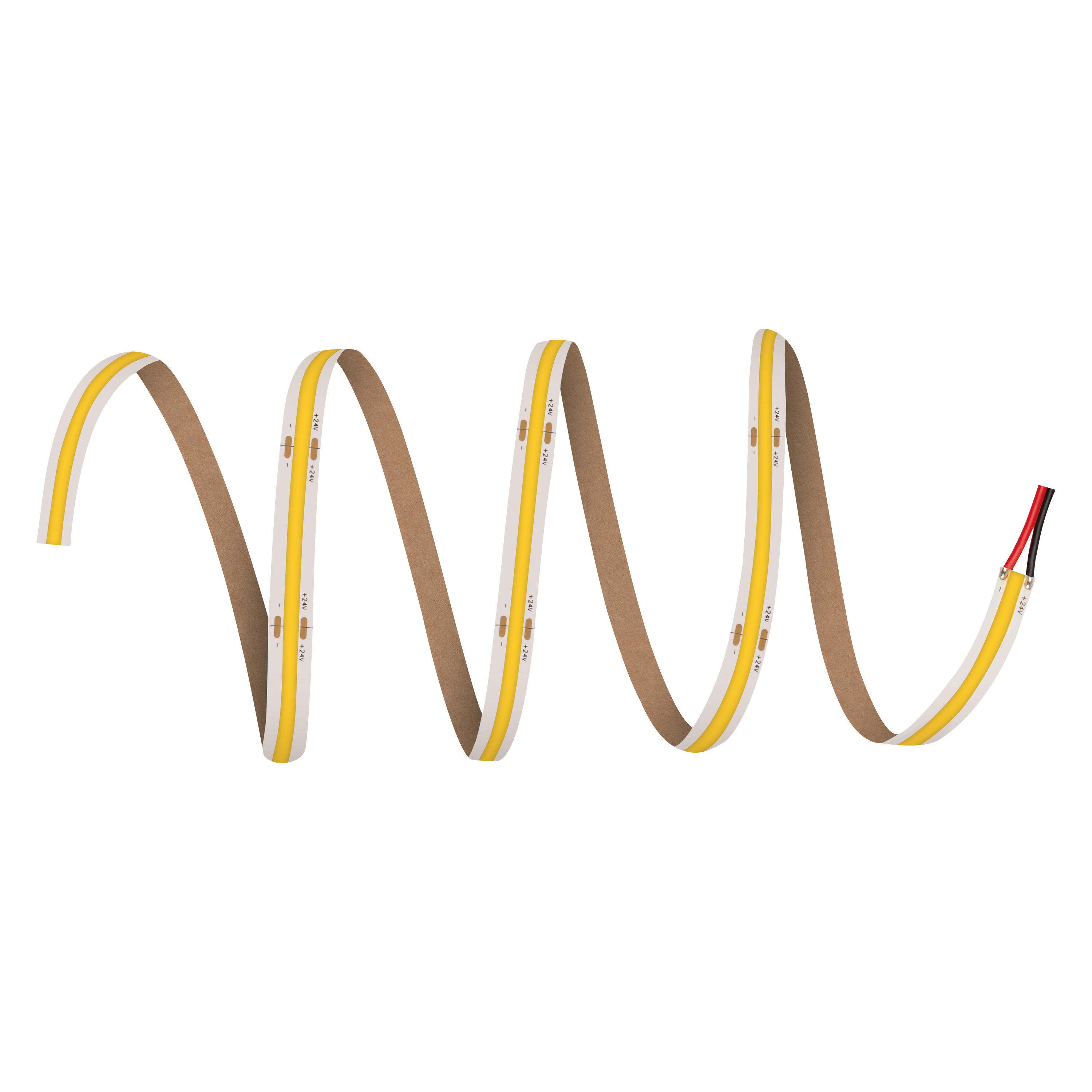

Product image: white background, diagonal
LED STRIP PERFORMANCE- 1000 COB JPG (1.39 MB)

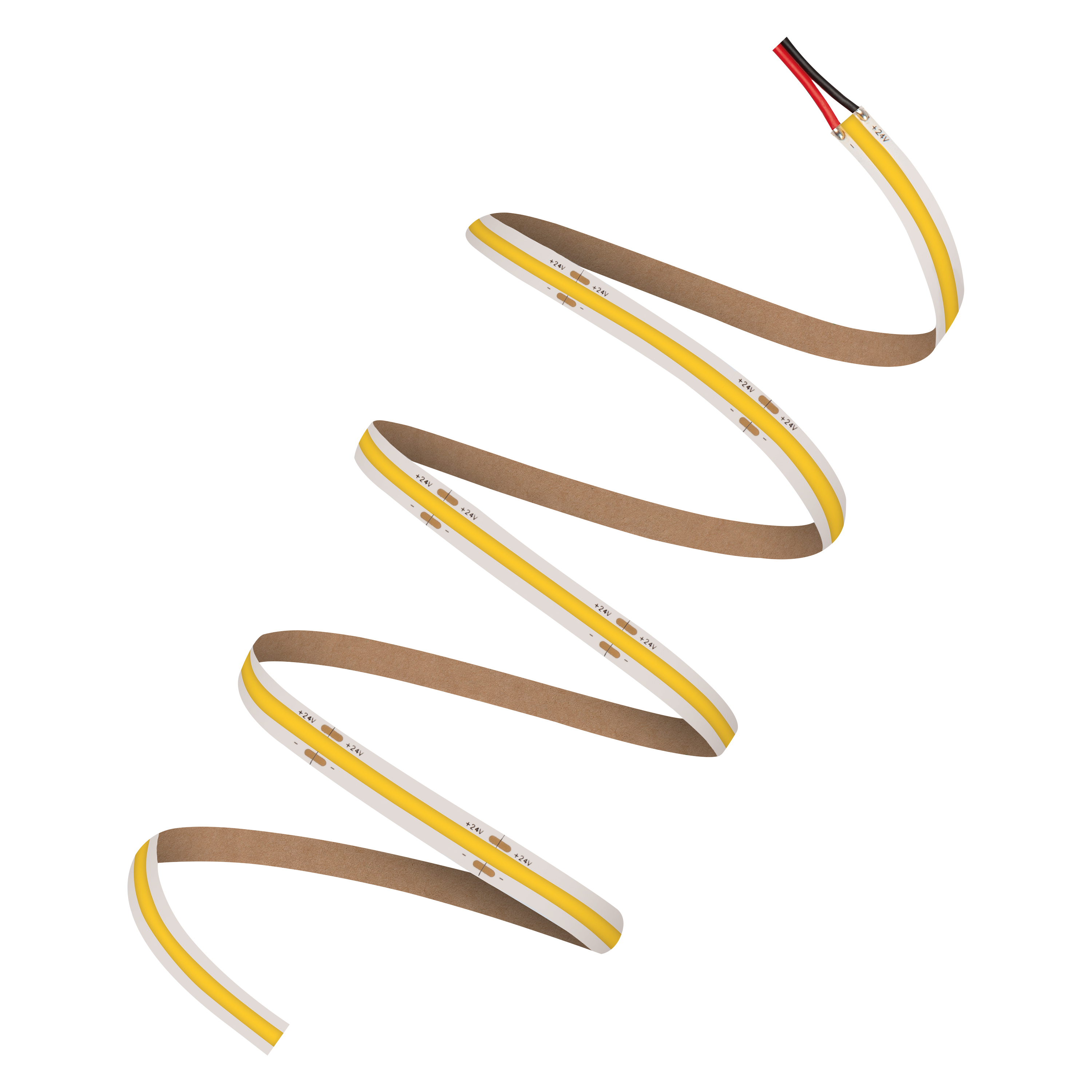

Product image: white background, horizontal
LED STRIP PERFORMANCE- 1000 COB JPG (1.22 MB)
Product line drawing with letters
LED STRIP PERFORMANCE- 1000 COB SVG (90.12 KB)
Product line drawing with numbers
LED STRIP PERFORMANCE- 1000 COB SVG (93.13 KB)
Product line drawing - technical
LED STRIP PERFORMANCE- 1000 COB SVG (85.29 KB)

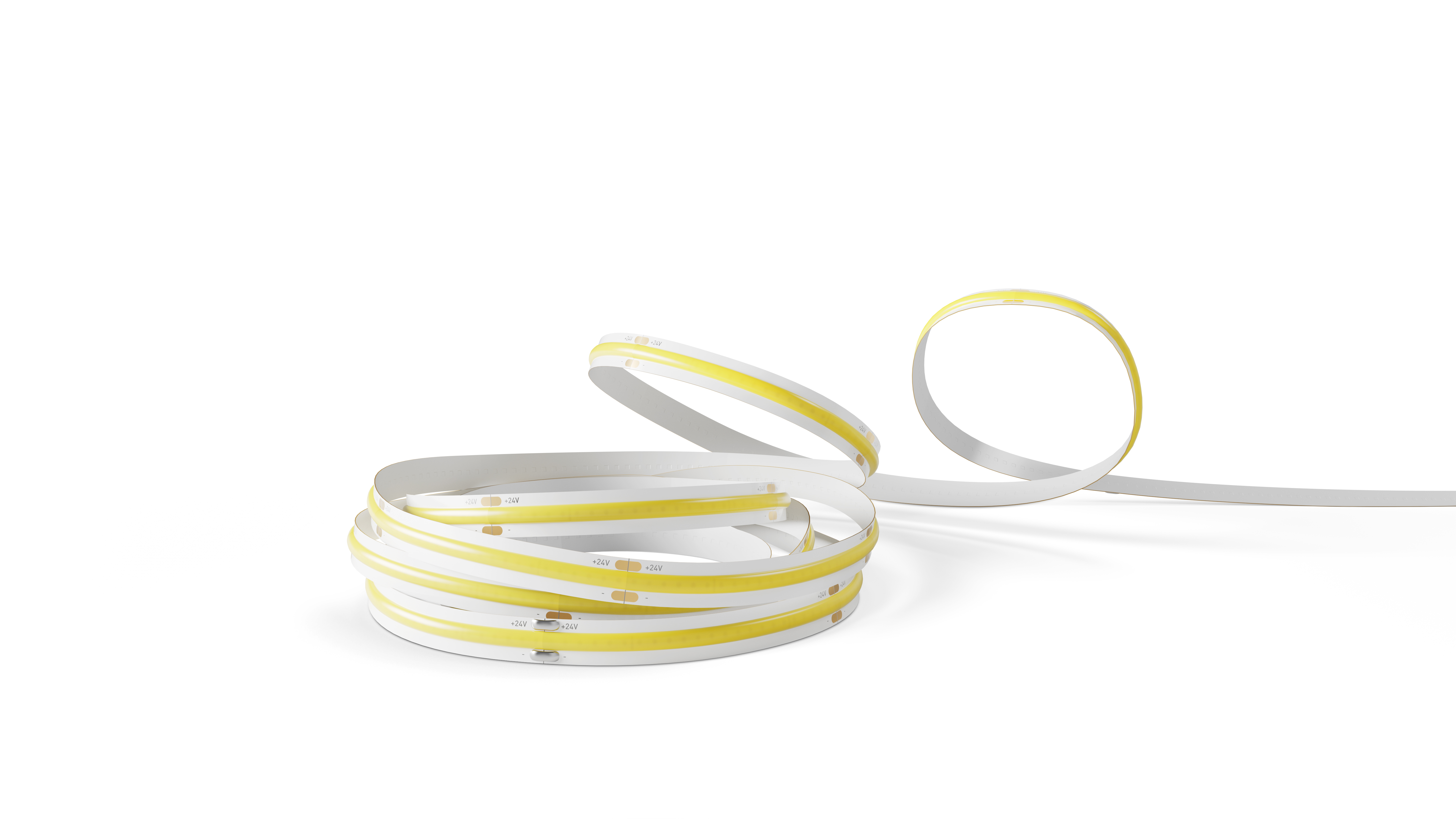

Beauty Shot
LED STRIP COB Beautysh ot JPG (2.37 MB)
IES file (IES)
LS PFM-1000-COB-930-5 IES (3.74 KB)
LDT file (Eulumdat)
LS PFM-1000-COB-930-5 LDT (2.22 KB)
Light distribution curve type polar
LS PFM-1000-COB-930-5 SVG (20.41 KB)
Tender documents
LED STRIP PERFORMANCE COB 1000 COB 930 5-EN TXT (2.07 KB)

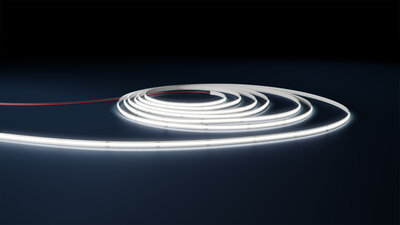

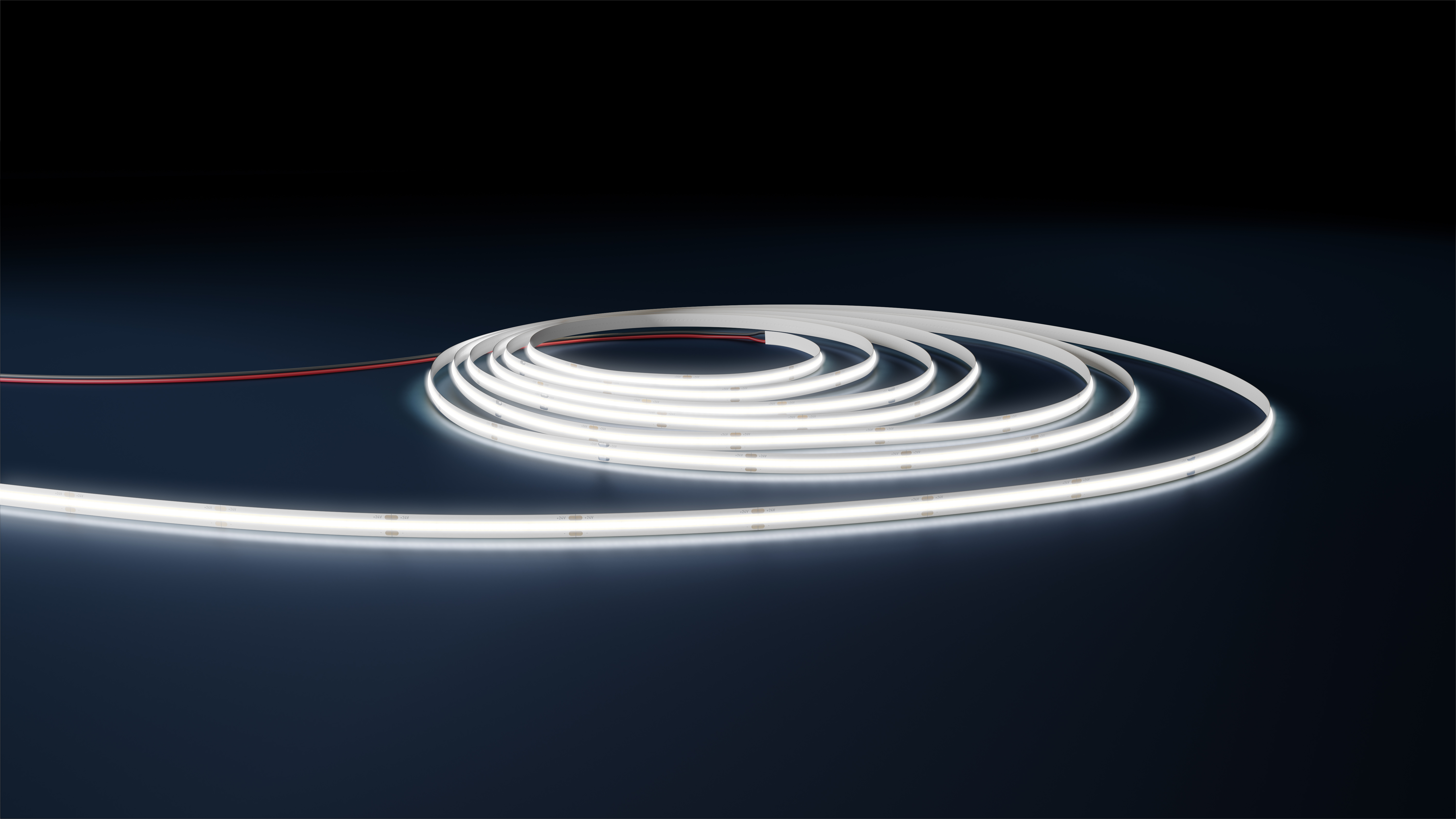

Application pictures
LED STRIP COB Applicat ion picture JPG (3.36 MB)

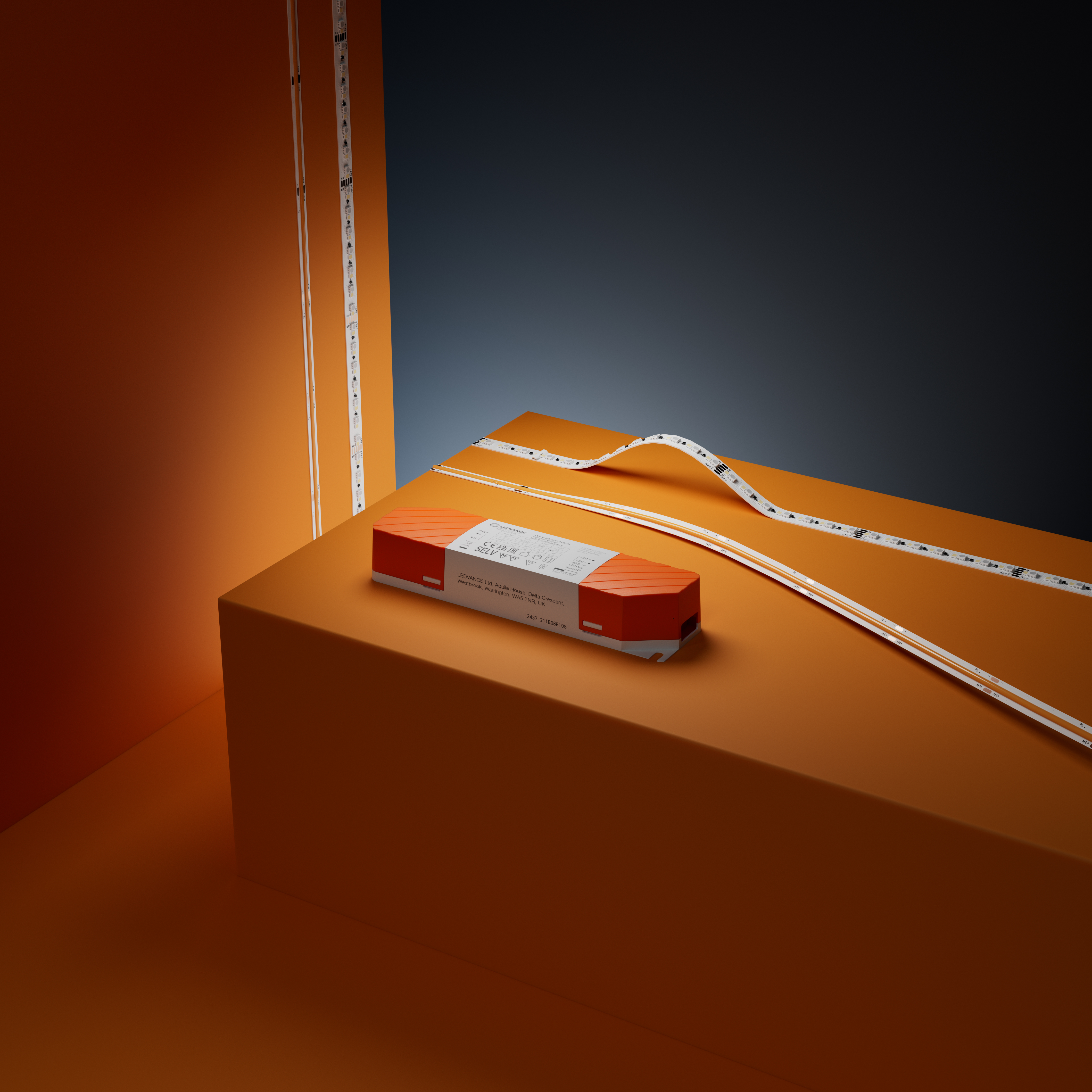

Application pictures
The Room Product Setup Comb ECSTRIPS JPG (7.75 MB)

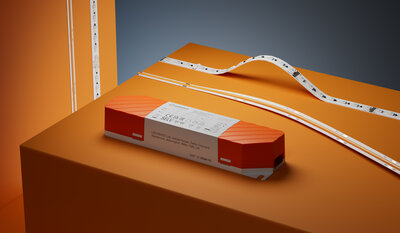

Application pictures
