DAMP PROOF VALUE
DP VAL 1800 70W 4000K IP65
GTIN: 4058075300989
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Uniform light distribution
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Easy installation, no tools required for connection
- 3 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 120 lm/W
- Type of protection: IP65
- Beam angle: 115°
- Through-wiring possible
- Polycarbonate housing
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 70.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 370 mA |
| Inrush current | 14 A |
| Inrush current time Th50 | 240 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 18 |
| Max. number of luminaires per miniature circuit breaker C10 | 17 |
| Max. number of luminaires per miniature circuit breaker C16 | 28 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 25 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 7500 lm |
| Luminous efficacy | 105 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 115 ° |
Dimensions & Weight
| Length | 1800.00 mm |
| Height | 83.00 mm |
| Width | 96.00 mm |
| Product weight | 2230.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| RAL Color (most similar) | RAL 7514 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Screwless |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 370 mA |
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075300989 | Folding box 1 |
86 mm x 1,800 mm x 97 mm | 2306.00 g | 15.02 dm³ |
| 4058075300996 | Shipping box 6 |
1,823 mm x 315 mm x 192 mm | 15445.00 g | 110.26 dm³ |
User instruction / safety instructions
UI_DAMP PROOF VALUE
UI_DAMP PROOF VALUE
Legal information
LS Insert DP VAL IP65
LS Insert DP VAL IP65
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DP VAL 1800
DP VAL 1800

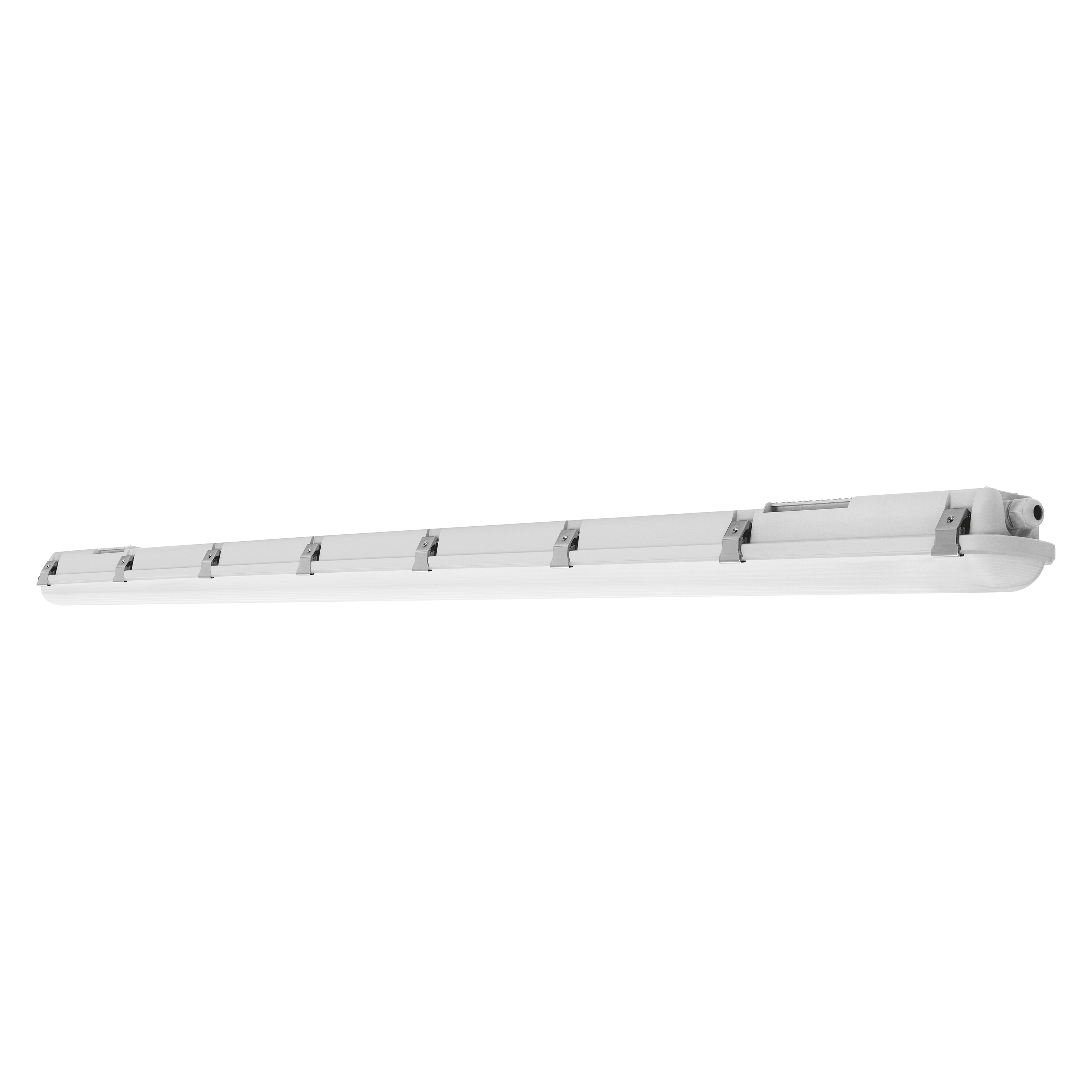

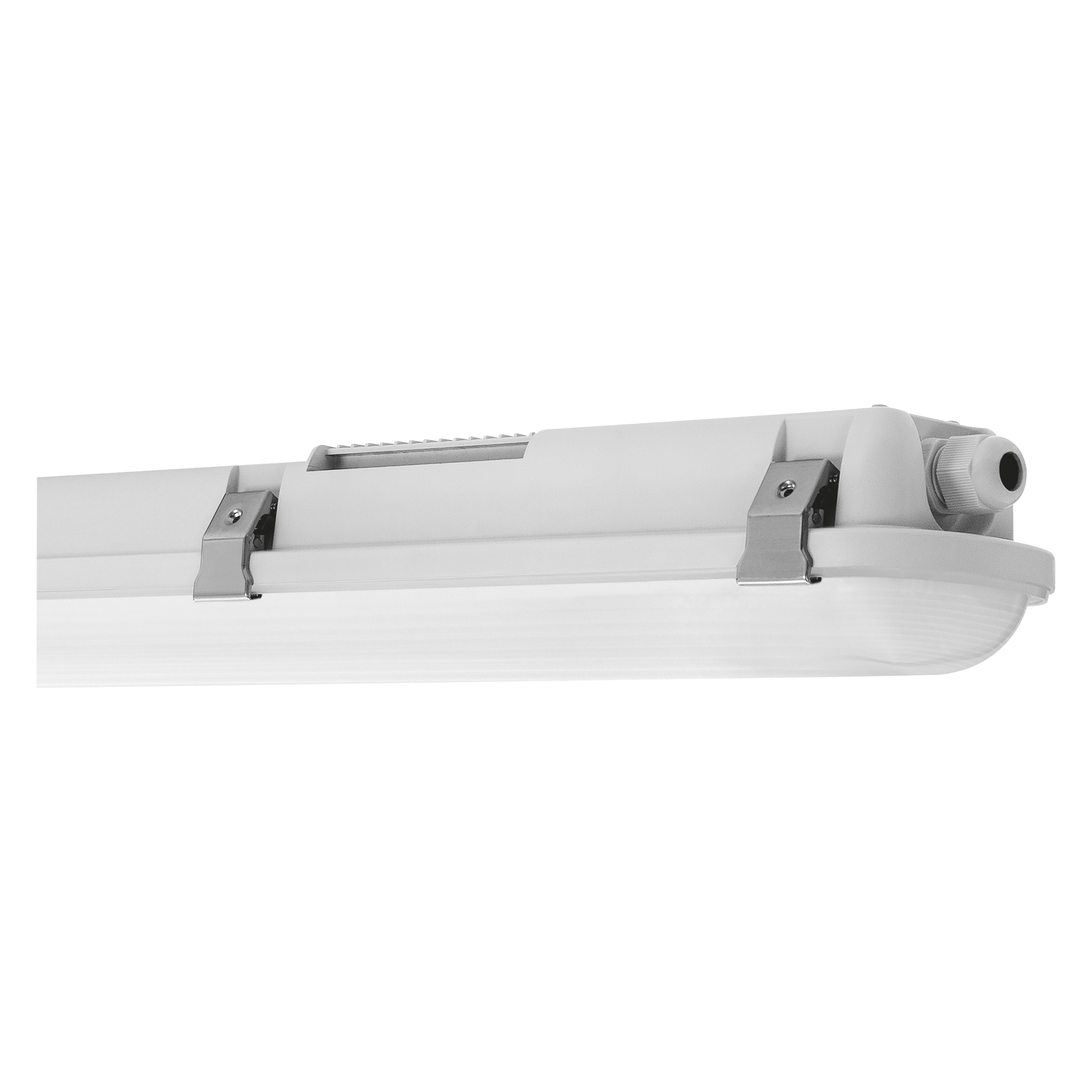

Product image: white background, diagonal
DP VAL 1800
DP VAL 1800

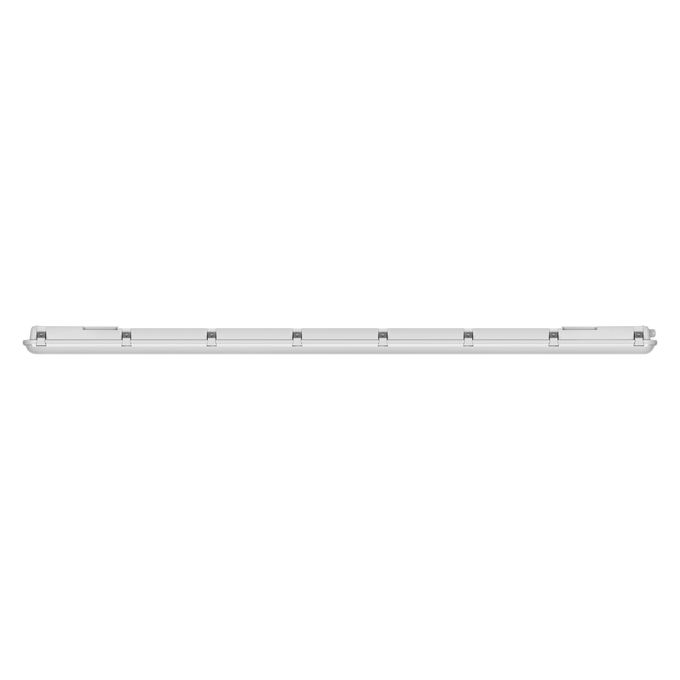

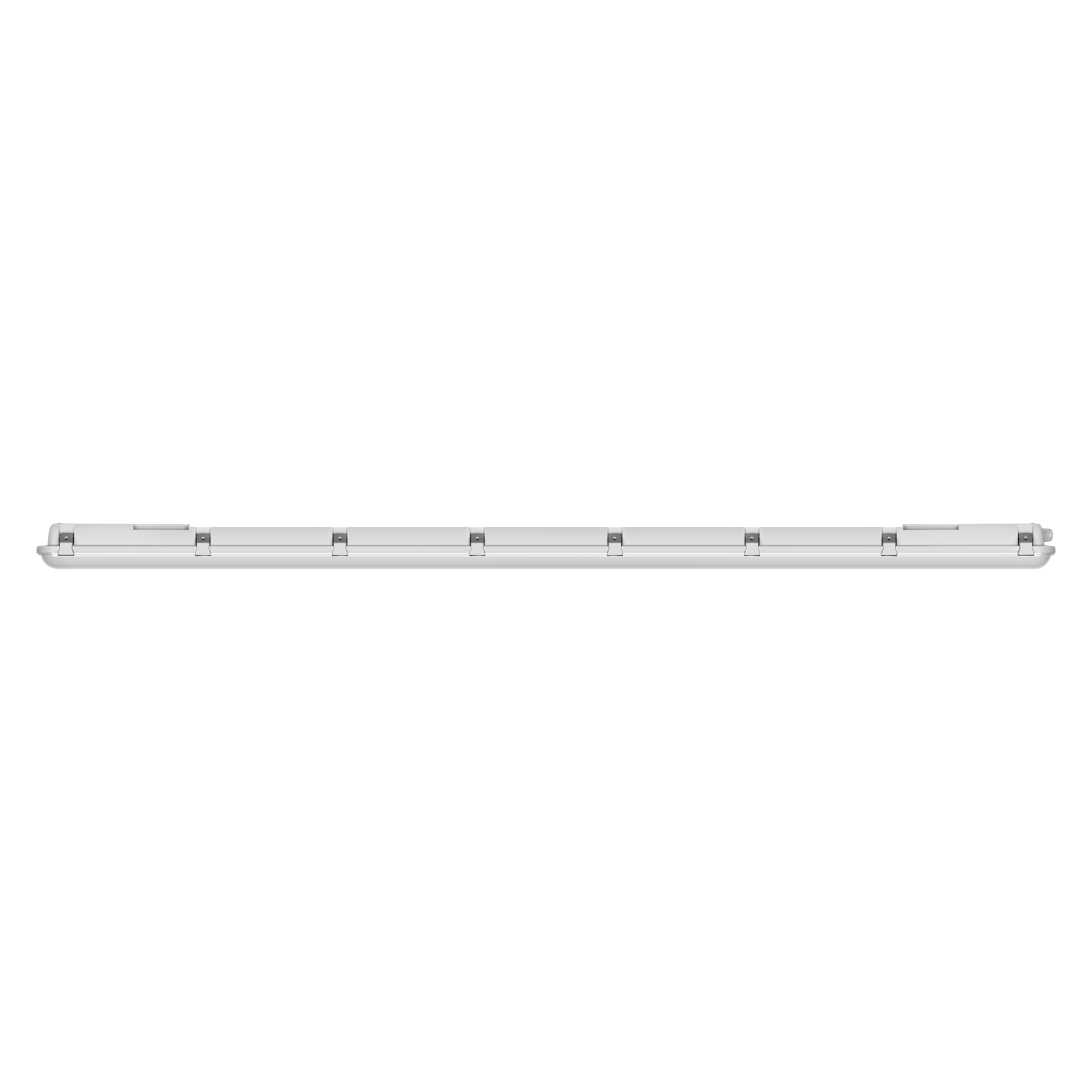

Product image: white background, horizontal
DP VAL 1800
DP VAL 1800

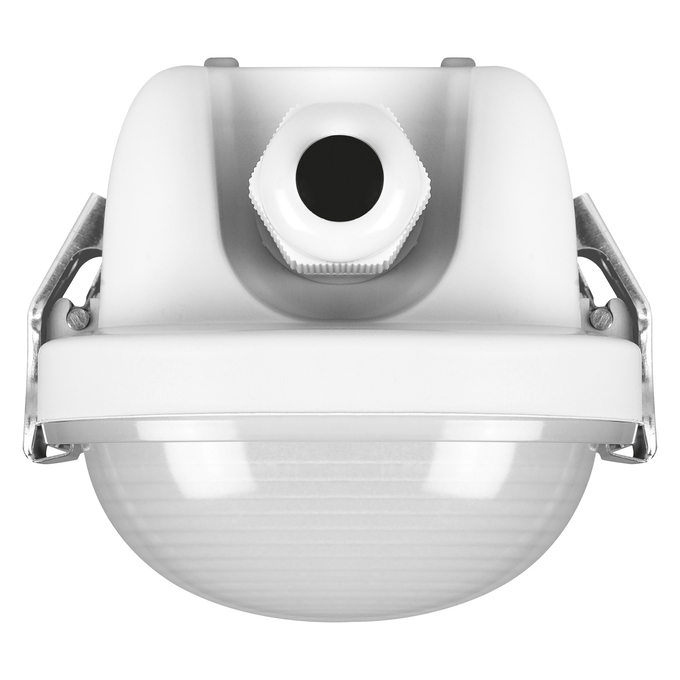

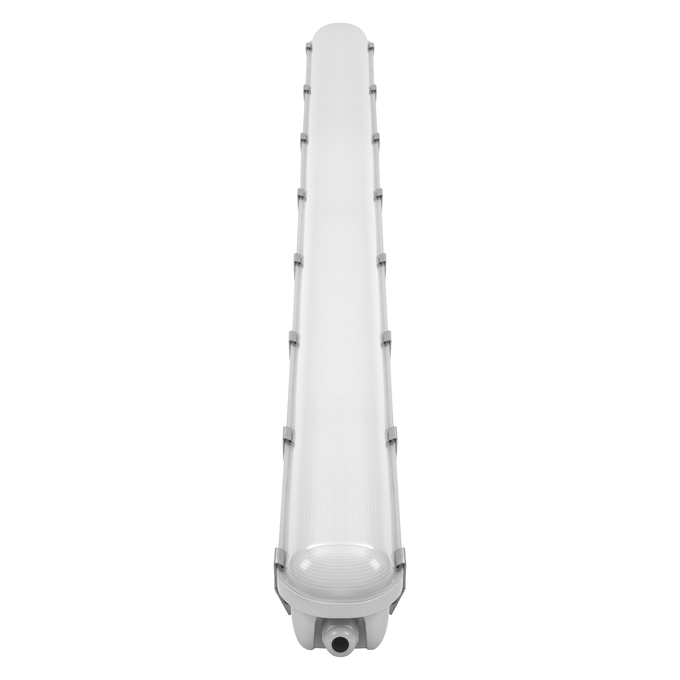

Product image: white background, upright
DP VAL 1800
DP VAL 1800
Product line drawing with letters
DP VAL 1800
DP VAL 1800
Product line drawing with numbers
DP VAL 1800
DP VAL 1800
Product line drawing, front, no dimensions
DP VAL 1800
DP VAL 1800

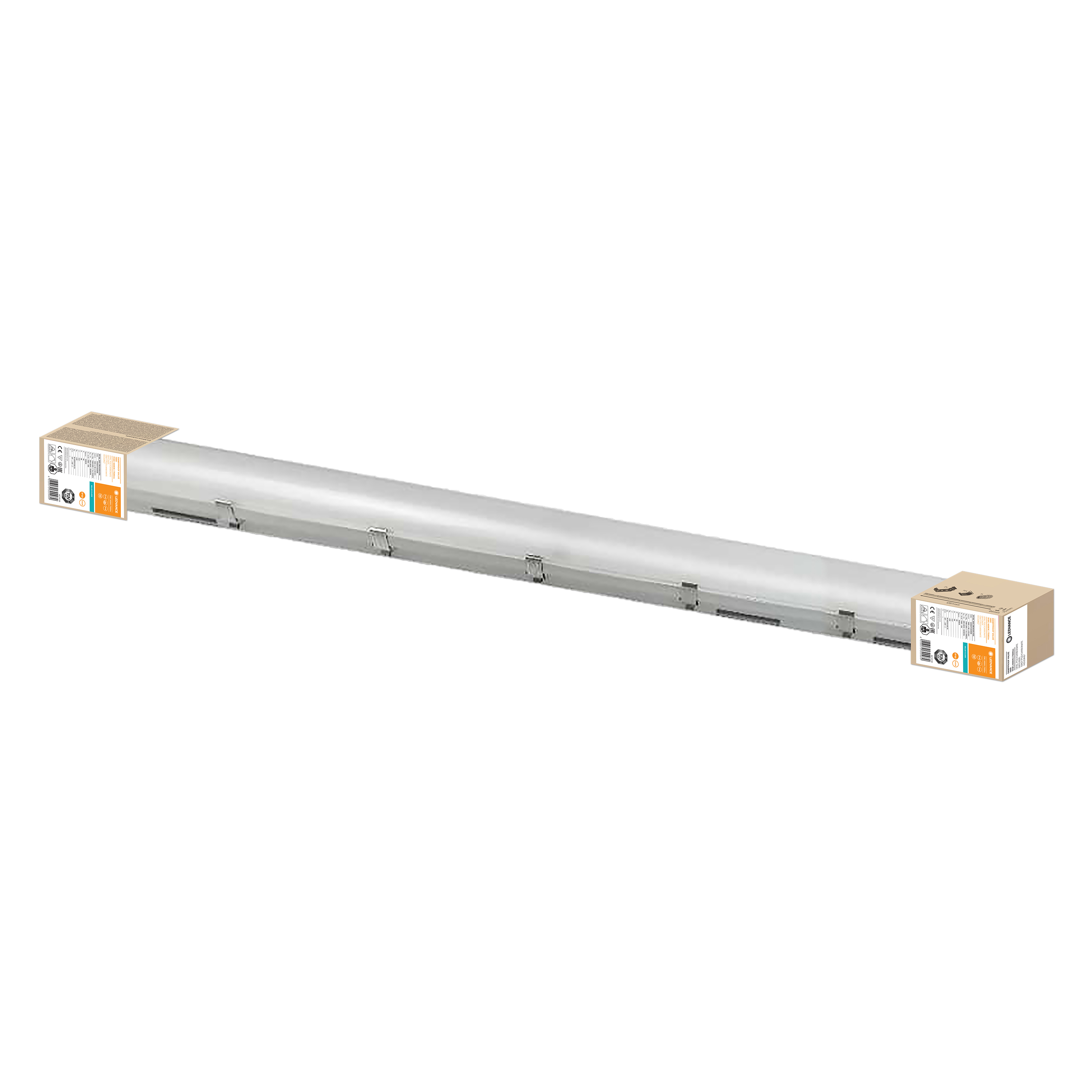

Packaging image, spacial
DP VAL 1800 70W4000K Mich Side copy
DP VAL 1800 70W4000K Mich Side copy
IES file (IES)
DP VAL 1800 70W4000K IP65
DP VAL 1800 70W4000K IP65
LDT file (Eulumdat)
DP VAL 1800 70W4000K IP65
DP VAL 1800 70W4000K IP65
ULD file (DIALux)
DP VAL 1800 70W-4000K
DP VAL 1800 70W-4000K
ROLF file (RELUX)
DP VAL 1800 70W-4000K
DP VAL 1800 70W-4000K

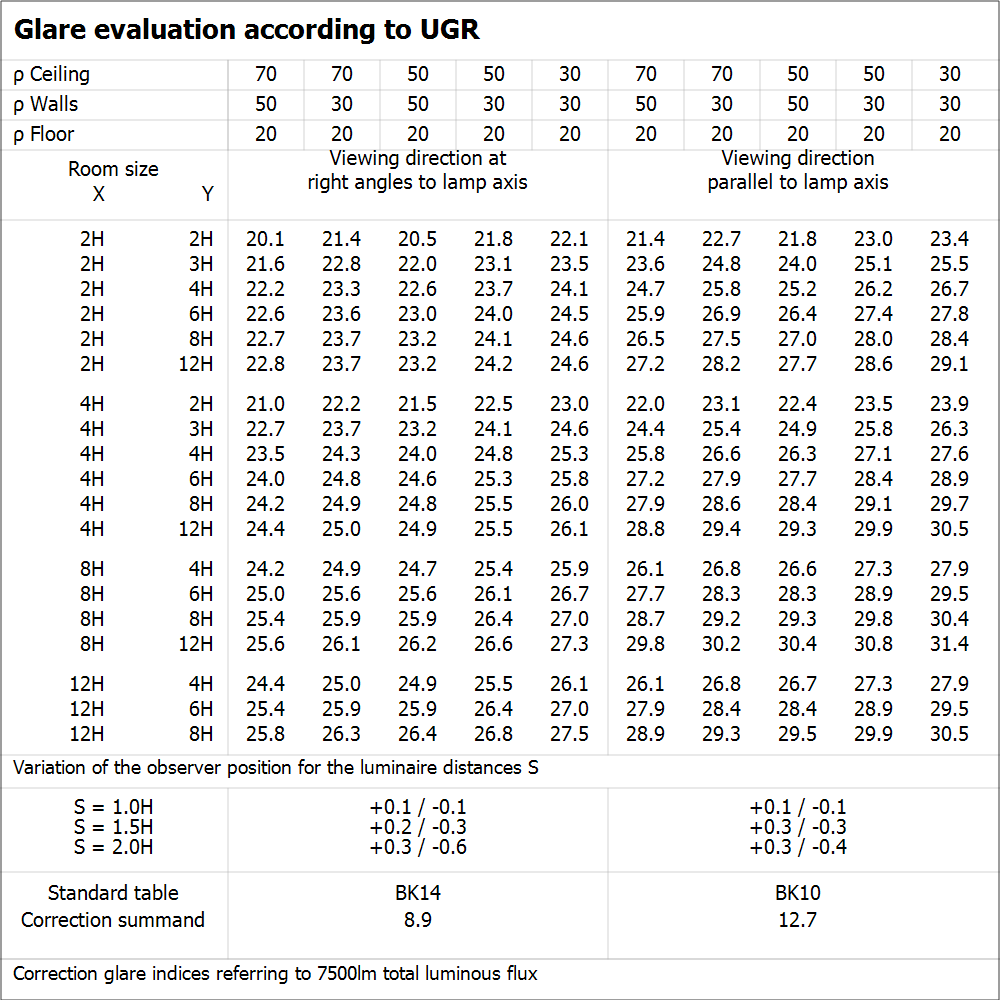

UGR file (UGR table)
