LED Retrofit CLASSIC P

ST CLAS P 25 2.5 W/4000 K E27

Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 19 mA
Type of current AC
Inrush current 1.2 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 263
Max. lamp number on MCB B16 A 421
Power factor λ > 0.50
Photometrical data
Luminous flux 250 lm
Nominal useful luminous flux 90° 250 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 77.00 mm
Diameter 45,0 mm
Maximum diameter 45 mm
Product weight 20.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 50 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDSCLP252,5W/8
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 77.00 mm
Height 45,0 mm
Width 45,0 mm
EPREL ID 1402974
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075111837 Blister
1		 45 mm x 140 mm x 120 mm 31.00 g 0.76 dm³
4058075111844 Shipping box
6		 285 mm x 153 mm x 132 mm 301.00 g 5.76 dm³
Declarations of conformity
LED lamps CLA,B,G,P
PDF (223.84 KB)
PRODUCT DATASHEET
LED STAR CL P FIL 25 non-dim 2,5W/840 E27
PDF (235.06 KB)
PRODUCT DATASHEET
STCLASP252.5W4000KE27e n
PDF (491.03 KB)
Product image: white background, diagonal
597747_RFCLP25 2 W/827 E27 clear
TIF (40.62 MB)
Product image: white background, diagonal
LED CL P FIL 15 E27
JPG (1.23 MB)
Product image: white background, upright
597760_RFCLP25 2 W/827 E27 clear
TIF (40.62 MB)
Product image: white background, upright
LED CL P FIL 15 E27
JPG (1.07 MB)
Product line drawing with letters
603587_RFCLP25 2 W/827 E27 clear
SVG (11.49 KB)
Product line drawing with letters
LED CL P FIL 15 E27
EPS (1.1 MB)
Product line drawing with numbers
LED CL P FIL 15 E27
EPS (1.1 MB)
Product line drawing, front, no dimensions
603602_RFCLP25 2 W/827 E27 clear
SVG (8.32 KB)
Product line drawing - technical
LED CL P FIL 15 E27
EPS (1.09 MB)

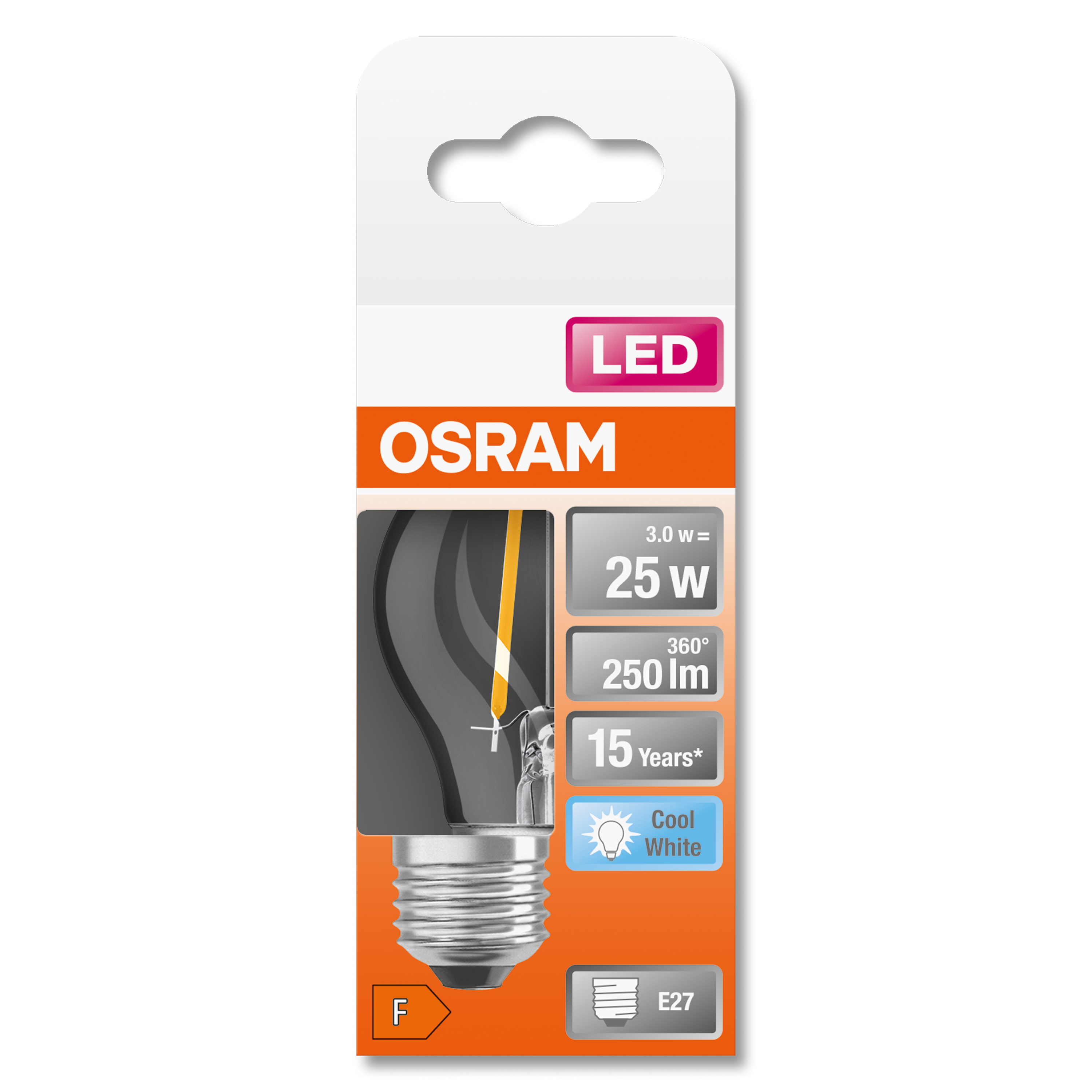

Packaging image, frontal
LED ST CLP 25 2.5W 840 FIL E27 MiCh Front
TIF (9.02 MB)
Packaging image, frontal
LED ST CLP 25 2.5W 840 FIL E27 MiCh
TIF (1.28 MB)

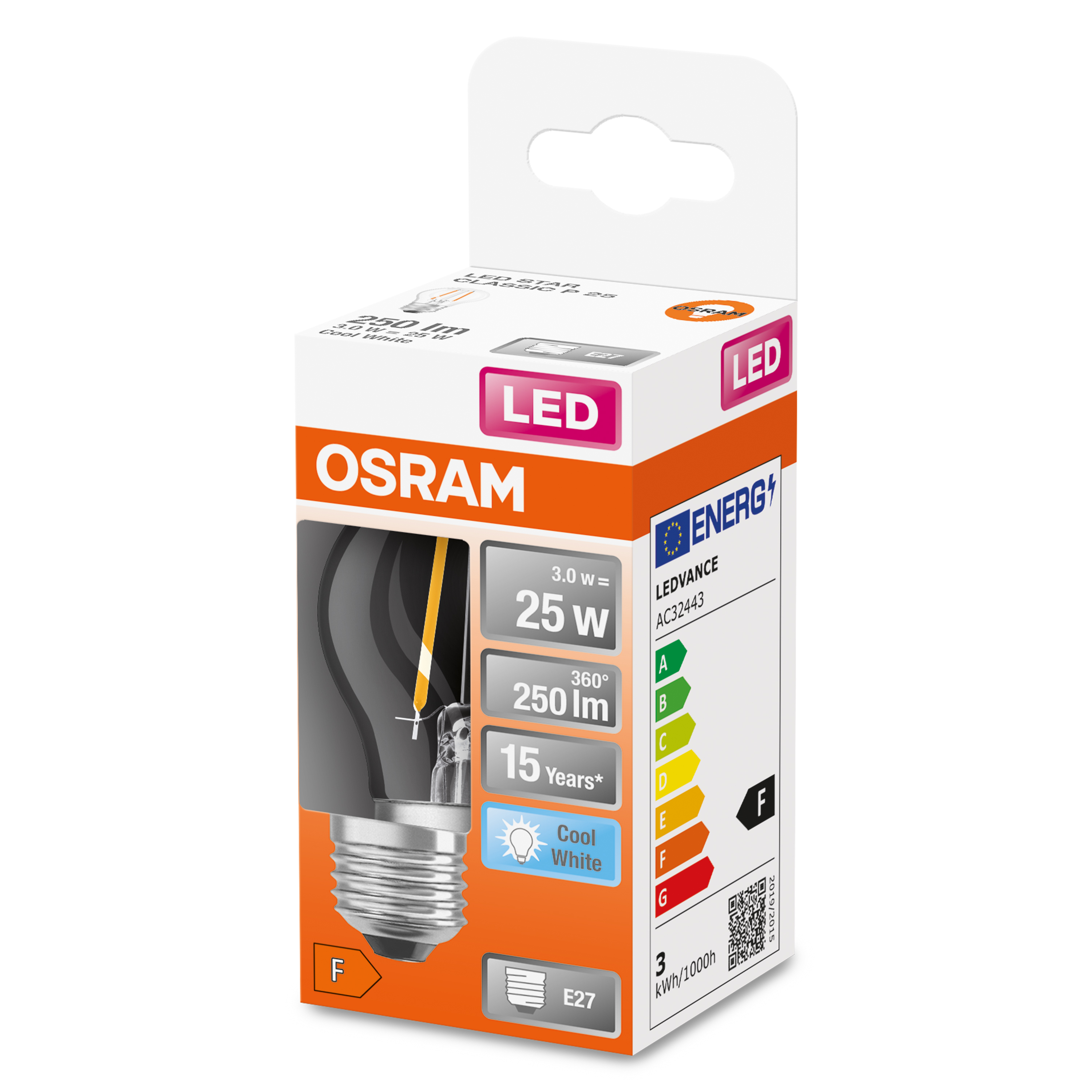

Packaging image, spacial
