PARATHOM CLASSIC A
P CLAS A 60 FR 8.5 W/2700 K B22d
GTIN: 4058075292314
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Lifetime up to 15,000 h
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8.5 W |
| Construction wattage | 8.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 65 mA |
| Type of current | AC |
| Inrush current | 3.96 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 149 |
| Max. lamp number on MCB B16 A | 240 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 94 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 106.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 33.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 95 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | A+ 1) |
| Energy consumption | 9.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/F-8,5/827-220-240-B22d-60 |
| Order reference | LEDPCLA60 8,5W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Length | 106.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075292314 | Folding box 1 |
60 mm x 60 mm x 111 mm | 47.00 g | 0.40 dm³ |
| 4058075292321 | Shipping box 10 |
325 mm x 136 mm x 126 mm | 563.00 g | 5.57 dm³ |
PRODUCT DATASHEET
4058075061637 ZMP_3220120 P CLAS A 60 FR 8.5 W 2700 K B22d.pdf
4058075061637 ZMP_3220120 P CLAS A 60 FR 8.5 W 2700 K B22d.pdf
Product image: white background, diagonal with OSRAM logo
655307_Classic A40/60/75 B22d
655307_Classic A40/60/75 B22d

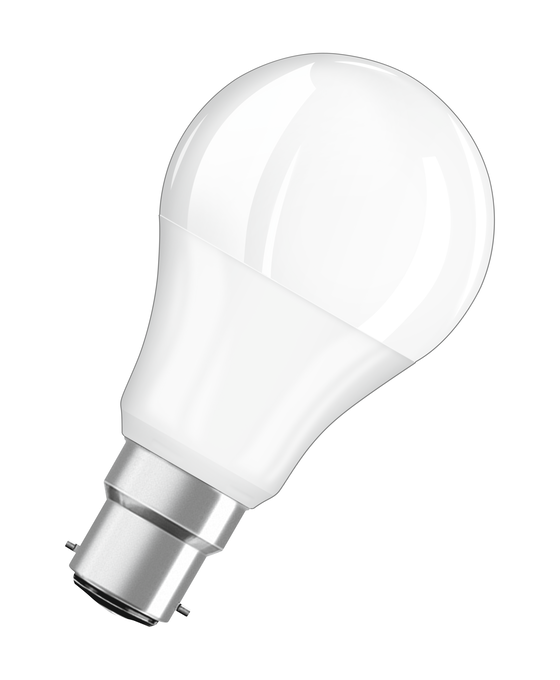

Product image: white background, diagonal
723257_LED CLA 40/60 827 B22d FR
723257_LED CLA 40/60 827 B22d FR
Product image: white background, upright, OSRAM logo
655302_Classic A40/60/75 B22d
655302_Classic A40/60/75 B22d
Product image: white background, upright
723263_LED CLA 40/60 827 B22d FR
723263_LED CLA 40/60 827 B22d FR
Product line drawing with letters
614648_LED STAR CLASSIC A100 frosted B22d
614648_LED STAR CLASSIC A100 frosted B22d
Product line drawing, front, no dimensions
614656_LED STAR CLASSIC A100 frosted B22d
614656_LED STAR CLASSIC A100 frosted B22d
IES file (IES)
AC08346_CLA60 8,5W 220-240V FR B22D
AC08346_CLA60 8,5W 220-240V FR B22D
LDT file (Eulumdat)
AC08346_CLA60 8,5W 220-240V FR B22D
AC08346_CLA60 8,5W 220-240V FR B22D

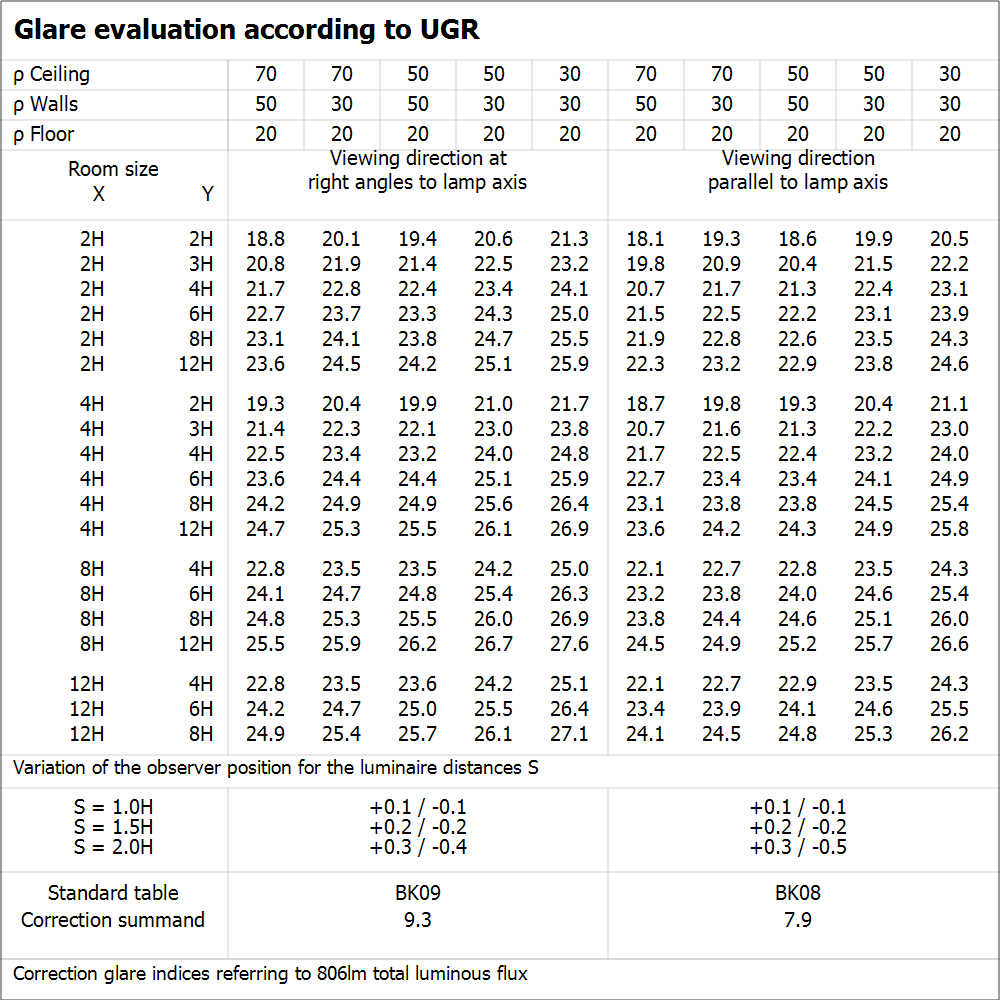

UGR file (UGR table)
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
Light distribution curve type cone
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
Light distribution curve type polar
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
LEDPCLA60 8,5W 827 230VFR B22D FS1 OSRAM
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075292314 | 8294963 | 4731322 | 941802630 |
