NEW
SMART+ Matter Beam Adjust Wall
SMART+ Matter Adjustable Beam Wall Multicolor
GTIN: 4099854474668
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Colorful garden lighting with smart and intelligent control options
- High-quality materials
Areas of application
- General illumination
- Gardens
- Patios, balconies
Product features
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
- Controllable via voice control available: Google Assistant or Amazon Alexa
- RGB color control, approx. 16 million color options adjustable
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Type of protection: IP44
- adjustable beam angle of light cone
- Network protocol: Matter over WiFi (2.4 GHz)
Equipment / Accessories
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 40.000 mA |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | II |
Photometrical data
| Luminous flux | 320 lm |
| Total luminous flux of contained light sources | 750 lm |
| Luminous efficacy | 40 lm/W |
| Color temperature | 3000…6500 K |
| Light color (designation) | Tunable White, RGB |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 65 ° |
| UGR | < 25 |
Dimensions & Weight
| Length | 100.00 mm |
| Height | 100.00 mm |
| Width | 105.00 mm |
| Product weight | 500.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminium|Acrylonitrile butadiene styrene (ABS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from October 2025, Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854474668 | Folding box 1 |
112 mm x 112 mm x 112 mm | 571.00 g | 1.40 dm³ |
| 4099854474675 | Shipping box 4 |
240 mm x 130 mm x 252 mm | 2497.00 g | 7.86 dm³ |
User instruction / safety instructions
Smart Matter Outdoor Wall Beam Adjustable
Smart Matter Outdoor Wall Beam Adjustable
Declarations of conformity
SMART Matter Outdoor Beam
SMART Matter Outdoor Beam
EU Data Act
SMART MATTER Lamps Luminaires Plugs
SMART MATTER Lamps Luminaires Plugs
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires

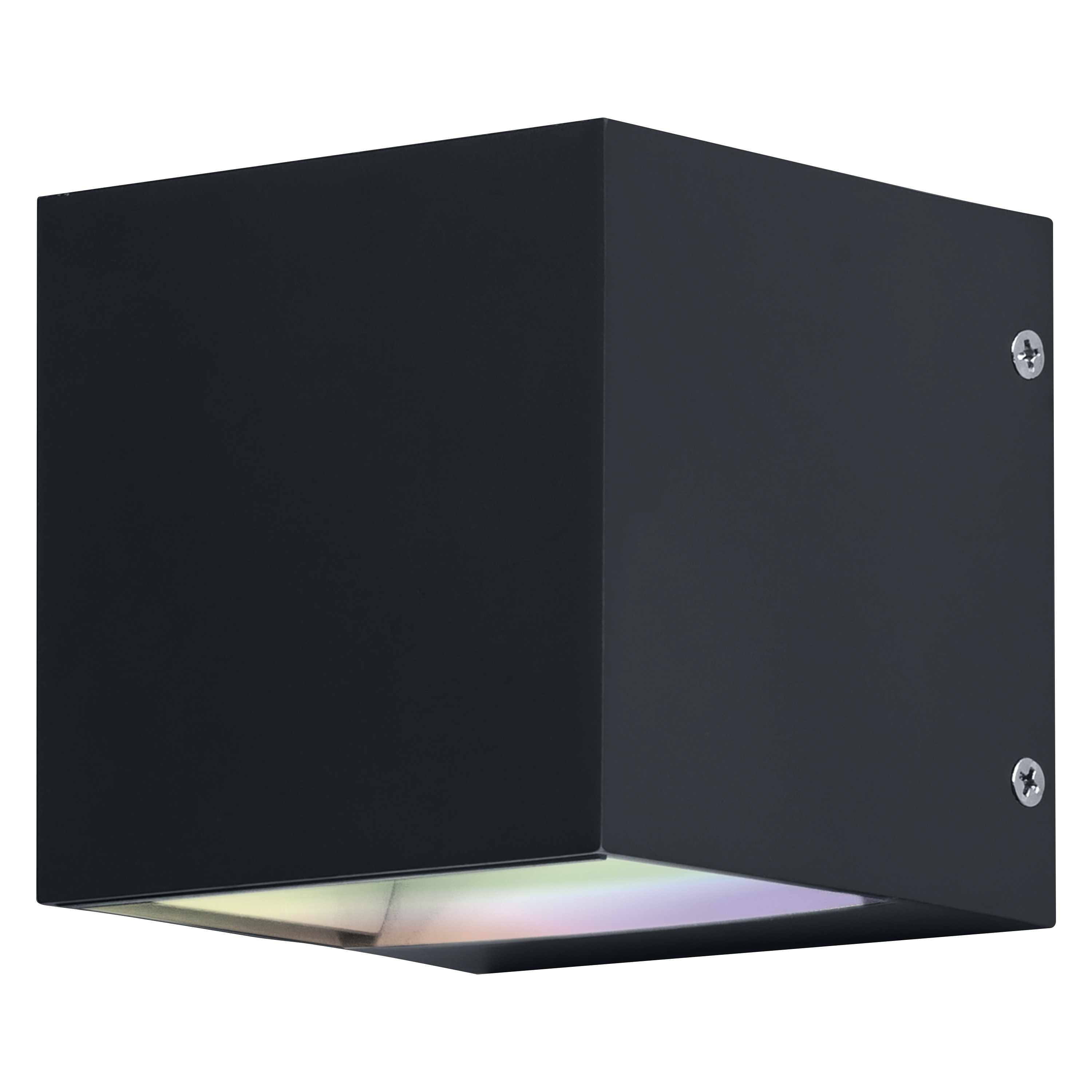

Product image: white background, upright
SMART OUTD WIFI BEAM ADJ WALL RGBW
SMART OUTD WIFI BEAM ADJ WALL RGBW

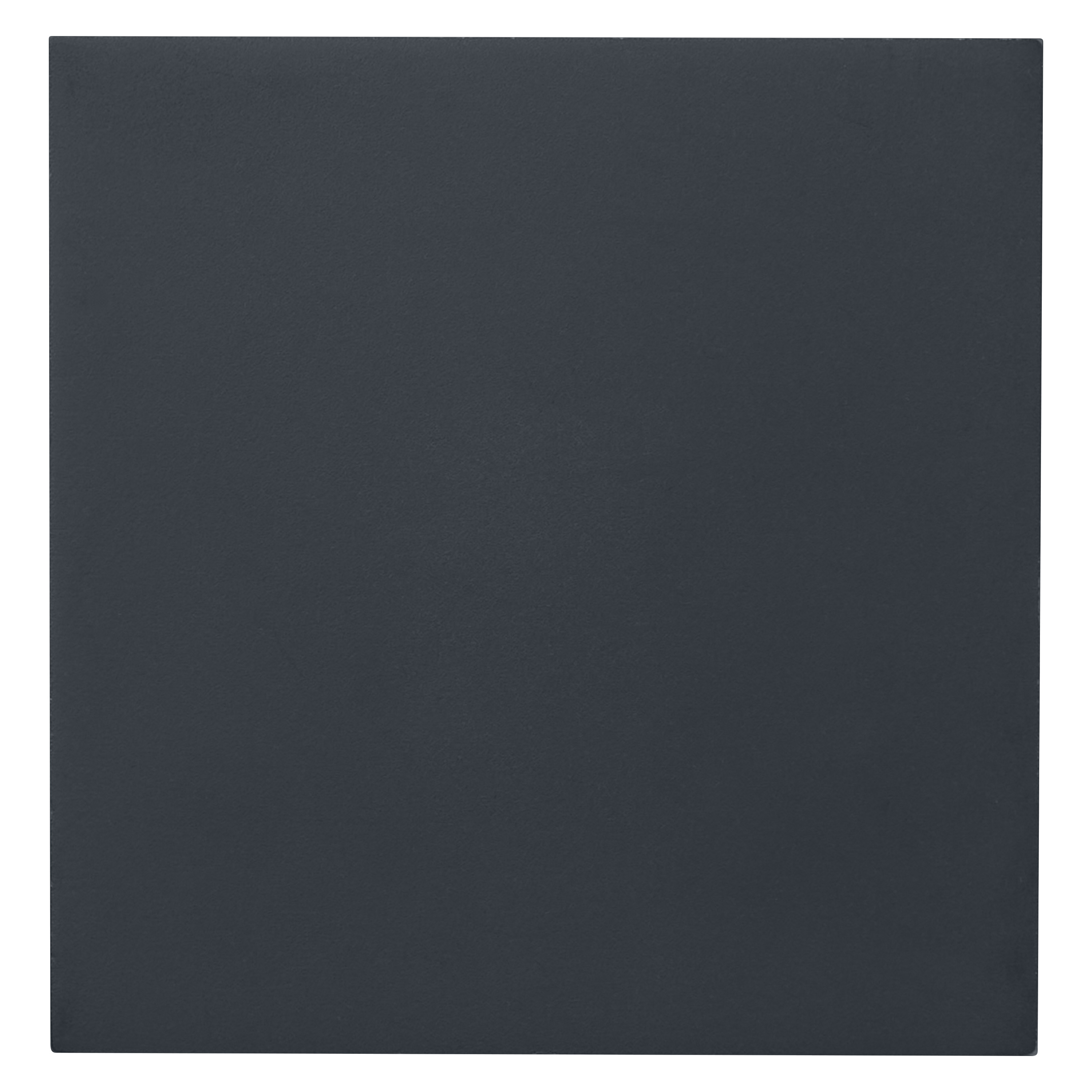

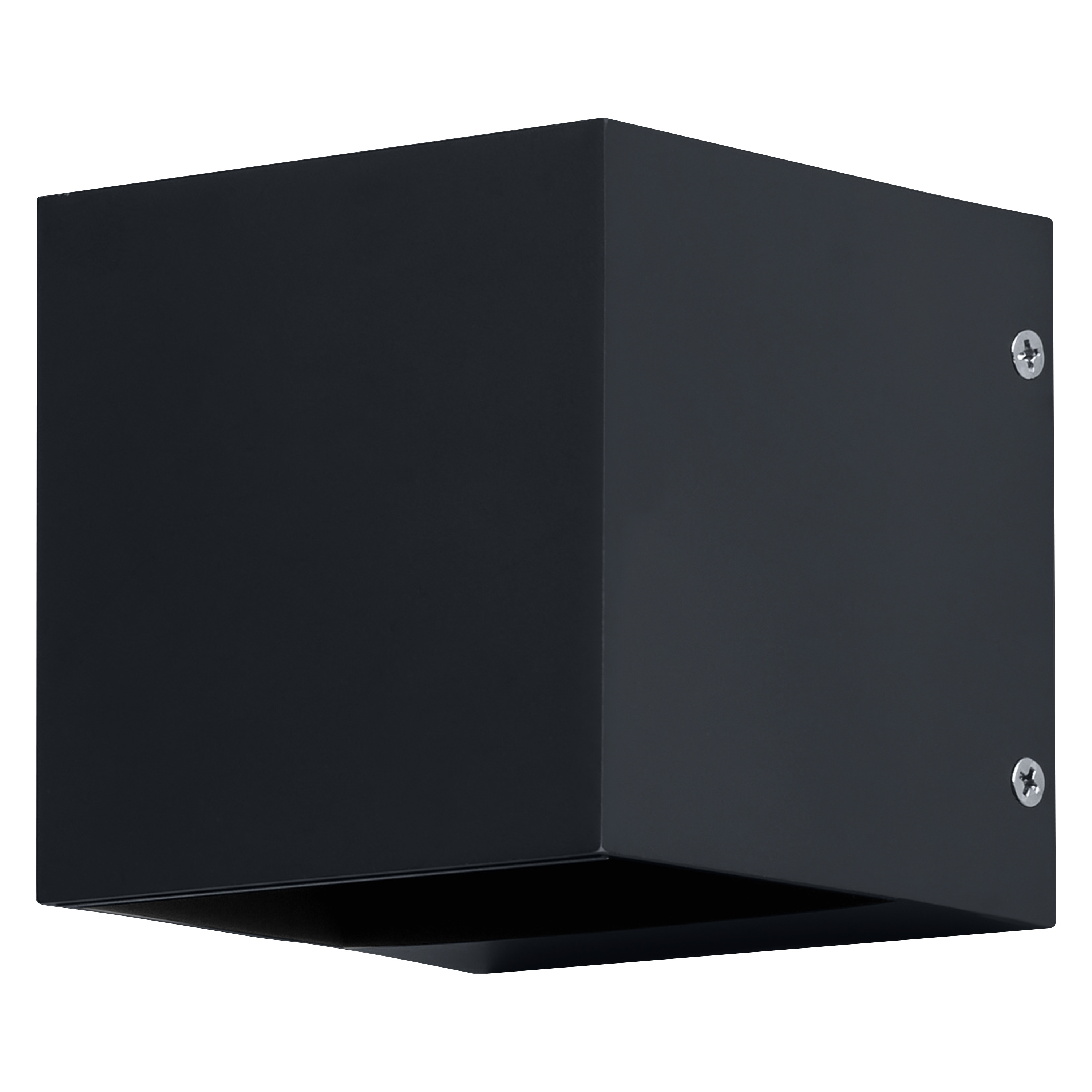

Product image: white background, upright, alternative image
SMART OUTD WIFI BEAM ADJ WALL RGBW
SMART OUTD WIFI BEAM ADJ WALL RGBW
Product image: white background, upright, switched on
SMART OUTD WIFI BEAM ADJ WALL RGBW
SMART OUTD WIFI BEAM ADJ WALL RGBW

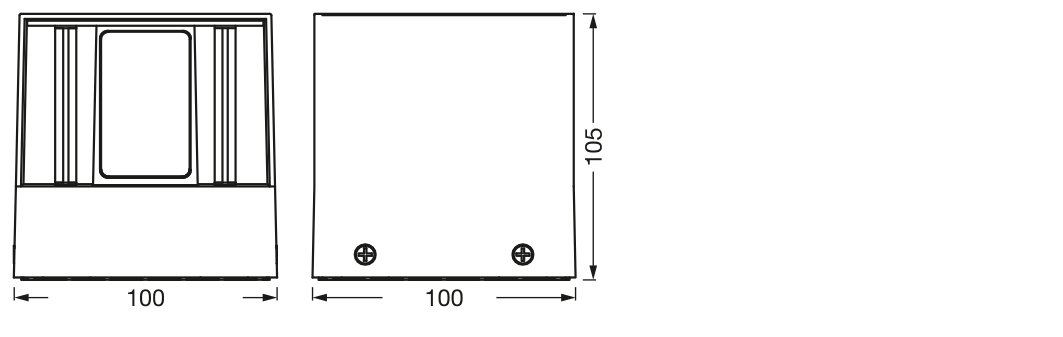

Product line drawing with letters
