Smart+ Outdoor Flex Multicolor

SMART+ BT OUTDOOR FLEX EU

GTIN: 4058075208537 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy to install and use
  • Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
  • General illumination
  • Gardens
  • Patios, balconies
Product features
  • Flexible RGBW strip with wireless smart lighting function
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • For full functionality with control via Apple Home App connection to Apple TV (with tvOS 10 or later) or iPad (with iOS 10 or later) required
  • RGB color control, approx. 16 million color options adjustable
  • Adjustable color temperature via Tunable White: 2,000…6,500 K
  • Dimmable
  • Mounting via clips (supplied)
  • Protection class (strip): IP65
  • Protection class (power supply): IP44
  • Network protocol: Bluetooth
  • Lifetime: up to 20,000 h
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • For control via Apple Home App iPhone (with iOS 10 or later), iPad (with iOS 10 or later) , Apple TV (with tvOS 10 or later) or Apple Watch (with watchOS 2 or later) required
  • Power supply included
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.50
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 1300 lm
Luminous efficacy 60 lm/W
Color temperature 2000 … 6500 K
Light color (designation) RGBW
Color rendering index Ra 80
Beam angle 120 °
Dimensions & Weight
Length 4880.00 mm
Height 3.00 mm
Width 15.00 mm
Product weight 560.00 g
Materials & Colors
Body material Silicone
Cover material Silicone
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Plug type C (EU)
Type of protection IP65
Dimmable Yes
Mounting type Surface
Mounting location All surfaces
Application environment Outdoor
Lifespan
Number of switching cycles 1000000
Certificates & Standards
Standards CE, CB
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075208537 Folding box
1
56 mm x 224 mm x 224 mm 680.00 g 2.81 dm³
4058075212756 Shipping box
4
243 mm x 243 mm x 260 mm 3016.00 g 15.35 dm³
User instruction / safety instructions
Web UI SMART HK Outdoor Flex RGBW EU
Legal information
Web UI Insert SMART OUTDOOR FLEX
Declarations of conformity
EC declaration Smart EU UK outdoor Flex BT
Declarations of conformity
SMART BT OUTDOOR FLEX LEDVANCE
EU Data Act
SMART Bluetooth Mesh Lighting Products
Product image: white background, diagonal
SMART OUTDOOR FLEX RGBW
Product line drawing with numbers
SMART+ Flex

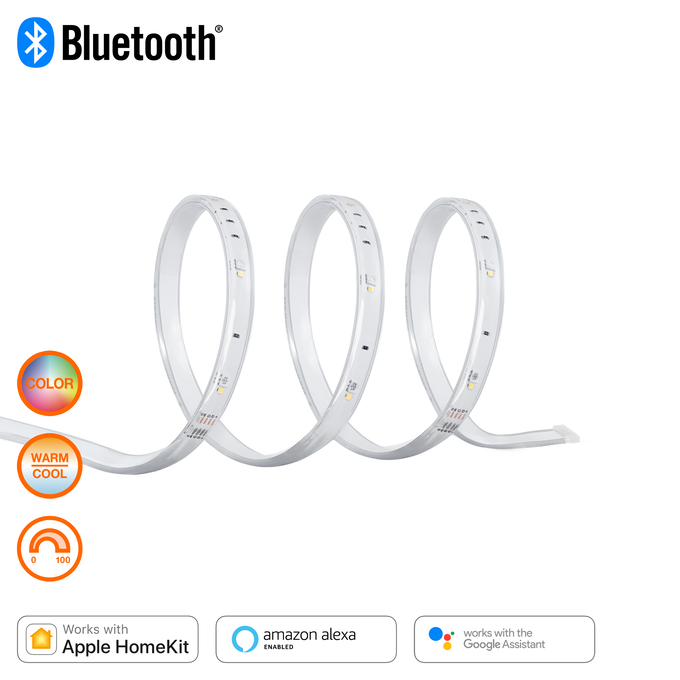

Beauty Shot
SMART BT OUTDOOR FLEX RGBW 4X1 EU
Combo Shot = Product Beauty Shot + Packaging Image
SH FC OUTDOOR FLEX RGBW EU

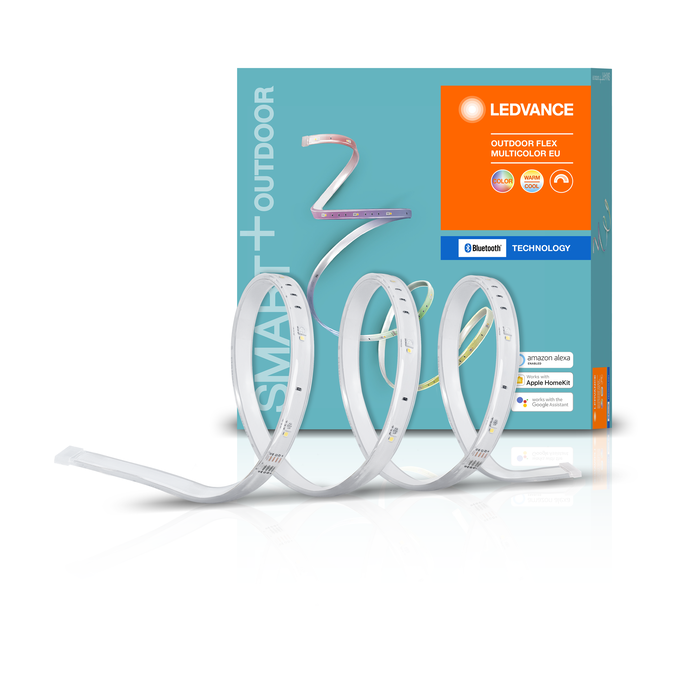

Packaging image, frontal
