SMART+ MATTER SPOT GU10 MULTICOLOR

SMART+ MATTER SPOT PAR16 50 45° 4.7W 827...865 Multicolor GU10 TRIPLE PACK

GTIN: 4099854529849 Folding box / 3 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination through smart home technology
  • Professional applications (hotels, bars, boutiques etc.) utilizing dynamic and robust ambient lighting effects
  • When users want to mix and match smart home products from different manufacturers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Network protocol: Matter over WiFi
  • Lifetime: up to 20,000 h
  • Compatible with Alexa, Google Home, Apple Home and other Matter-compatible platforms
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.7 W
Construction wattage 4.70 W
Nominal voltage 230 V
Nominal current 40 mA
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ 0.50
Claimed equiv. conventional lamp power 50 W
Operating mode AC Mains
Photometrical data
Light color (designation) RGBW
Lumen main.fact.at end of nom.life time 0.95
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 350 lm
Luminous flux 350 lm
Luminous efficacy 74 lm/W
Luminous intensity 600 cd
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra ≥80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 45 °
Starting time 0.5 s
Warm-up time (60 %) 0.50 s
Dimensions & Weight
Product weight 43.00 g
Diameter 50.00 mm
Maximum diameter 50 mm
Length 54.00 mm
Width 50.00 mm
Height 50.00 mm
Outer bulb [PICOS] PAR51
Lifespan
Number of switching cycles 100000
Lifespan 20000 h
Lumen maintenance at end of service lifetime 0.95
Colors & materials
Product color Silver
Body material Glass
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) GU10
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant, Apple HomeKit, Samsung SmartThings
1) Via App
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 5.00 kWh/1000h
Standards CE, UKCA
Type of protection IP20
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional DLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) GU10
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0 W
Networked standby power for CLS <0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.4578
Chromaticity coordinate y 0.4101
R9 Colour rendering index 1
Beam angle correspondence NARROW_CONE_90
Survival factor 0.9
Displacement factor >0.5
LED light source replaces a fluorescent light source No
EPREL ID 2240725
Model number AC73915,AC73915
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854529849 Folding box
3
56 mm x 153 mm x 82 mm 159.00 g 0.70 dm³
4099854529856 Shipping box
12
232 mm x 162 mm x 96 mm 742.00 g 3.61 dm³
Extended installation guide
SMTMAT 230V
Declarations of conformity
SMART MAT
EU Data Act
SMART MATTER Lamps Luminaires Plugs

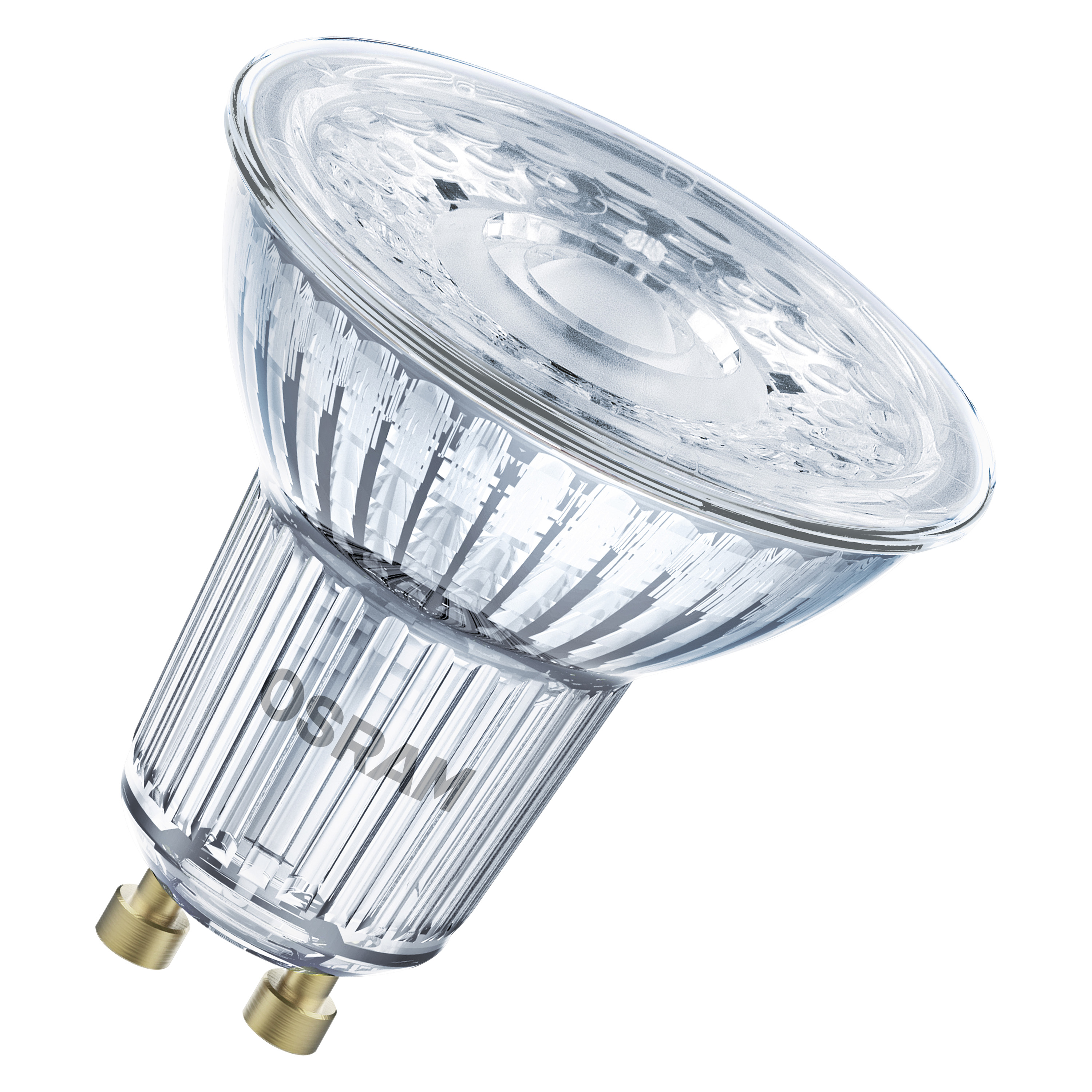

Product image: white background, diagonal with OSRAM logo
SMTMATPAR16 GU10
Product image: white background, diagonal with OSRAM logo
SMTMATPAR16 GU10
Product image: white background, diagonal
SMTMATPAR16 GU10

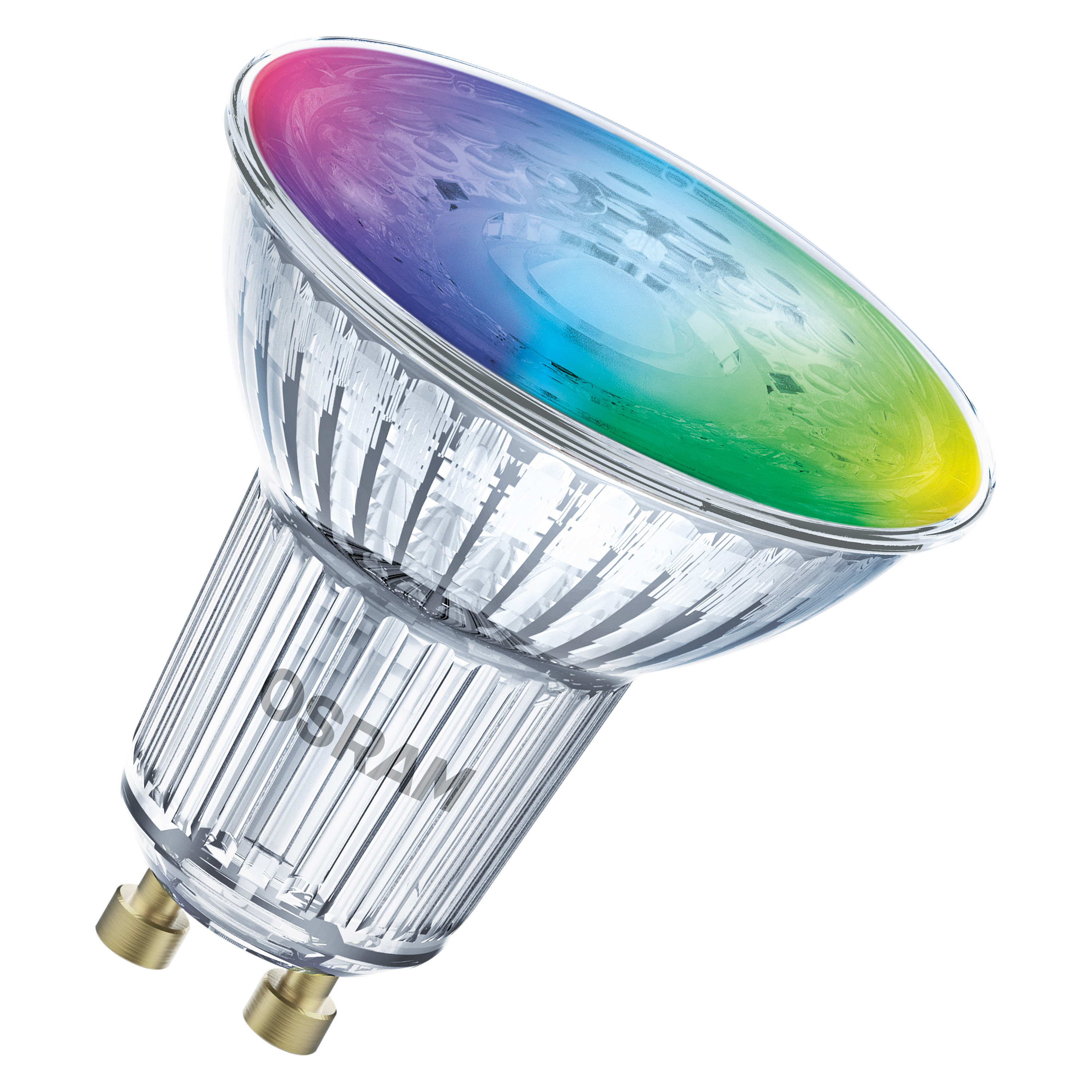

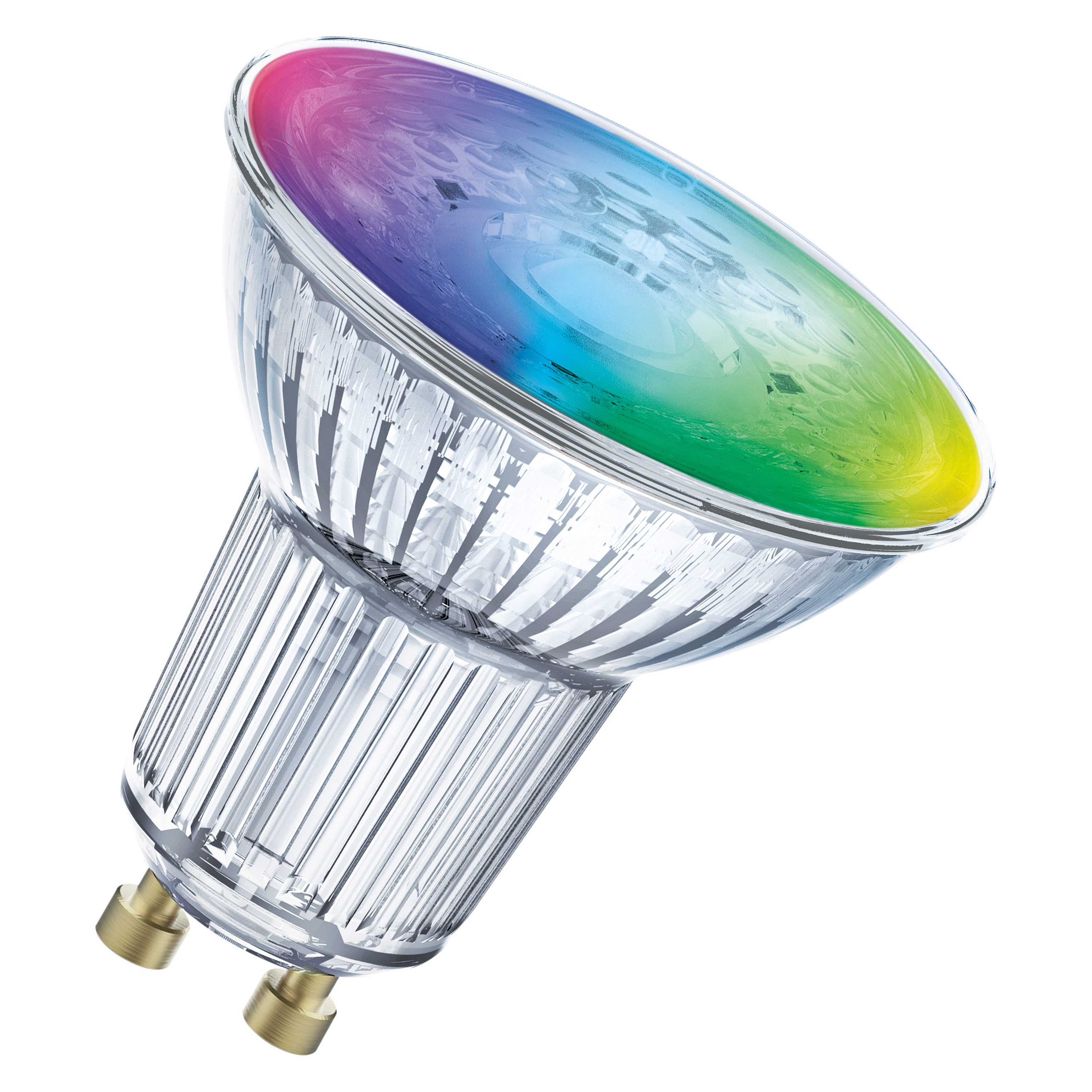

Product image: white background, diagonal, switched on
SMTMATPAR16 GU10

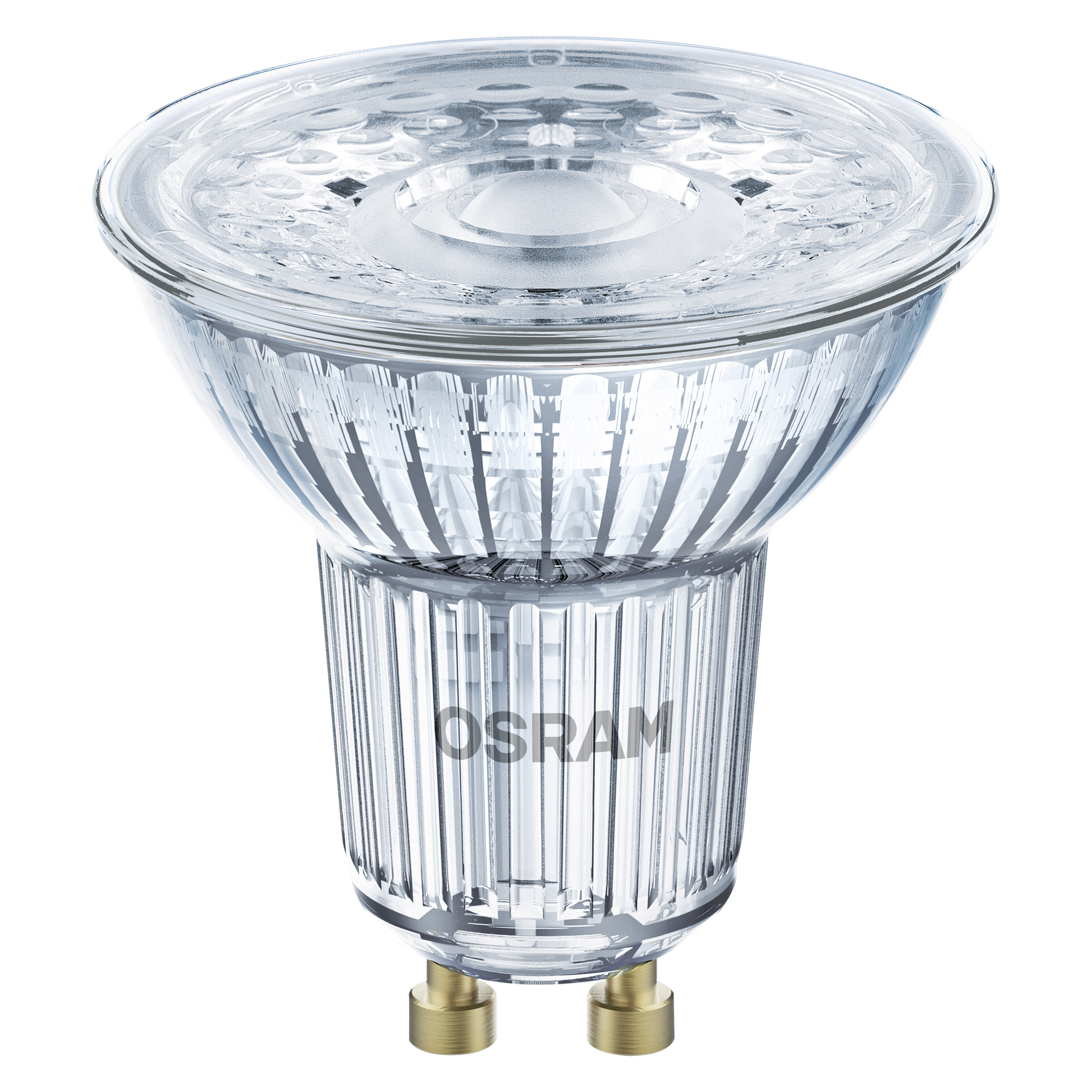

Product image: white background, upright, OSRAM logo
SMTMATPAR16 GU10
Product image: white background, upright, OSRAM logo
SMTMATPAR16 GU10
Product image: white background, upright
SMTMATPAR16 GU10

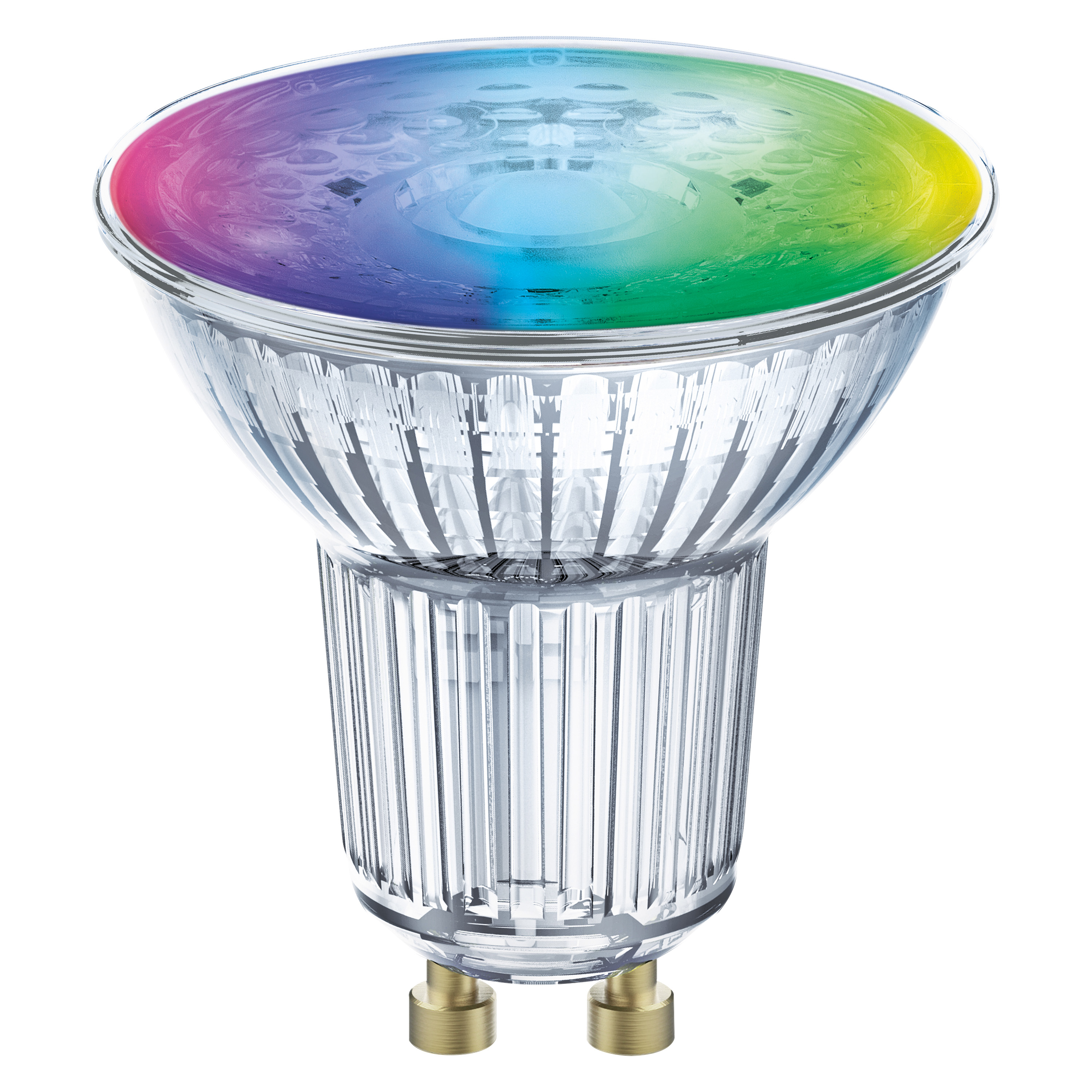

Product image: white background, upright, switched on
