SMART+ MATTER FILAMENT CLASSIC shapes multicolor

SMART+ MATTER Filament Edison 40 4.8W 827...865 Multicolor E27

GTIN: 4058075850781 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Wireless control via app or voice control
  • Seamless integration with Matter-compatible systems
  • Simplified set up process due to the standard user-friendly installation steps
  • Enhanced security by implementing strong encryption and authentication protocols
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination through smart home technology
  • Professional applications (hotels, bars, boutiques etc.) utilizing dynamic and robust ambient lighting effects
  • When users want to mix and match smart home products from different manufacturers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0) or any other Matter-compatible platforms
  • Adjustable light color via Tunable White: Warm White to Cool White (2,700 K…6,500 K)
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Network protocol: Matter over WiFi
  • Lifetime up to 15,000 h
  • Compatible with Alexa, Google Home, Apple Home and other Matter-compatible platforms
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.8 W
Construction wattage 4.80 W
Nominal voltage 220…240 V
Nominal current 50 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.40
Claimed equiv. conventional lamp power 40 W
Operating mode AC Mains
Photometrical data
Light color (designation) RGBW
Lumen main.fact.at end of nom.life time 0.93
Standard deviation of color matching ≤6 sdcm
Nominal luminous flux 470 lm
Luminous flux 470 lm
Luminous efficacy 97 lm/W
Adjustable color temperature 2700…6500 K
Color temperature 2700…6500 K
Color rendering index Ra ≥80
Flickering metric (Pst LM) <=1
Stroboscope effect metric (SVM) <=0.4
Light technical data
Beam angle 320 °
Starting time < 0.5 s
Warm-up time (60 %) ‹ 0.50 s
Dimensions & Weight
Product weight 48.00 g
Diameter 64.00 mm
Maximum diameter 64 mm
Length 140.00 mm
Width 64.00 mm
Height 64.00 mm
Outer bulb [PICOS] ST64
Lifespan
Number of switching cycles 100000
Lifespan 15000 h
Lumen maintenance at end of service lifetime 0.93
Colors & materials
Product color Clear
Body material Glass
Temperatures & operating conditions
Ambient temperature range -20…40 °C
Additional product data
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Base (standard designation) E27
Capabilities
Dimmable Yes 1)
Compatible smart home technology Amazon Alexa, Google Assistant, Apple HomeKit, Samsung SmartThings
1) Via App
Certificates & Standards
Energy efficiency class F
Energy consumption 5.00 kWh/1000h
Standards CE, UKCA, EAC
Type of protection IP20
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) Yes
Color-tuneable light source Yes
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type RANGE
Standby power 0.0 W
Networked standby power for CLS <0.5 W
Claim of equivalent power Yes
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0
LED light source replaces a fluorescent light source No
EPREL ID 2244379
Model number AC75701,AC75701
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075850781 Folding box
1
66 mm x 78 mm x 144 mm 74.00 g 0.74 dm³
4058075850798 Shipping box
4
164 mm x 142 mm x 158 mm 388.00 g 3.68 dm³
Extended installation guide
SMTMAT 230V
Declarations of conformity
SMART MATTER
EU Data Act
SMART MATTER Lamps Luminaires Plugs
Product image: white background, diagonal with OSRAM logo
SMTMATE40 E27
Product image: white background, diagonal with OSRAM logo
SMTMATE40 E27

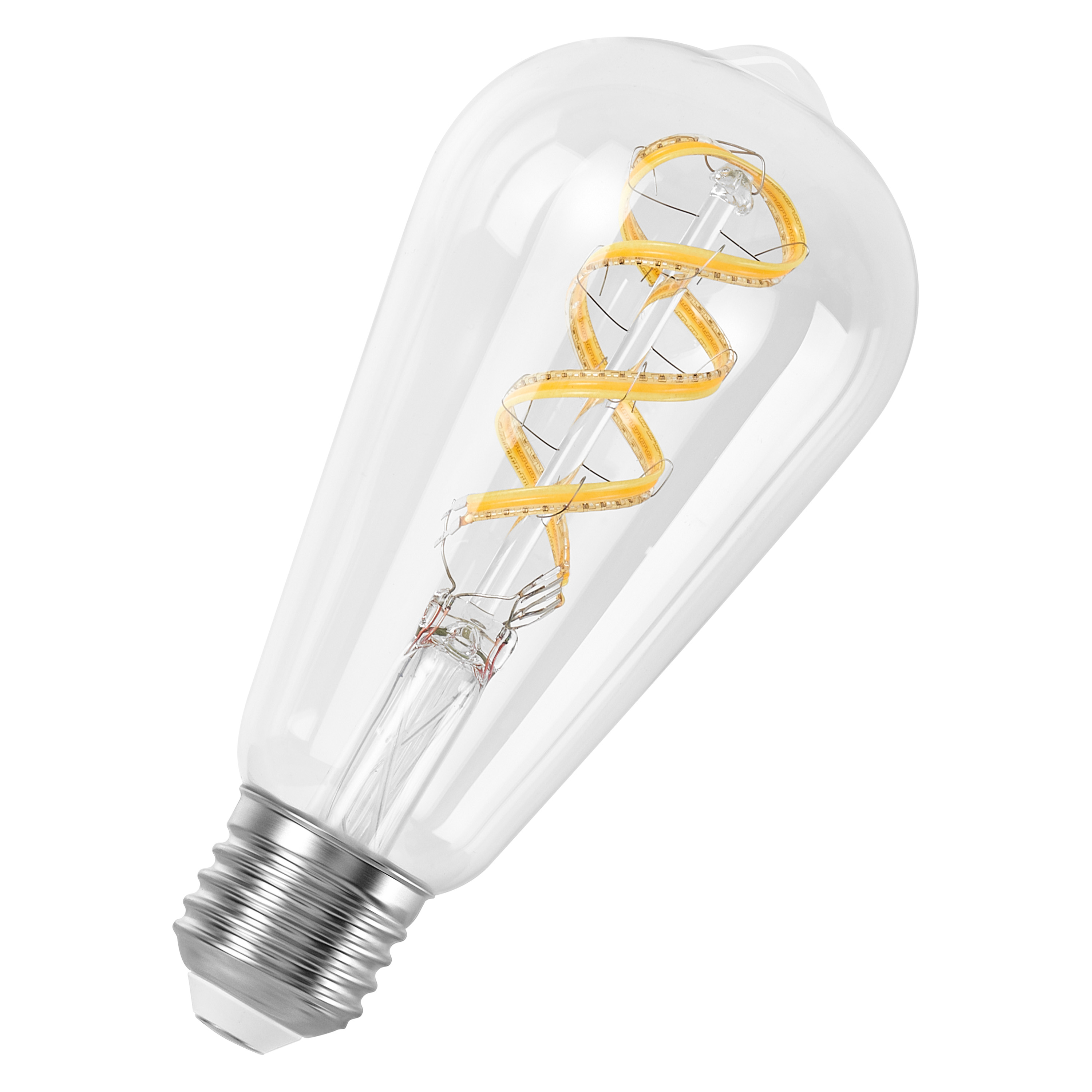

Product image: white background, diagonal
SMTMATE40 E27

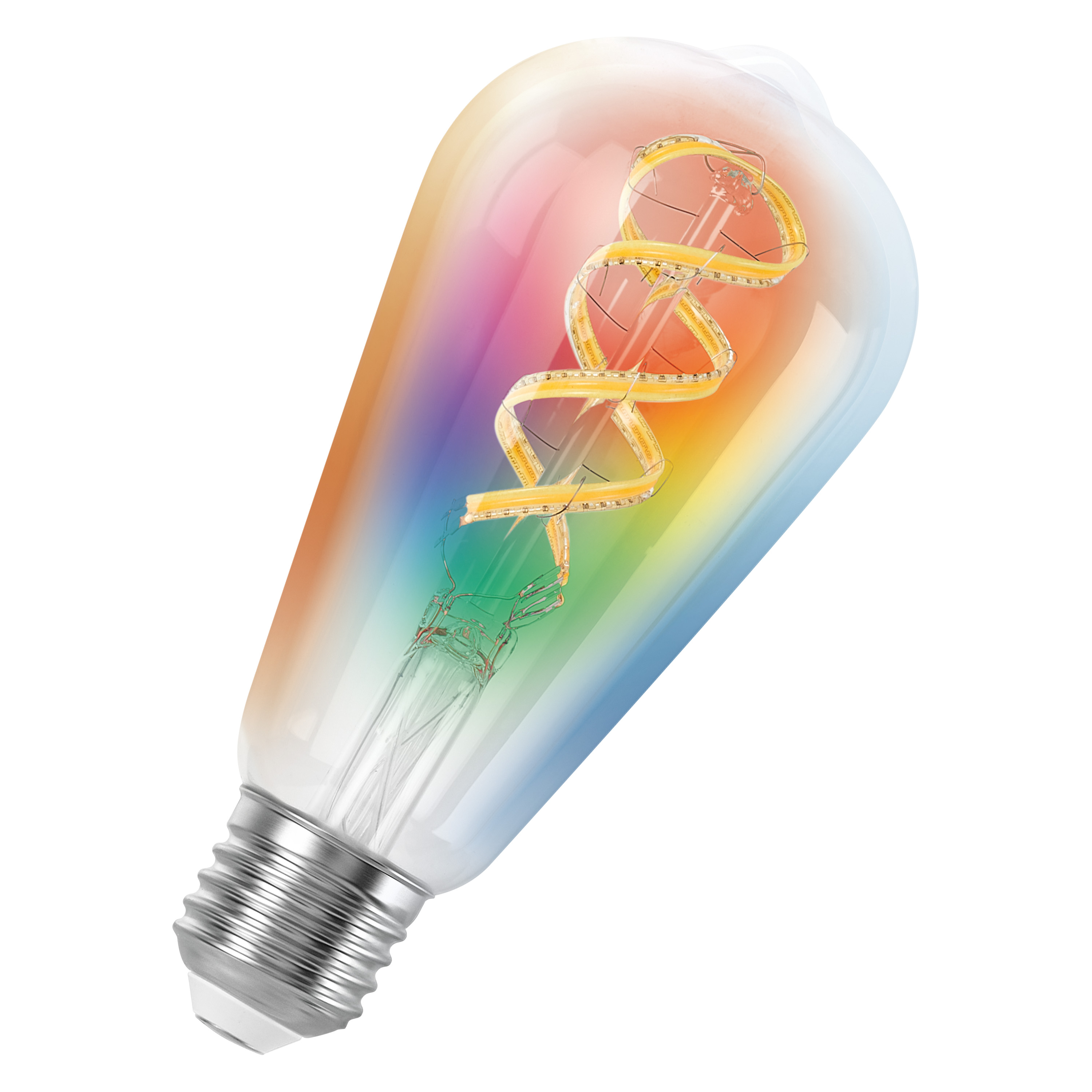

Product image: white background, diagonal, switched on
SMTMATE40 E27

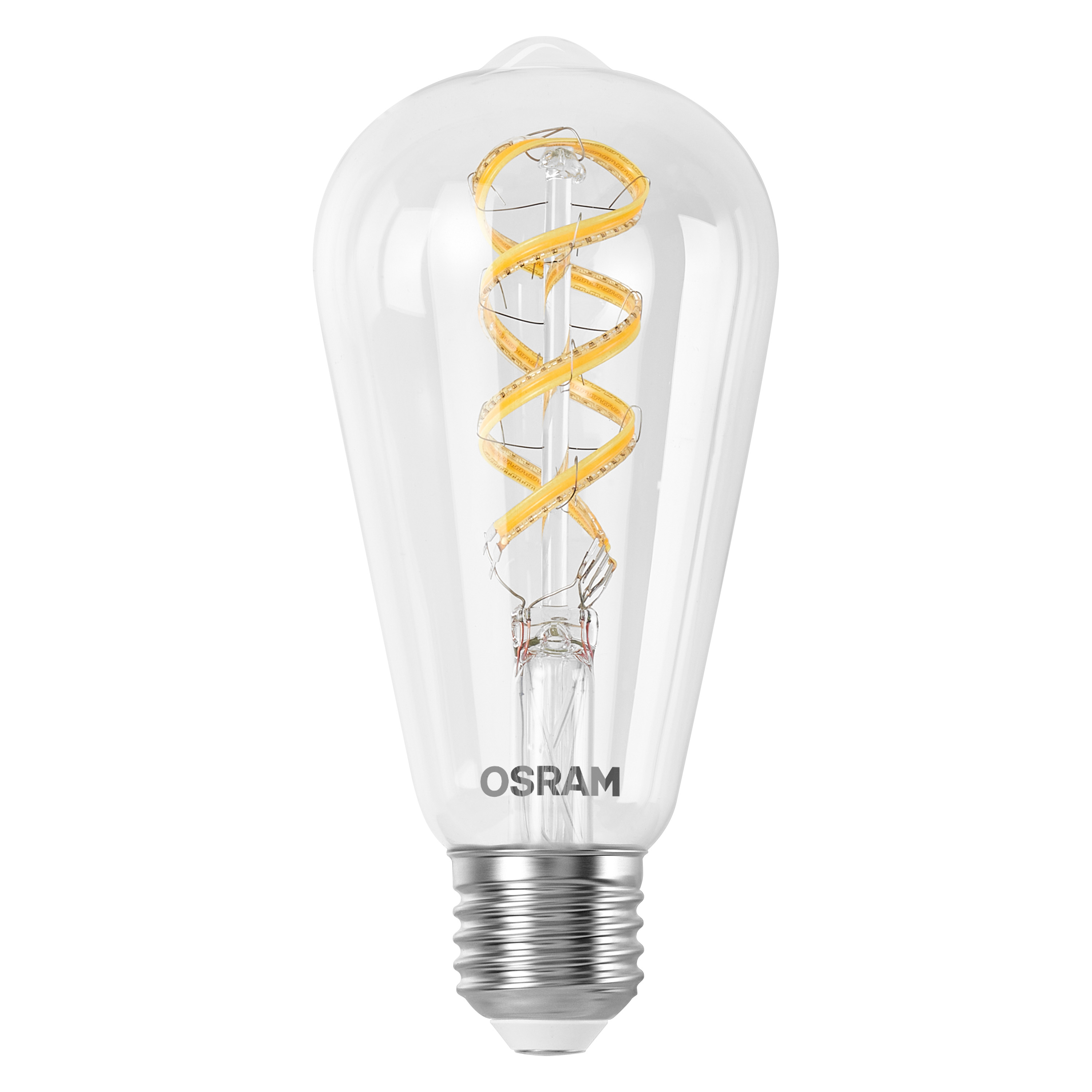

Product image: white background, upright, OSRAM logo
SMTMATE40 E27
Product image: white background, upright, OSRAM logo
SMTMATE40 E27

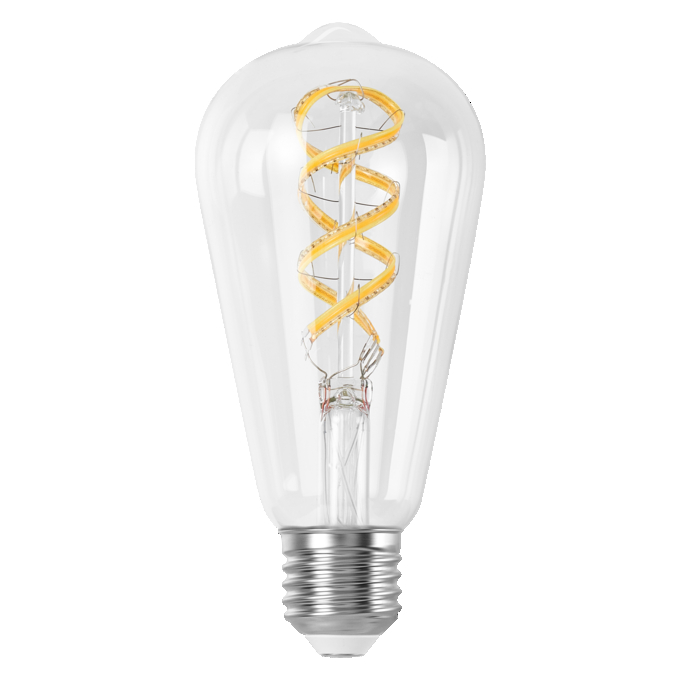

Product image: white background, upright
SMTMATE40 E27

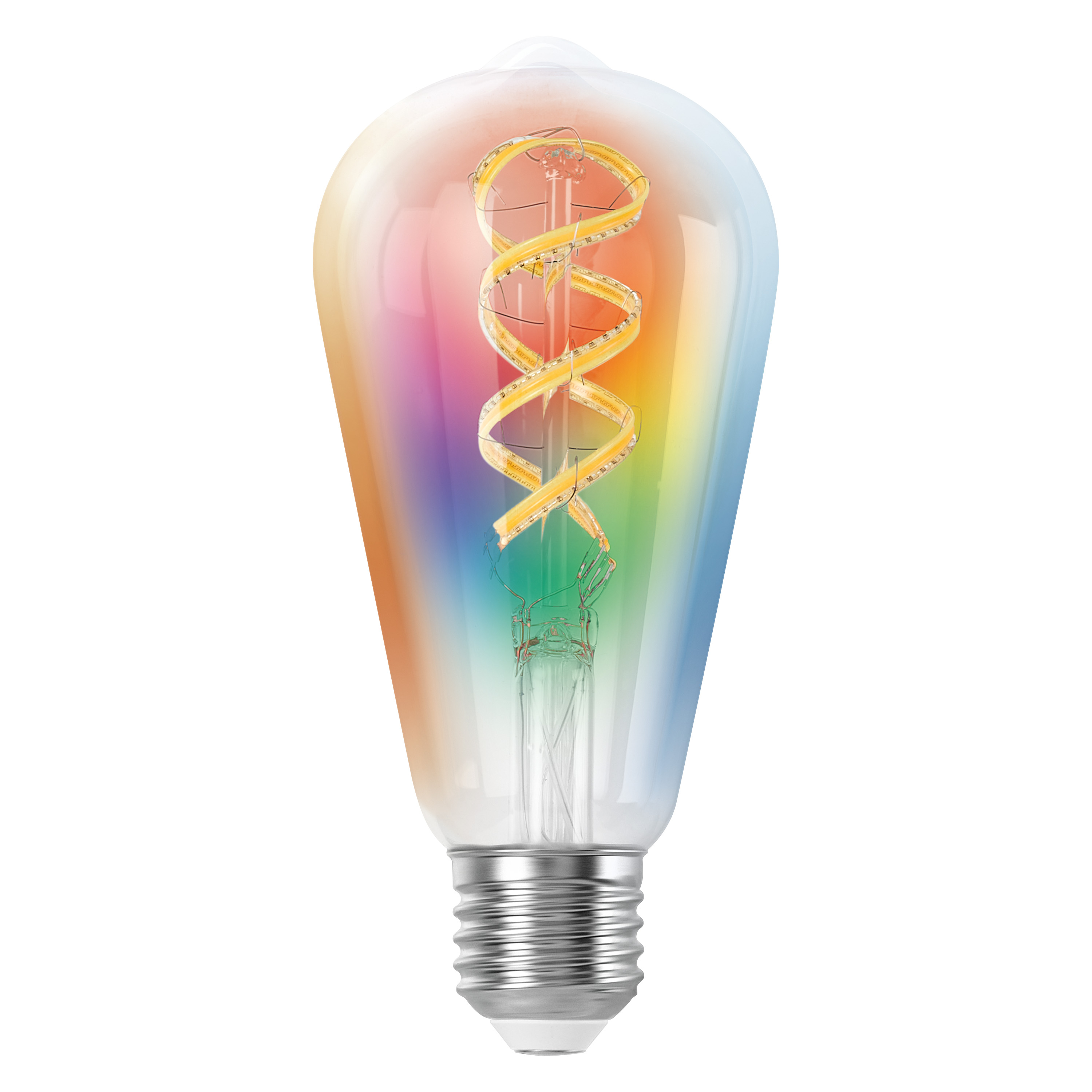

Product image: white background, upright, switched on
