LED WALLWASHER RGB

LED WALL WASHER 18 W 45 ° 500 mm RGB

GTIN: 4058075334984 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High quality lens made of polycarbonate (PC), secondary optics with tempered glass cover
  • Flexibility and convenience in use thanks to adjustable mounting bracket
Areas of application
  • Architectural lighting
  • Facade lighting
Product features
  • Extruded aluminum housing and die-cast aluminum end caps
  • Available in two lengths: 500 mm and 1000 mm
  • RGB color control
  • Type of protection: IP66
  • Impact resistance: IK05
  • Lifetime (L70/B50): up to 30,000 h
  • With CQC certificate
  • Certificate: CB
Electrical data
Nominal wattage 18.00 W
Nominal voltage 24 V
Nominal current 750.000 mA
Protection class III
Photometrical data
Luminous flux 324 lm
Luminous efficacy 18 lm/W
Light color (designation) RGB
Standard deviation of color matching ≤5 sdcm
Beam angle 45 °
Dimensions & Weight
Length 500.00 mm
Height 56.00 mm
Width 38.00 mm
Product weight 850.00 g
Cable length 200 mm
Materials & Colors
Product color Silver
Housing color Silver
Body material Glass|Aluminum
Cover material CLEAR GLASS
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+50 °C
Temperature range at storage -20…+70 °C
Type of connection Plug, quick disconnect
Type of protection IP66
Protection class IK (shock resistance) IK05
Dimmable Yes
Type of dimming DMX
Mounting type Surface
Mounting location Wall
Application environment Outdoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
Type of emergency operation test None
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075334984 Folding box
1		 510 mm x 55 mm x 50 mm 921.00 g 1.40 dm³
4058075334991 Shipping box
9		 530 mm x 185 mm x 180 mm 8791.00 g 17.65 dm³

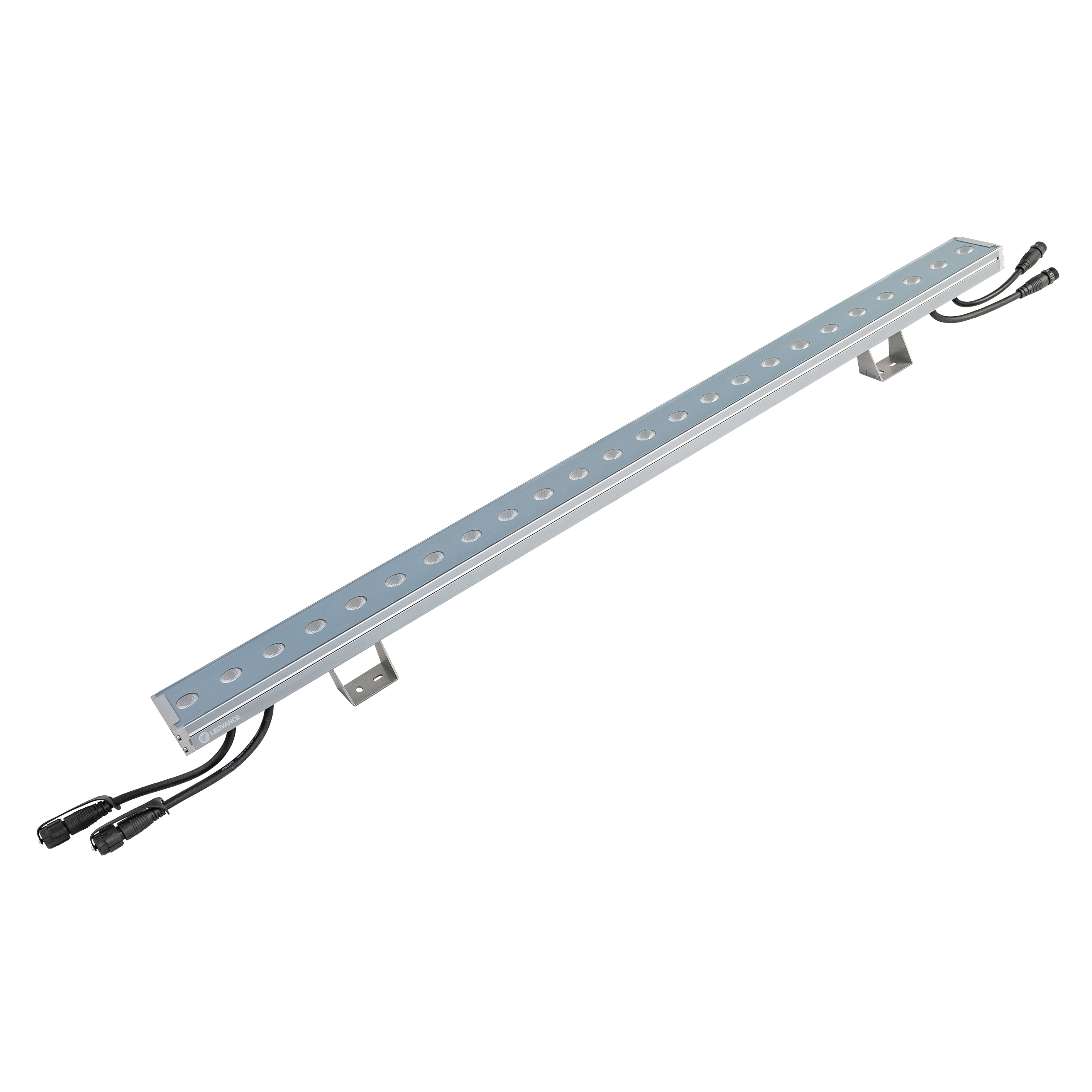

Product image: white background, diagonal
LED WALLWASHER SILVER RGB 500
JPG (1.04 MB)
Product line drawing with numbers
LDVAL WALLWASHER 500 18W/RGB
SVG (700.01 KB)
