LED VALUE SOLAR FLOODLIGHT

LED VALUE SOLAR FLOODLIGHT MD 200 765

GTIN: 4099854005510 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Die-cast aluminum housing ensures reliable operation
  • High system efficacy up to 190 lm/W leads to energy savings
  • 12 hours lighting per night to fulfill the whole night application
  • Lamp body and solar panel split design, easy for charging and lighting
  • Professional lighting distribution provides uniformity lighting
Areas of application
  • Security lighting
  • Amenity and parking area lighting
  • Residential sector
  • Architectural lighting
  • Landscape lighting
Product features
  • Available in 3 lumen packages (3 sizes)
  • LiFeP04 battery charge-discharge cycle 2000 times
  • Battery overcharge, overdischarge, overheat and short circuit protections
  • Grade A monocrystalline solar panel
  • UV stabilized polycarbonate lens
  • Remote control provided for easy control of operation
  • Type of protection: IP66
  • Impact resistance: IK08
Electrical data
Nominal wattage 10.00 W
Protection class III
Photometrical data
Luminous flux 1900 lm
Luminous efficacy 190 lm/W
Color temperature 6500 K
Dimensions & Weight
Length 350.00 mm
Height 17.00 mm
Width 350.00 mm
Product weight 2355.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Type of protection IP66
Dimmable Yes
Mounting type Surface
Application environment Outdoor
Replaceable light source No
BATTERY
Battery size [GMS] Others
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854005510 Folding box
1		 367 mm x 47 mm x 367 mm 2483.00 g 6.33 dm³
4099854005527 Shipping box
5		 387 mm x 252 mm x 385 mm 13715.00 g 37.55 dm³

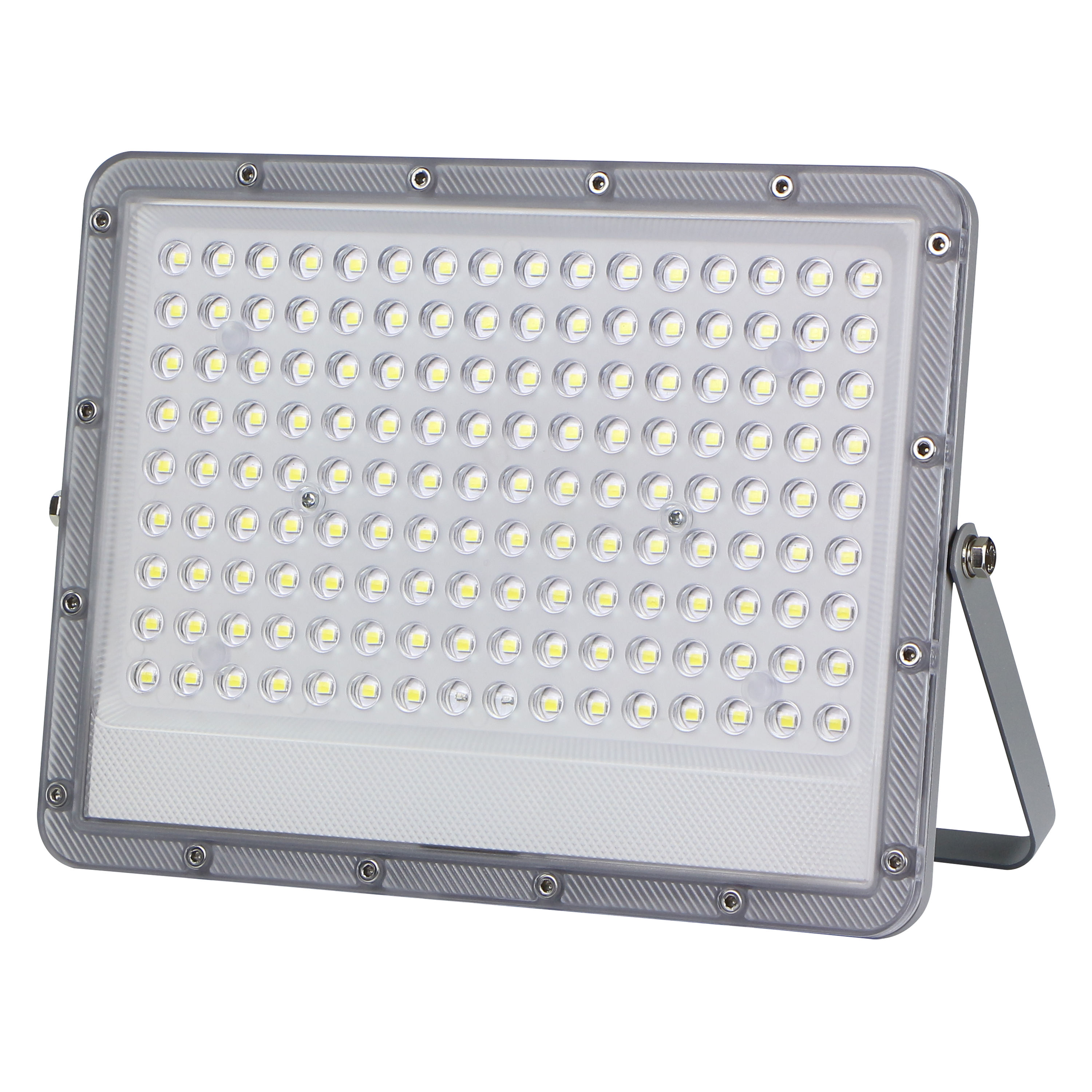

Product image: white background, spacial
LDVAL SOLAR FL MD 200
JPG (2.89 MB)

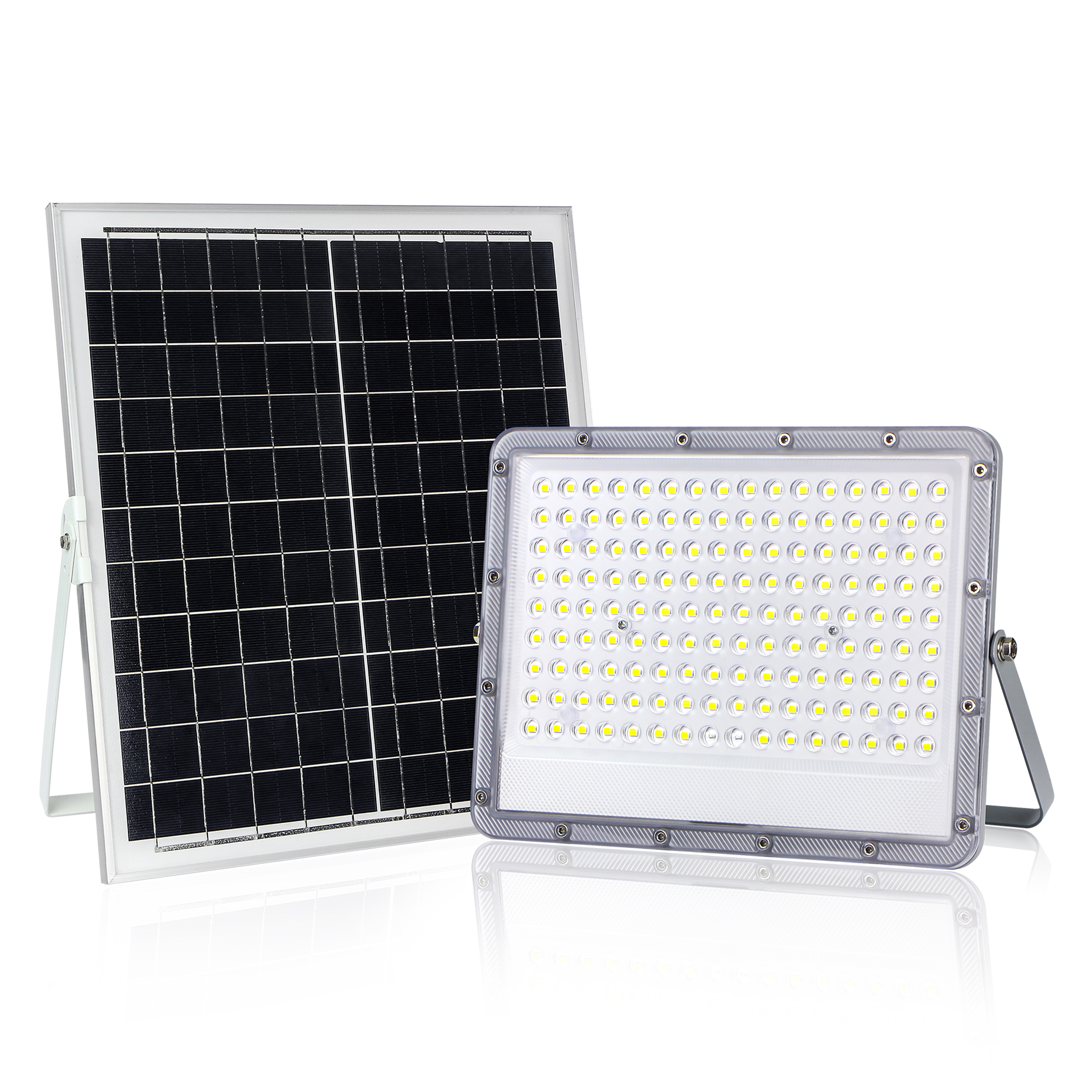

Product image: white background, with accessory, alternative image
LDVAL SOLAR FL MD 200
JPG (2.73 MB)
Product line drawing with numbers
LDVAL SOLAR FL MD 200
PNG (57.19 KB)
IES file (IES)
LDVAL SOLAR FL MD 200 765
IES (64.21 KB)
