LED VALUE PANEL BACKLIT G2 0312

GTIN: 4099854031618 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Electrical data
Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II
Photometrical data
Luminous flux 3680 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 1195.00 mm
Height 32.00 mm
Width 295.00 mm
Product weight 1660.00 g
Materials & Colors
Body material Steel
Mercury content 0.0 mg
Application & Mounting
Type of protection IP40/IP20
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, RoHS
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854031618 Folding box
1		 1,243 mm x 305 mm x 42 mm 2333.00 g 15.92 dm³
4099854031625 Shipping box
6		 1,287 mm x 267 mm x 359 mm 15203.00 g 123.36 dm³

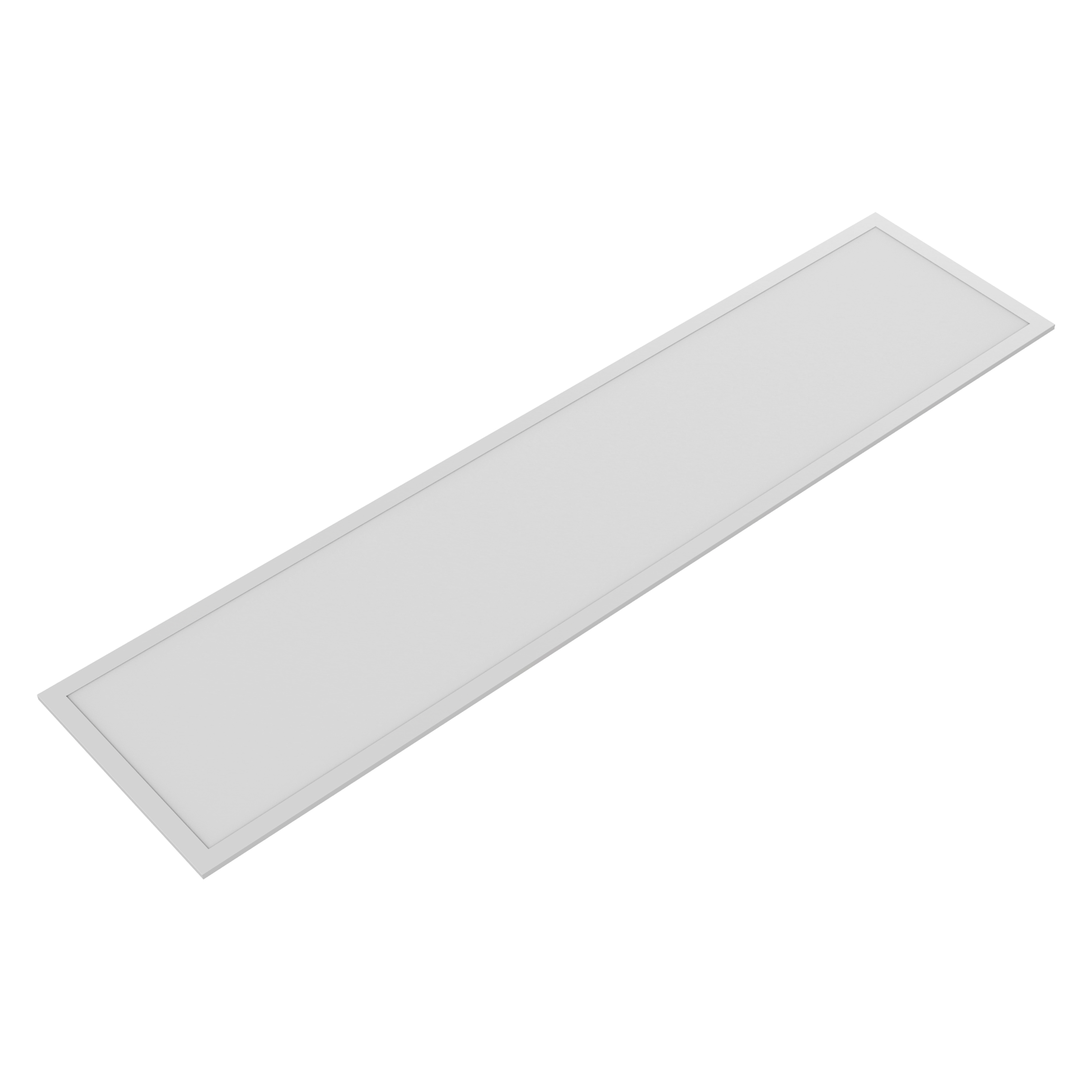

Product image: white background, spacial
