PANEL PERFORMANCE 1200

PANEL 1200 40 W 3000 K WT

GTIN: 4058075321809 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • External driver for extended flexibility
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 300 x 1200 mm
Product features
  • High luminous efficacy: up to 100 lm/W
  • Lifetime (L80/B10): up to 40,000 h (at 25 °C)
  • Aluminum housing, polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Not suitable for use with Emergency Conversion Box
References / Links
Electrical data
Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 1200.000 mA
Max. number of luminaires per miniature circuit breaker B16 24
Max. number of luminaires per miniature circuit breaker C10 21
Max. number of luminaires per miniature circuit breaker C16 34
Power factor λ > 0.95
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 4000 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 1195.00 mm
Height 10.50 mm
Width 295.00 mm
Product weight 3000.00 g
Materials & Colors
Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+45 °C
Type of connection Terminal, 2-Pole (L, N)
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 1175 mm
Mounting width 275 mm
Mounting depth 50,0 mm
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 20000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Recommended control gear OTI DALI 50/220…240/1A4LT2FAN (EAN: 4052899919433)
Certificates & Standards
Standards CE, CB, TÜV SÜD, EAC, RoHS
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075321809 Folding box
1		 330 mm x 1,285 mm x 43 mm 3718.00 g 18.23 dm³
4058075321816 Shipping box
4		 1,295 mm x 180 mm x 355 mm 15771.00 g 82.75 dm³
Extended installation guide
User Instruction Panel LED
PDF (2.9 MB)
On-Pack-Info
Legal Insert Panel
PDF (226.51 KB)
Declarations of conformity
CE Panel 1200 625
PDF (736.38 KB)
Product image: white background, diagonal
Panel LED 1200 perspective RGB
TIF (4.17 MB)
Product line drawing with letters
LEDVANCE Panel LED 1200 ml
SVG (9.74 KB)
Product line drawing with letters
Panel LED 1200 ml k
SVG (9.74 KB)
Product line drawing with numbers
LEDVANCE Panel LED 1200 mn
SVG (9.69 KB)
Product line drawing with numbers
Panel LED 1200 mn k
SVG (9.69 KB)
Product line drawing, front, no dimensions
Panel LED 1200 k
SVG (3.95 KB)
Product line drawing, front, no dimensions
LEDVANCE Panel LED 1200
SVG (3.95 KB)

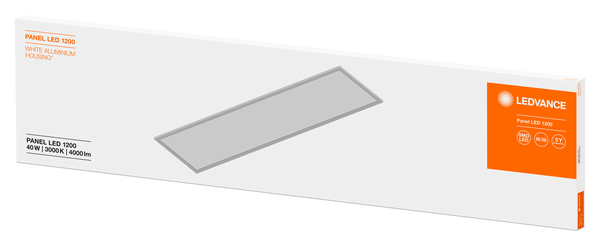

Packaging image, spacial
Panel LED 1200 white MiCh
TIF (317.71 MB)
IES file (IES)
Panel LED 1200 40W 3000K 230V
IES (1.14 KB)
LDT file (Eulumdat)
Panel LED 1200 40W 3000K 230V
LDT (1.27 KB)
UGR file (UGR table)
Panel LED 1200 40W 3000K 230V
PNG (59.88 KB)
Light distribution curve type cone
Panel LED 1200 40W 3000K 230V
SVG (89.37 KB)
Light distribution curve type cone
4058075807327 Panel LED 1200 40W 3000K 230V
SVG (83.3 KB)
Light distribution curve type polar
4058075807327 Panel LED 1200 40W 3000K 230V
SVG (318.55 KB)
Light distribution curve type polar
Panel LED 1200 40W 3000K 230V
SVG (320.29 KB)
Application pictures
LUMINAIRE COMPOSING B2B ratio 16 to 9
PSD (32.55 MB)

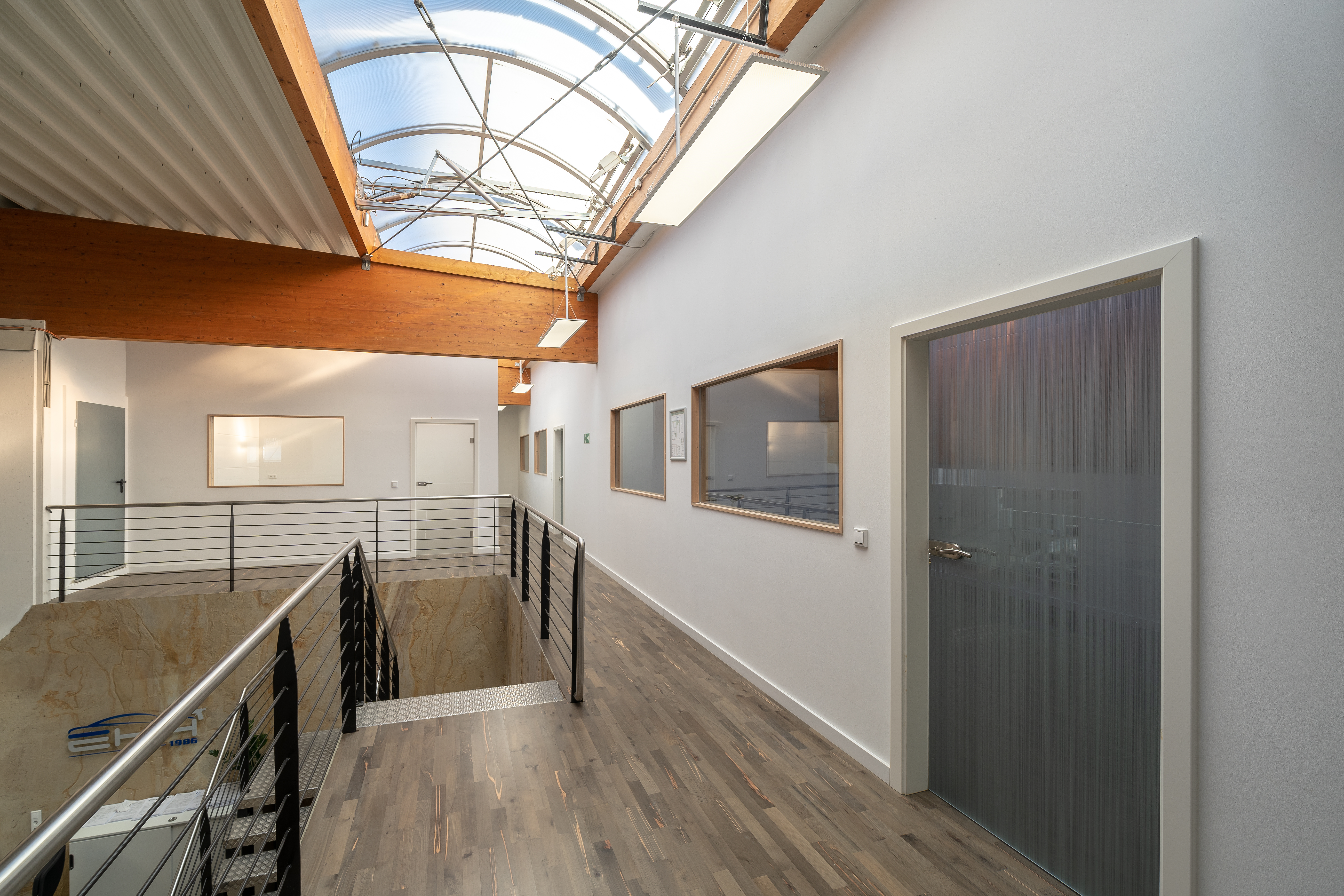

Application pictures
2019 EHH car center case study No:1 from 29
JPG (14.2 MB)

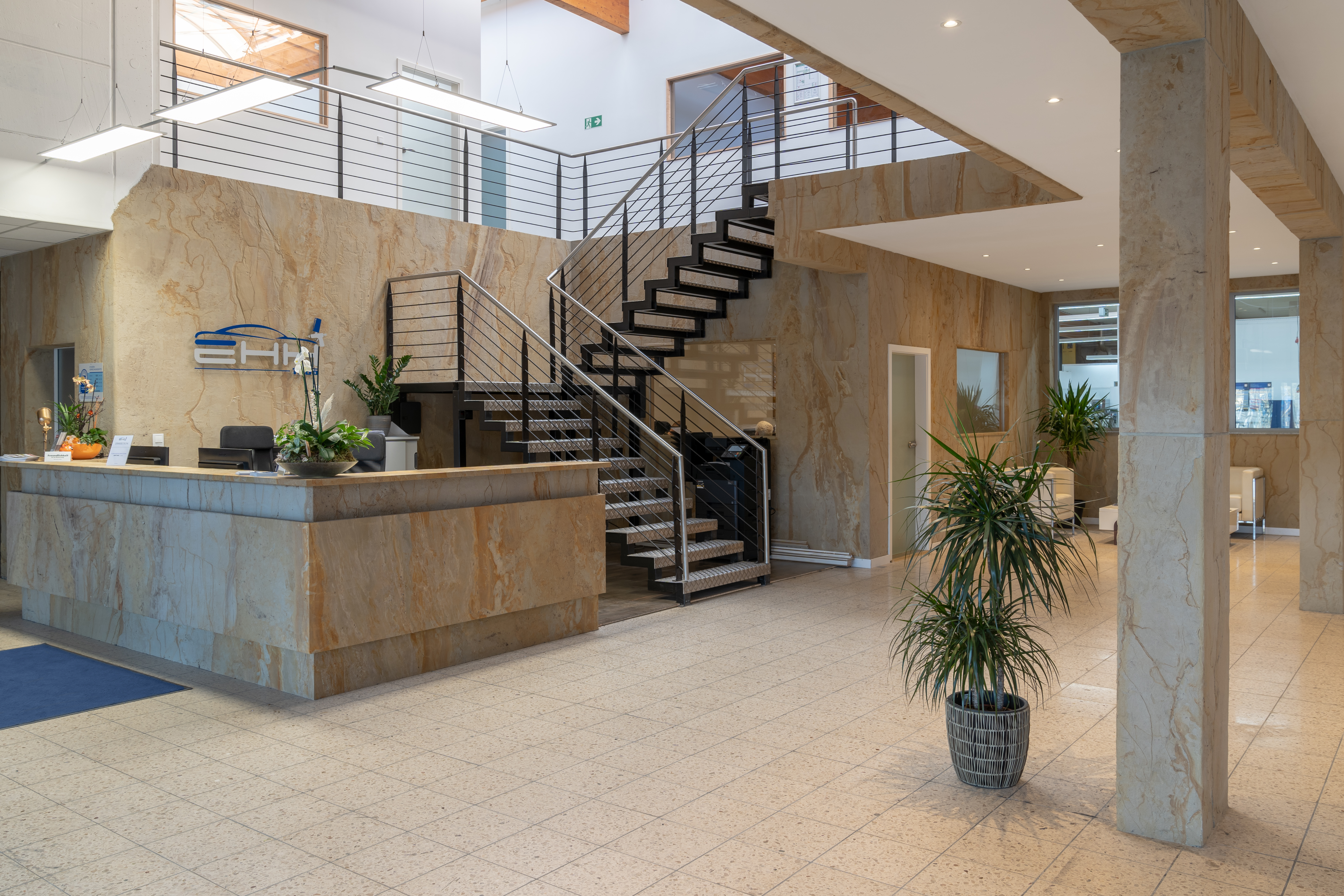

Application pictures
2019 EHH car center case study No:20 from 29
JPG (13.88 MB)
Application pictures
2019 EHH car center case study No:21 from 29
JPG (7.97 MB)

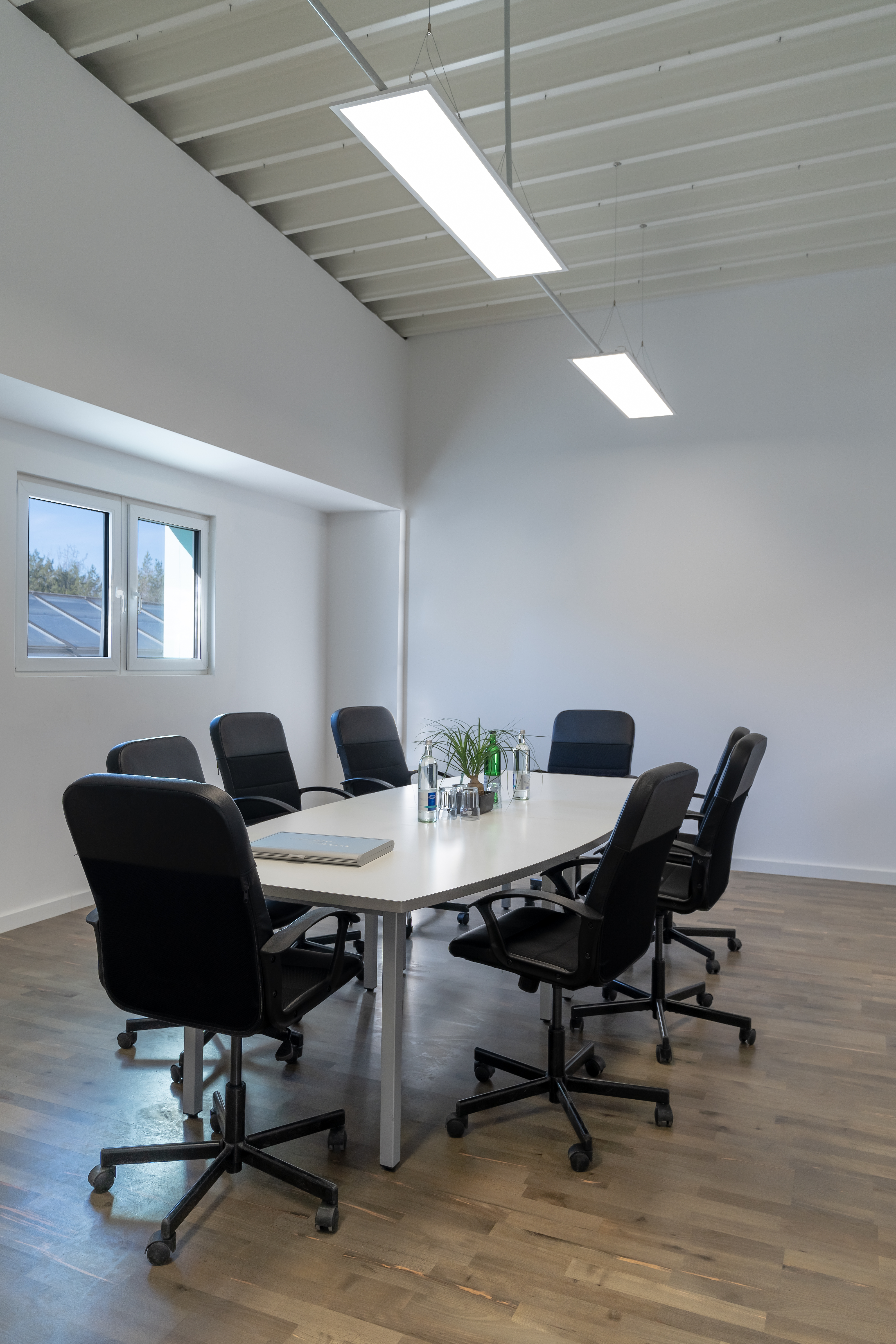

Application pictures
2019 EHH car center case study No:2 from 29
JPG (12.27 MB)

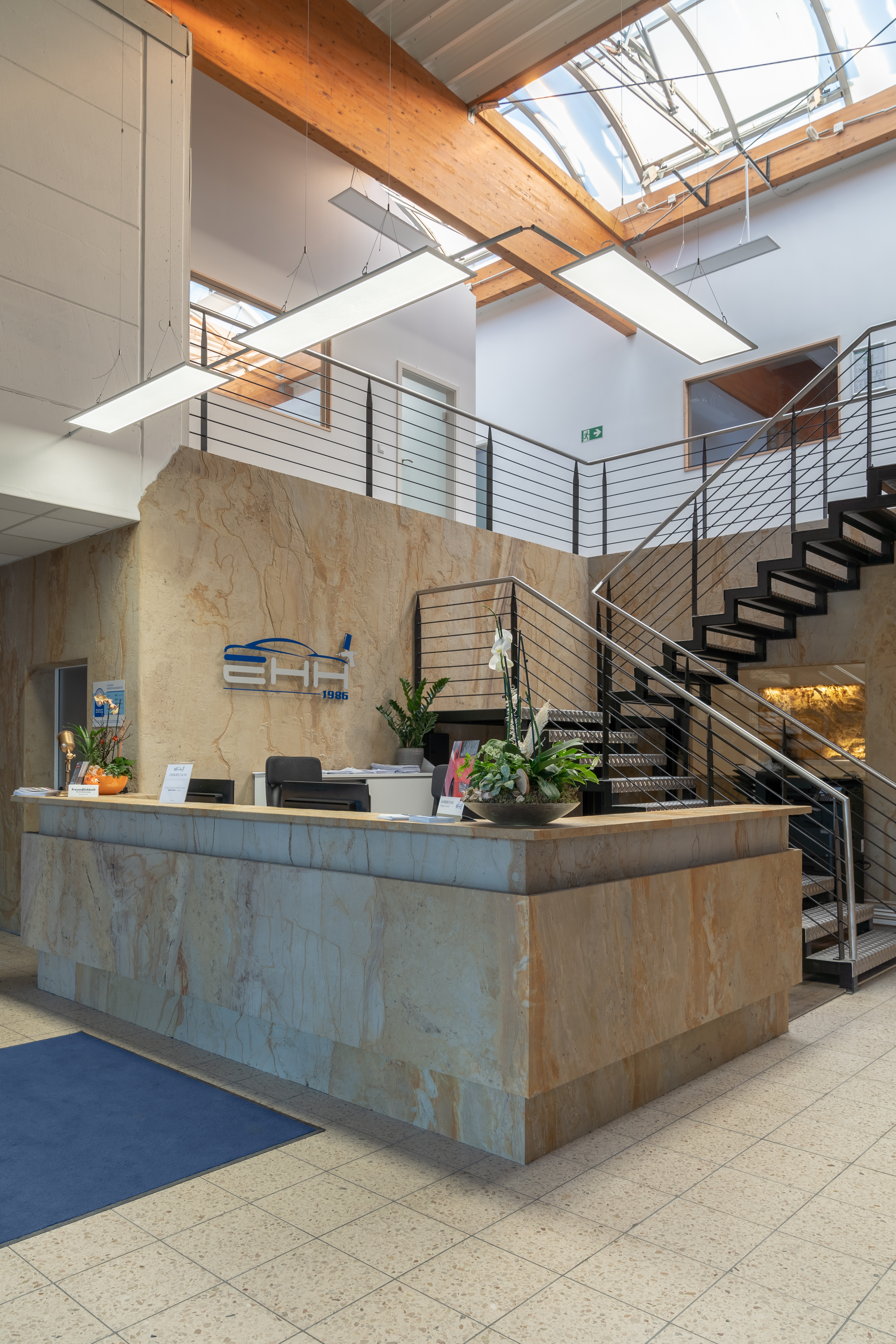

Application pictures
