LED ECO LITE FLOODLIGHT G2

LED ECO LITE FLOODLIGHT 20 W/6500 K

GTIN: 4058075729421 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Low windage thanks to the compact and slim design
  • Cable water stopper protects luminaires against the siphonage
  • Texture glass offer a comfortable lighting
  • IP65 protection is suitable for outdoor application
Areas of application
  • Parking
  • Sports facilities
  • Billboard lighting
  • Public areas
Product features
  • Driver on board technology platform
  • Available in 10 W, 20 W, 30 W, 50 W, 100 W, 150 W and 200 W
  • Standard CCT: 3000 K & 6500 K
  • Color rendering index Ra: > 80
  • Power factor: > 0.9
  • Luminaire efficacy: up to 80 lm/W
  • Lifetime: up to 20,000 h
  • Safety compliance certificates: CB, EMC, RoHS 2.0
Electrical data
Nominal wattage 20.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 0.09 A
Inrush current 0.53 A
Inrush current time Th50 1.24 µs
Max. number of luminaires per miniature circuit breaker B16 142
Max. number of luminaires per miniature circuit breaker C16 142
Power factor λ 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Photometrical data
Luminous flux 1600 lm
Luminous efficacy 80 lm/W
Color temperature 6500 K
Light color (designation) Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity 640
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 133.00 mm
Height 21.00 mm
Width 126.00 mm
Product weight 250.00 g
Cable length 0.2 m
Materials & Colors
Product color Gray
Housing color Gray
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+45 °C
Type of protection IP65
Protection class IK (shock resistance) IK05
Dimmable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 20000 h 1)
Lifespan L80/B10 at 25 °C 20000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CB, ROHS, EMC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075729421 Folding box
1		 139 mm x 28 mm x 134 mm 280.00 g 0.52 dm³
4058075729438 Shipping box
50		 792 mm x 162 mm x 309 mm 14703.00 g 39.65 dm³

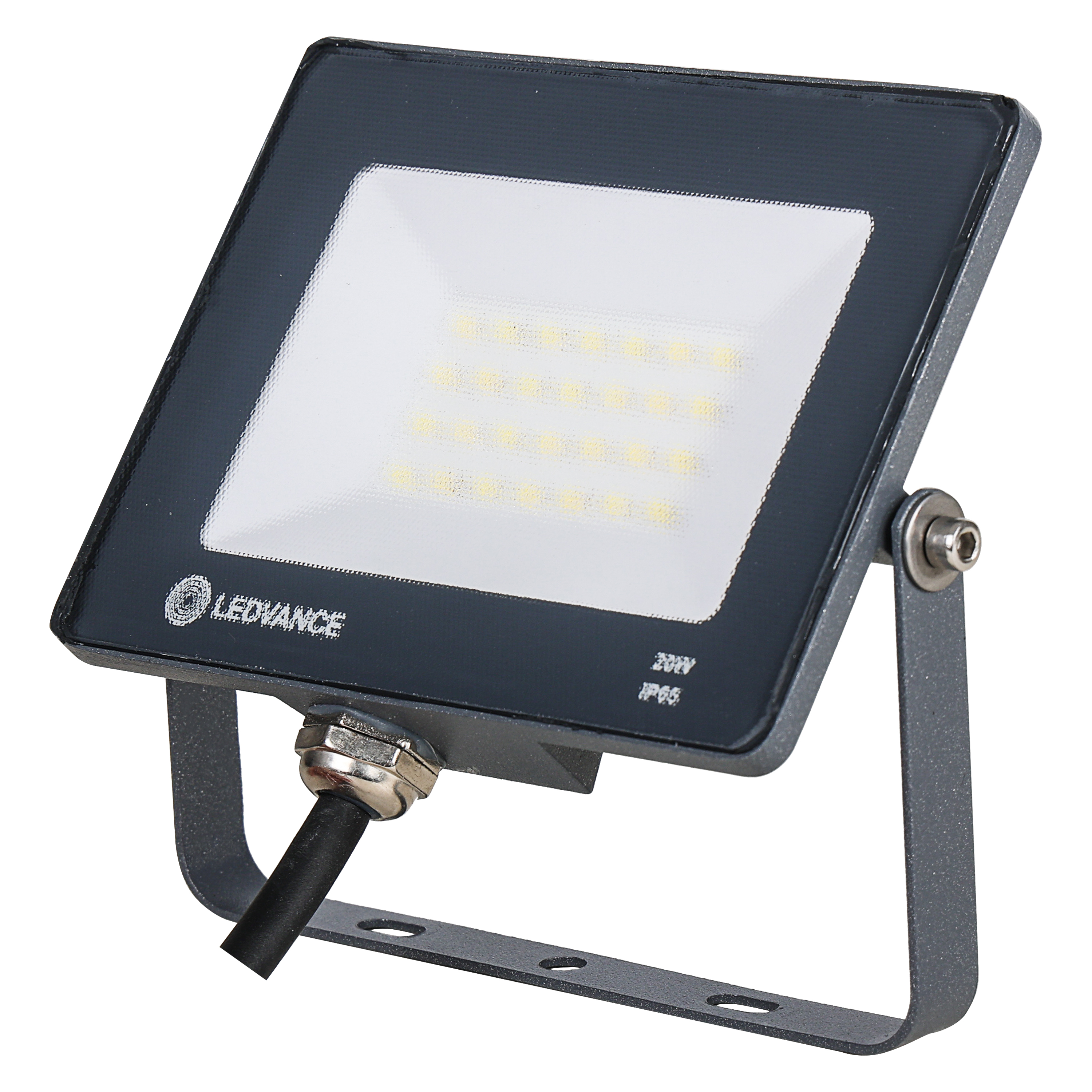

Product image: white background, spacial
LDECO LITE FL 20W G2
JPG (2.91 MB)
Product line drawing with letters
LDECO LITE FL 20W G2
SVG (44.48 KB)
IES file (IES)
LDECO LITE FL 20W 865
IES (10.25 KB)
