LED ECO LITE DAMP PROOF HOUSING
LED ECO LITE DAMP PROOF HOUSING DE1200
GTIN: 4099854110306
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- UV-stabilized polycarbonate opal diffuser for uniform light distribution and long durability
- Polycarbonate body and diffuser offers IK08 impact protection
- VDE certified components ensure product reliability
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Class II luminaire
- Two versions for IEC62776 single ended LED tubes and double ended LED tubes
- PG13.5 cable gland
- Classic design with PC body and PC diffuser
- Type of protection: IP65
- Impact resistance: IK08
Dimensions & Weight
| Length | 1277.00 mm |
| Height | 67.00 mm |
| Width | 109.00 mm |
| Product weight | 1005.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Plastic |
Application & Mounting
| Dimmable | No |
| Mounting type | Surface/Suspended |
| Application environment | Indoor |
| Replaceable light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854110306 | Folding box 1 |
112 mm x 69 mm x 1,279 mm | 1073.00 g | 9.88 dm³ |
| 4099854110313 | Shipping box 8 |
1,300 mm x 240 mm x 305 mm | 9664.00 g | 95.16 dm³ |
User instruction / safety instructions
LDE LITE DP DE 1200 2XLAMP HOUSING
LDE LITE DP DE 1200 2XLAMP HOUSING

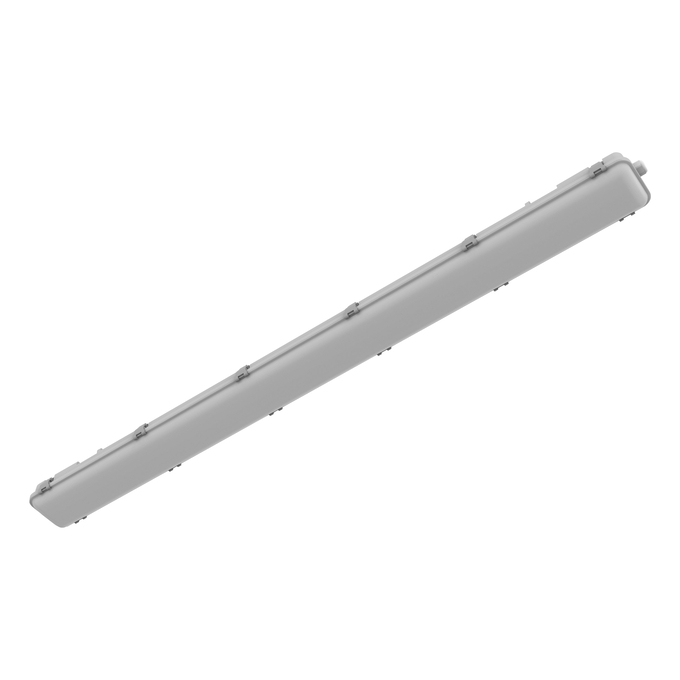

Product image: white background, diagonal
LED ECO LITE DP HOUSING
LED ECO LITE DP HOUSING

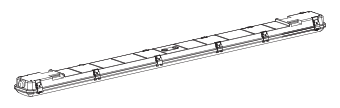

Product line drawing with numbers
LED ECO LITE DP HOUSING
LED ECO LITE DP HOUSING

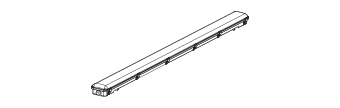

Product line drawing, front, no dimensions
LED ECO LITE DP HOUSING
LED ECO LITE DP HOUSING
Product line drawing, front, no dimensions
LED ECO LITE DP HOUSING
LED ECO LITE DP HOUSING
