STERIWHITE AIRQ330

STERIWHITE AIRQ330 W

GTIN: 4260732190035 Shipping box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product features
  • Extremely quiet, no annoying air flow
  • Energy-efficient
  • Low-maintenance
  • Easy operation
  • Modern design
  • One performance level 330 m³/h at <35 dB (A)
  • Made in Germany
Electrical data
Nominal wattage 200.00 W
Nominal voltage 230 V
Mains frequency 50 Hz
Protection class I
Operating mode Integrated driver
UV & Air cleaning
Maximum disinfection volume flow 330 m³/h
Air circulation 330 m³/h
UV radiated power 136 W
UV-C source lifetime 16000 h
Noise level in UV-C disinfection mode < 35 dB
Suitable for room space up to 25 m²
Dimensions & Weight
Length 210.00 mm 1)
Height 860.00 mm 1)
Width 860.00 mm 1)
Product weight 45000.00 g
Cable length 3000 mm
1) The dimension can vary depending on type of mounting variant
Materials & Colors
Product color White
Body material Steel
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range 0…+40 °C
Type of connection Plug type C (EU)
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Certificates & Standards
Standards CE
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4260732190035 Shipping box
1		 1,200 mm x 800 mm x 1,500 mm 75000.00 g 1440.00 dm³
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)

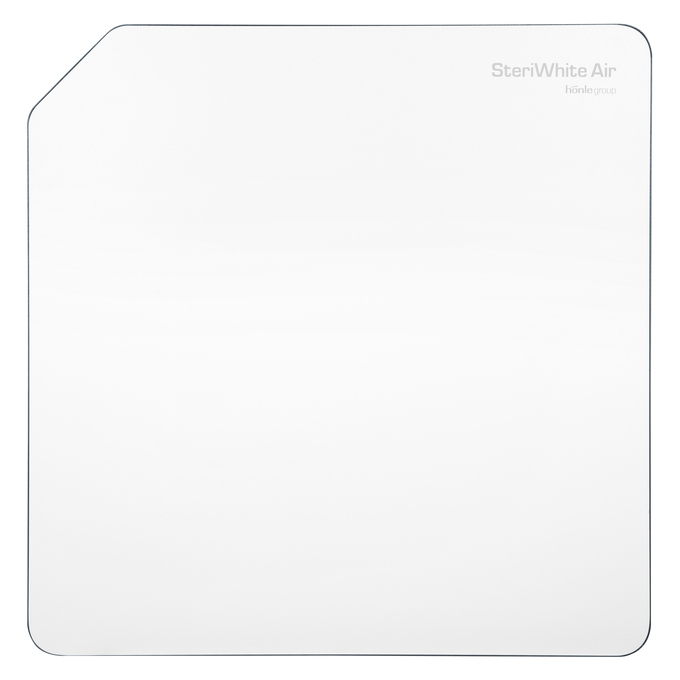

Product image: white background, upright
STERIWHITE AIRQ330 W
JPG (1.63 MB)

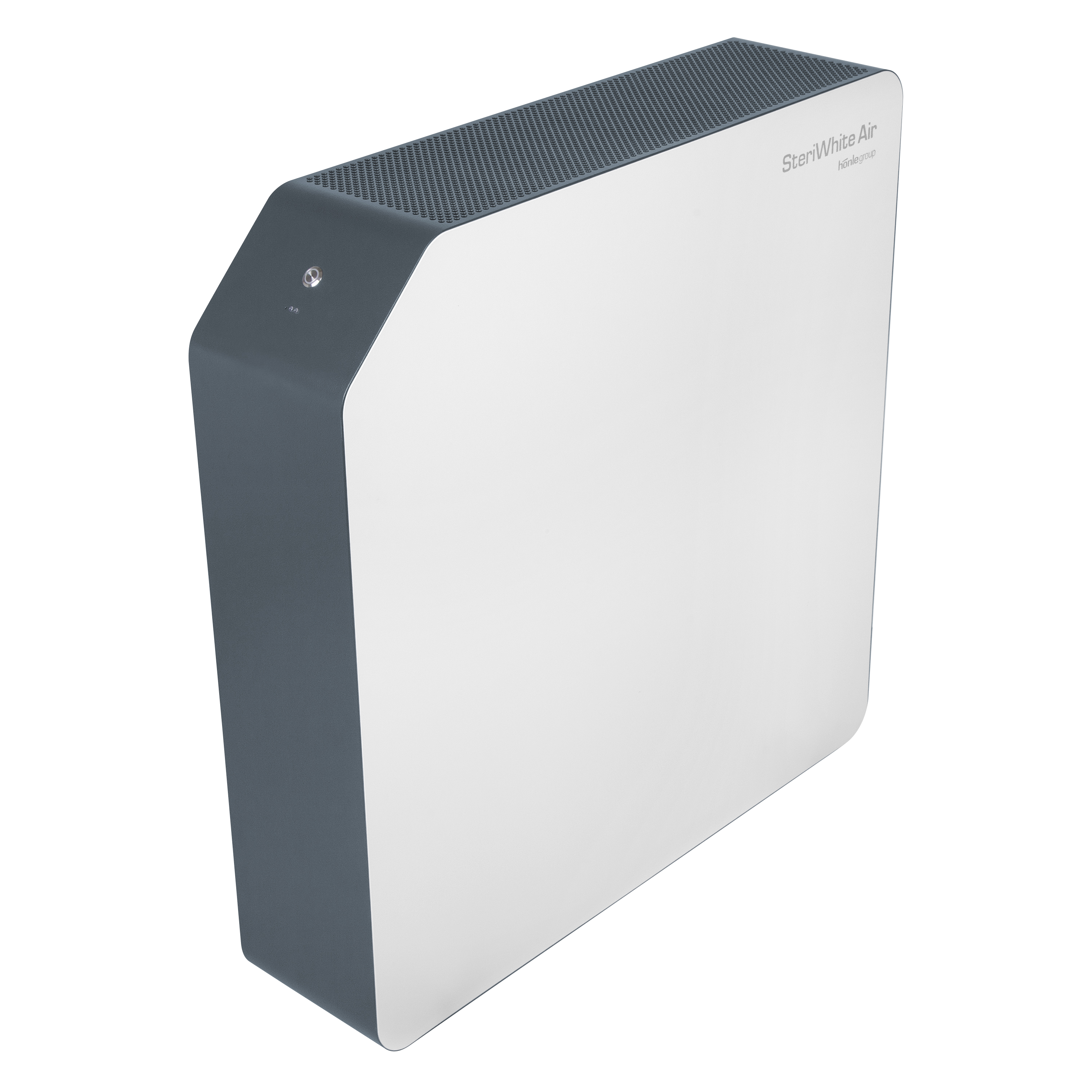

Product image: white background, spacial
STERIWHITE AIRQ330 W
JPG (2 MB)
Product line drawing with letters
STERIWHITE AIRQ330 W
SVG (8.24 KB)
Product line drawing with numbers
STERIWHITE AIRQ330 R and STERIWHITE AIRQ330 W
SVG (15.44 KB)
Product line drawing - technical
STERIWHITE AIRQ330 W
SVG (3.82 KB)
EAN STK number EFO number
4260732190035 8304603 4901454
