LED VALUE CEILING GEN4

LED VALUE CEILING 20 W 3000 K

GTIN: 4058075519893 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Areas of application
  • Bedrooms
  • Dining rooms
  • Balcony
  • Corridors
Product features
  • Protection class: I
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Lifetime (L70/B50): up to 30,000 h
  • Color consistency: SDCM 5
  • Color rendering index Ra: ≥ 80
  • Beam angle: 120°
  • Surge voltage capability: 1 KV
Electrical data
Nominal wattage 20.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 180.000 mA
Protection class I
Photometrical data
Luminous flux 1500 lm
Luminous efficacy 75 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Beam angle 120 °
Dimensions & Weight
Diameter 330.00 mm
Height 65.00 mm
Product weight 546.00 g
Materials & Colors
Product color White
Housing color White
Body material Metal
Cover material Polymethylmethacrylate (PMMA)
Mercury content 0.0 mg
Application & Mounting
Type of connection Terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075519893 Folding box
1		 370 mm x 370 mm x 71 mm 880.00 g 9.72 dm³
4058075519909 Shipping box
5		 385 mm x 375 mm x 395 mm 5120.00 g 57.03 dm³
User instruction / safety instructions
LED VALUE CEILING
PDF (3.21 MB)

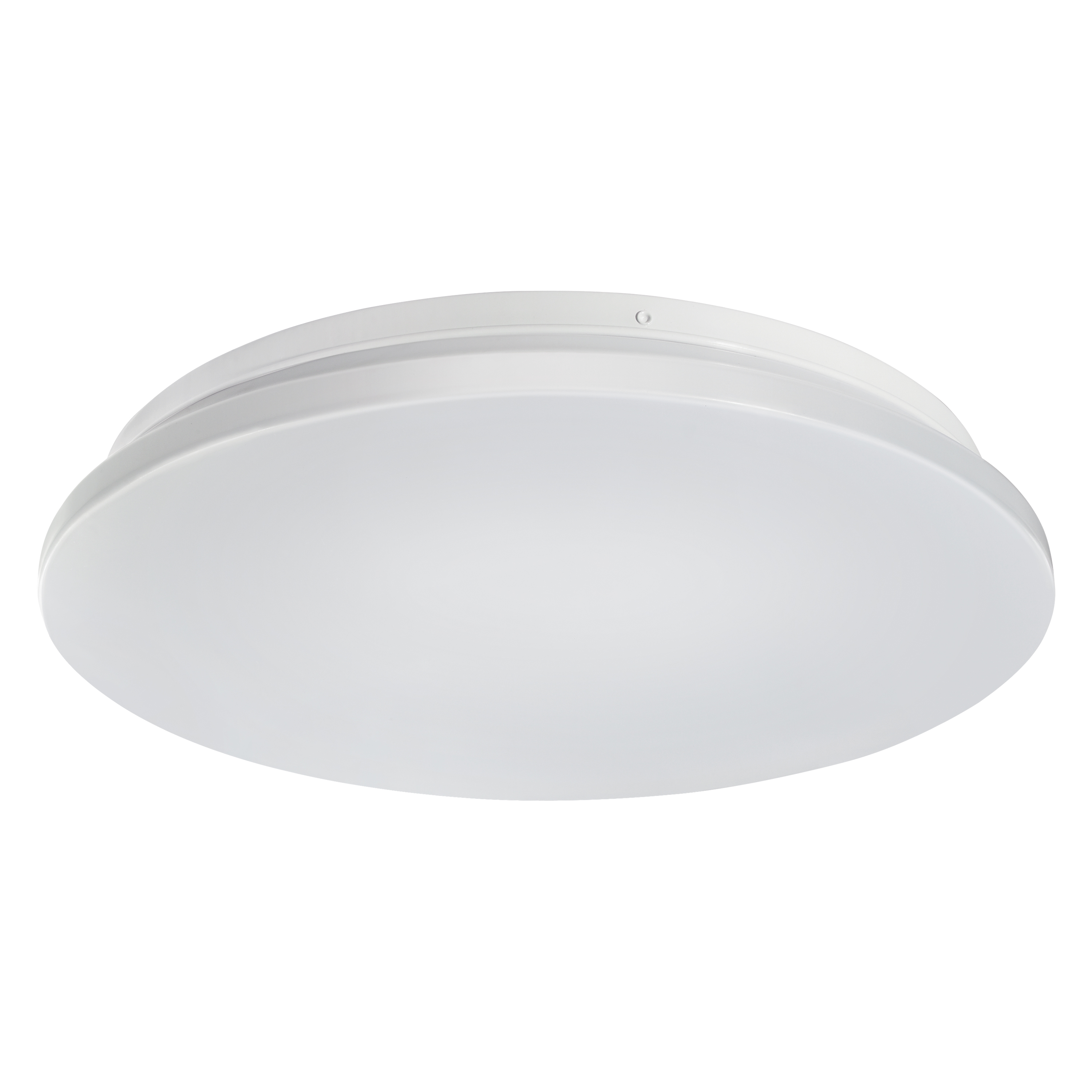

Product image: white background, spacial
