LED ECO CEILING LIGHT (APM)

LDECO CEILING 42W/830 230V

GTIN: 4058075581531 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Homogenous light distribution
  • Simple installation
  • Low maintenance costs thanks to long lifetime
Areas of application
  • Bedrooms
  • Dining rooms
  • Terraces
  • Corridors
Product features
  • Protection class: I
  • Available with wattage: 23 W, 30 W and 42 W
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color consistency: SDCM＜6
  • Color rendering index Ra: > 80
  • Type of protection: IP20
  • Certificate: CB, EMC, RoHS
Electrical data
Nominal wattage 42.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 2600 lm
Luminous efficacy 62 lm/W
Color temperature 3000 K
Light color (designation) 3000 K
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
UGR < 22
Dimensions & Weight
Diameter 440.00 mm
Height 75.00 mm
Product weight 920.00 g
Materials & Colors
Product color White
Housing color White
Body material Metal
Cover material Polystyrene (PS)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source No
Certificates & Standards
Standards CB, RoHS, EMC
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075581531 Folding box
1		 495 mm x 80 mm x 495 mm 1334.00 g 19.60 dm³
4058075581548 Shipping box
4		 510 mm x 340 mm x 510 mm 6286.00 g 88.43 dm³
User instruction / safety instructions
LED ECO CEILING LIGHT
PDF (1.66 MB)

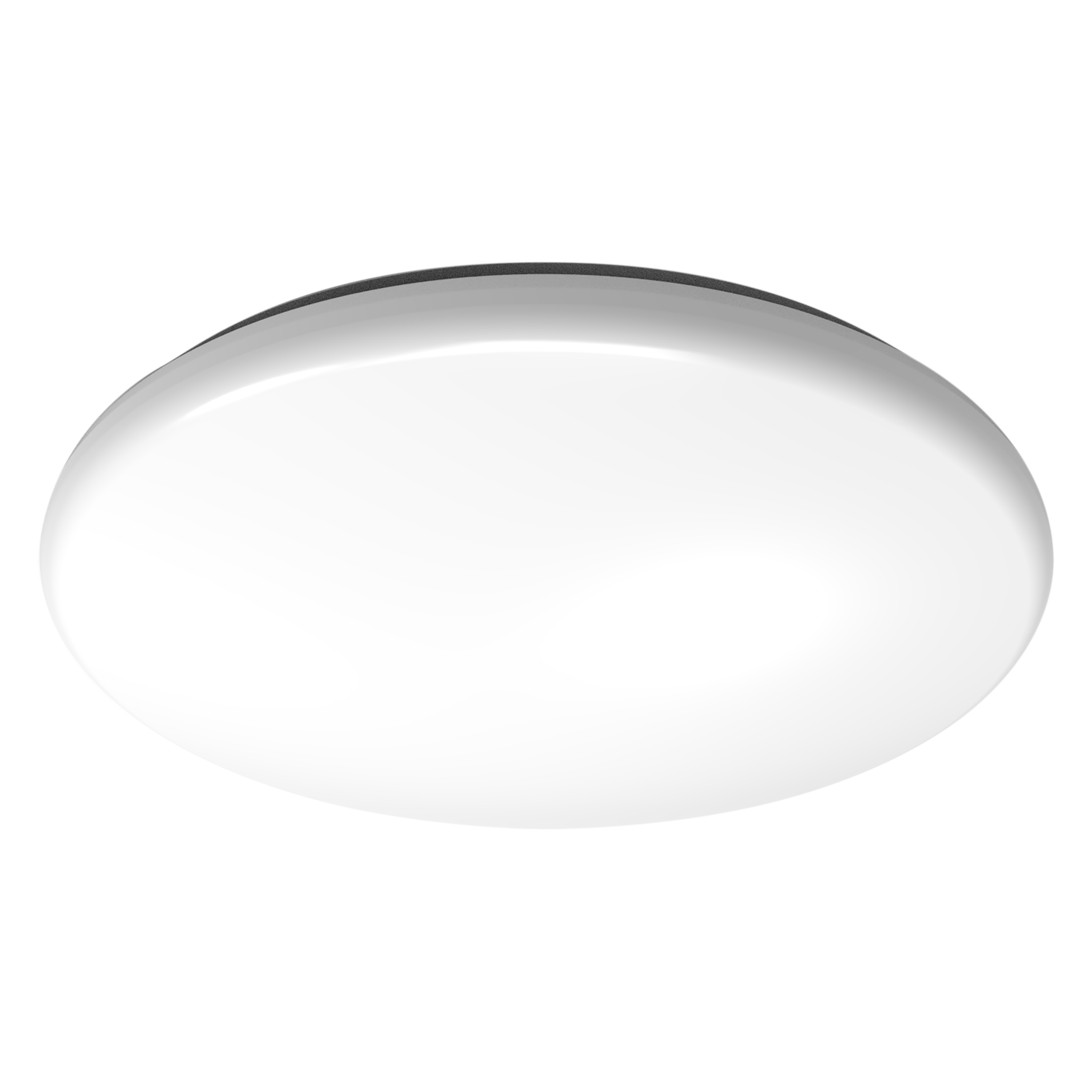

Product image: white background, spacial
LDECO CEILING 42W 230V
JPG (774.83 KB)
Product line drawing with numbers
LDECO CEILING 42W 230V
SVG (8.35 KB)

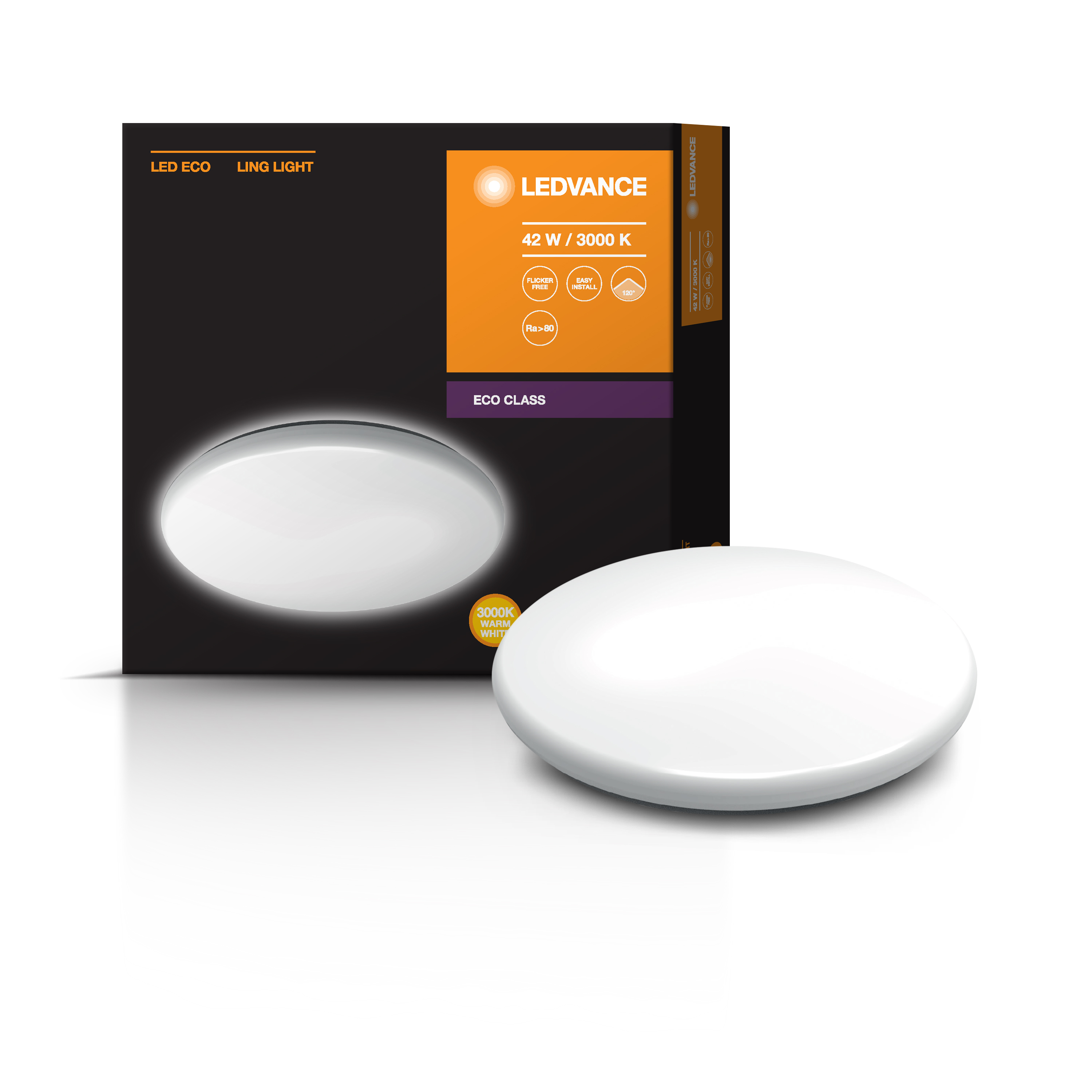

Combo Shot = Product Beauty Shot + Packaging Image
LED ECO CEILING 42W 830 230V
JPG (1.31 MB)
IES file (IES)
LDECO CEILING 42W/830 230V
IES (10.15 KB)
