LED VALUE LINEAR

LED VALUE LINEAR 600 16W 865

GTIN: 4058075540811 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Areas of application
  • Plants
  • Supermarkets
  • Warehouses
Product features
  • Protection class: II
  • Mercury-free and RoHS compliant
  • Type of protection: IP40
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Lifetime (L70/B50): up to 20,000 h
  • Color consistency: SDCM 6
  • Color rendering index Ra: > 80
  • Beam angle: 120°
  • Surge voltage capability: 500 V - 1000 V
Electrical data
Nominal wattage 16.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 70.000 mA
Protection class II
Operating mode Integrated LED driver
Photometrical data
Luminous flux 1600 lm
Luminous efficacy 100 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra 80
Standard deviation of color matching < 6 sdcm
Beam angle 120 °
Dimensions & Weight
Length 600.00 mm
Height 27.00 mm
Width 70.00 mm
Product weight 150.00 g
Cable length 650 mm
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Type of connection Wires
Type of protection IP40
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source No
Certificates & Standards
Standards CB, RoHS
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075540811 Folding box
1		 621 mm x 76 mm x 33 mm 420.00 g 1.56 dm³
4058075540828 Shipping box
50		 637 mm x 402 mm x 360 mm 21622.00 g 92.19 dm³

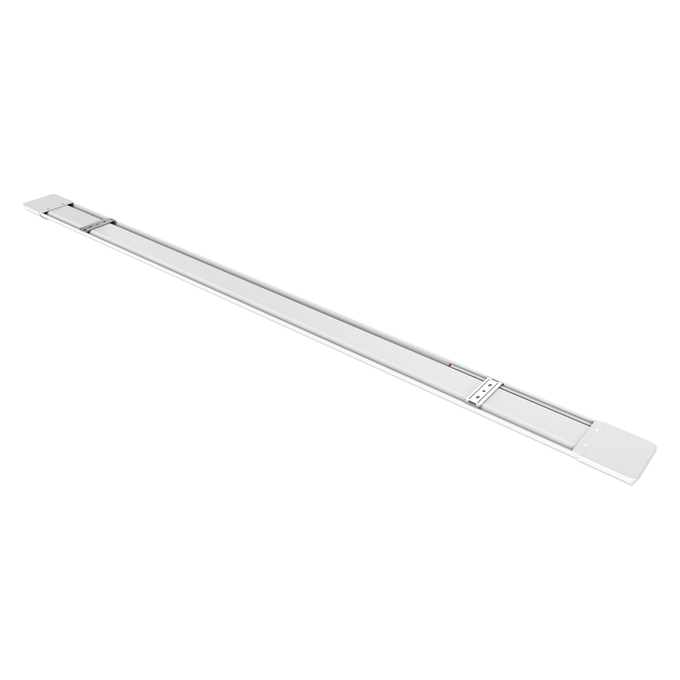

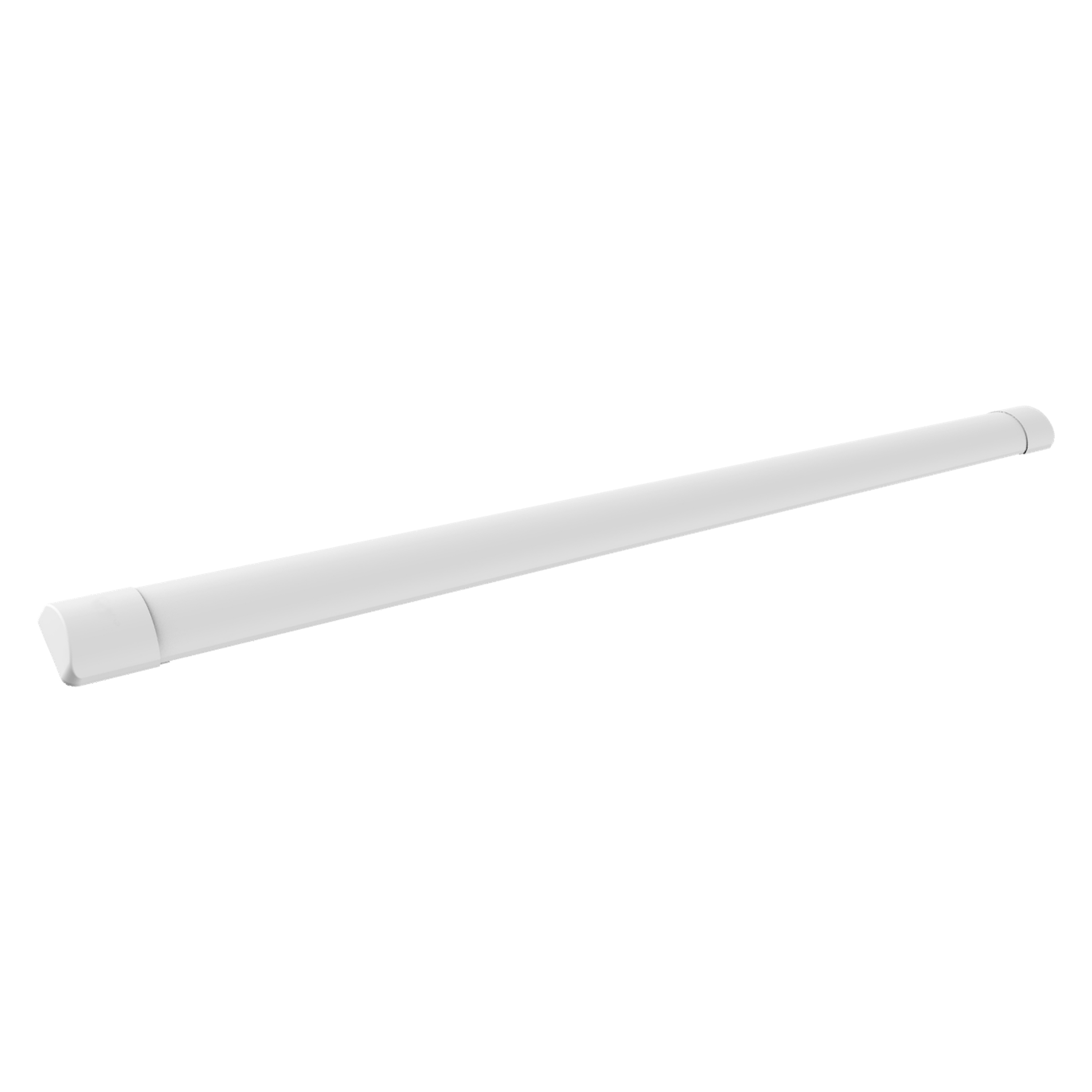

Product image: white background, spacial
LDVAL LINEAR APAC
JPG (682.72 KB)
Product line drawing with numbers
LDVAL LINEAR 600 16W
SVG (19.11 KB)
IES file (IES)
AC289560055 LDVAL LINEAR 600 16W 865
IES (2.36 KB)
LDT file (Eulumdat)
AC289560055 LDVAL LINEAR 600 16W 865
LDT (1.91 KB)
